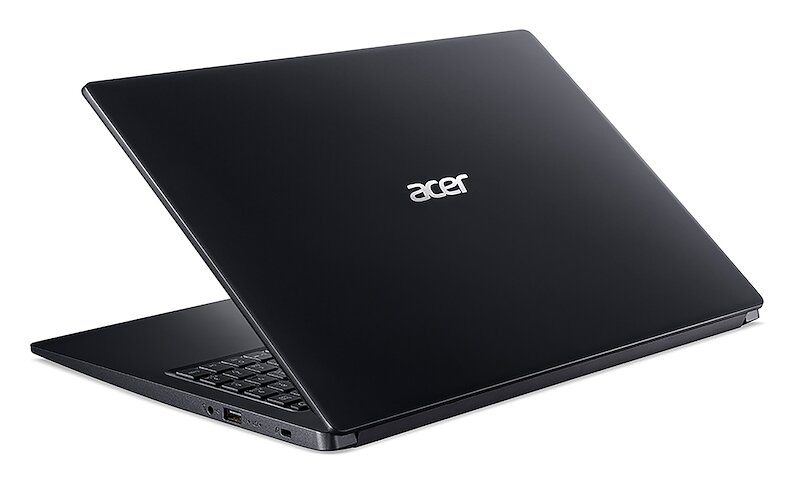

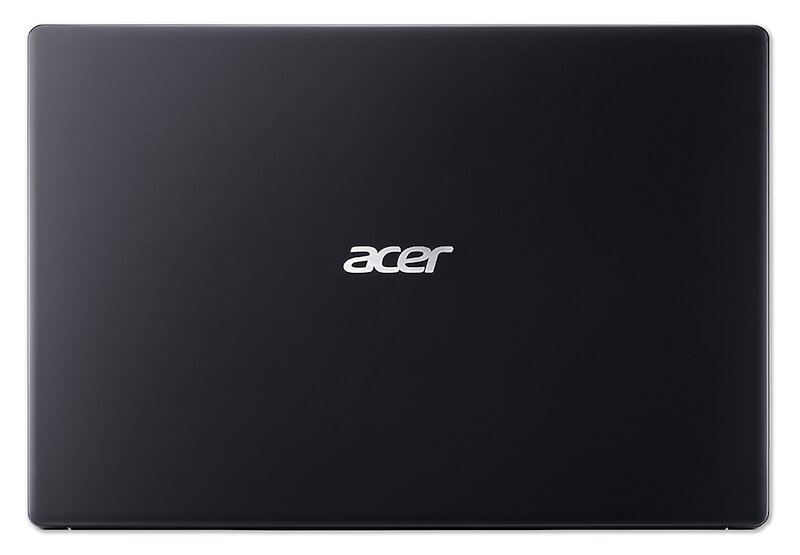

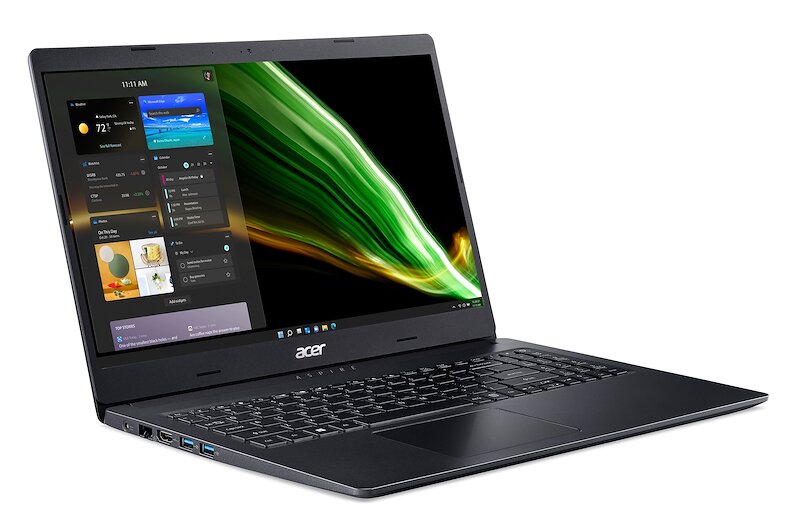

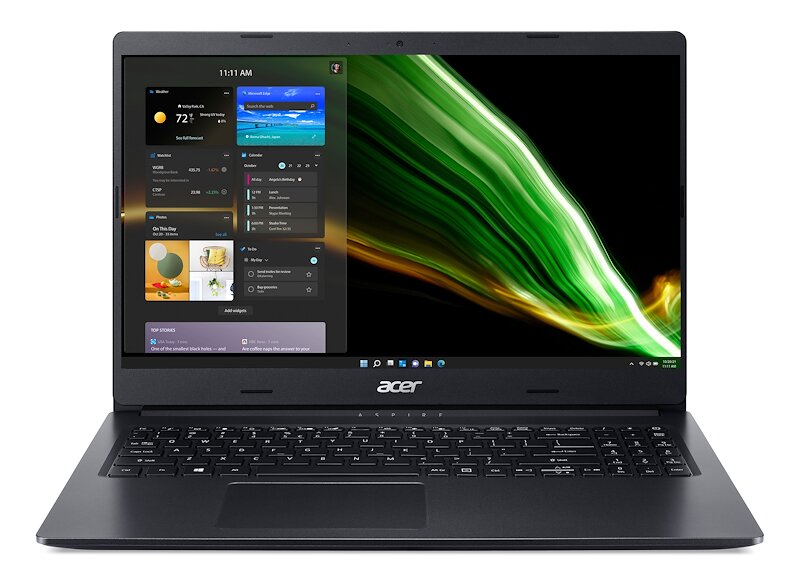

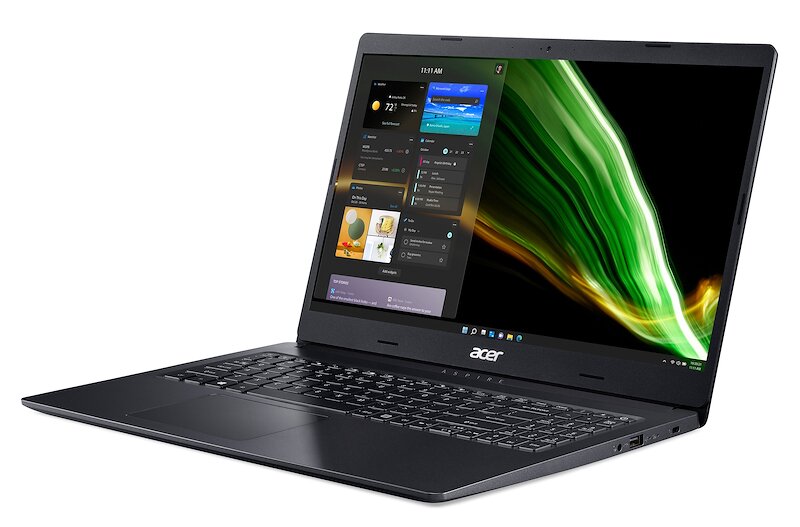

ACER Aspire A315-23-R7DR RAM upgrade specifications

The ACER Aspire 3 series model A315-23-R7DR features DDR4-SDRAM memory upgrade specifications. The laptop contains 1x SO-DIMM memory slot with a maximum RAM capacity of 12 GB. Compatible memory modules operate at 2133 MHz frequency and use the SO-DIMM form factor. Upgrade specifications indicate the device supports DDR4 memory technology, enabling users to expand the system's memory capacity up to the maximum supported threshold.

Additional Notes

• The ACER Aspire A315-23-R7DR features a single memory slot configuration, eliminating dual-channel memory operation and reducing potential memory bandwidth by approximately 50 percent compared to systems with populated dual-channel architectures.
• The 12 GB maximum capacity indicates one permanently soldered memory module on the motherboard, with the single SO-DIMM slot serving as the only user-accessible expansion point.
• Achieving the 12 GB maximum requires installing an 8 GB module in the SO-DIMM slot, which will operate asymmetrically with the soldered 4 GB module in flex mode rather than true dual-channel mode.
• The 2133 MHz specification represents DDR4-2133 standard, corresponding to PC4-17000 memory modules with a theoretical maximum bandwidth of 17 GB/s in dual-channel operation, though actual bandwidth will be lower in this single-slot implementation.
• Memory speed downclocking may occur if a module rated above 2133 MHz is installed, as the system firmware will adjust faster modules to match the chipset's supported frequency specification.
• The SO-DIMM form factor requires 260-pin modules measuring approximately 69.6 mm in length, which differs from desktop DIMM modules and prevents interchange between form factors.
• Modules exceeding standard height specifications may encounter physical clearance issues with the bottom panel or keyboard assembly in this chassis design.
• Mixing memory modules with different timings (CAS latency values) will force both modules to operate at the slower timing specification, potentially reducing performance beyond the frequency limitation.
• Voltage compatibility requires 1.2V DDR4 modules, as higher-voltage DDR3L or DDR3 modules use incompatible keying and electrical specifications that prevent physical installation.
• Non-ECC unbuffered memory modules are required, as registered or ECC variants designed for server applications are incompatible with consumer mobile chipsets.
• Accessing the memory slot typically requires complete bottom panel removal, which may void warranty seals depending on regional warranty terms and service policies.
