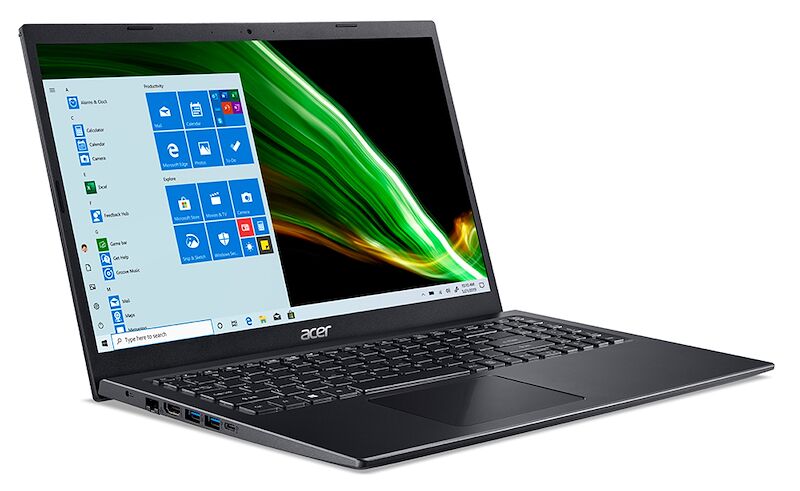

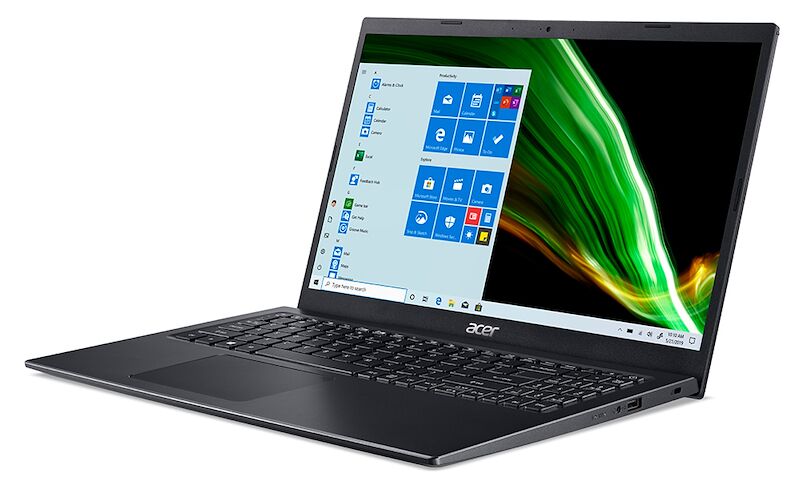

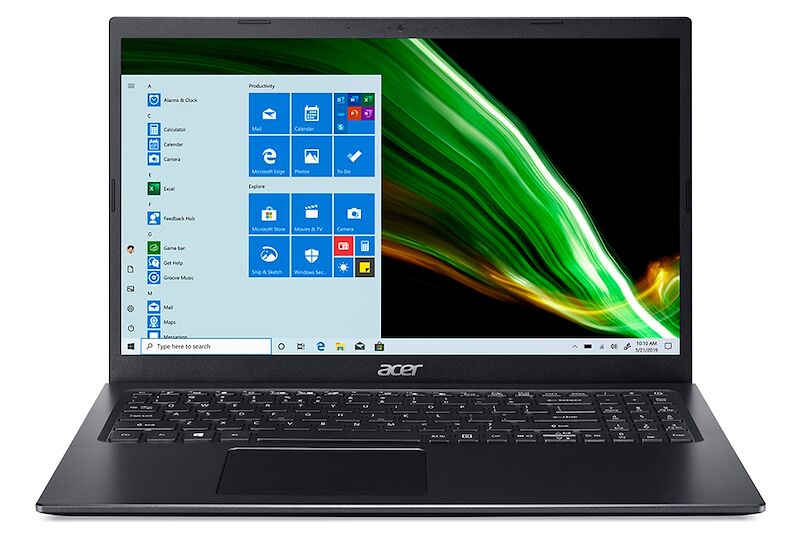

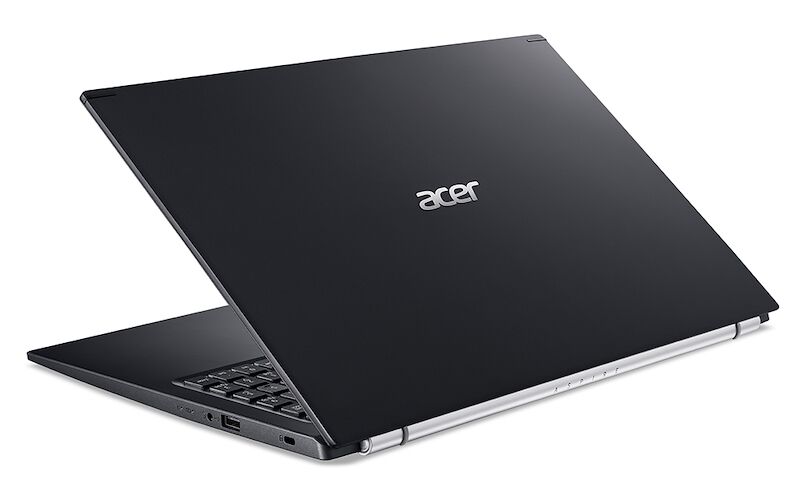

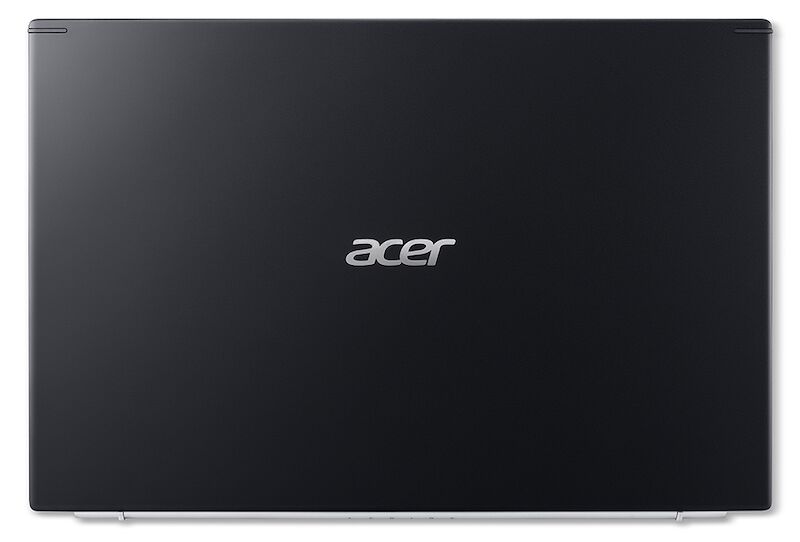

ACER Aspire A515-56-36Q1 RAM upgrade specifications

The Acer Aspire 5 A515-56-36Q1 features DDR4-SDRAM memory with one SO-DIMM slot available for upgrade. The laptop contains on-board memory combined with a single upgradeable SO-DIMM slot. Maximum compatible RAM capacity reaches 12 GB, with memory operating at 2133 MHz specifications. RAM upgrade specifications indicate the SO-DIMM slot supports DDR4 modules to achieve maximum memory configuration for the A515-56-36Q1 model.

Additional Notes

• The presence of on-board memory means a portion of the system RAM is soldered directly to the motherboard and cannot be replaced if a chip failure occurs.
• The single SO-DIMM slot configuration limits the ACER Aspire A515-56-36Q1 to a lopsided dual-channel configuration where only the capacity matching the soldered memory operates at full bandwidth.
• Installing a high-speed module will result in an automatic downclock to match the 2133 MHz frequency of the soldered memory chips to maintain system stability.
• Total capacity expansion is restricted to adding an 8 GB module to the existing 4 GB soldered base to reach the hardware ceiling.
• The hardware architecture shares system memory with the integrated graphics processor which reduces the actual RAM available for operating system tasks.
• Upgrading requires access to the internal motherboard assembly which typically involves removing the entire lower chassis cover rather than a dedicated access hatch.
• Physical clearance within the slim chassis necessitates the use of standard height SO-DIMM modules to avoid contact with the back panel.
