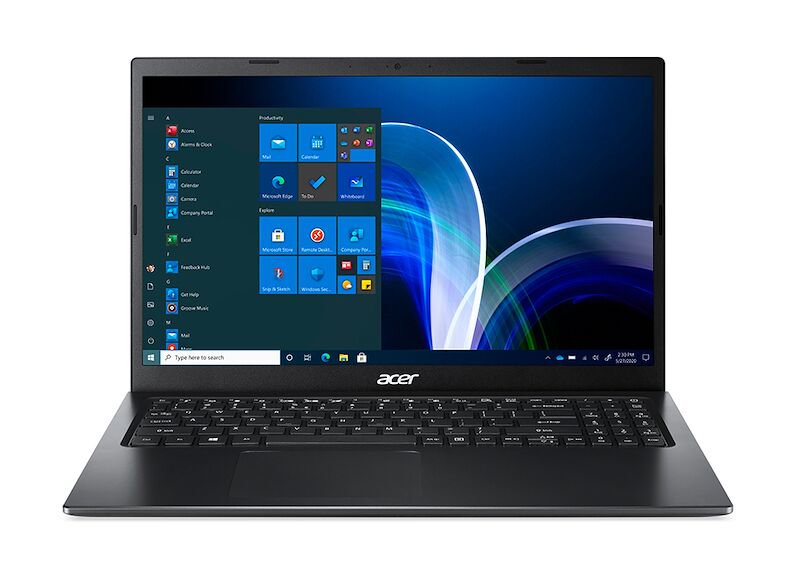

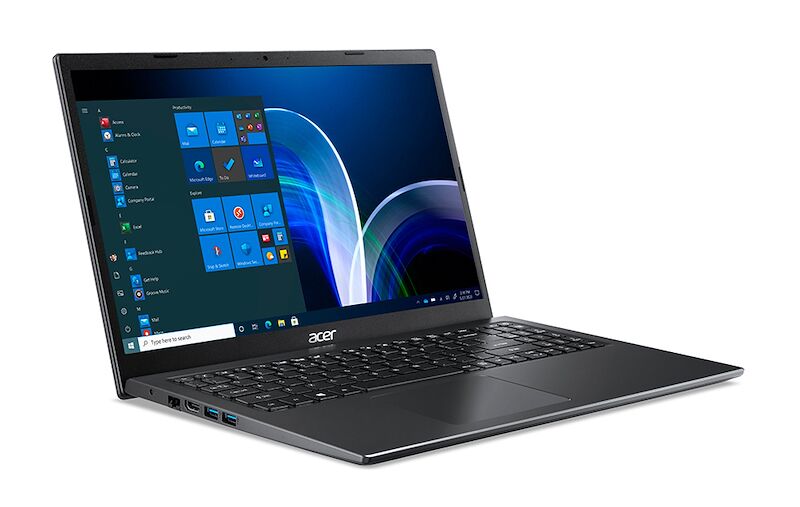

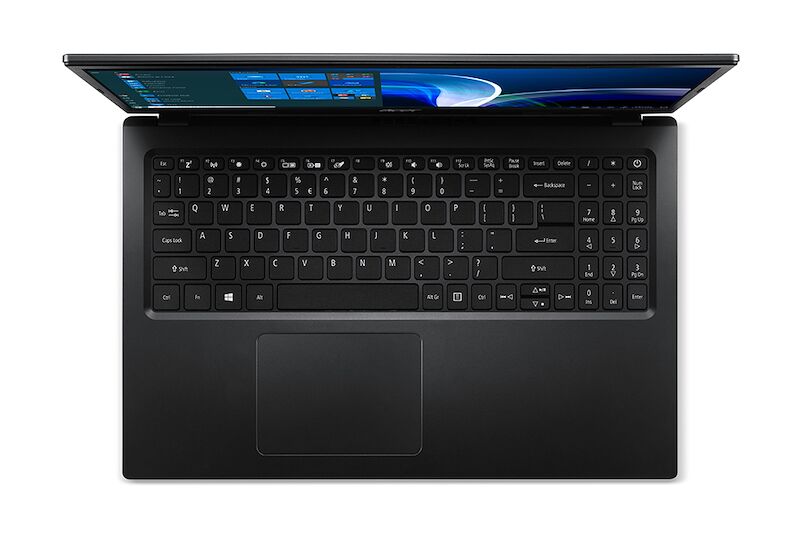

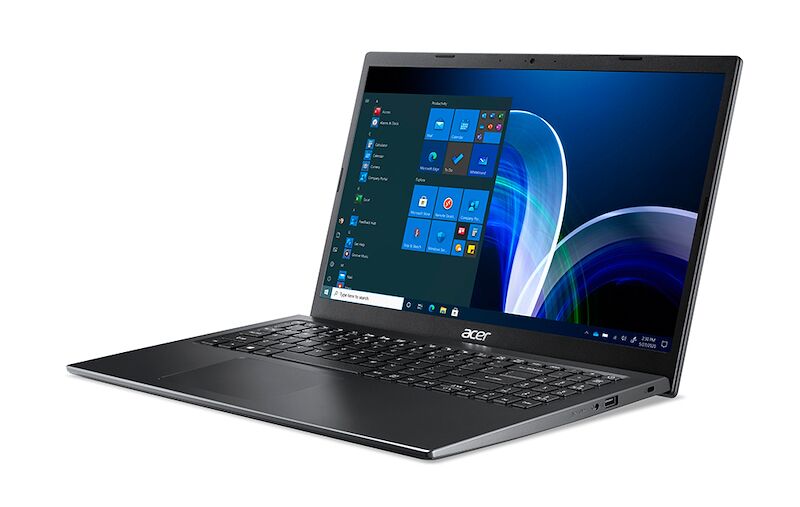

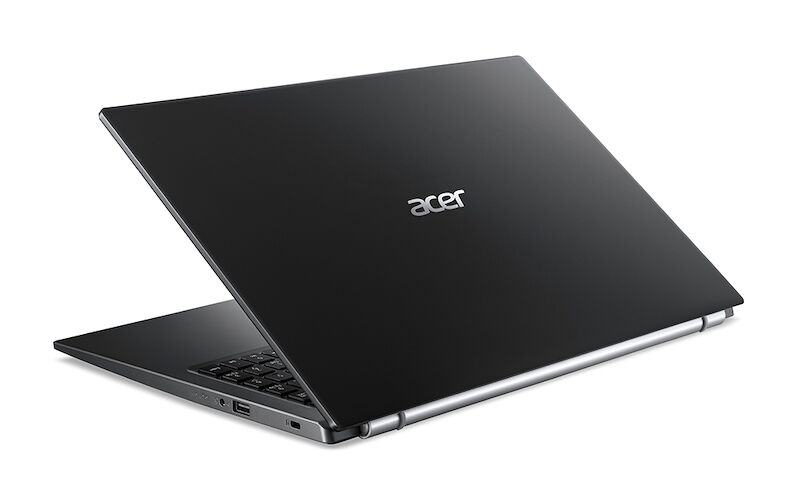

ACER Extensa EX215-54-37QL RAM upgrade specifications

Acer Extensa 15 Series model EX215-54-37QL features DDR4-SDRAM memory upgrade specifications. The laptop contains 1x SO-DIMM slot available for RAM expansion. Maximum compatible memory capacity reaches 12 GB total, combining on-board memory with upgradeable SO-DIMM slot. Memory operates at 2133 MHz frequency. RAM upgrade specifications enable users to expand system memory beyond factory configuration for improved performance.

Additional Notes

• The Acer Extensa EX215-54-37QL features 4 GB of soldered memory, limiting total system capacity to 12 GB when paired with an 8 GB module in the accessible slot.
• The single SO-DIMM socket prevents dual-channel operation across the entire memory pool, as the onboard memory operates independently from the socketed module.
• Asymmetric memory configurations will force the system into partial flex mode, where only matching capacity portions run in dual-channel while excess operates in single-channel.
• Installing a module rated above 2133 MHz will downclock to match the system's supported frequency, eliminating any performance benefit from higher-speed RAM.
• The soldered component cannot be removed or replaced without board-level rework, making the 4 GB base allocation a permanent fixture affecting upgrade economics.
• Physical access requires bottom panel removal, where the SO-DIMM slot typically resides beneath a service cover or full base plate depending on chassis revision.
• DDR4 voltage standards (1.2V) must be maintained, as low-voltage or overclocking-oriented modules may introduce stability issues despite physical compatibility.
• The 12 GB ceiling restricts professional workloads involving large datasets, virtual machines, or memory-intensive creative applications that require 16 GB or greater allocations.
• Module height specifications (standard 30mm SO-DIMM profile) must be observed to ensure clearance beneath any protective shielding or thermal interfaces present in the memory bay.
• Non-matching CAS latencies between the soldered chip and aftermarket module may force the memory controller to adopt the slower timing profile, reducing effective throughput.
