ASUS ROG G513IC-HN003 RAM upgrade specifications
ASUS ROG Strix G15 model G513IC-HN003 supports DDR4-SDRAM memory upgrades with specifications including two SO-DIMM slots and maximum RAM capacity of 32 GB total. Compatible memory modules operate at 3200 MHz frequency. The laptop features SO-DIMM form factor memory configuration. Upgrade specifications define the maximum supported memory capacity and slot configuration for this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 14 July 2021 |
Additional Notes
- Dual channel memory architecture requires installing matched pairs of modules to maximize the available memory bandwidth for the processor.
- The absence of soldered memory on the ASUS ROG G513IC-HN003 motherboard allows for the replacement of both factory modules to reach the maximum supported capacity.
- Installing modules with speeds exceeding 3200 MHz will result in automatic downclocking to match the system bus limitations.
- Utilizing high density 16 GB modules in both slots populates the maximum addressable memory space recognized by the BIOS.
- Upgrading requires standard 260 pin physical interfaces typical of the SO-DIMM form factor used in mobile workstations.

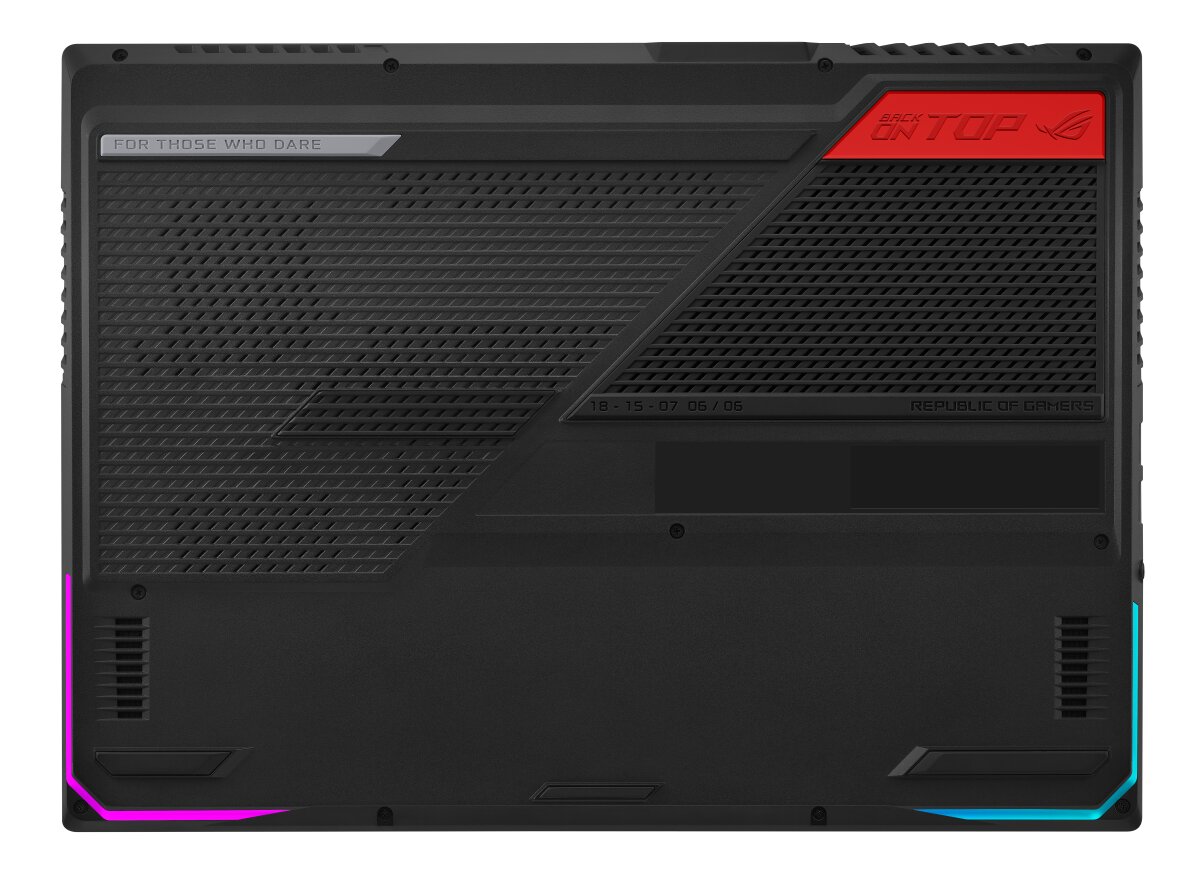

- Accessing the memory slots necessitates the removal of the bottom chassis panel which may involve disconnecting internal ribbon cables for the integrated lighting zones.
- Mixing modules with different latencies or timings forces the system to operate at the slowest common denominator affecting overall task responsiveness.
- The hardware configuration relies on integrated or discrete silicon that lacks support for ECC memory error correction functionality.
