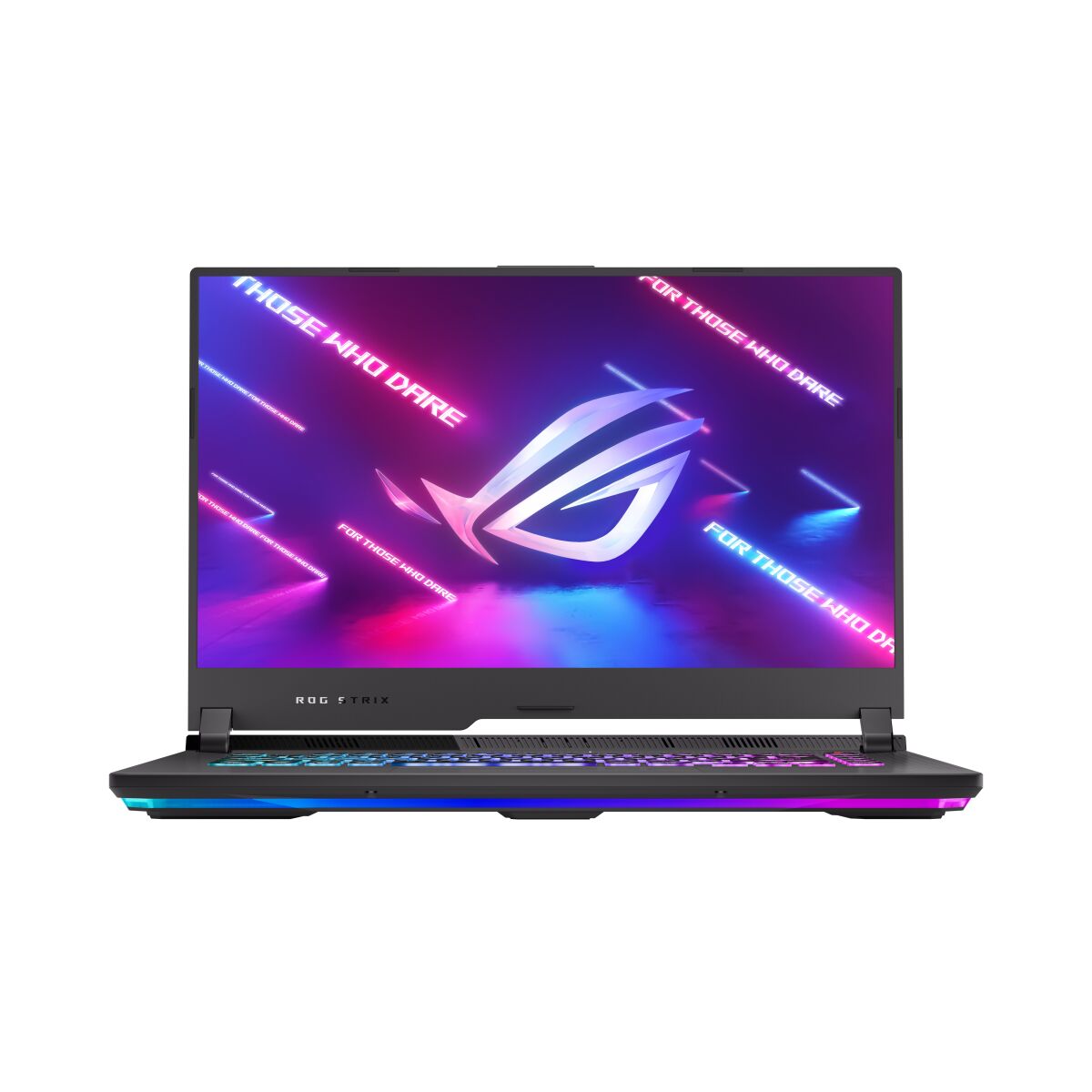

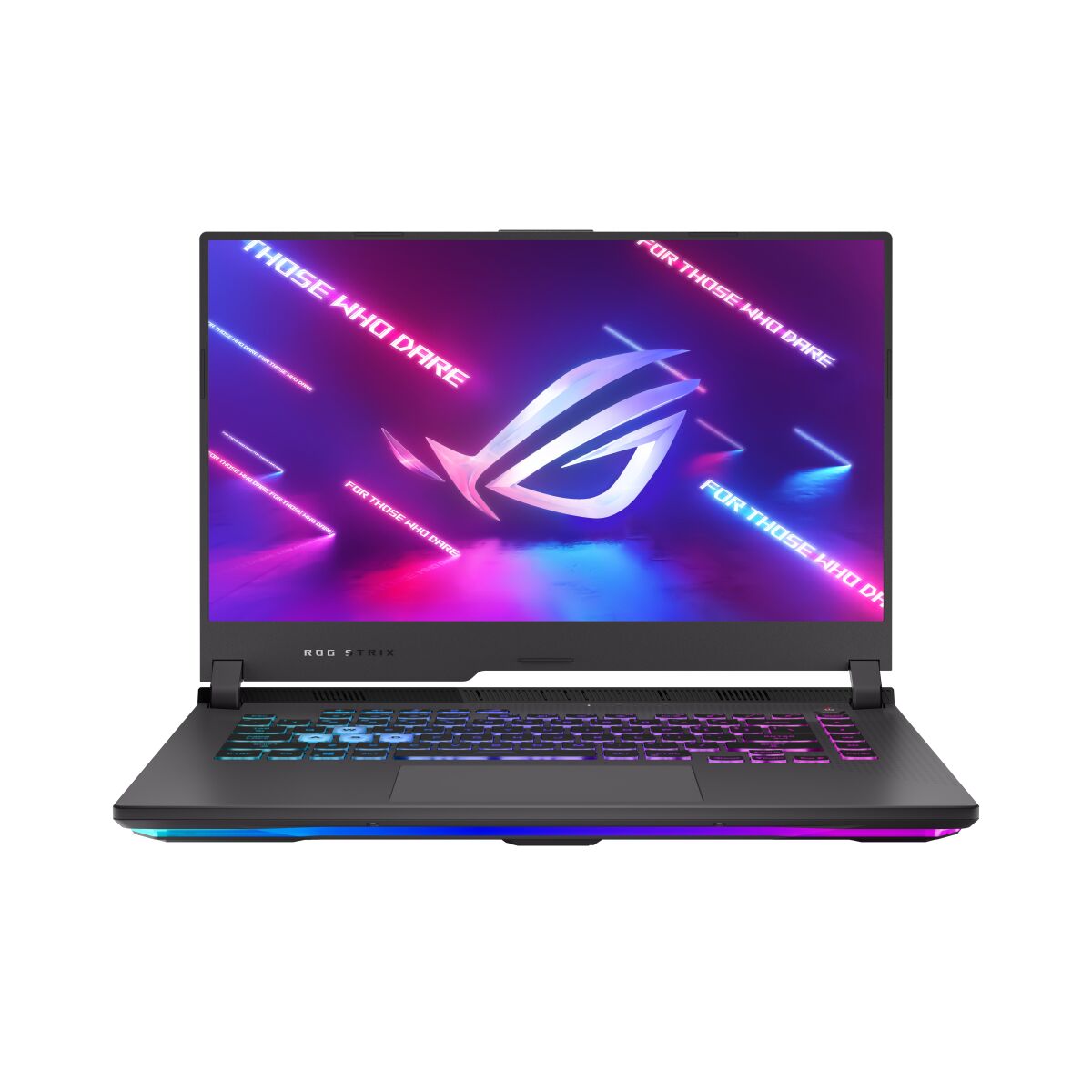

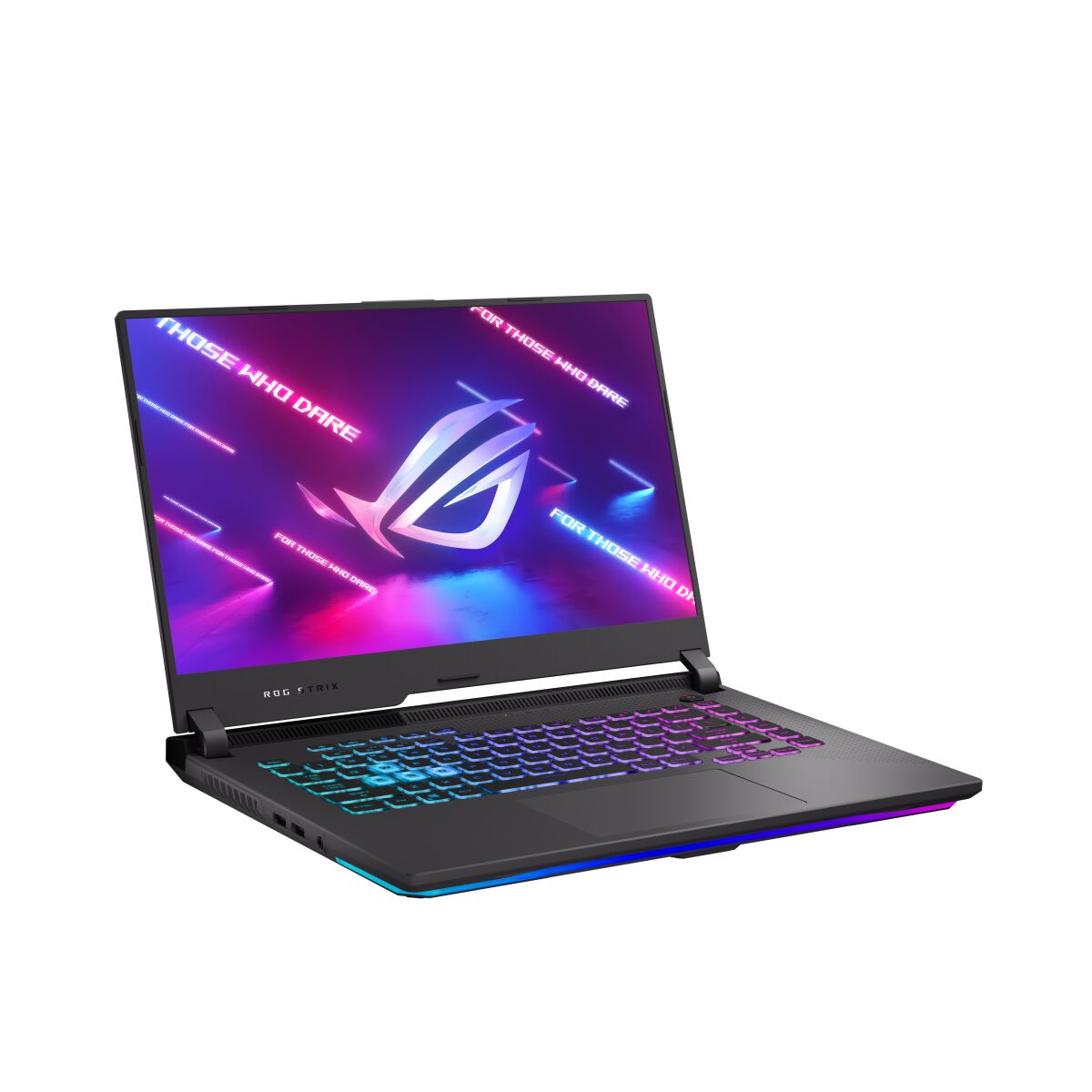

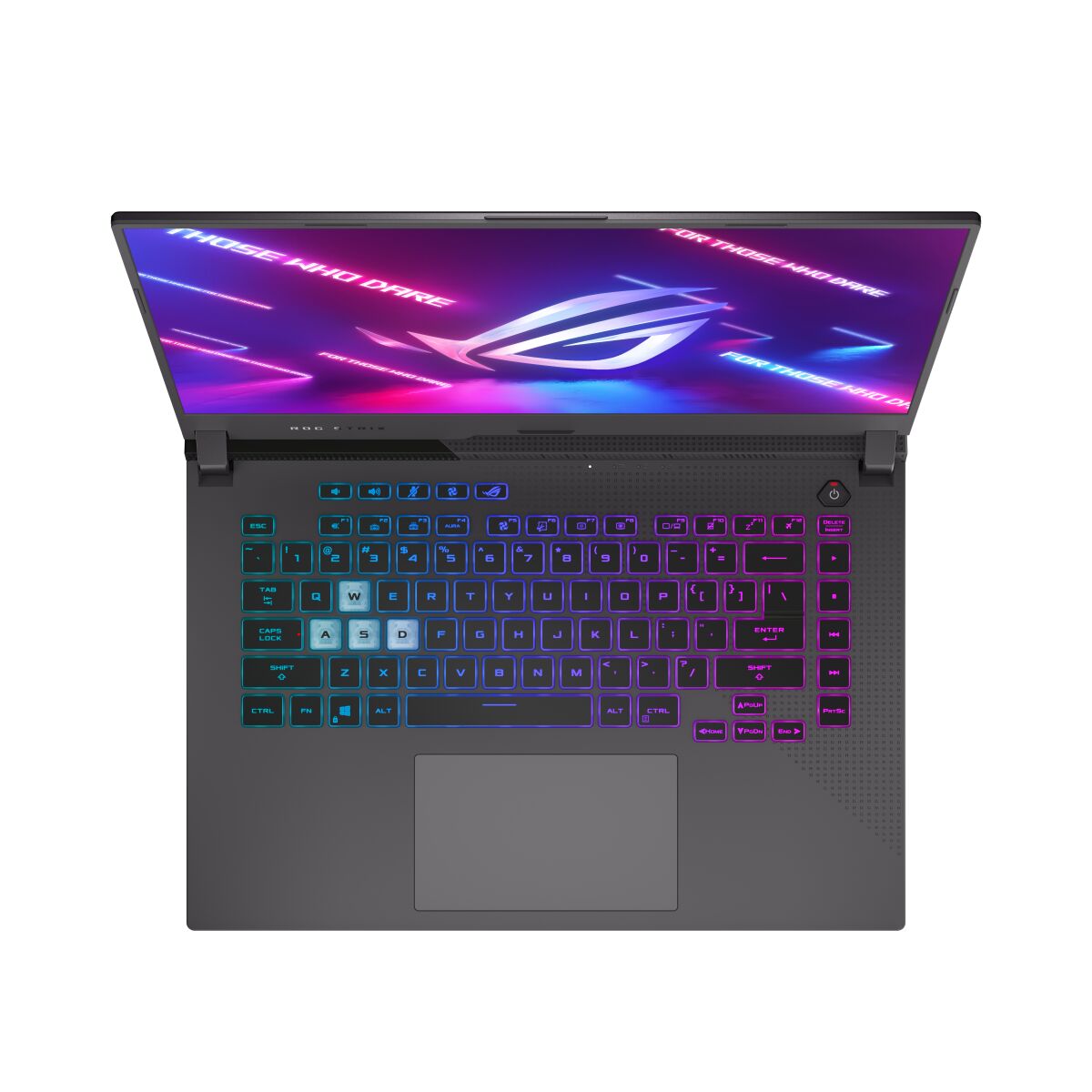

ASUS ROG G513IH-HN008W RAM upgrade specifications
The ASUS ROG Strix G15 model G513IH-HN008W features DDR4-SDRAM memory upgrade capabilities with two SO-DIMM slots supporting a maximum capacity of 32 GB. The laptop specifications indicate compatible memory operates at 3200 MHz frequency. Memory upgrade options utilize the SO-DIMM form factor standard for laptop RAM installations. The G513IH-HN008W supports DDR4 module configurations enabling system memory expansion within the specified maximum capacity limitations.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 20 January 2022 |
Additional Notes
- Dual channel mode requires identical module pairs across both slots to maximize memory bandwidth for the Ryzen processor in the ASUS ROG G513IH-HN008W.
- The 32 GB ceiling necessitates replacing existing 4 GB or 8 GB factory modules because no additional unoccupied slots exist for expansion.
- Integrated graphics demand a portion of the system memory to function as video buffer which reduces the net capacity available for the operating system.
- High density 16 GB modules must utilize 1.2V JEDEC profiles to achieve 3200 MHz speeds without BIOS XMP support.
- Physical installation involves removing the base panel and potentially disconnecting the internal battery to prevent short circuits on the motherboard circuitry.
- Installing modules with lower clock speeds forces the entire bus to synchronize at the slower rate causing a performance bottleneck.
- Upgrading memory does not void the standard hardware warranty if the process avoids physical damage to internal components and connectors.
