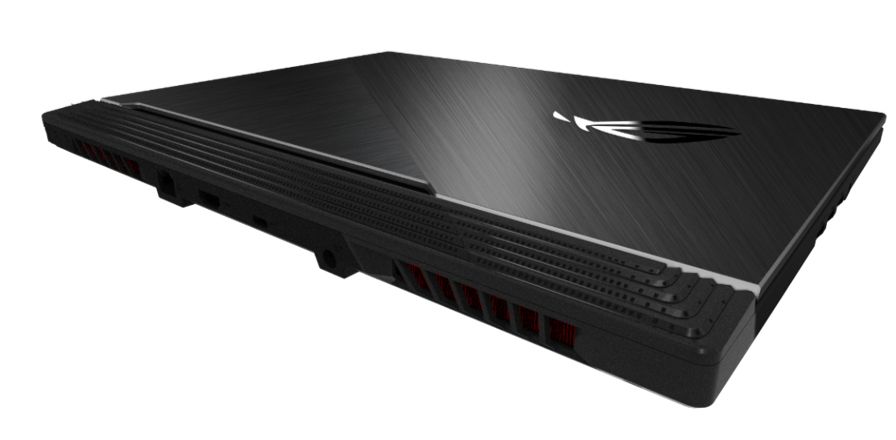

ASUS ROG G712LWS-EV003T RAM upgrade specifications
The ASUS ROG Strix G17 G712LWS-EV003T supports DDR4-SDRAM memory upgrades with two SO-DIMM slots available. The laptop accommodates a maximum RAM capacity of 32 GB total, operating at 2933 MHz frequency. Memory specifications are compatible with standard SO-DIMM form factor modules, enabling users to expand the system's memory capacity for enhanced performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2933 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2933 (PC4-23464) |
| Bandwidth | 23.5 GB/s |
| Laptop Release date | 19 April 2021 |
Additional Notes
- The ASUS ROG G712LWS-EV003T memory controller supports dual-channel architecture, requiring matched pairs of modules for optimal memory bandwidth utilization.
- DDR4-2933 represents the maximum validated frequency for this system, though higher-speed modules will downclock automatically to this specification.
- The 32 GB maximum capacity indicates chipset-level addressing limitations, typically associated with mobile Intel 10th generation platforms.
- SO-DIMM installation requires bottom panel removal, which may void manufacturer warranty if security seals are damaged during the process.
- Single-channel configurations using one populated slot will halve memory bandwidth, creating potential bottlenecks in GPU-intensive applications and gaming workloads.
- Mixing module capacities between slots remains functional but forces the system into flex mode, reducing dual-channel benefits on the asymmetric portion of memory.
- Non-standard module heights exceeding 30mm may interfere with thermal solutions or internal shielding in this chassis design.
- XMP profiles are typically unsupported in mobile platforms, requiring modules rated at JEDEC-standard 2933 MHz rather than overclocked variants.
- Memory upgrades beyond 16 GB per slot are physically incompatible due to the imposed 32 GB system ceiling.
- Voltage specifications must adhere to DDR4 standard 1.2V operation, as higher-voltage enthusiast modules may cause stability issues or POST failures.
- ECC memory modules provide no functional benefit in this consumer platform and will either operate with error correction disabled or fail compatibility checks entirely.
