ASUS ROG G713QR-HG022T RAM upgrade specifications

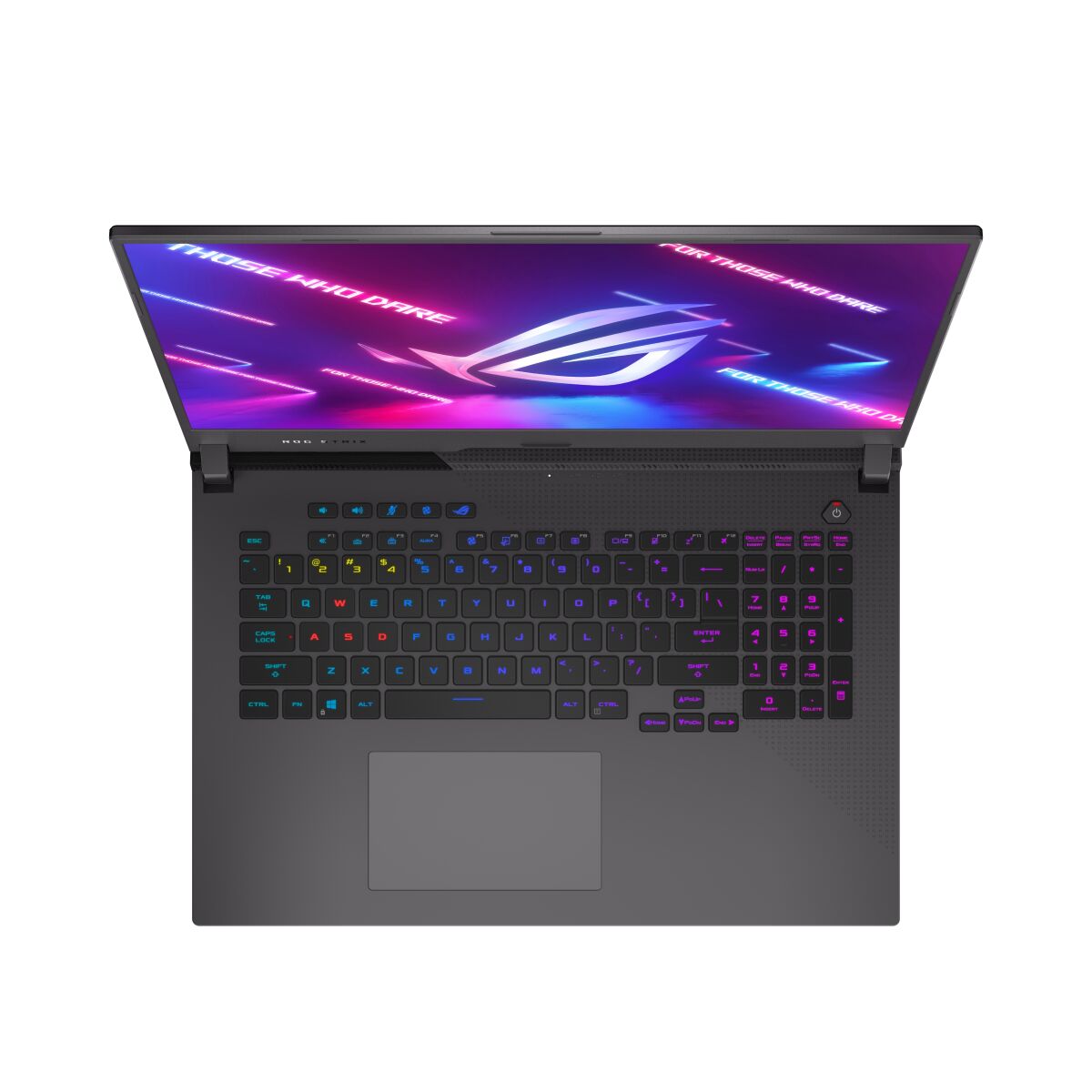

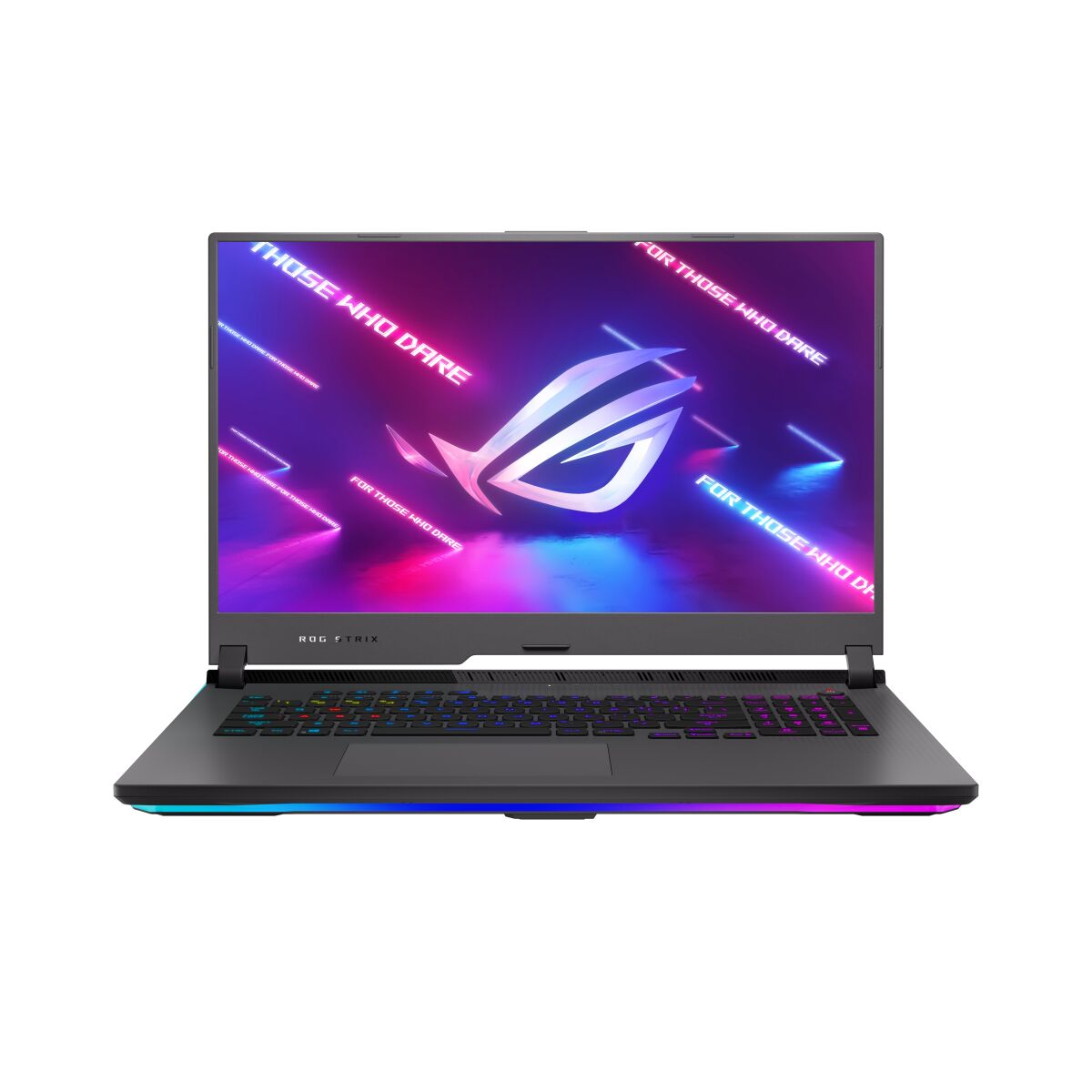

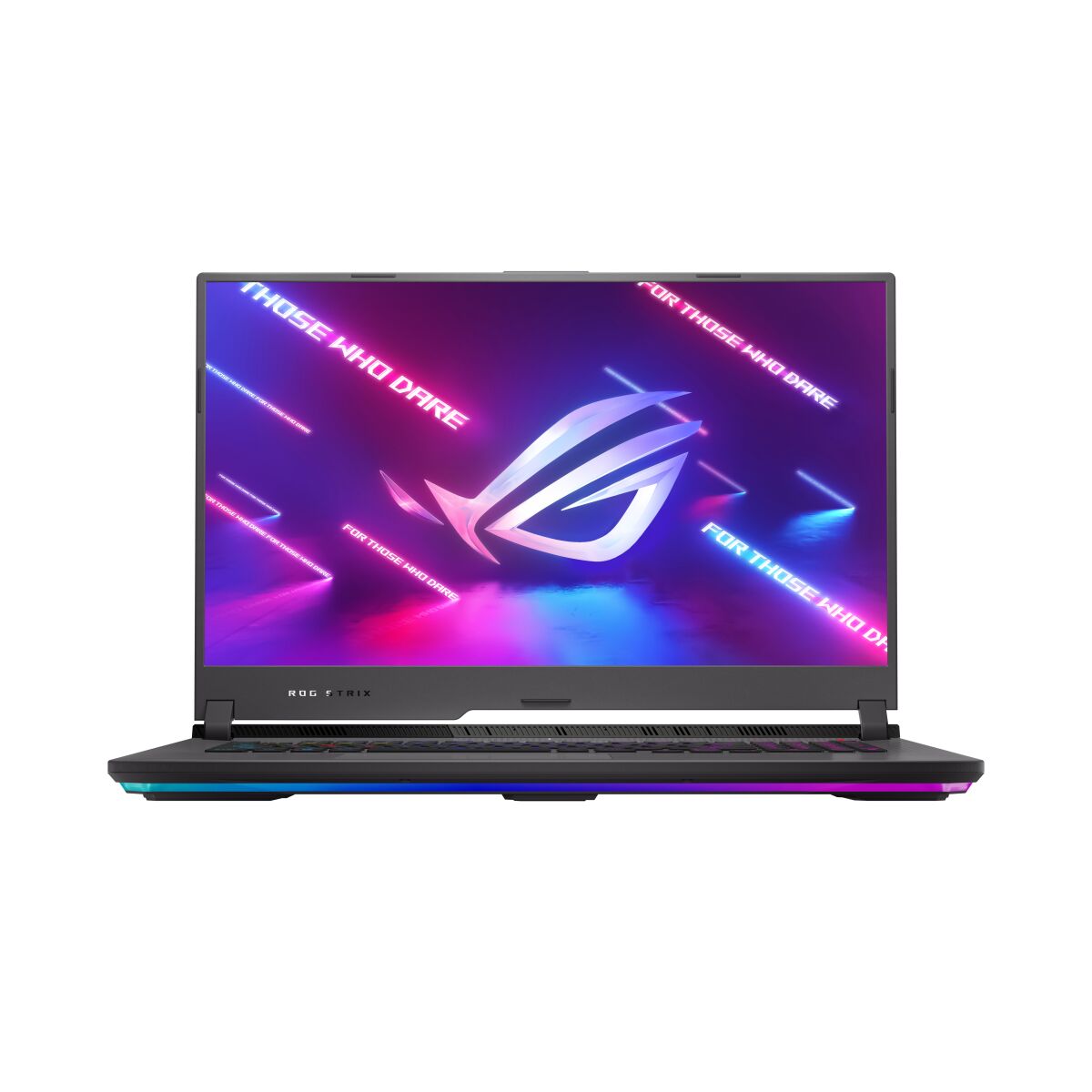

The ASUS ROG Strix G17 G713QR-HG022T laptop features DDR4-SDRAM memory upgrade capabilities with two SO-DIMM slots supporting maximum capacity of 32 GB total RAM. Compatible memory modules operate at 3200 MHz frequency and utilize the SO-DIMM form factor. Specifications indicate upgrade potential through dual memory slots, allowing users to expand or replace existing DDR4 modules within the maximum 32 GB capacity limit. The memory configuration supports standard DDR4-SDRAM specifications for this gaming laptop model.

Additional Notes

• The ASUS ROG G713QR-HG022T employs SO-DIMM modules rather than standard desktop DIMMs, requiring physically smaller memory components measuring approximately 67.6mm in length versus the 133.35mm of full-size modules.
• DDR4-SDRAM architecture operates at 1.2V, consuming less power than DDR3's 1.5V specification while delivering higher bandwidth through 64-bit wide data channels per module.
• The 3200 MHz specification translates to PC4-25600 rating, providing theoretical maximum bandwidth of 25.6 GB/s per module when both channels operate in dual-channel configuration.
• Dual SO-DIMM socket configuration enables dual-channel memory operation when populated with matched pairs, effectively doubling memory controller bandwidth compared to single-channel arrangements.
• The 32 GB ceiling requires 2x 16 GB modules as the only viable configuration, eliminating the possibility of asymmetric capacity arrangements like 8 GB plus 24 GB combinations.
• Memory controllers supporting DDR4-3200 maintain backward compatibility with lower frequencies including 2933 MHz, 2666 MHz, and 2133 MHz, automatically downclocking faster modules if mixed speeds are installed.
• CAS latency specifications vary between manufacturers at 3200 MHz speeds, with CL22 being standard JEDEC specification while CL16-CL20 requires XMP profile support from the system's BIOS.
• Unbuffered non-ECC module topology is implied by the SO-DIMM DDR4 specification, as registered or error-correcting configurations require different memory controller capabilities not present in consumer platforms.
• Module height clearance typically permits standard-profile SO-DIMMs up to 30mm, though low-profile variants exist at 26mm height for systems with restrictive cooling apparatus placement.
• Memory upgrade procedures on ROG series platforms typically require complete lower chassis disassembly including battery disconnection, voiding certain warranty provisions if damage occurs during user installation.
• Mixing modules with differing rank configurations, such as single-rank with dual-rank DDR4 SO-DIMMs, forces the memory controller to operate all modules at the lowest common denominator specifications.
• Operating temperature specifications for DDR4 modules range from 0°C to 85°C, with thermal throttling engaging on the memory controller when sustained temperatures exceed manufacturer-defined thresholds during intensive workloads.
