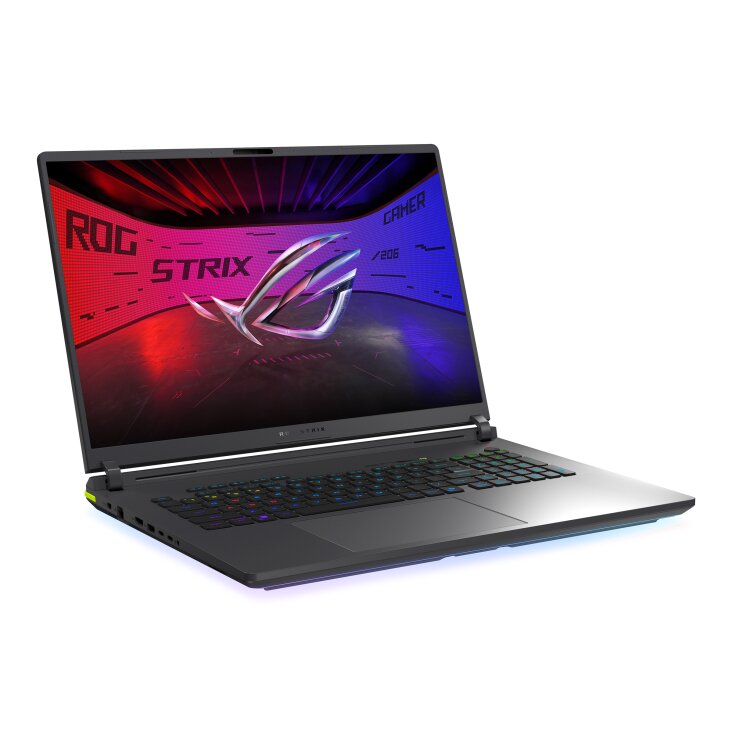

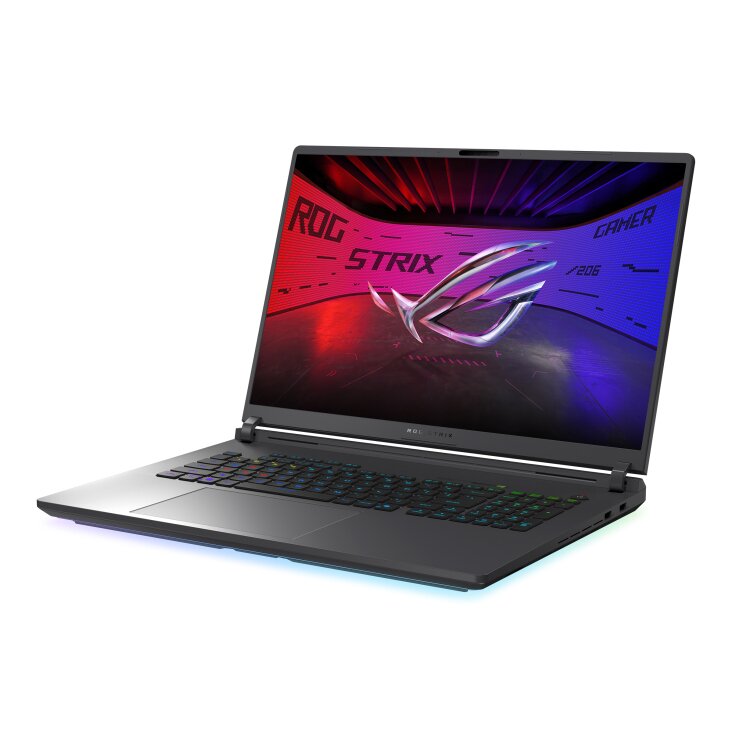

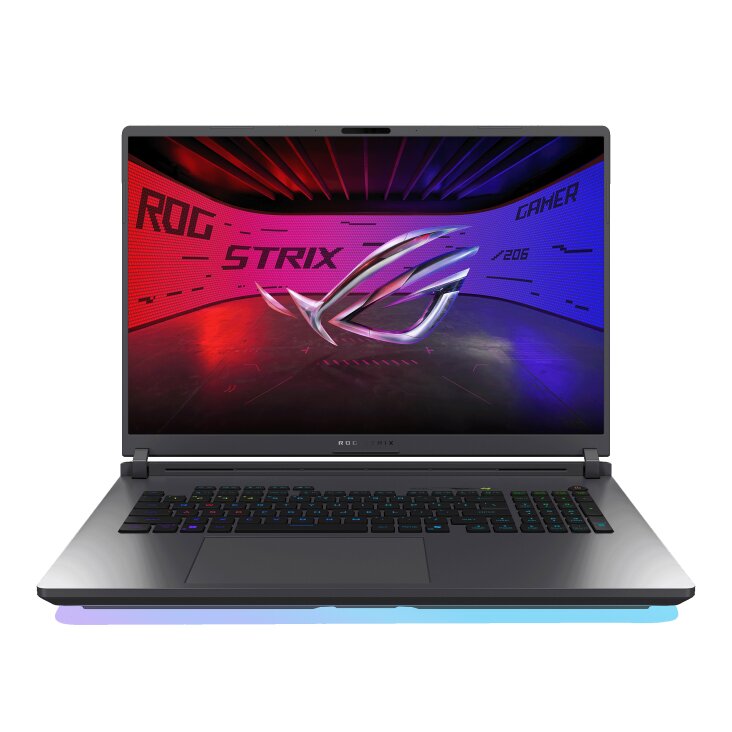

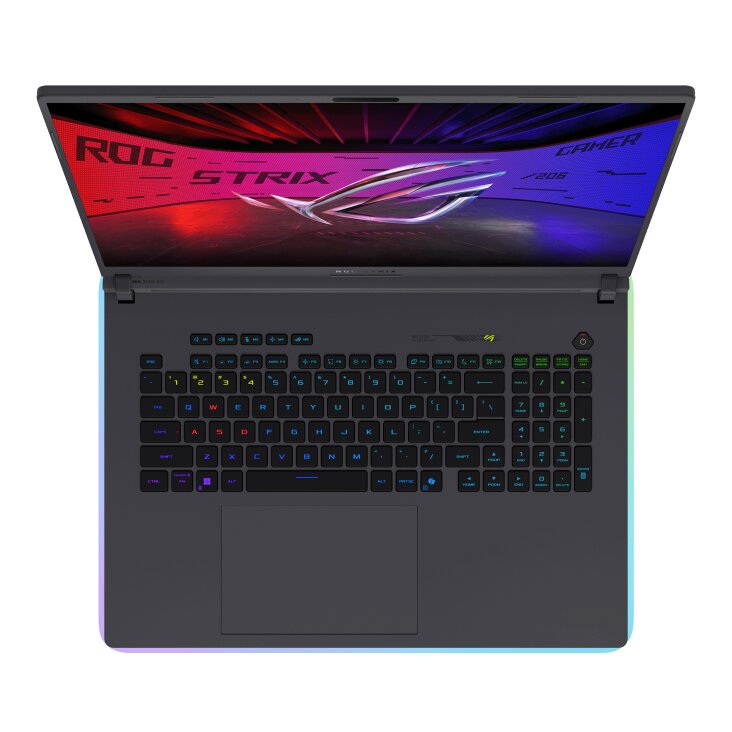

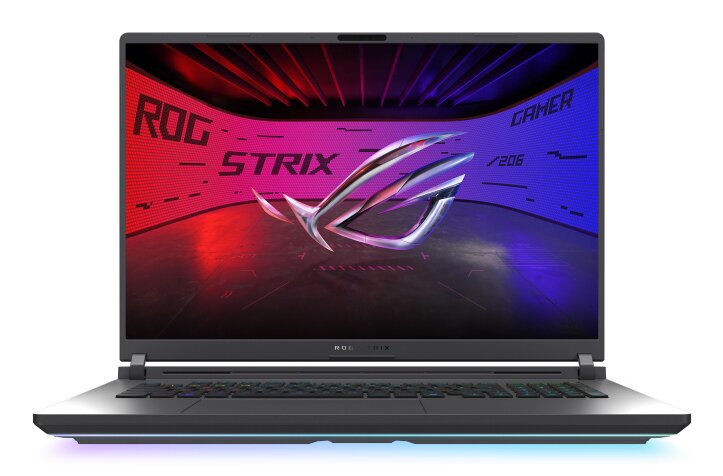

ASUS ROG G815LM-S9080W RAM upgrade specifications

ASUS G815LM-S9080W ASUS G815LM-S9080W ASUS G815LM-S9080W ASUS G815LM-S9080W ASUS G815LM-S9080W

The ASUS ROG Strix G18 model G815LM-S9080W contains two SO-DIMM slots for memory upgrade capabilities. The laptop supports DDR5-SDRAM memory operating at 5600 MHz frequency. Maximum RAM capacity reaches 64 GB, allowing for substantial memory expansion. Compatible upgrade modules must match DDR5-SDRAM specifications and SO-DIMM form factor to ensure proper functionality and performance with this gaming laptop's specifications.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR5-SDRAM
Frequency5600 MHz
Maximum RAM64 GB
Voltage1.1V
Number of pins262-pin
InterfacePC5
PC Speed RatingPC5-5600 (PC5-44800)
Bandwidth44.8 GB/s

Additional Notes

  • Dual slot architecture facilitates symmetrical memory configurations to activate dual channel bandwidth for improved CPU data throughput.
  • The absence of soldered memory on the ASUS G815LM-S9080W motherboard allows for the replacement of both factory modules to reach the maximum threshold.
  • Utilizing memory modules with higher frequencies than 5600 MHz will result in automatic downclocking to remain within the hardware stability parameters.
  • High density 32 GB modules are required in each slot to achieve the 64 GB limit due to the physical constraint of only 2 available sockets.
  • DDR5 technological requirements dictate that voltage remains at 1.1V for standard operation without needing external cooling solutions for the memory chips.
  • Installation of mismatched capacities or speeds between the 2 slots will likely force the system into single channel mode or asynchronous operation.
  • The SO-DIMM form factor necessitates physical compatibility with 262-pin connectors which are distinct from older DDR4 hardware standards.
