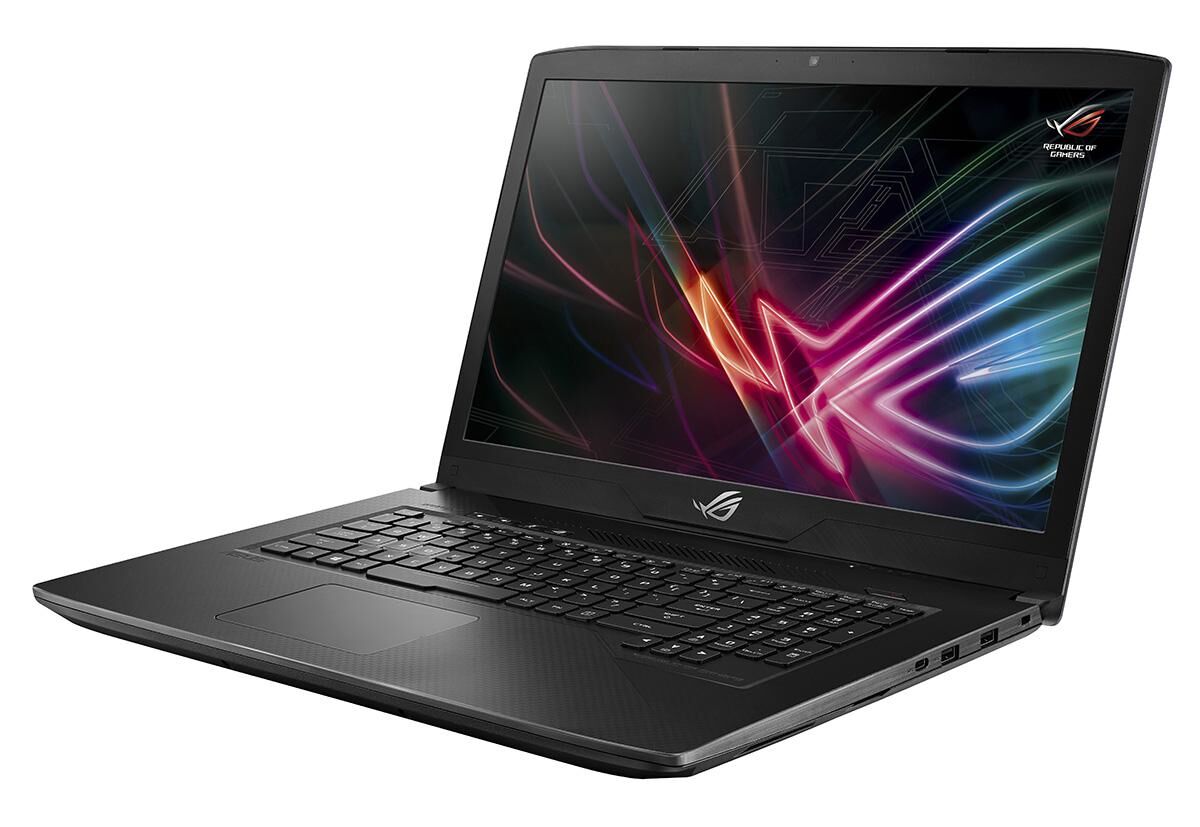

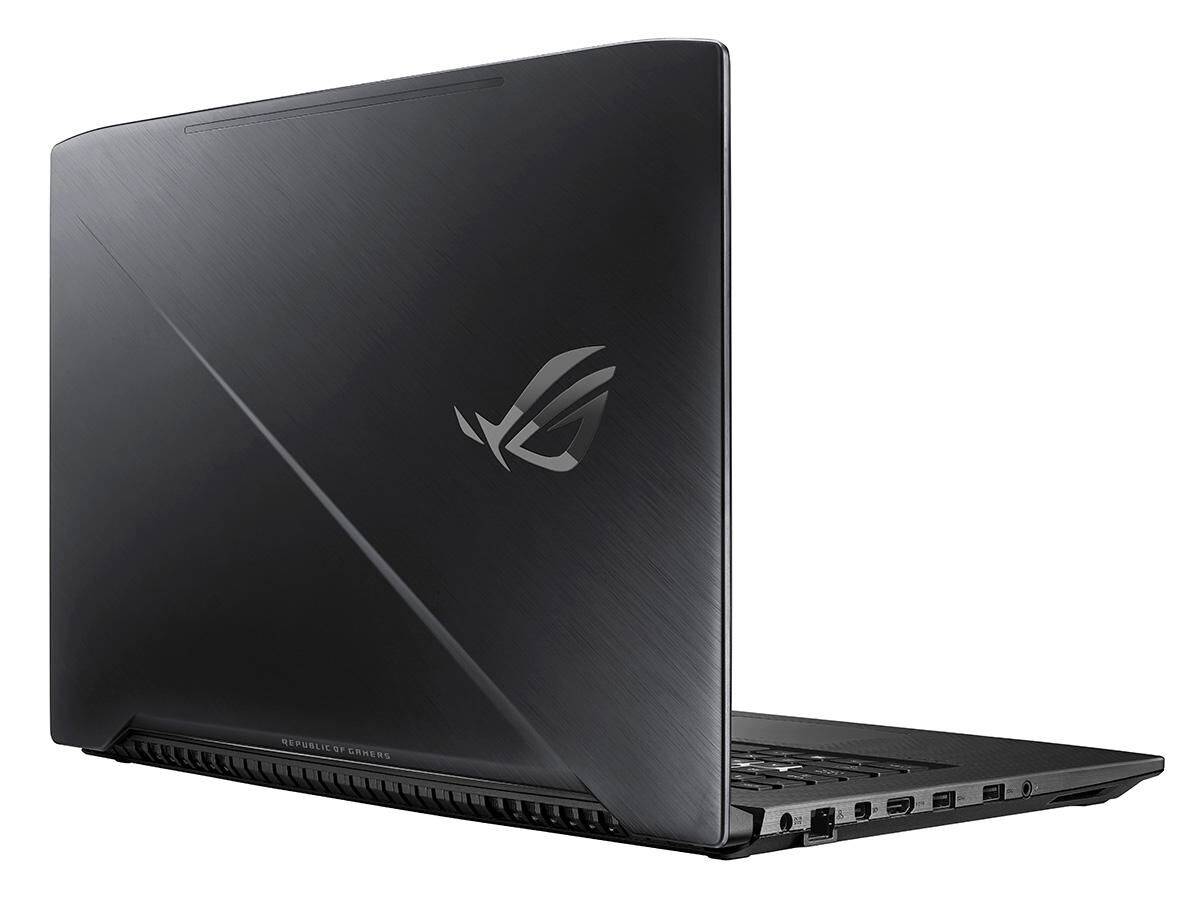

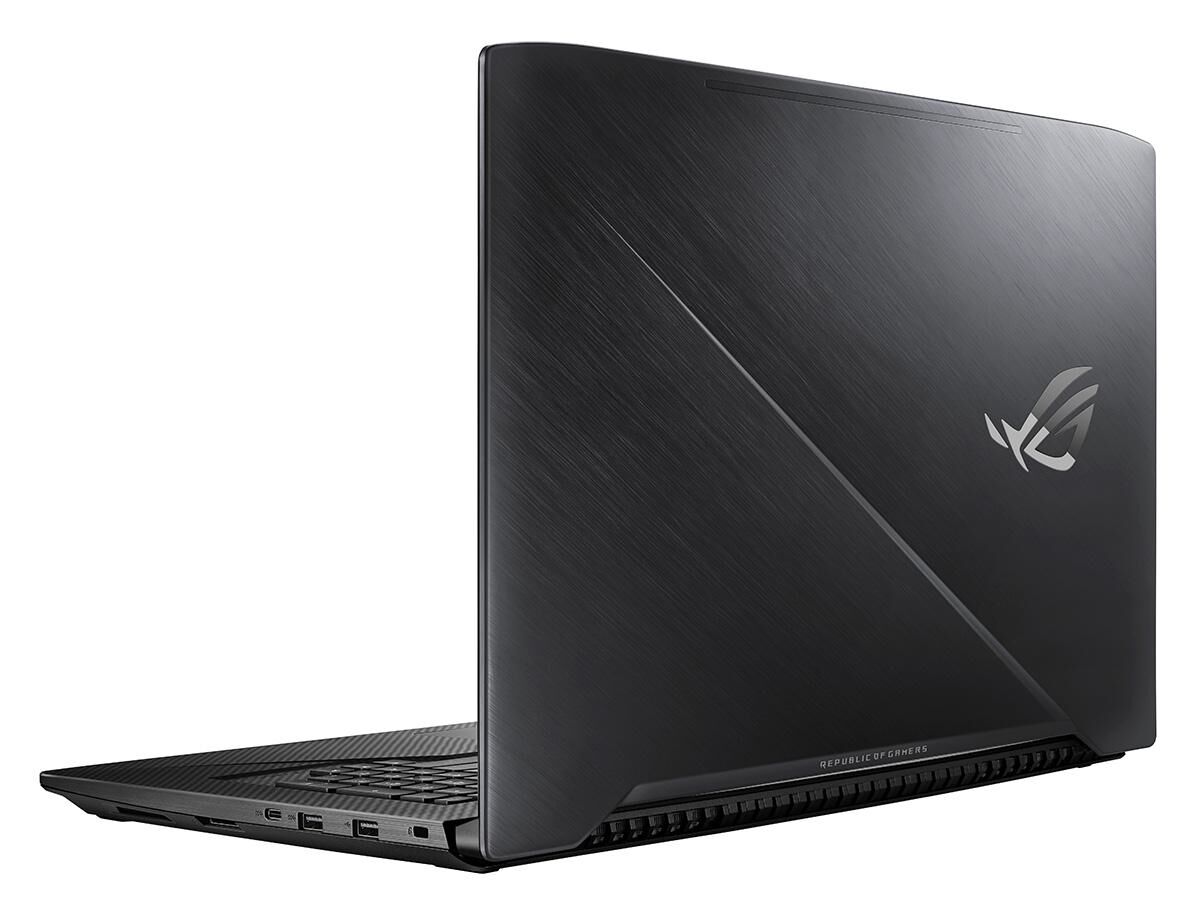

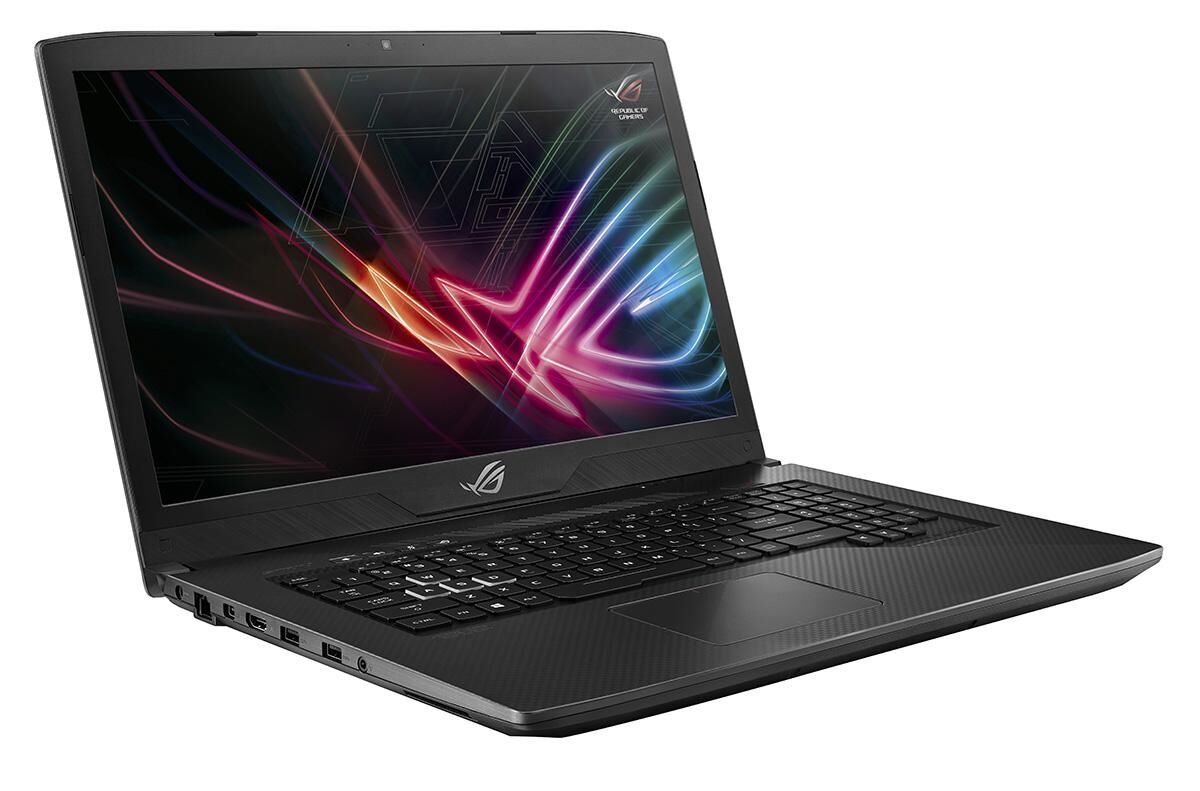

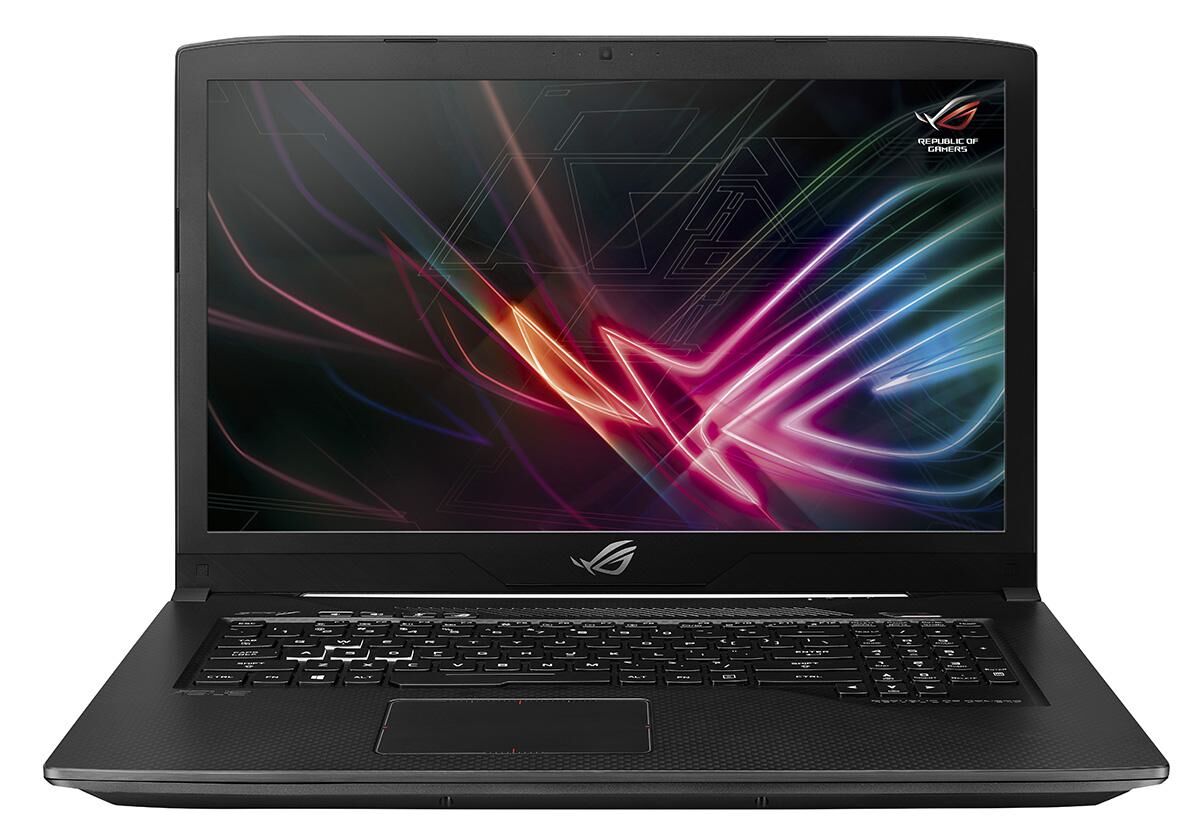

ASUS ROG GL703GM-E5211T RAM upgrade specifications
ASUS ROG Strix GL703GM-E5211T memory upgrade specifications detail DDR4-SDRAM compatibility with two SO-DIMM slots supporting maximum RAM capacity of 32 GB total. The laptop accepts DDR4 memory modules operating at 2666 MHz frequency. Compatible upgrades must utilize SO-DIMM form factor specifications for proper installation and functionality within the system architecture.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 23 August 2019 |
Additional Notes
- Dual channel memory architecture requires populated pairs of matched modules to achieve theoretical maximum bandwidth for the processor.
- Physical memory expansion necessitates the removal of existing modules if both slots are occupied from the factory because there are no additional vacant headers.
- The ASUS GL703GM-E5211T system firmware will downclock high performance memory kits to its internal limit if frequency profiles exceed the rated 2666 MHz.
- Non parity modules are mandatory because the platform lacks the hardware circuitry required for Error Correction Code functionality.
- Internal component access for memory replacement exposes the motherboard to electrostatic discharge risks which require grounded handling environments.
- Total system memory capacity is limited by the hardware addressing capabilities of the integrated memory controller within the central unit.
- Voltage compatibility relies on standard 1.2V DDR4 specifications as the motherboard lacks support for older 1.5V or 1.35V legacy standards.
