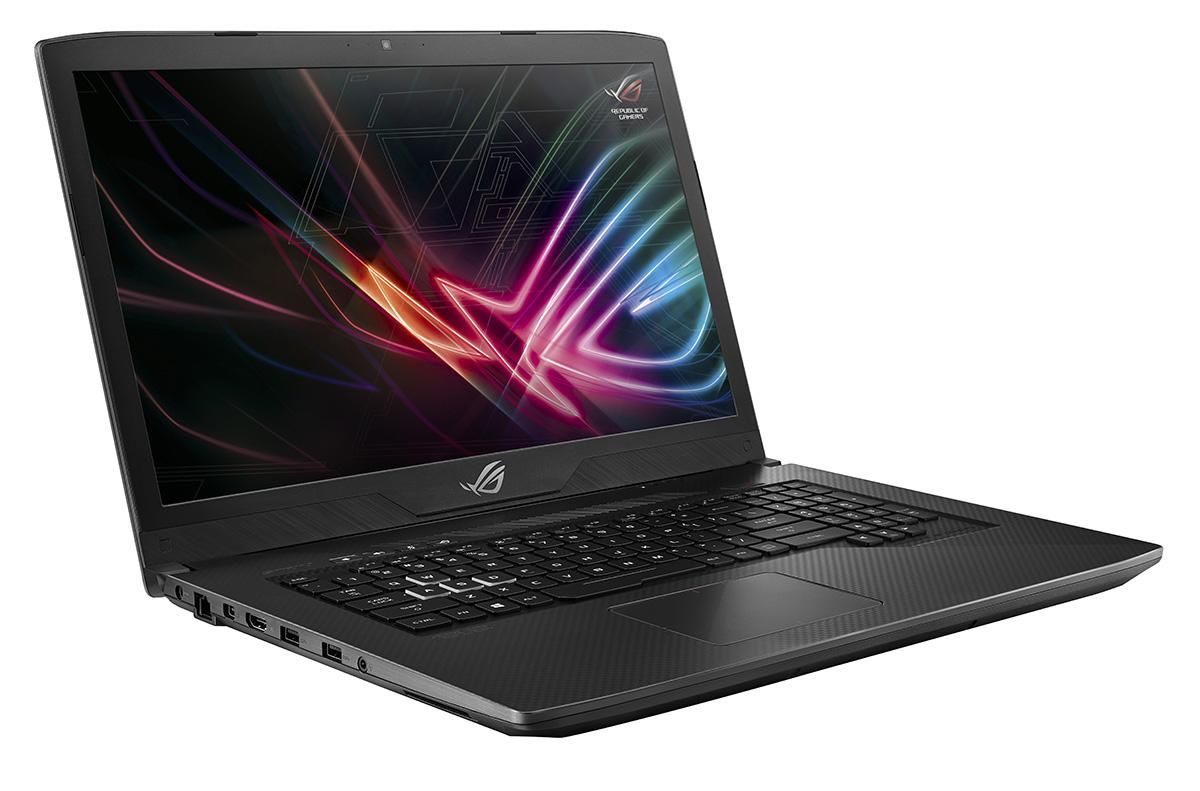

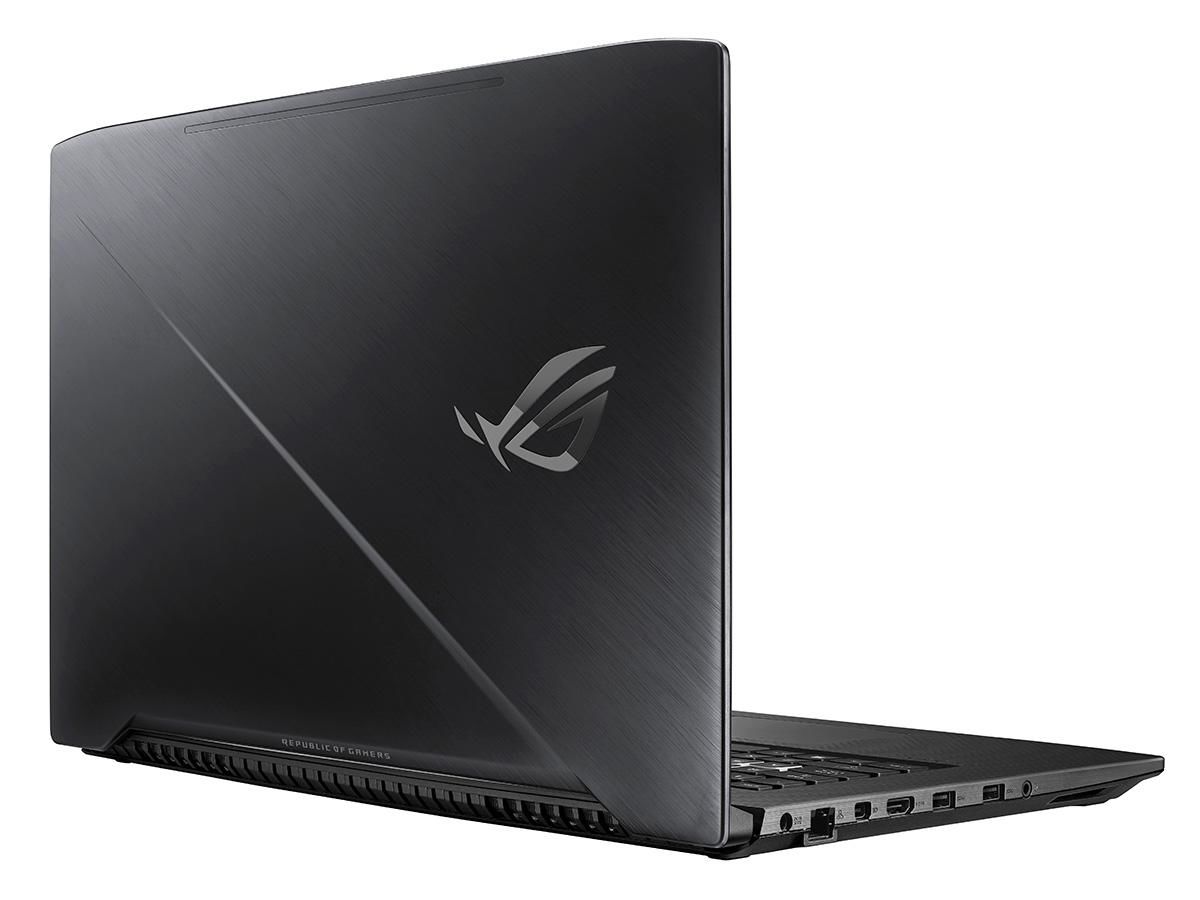

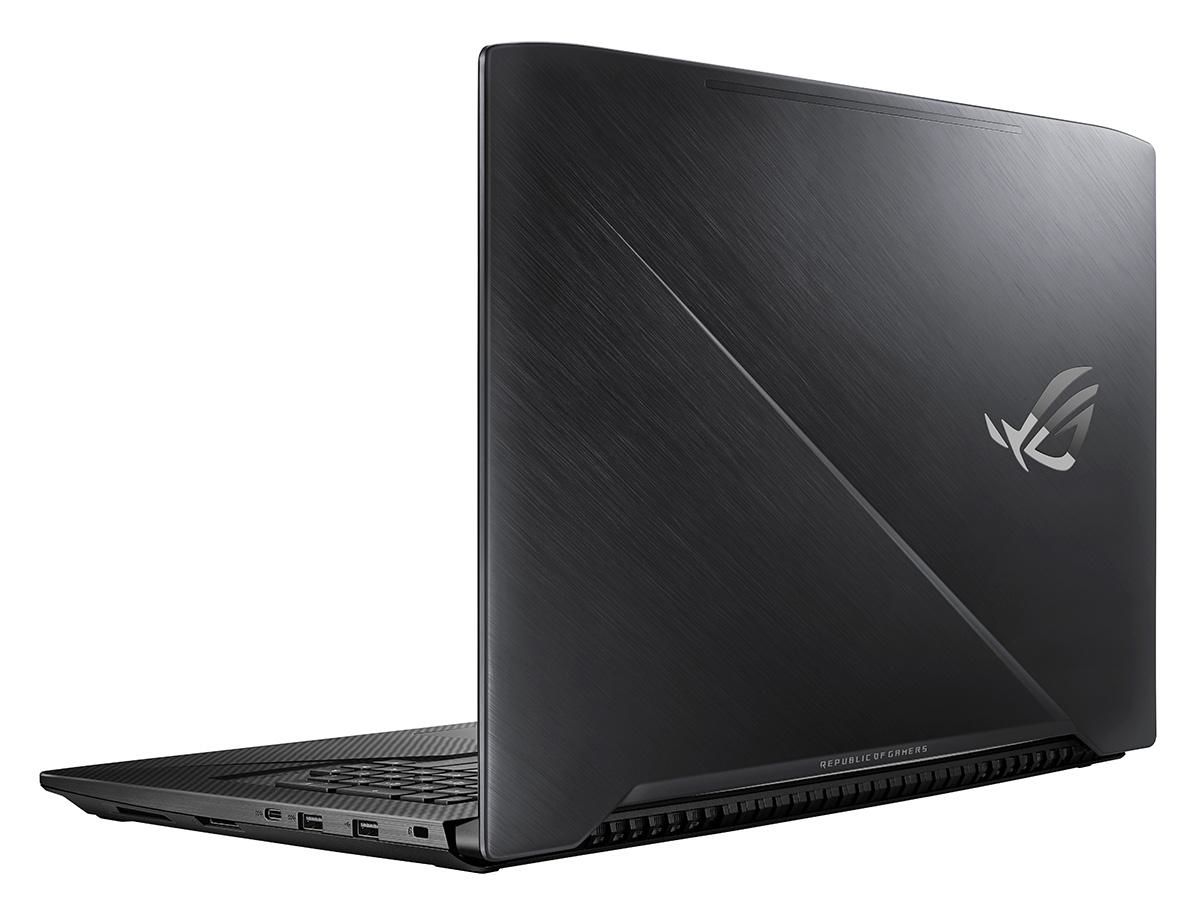

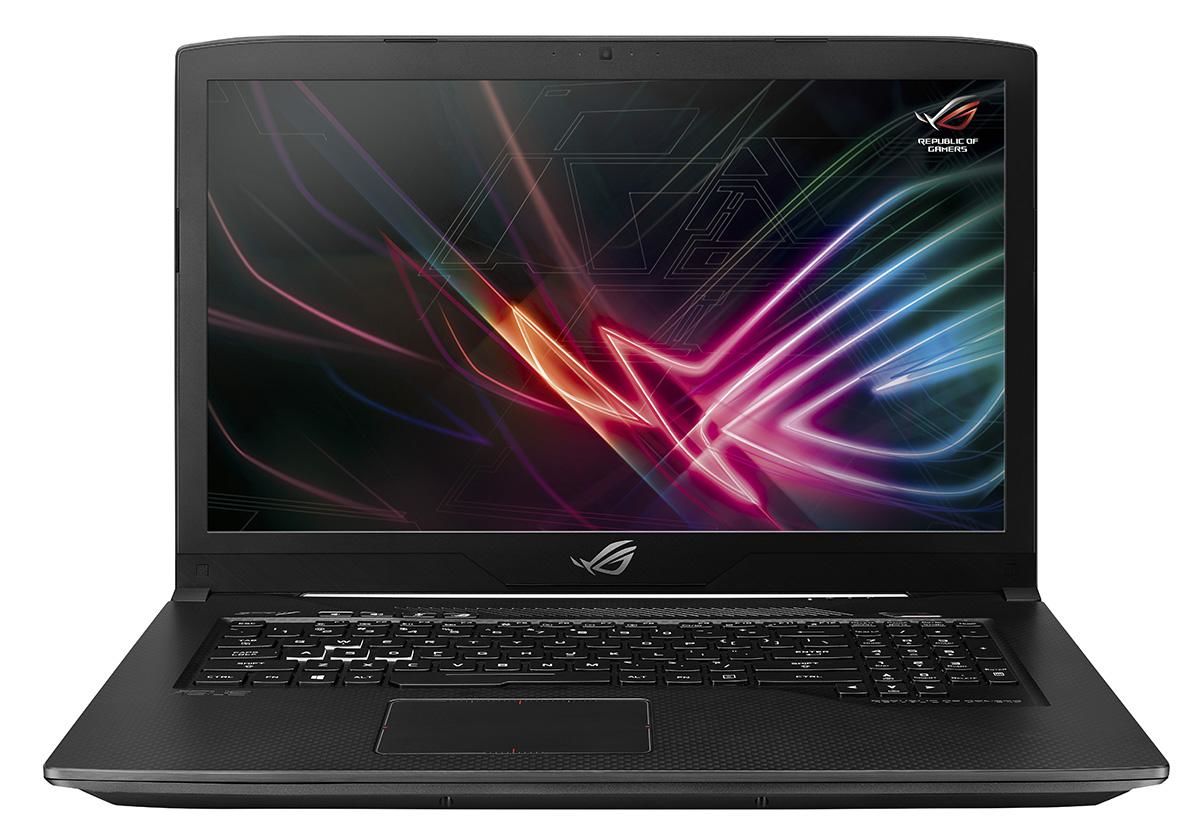

ASUS ROG GL703VD-GC087T RAM upgrade specifications
The ASUS ROG Strix GL703VD-GC087T laptop features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting a maximum RAM capacity of 32 GB. Compatible memory modules operate at 2800 MHz frequency and utilize the SO-DIMM form factor. The upgrade specifications enable users to expand the laptop's memory configuration from its factory default capacity to the maximum supported capacity of 32 GB through installation of compatible DDR4 memory modules in the available slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2800 (PC4-22400) |
| Bandwidth | 22.4 GB/s |
| Laptop Release date | 10 February 2018 |
Additional Notes
- SO-DIMM form factor limits upgrade options to laptop-specific memory modules; desktop DDR4 DIMMs are physically incompatible with the 2x slot architecture.
- 2800 MHz frequency represents non-standard DDR4 timing; most retail DDR4-SDRAM modules operate at 3000 MHz or higher, creating potential compatibility friction during module selection despite backward compatibility protocols.
- 32 GB aggregate capacity ceiling means maximum practical configuration uses 2x 16 GB modules; single 8 GB upgrades from stock configurations leave one slot populated, forgoing dual-channel bandwidth optimization.
- Dual-slot architecture without user-accessible BIOS multiplier controls restricts memory speed tuning; replacement modules must match or fall within the 2800 MHz specification to avoid boot failures or stability degradation.
- SO-DIMM installation requires removal of keyboard or base panel depending on chassis design; thermal management impact occurs when upgrading under load, as proximity to memory slots affects heat dissipation pathways in confined laptop cooling systems.
- DDR4 modules rated for 2800 MHz operate at lower power envelopes than higher-frequency variants; this reduces thermal generation but limits performance scaling if higher-speed compatible modules are installed without firmware adjustment.
- 2x slot constraint eliminates staged upgrade strategies; migration from lower capacities requires full module replacement rather than incremental additions, generating higher total cost for capacity transitions.
