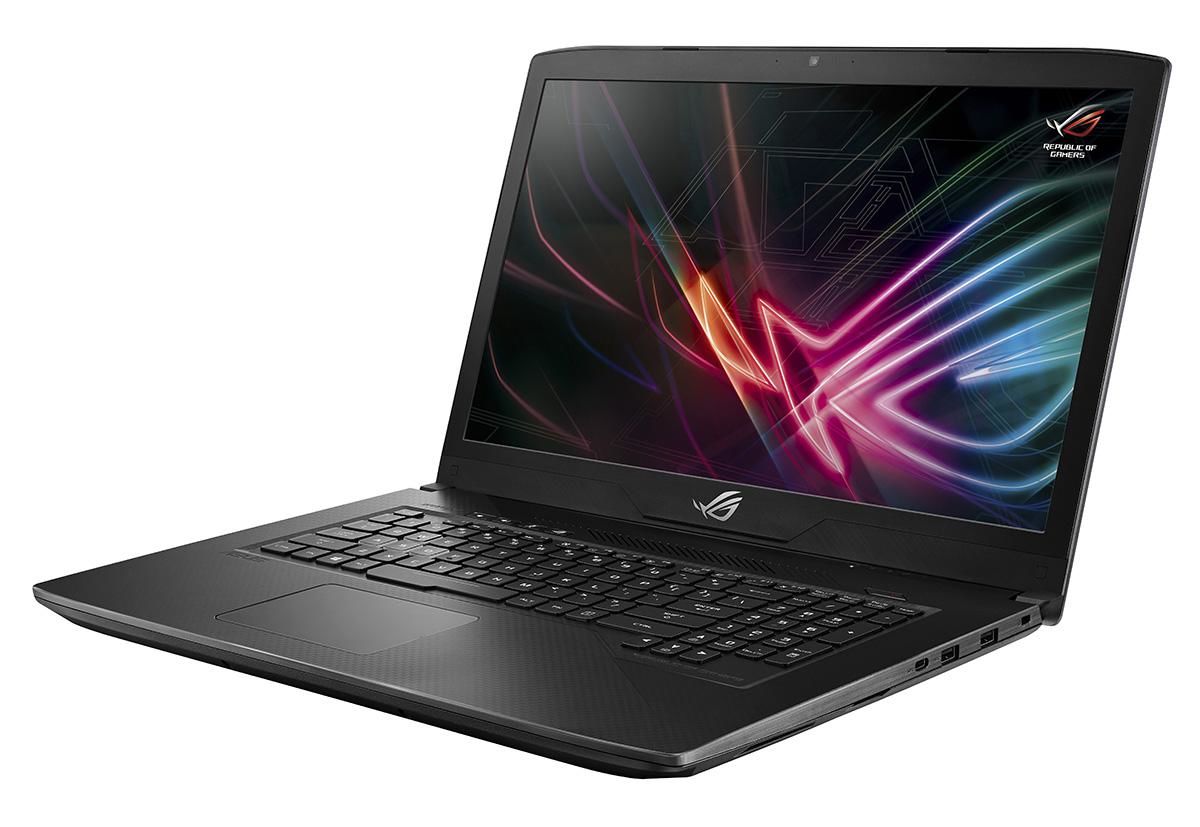

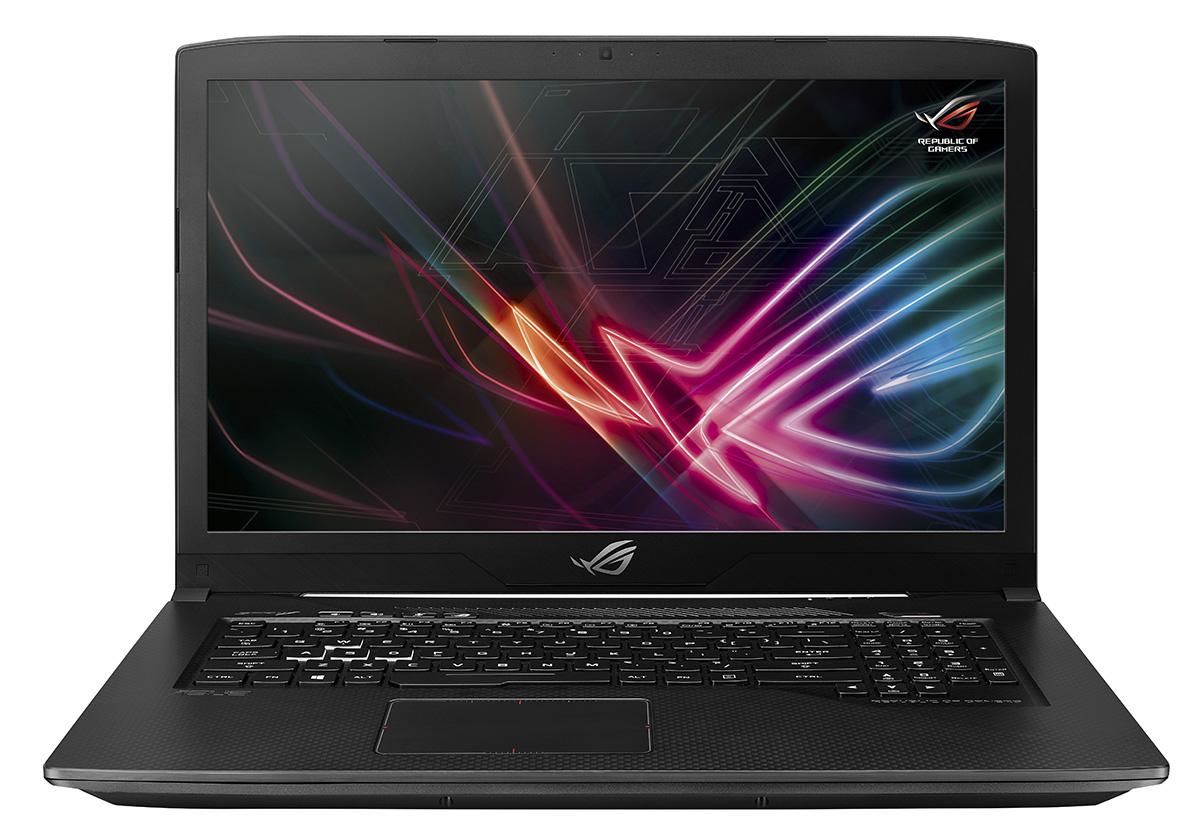

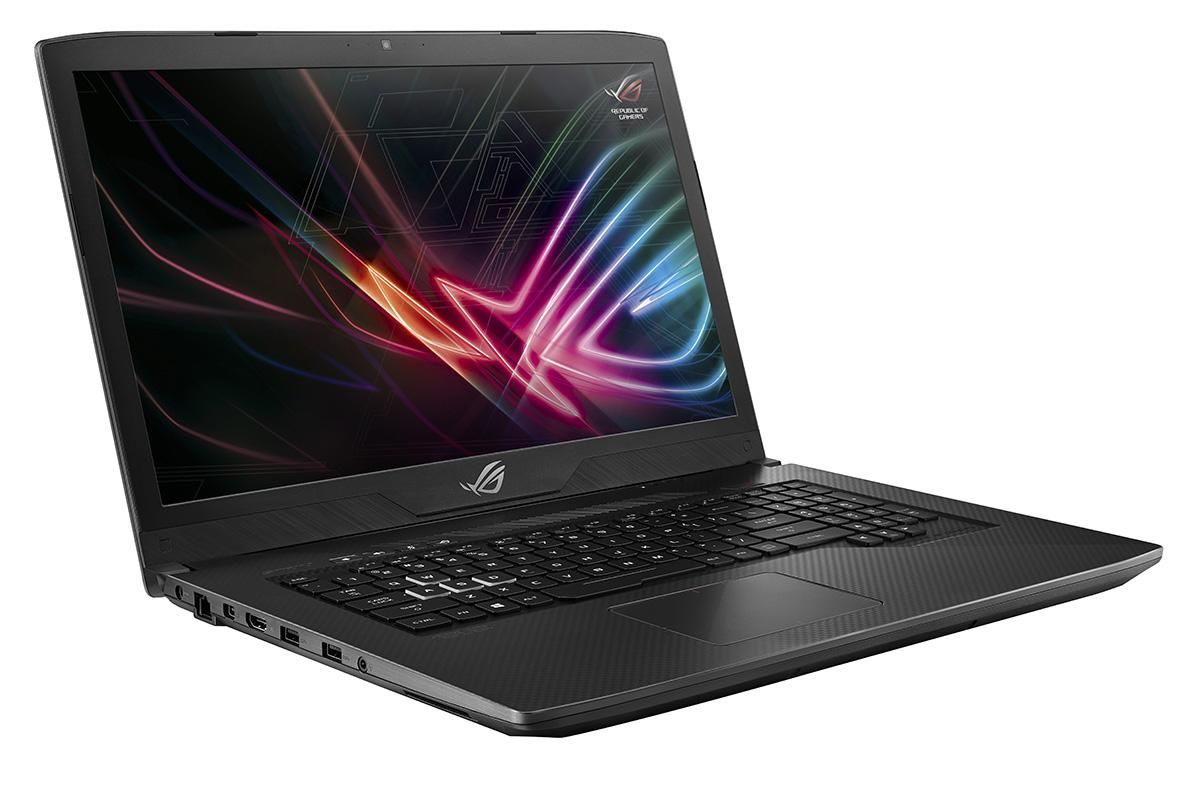

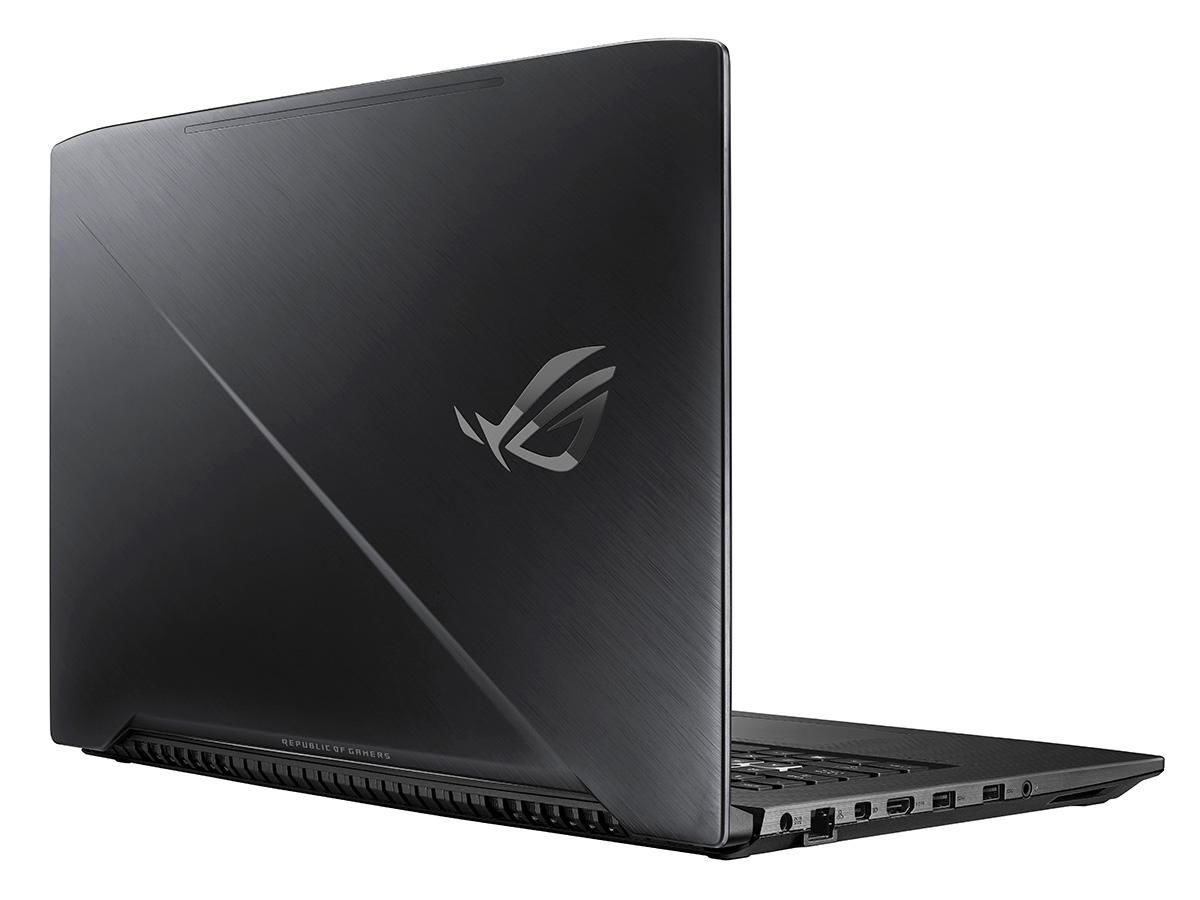

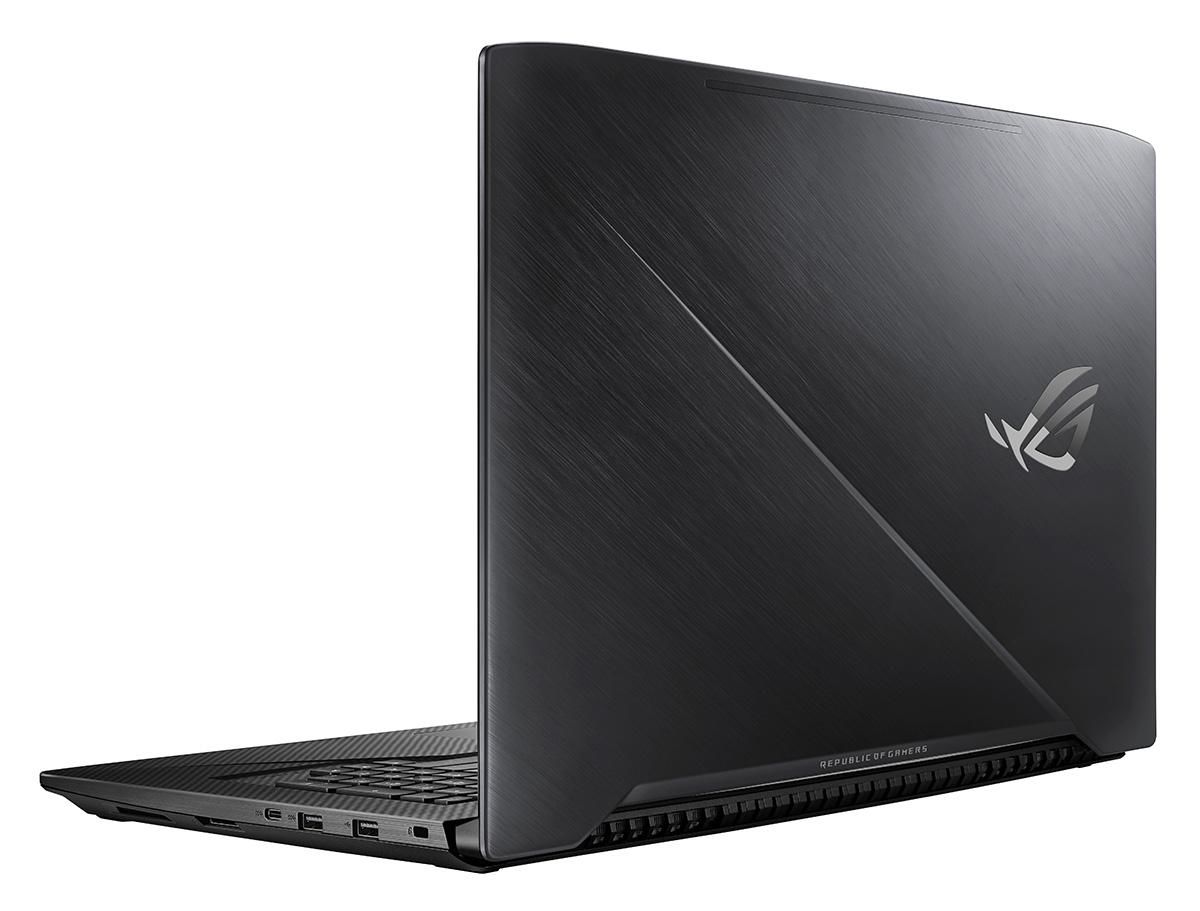

ASUS ROG GL703VM-EE051T RAM upgrade specifications
The ASUS ROG Strix GL703VM-EE051T features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum capacity of 32 GB total RAM. Compatible memory modules operate at 2800 MHz frequency and utilize the SO-DIMM form factor. Upgrade options allow for expansion from the factory-installed memory configuration to the maximum supported capacity of 32 GB across the available slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2800 (PC4-22400) |
| Bandwidth | 22.4 GB/s |
| Laptop Release date | 26 January 2018 |
Additional Notes
- Dual channel architecture requires matching memory module pairs to achieve full theoretical bus width and prevent data throughput throttling.
- The 32 GB motherboard limit necessitates 16 GB modules for each slot to reach the maximum supported ceiling for the ASUS GL703VM-EE051T hardware.
- Installing memory with higher clock speeds results in downward downclocking to the 2800 MHz motherboard controller limit to maintain system stability.
- Physical installation requires SO-DIMM specific modules because standard desktop DIMM hardware is physically incompatible with the small form factor connectors.
- Empty secondary slots allow for asynchronous memory configurations although this mode causes a drop to single channel performance for tasks exceeding the capacity of the smaller module.
- Internal component access for memory replacement involves removing the bottom chassis panel which exposes sensitive circuitry to electrostatic discharge risks.
- Operating system limitations on older software versions might prevent the full utilization of the 32 GB physical address space despite hardware compatibility.
