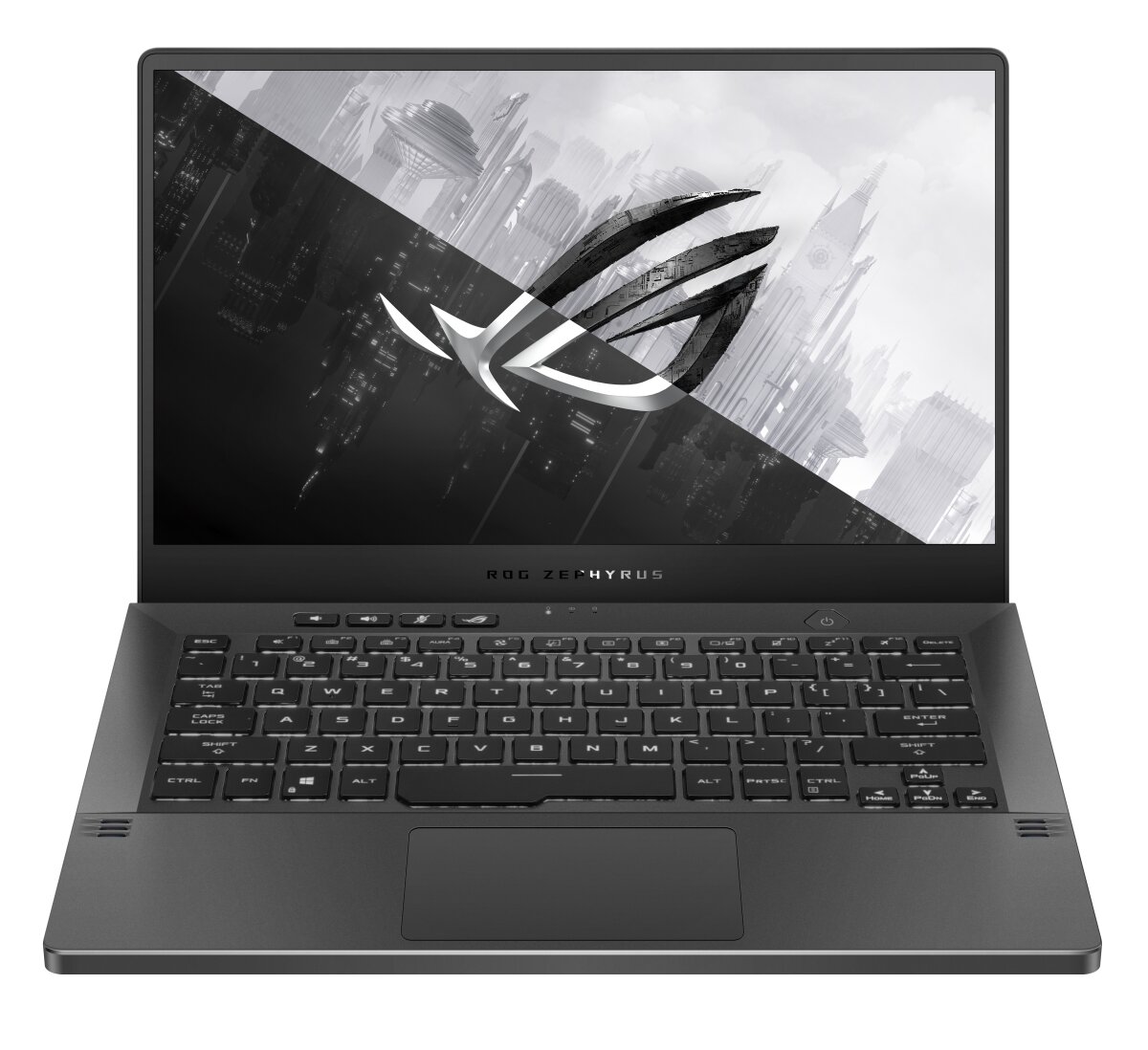

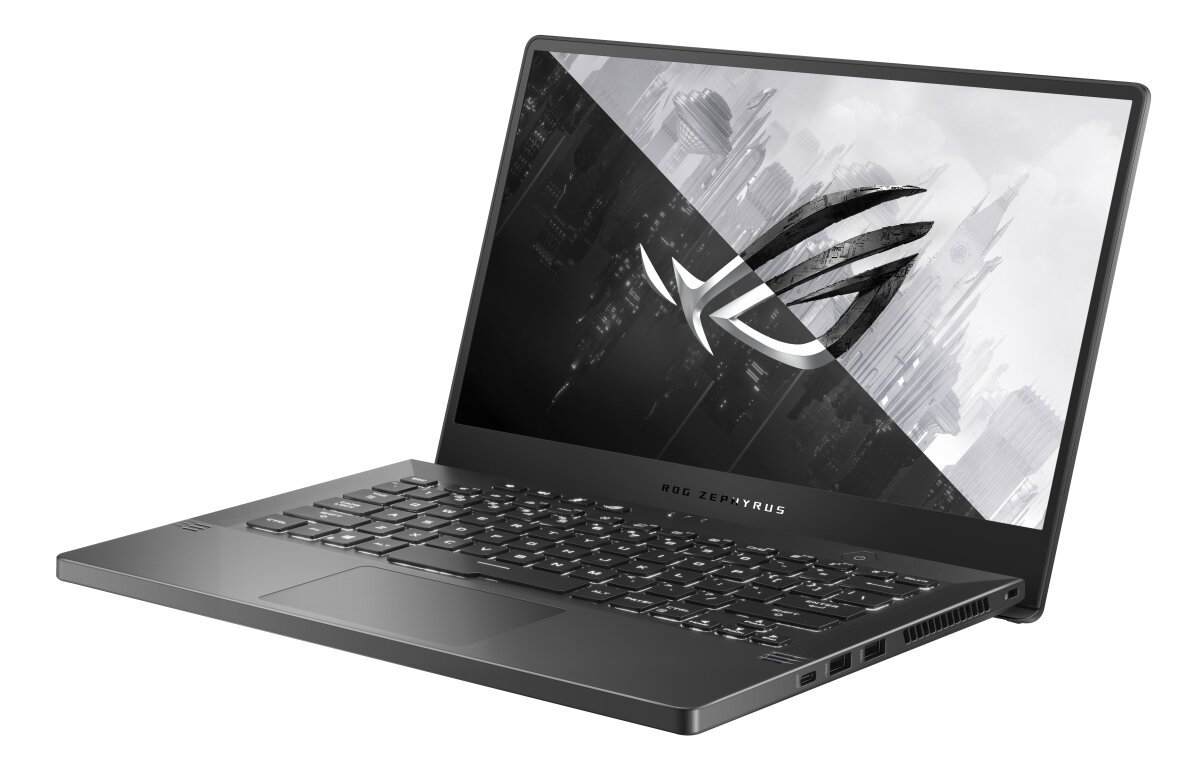

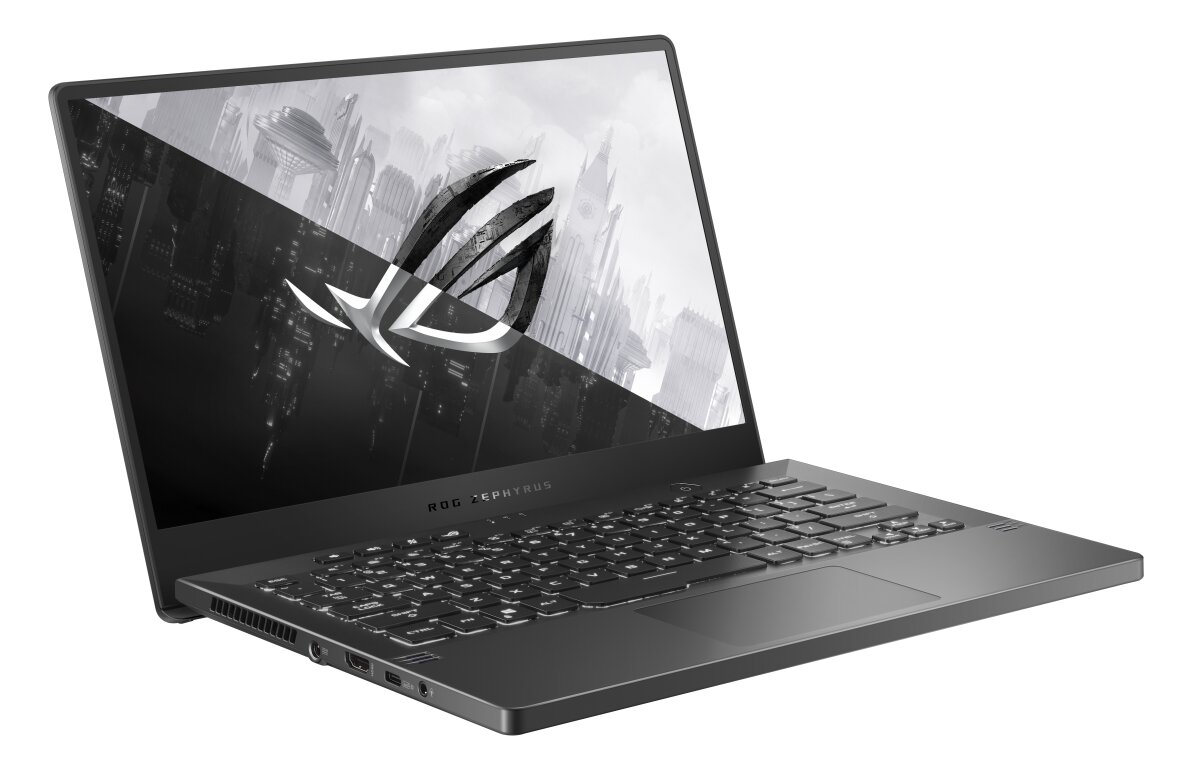

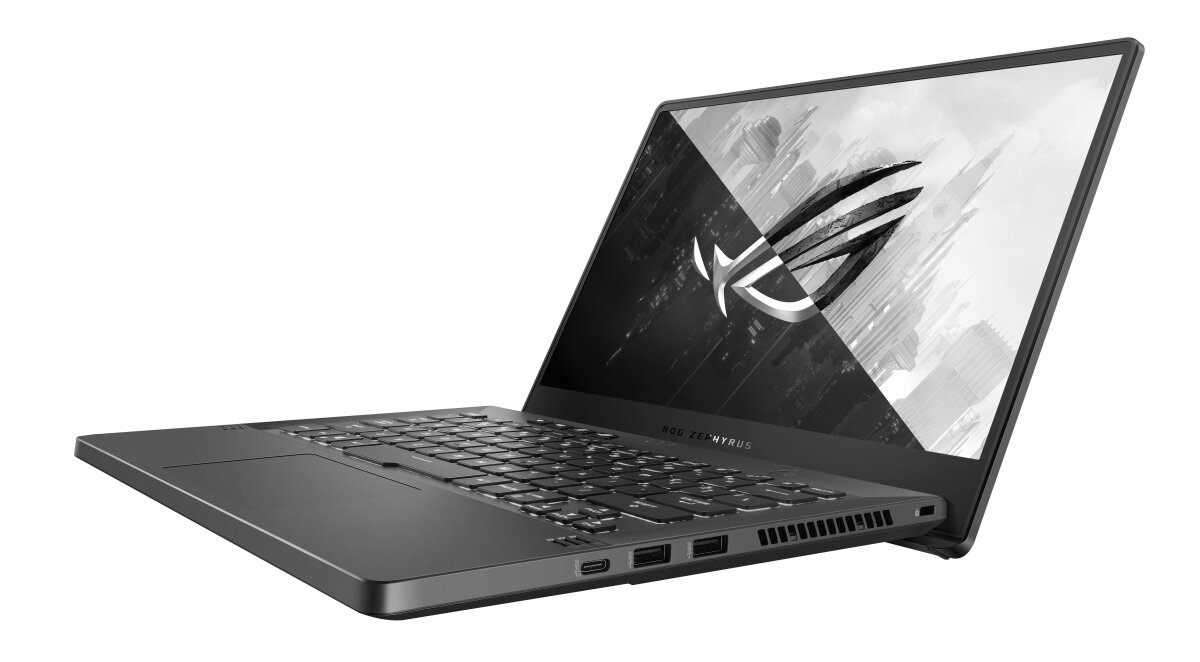

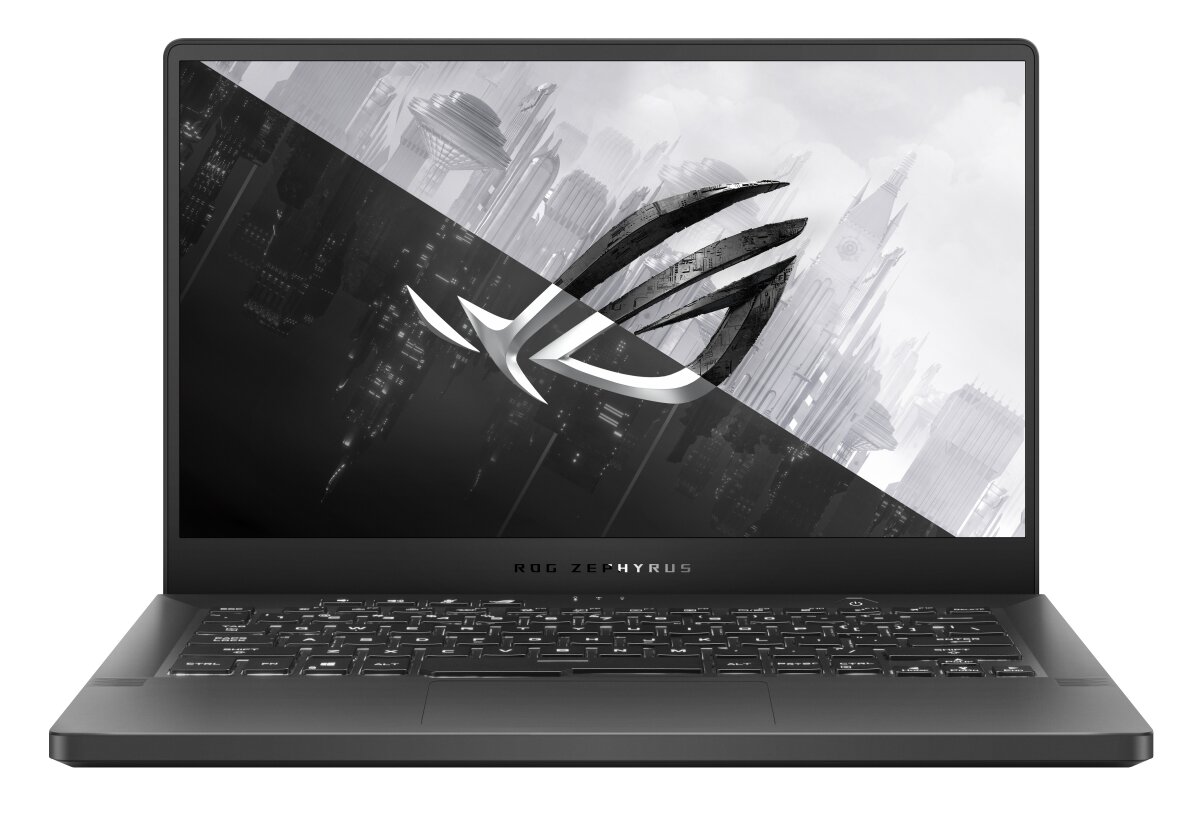

ASUS ROG GA401QH-HZ017 RAM upgrade specifications

The ASUS ROG Zephyrus G14 GA401QH-HZ017 features DDR4-SDRAM memory specifications with one SO-DIMM slot available for upgrade. The laptop supports maximum RAM capacity of 32 GB through compatible upgrades at 3200 MHz frequency. The memory configuration consists of on-board soldered memory combined with one replaceable SO-DIMM slot, allowing users to expand total system memory up to the specified maximum capacity. This upgrade specifications enable flexibility in memory enhancement for the Zephyrus G14 series.

Additional Notes

• The presence of on-board memory means the total system capacity is determined by a fixed module and a single expansion slot, preventing a symmetrical dual-channel configuration if the capacities do not match.
• The maximum capacity limit indicates the motherboard firmware supports a 24 GB module in the single slot alongside an 8 GB soldered base or a 16 GB module alongside a 16 GB base.
• Memory upgrades for the ASUS ROG GA401QH-HZ017 require modules with JEDEC profiles to achieve the 3200 MHz frequency because the system lacks support for XMP or manual voltage adjustments.
• Integrating a module with a higher frequency than the rated 3200 MHz results in an automatic downclock to match the hardware-coded ceiling of the processor and on-board memory.
• Physical installation is restricted to a single SO-DIMM component, which limits future scalability once the maximum supported module is installed.
• Latency performance depends on the primary timing of the permanent on-board memory because the system defaults to the slowest common denominator between the two hardware sets.
• Internal access for maintenance requires tools for the base panel but does not void the standard manufacturer warranty provided the internal components remain undamaged during the process.
