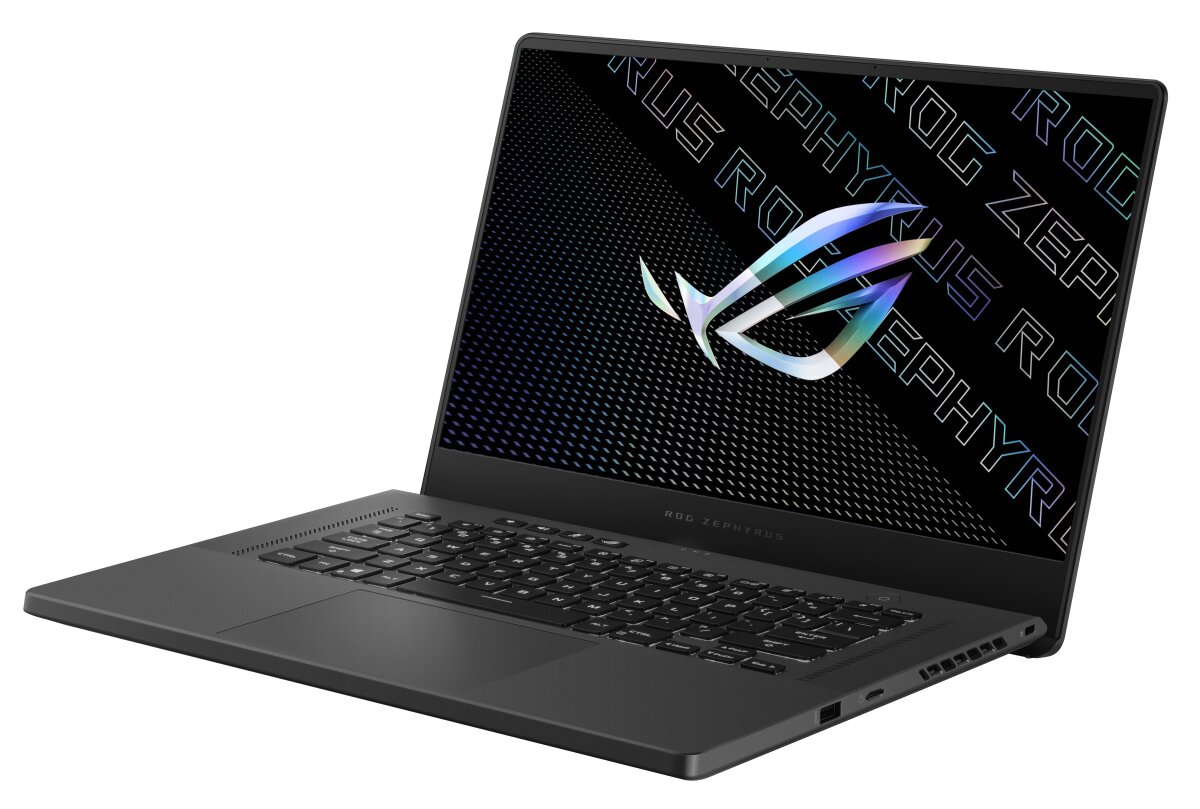

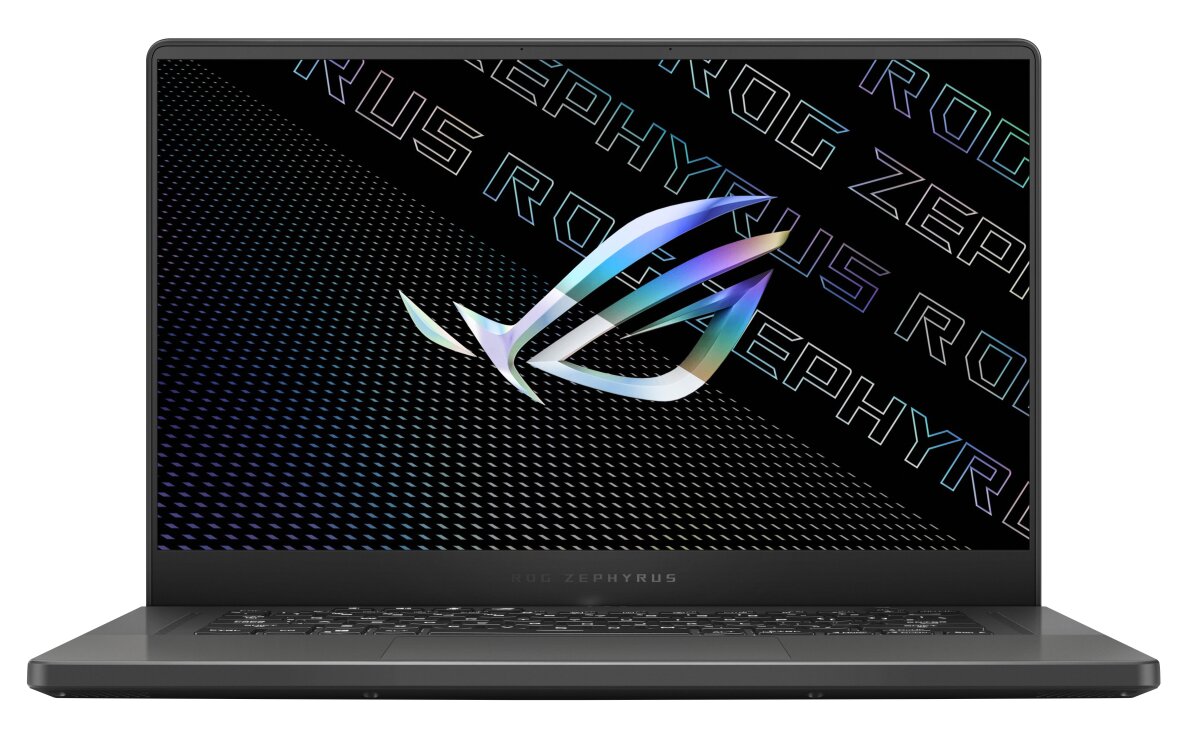

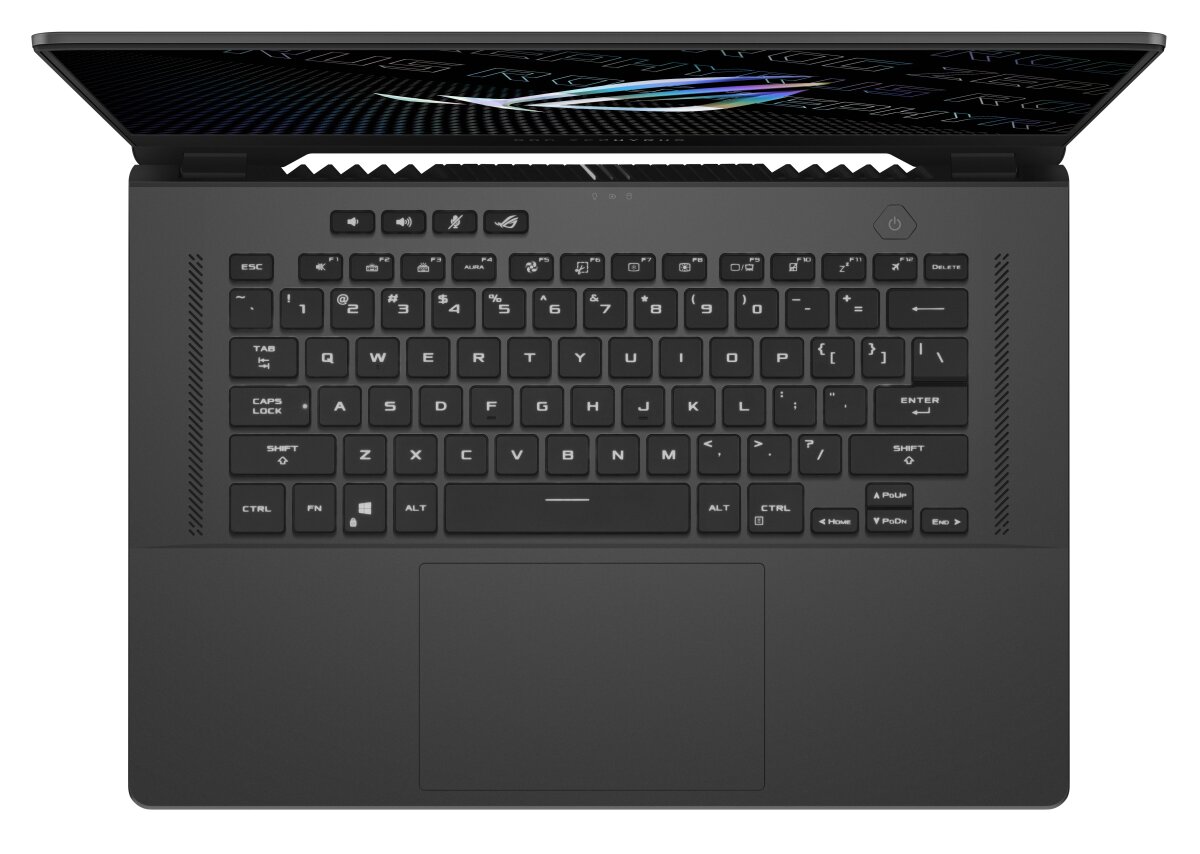

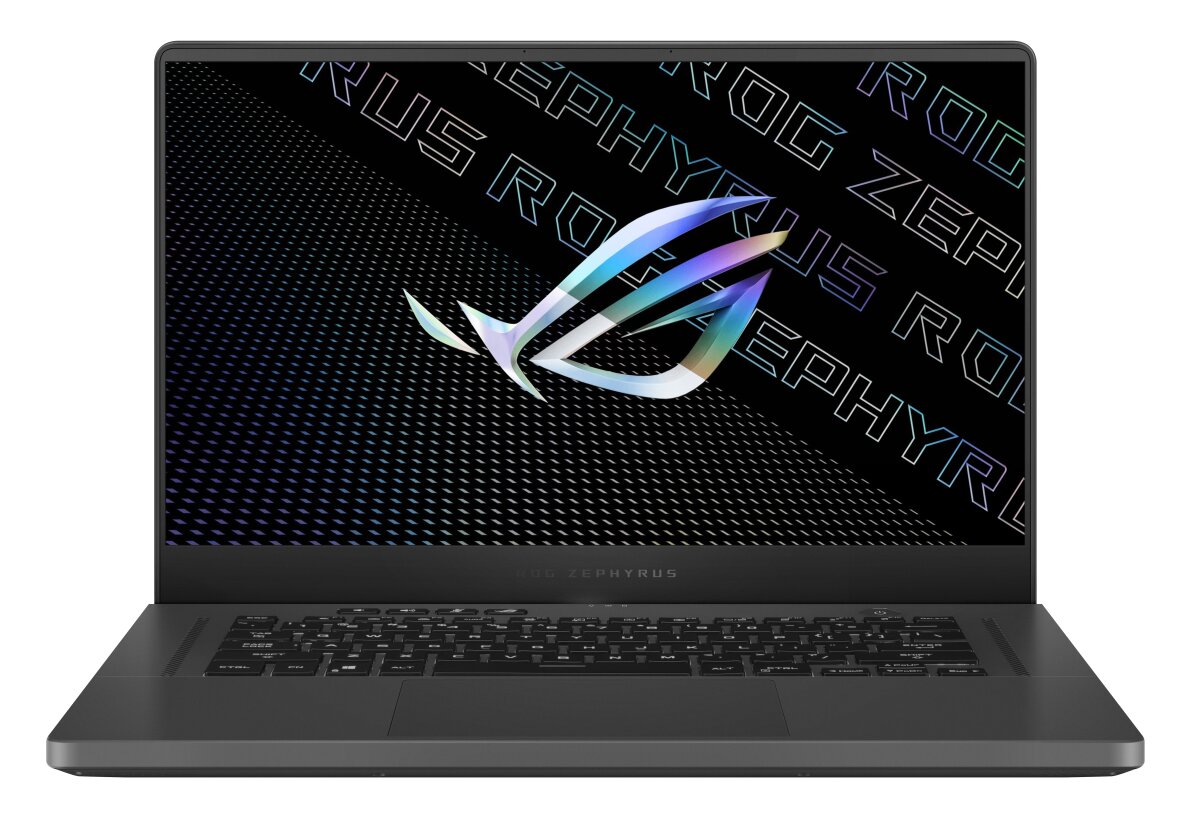

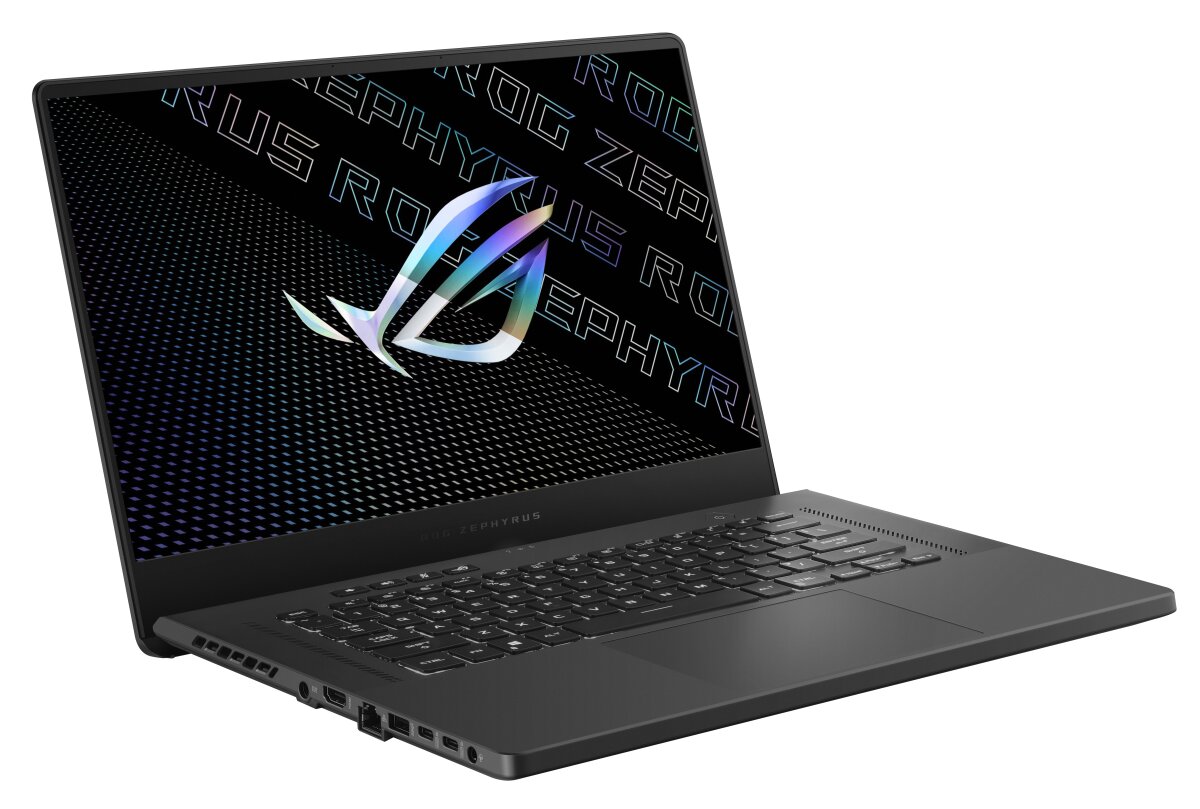

ASUS ROG GA503QS-HQ021T RAM upgrade specifications
The ASUS ROG Zephyrus G15 GA503QS-HQ021T supports DDR4-SDRAM memory upgrades with a maximum capacity of 48 GB. The laptop features one SO-DIMM slot for memory expansion, allowing users to upgrade the RAM to the specified maximum. Compatible memory modules operate at 3200 MHz frequency. The upgrade slots accommodate standard DDR4 SO-DIMM modules, enabling straightforward memory expansion for enhanced performance on the Zephyrus G15 GA503QS-HQ021T model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 48 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 October 2021 |
Additional Notes
- The ASUS ROG GA503QS-HQ021T features soldered onboard memory paired with a single SO-DIMM slot, limiting upgrade flexibility compared to dual-slot configurations.
- Achieving the 48 GB maximum capacity requires purchasing a 32 GB SO-DIMM module, as the system contains 16 GB of non-removable soldered RAM.
- DDR4-3200 operates at PC4-25600 bandwidth specification, delivering 25.6 GB/s theoretical maximum transfer rate per channel.
- Mixing soldered memory with an aftermarket SO-DIMM module creates an asymmetric dual-channel configuration, which may prevent optimal memory interleaving in certain workloads.
- The single accessible slot eliminates the option for matched memory pairs, potentially affecting applications that benefit from symmetric dual-channel operation.
- Upgrading requires CL22 or CL20 latency modules rated at 1.2V to maintain compatibility with the factory-installed DDR4-3200 specifications.
- Physical access to the SO-DIMM slot requires removing the bottom panel, which involves breaking manufacturer seals that may affect warranty coverage in certain regions.
- The onboard memory component is permanently soldered to the mainboard, making it irreplaceable without board-level repairs in case of module failure.
- Installing a non-matching capacity module alongside the soldered RAM forces the system into flex mode, where only portions of the larger module operate in dual-channel configuration.
- DDR5 modules are electrically incompatible with this DDR4 platform due to different voltage requirements and notch positioning on the SO-DIMM connector.
- Memory upgrade does not affect the integrated graphics allocation, as the system uses dedicated GPU memory architecture rather than shared system RAM.
