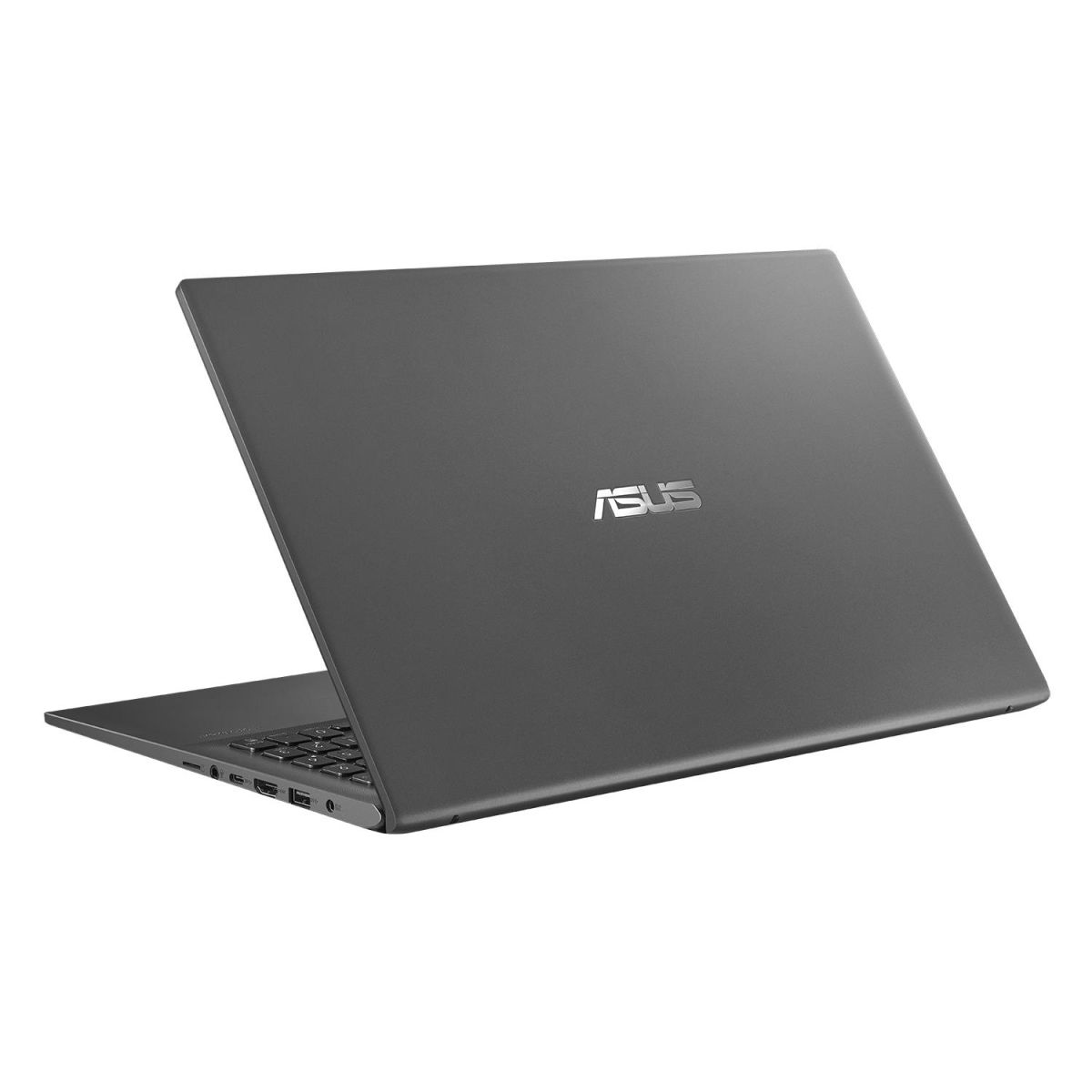

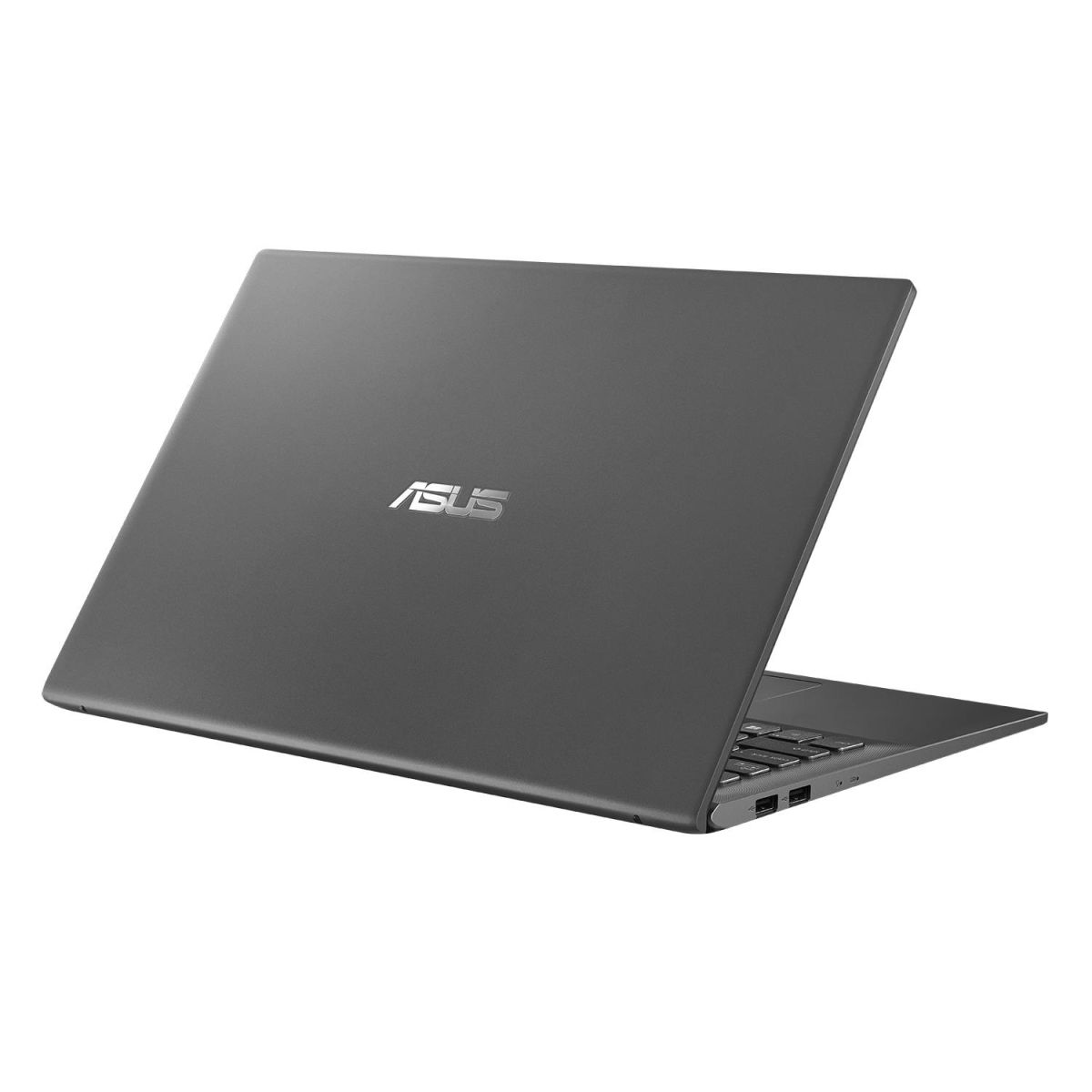

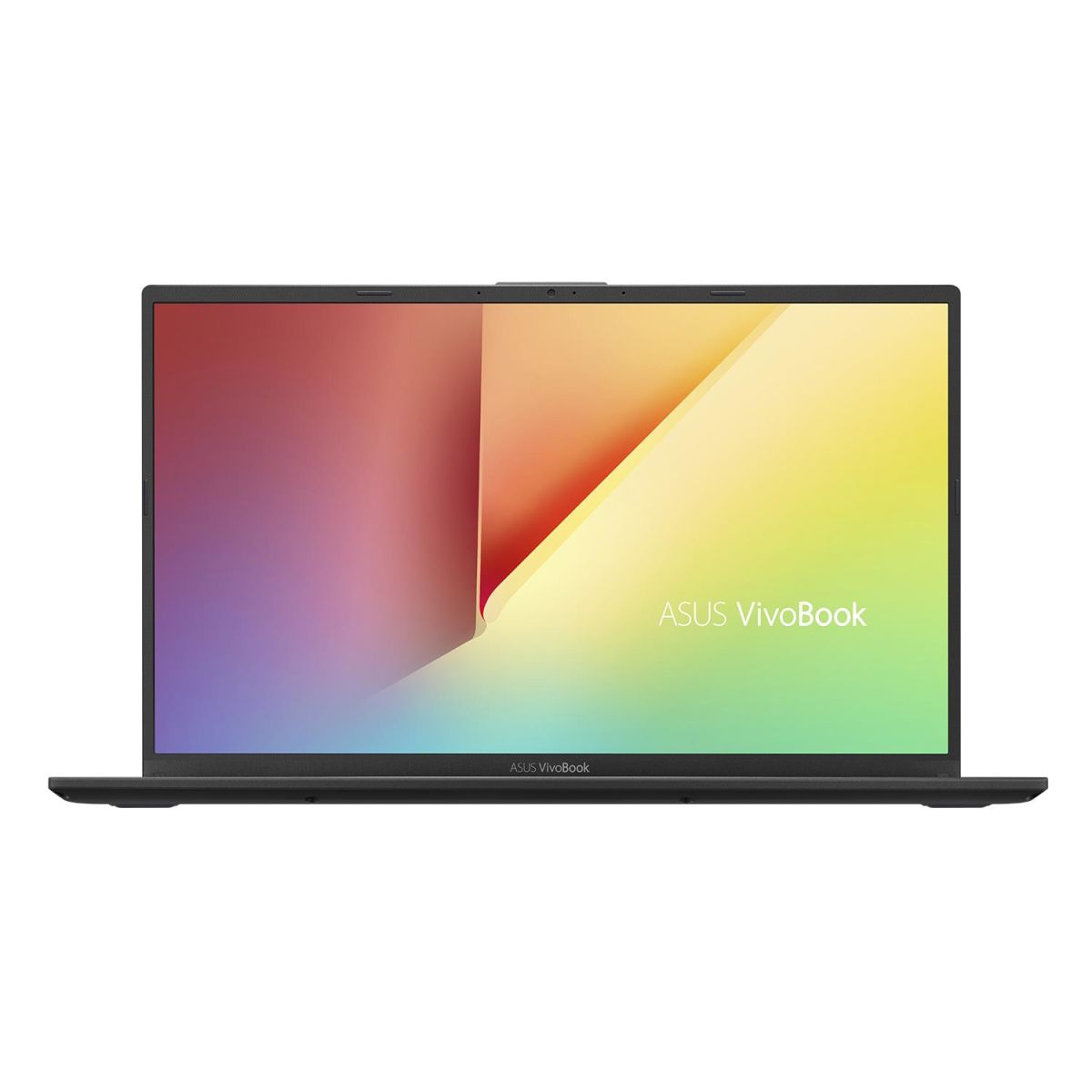

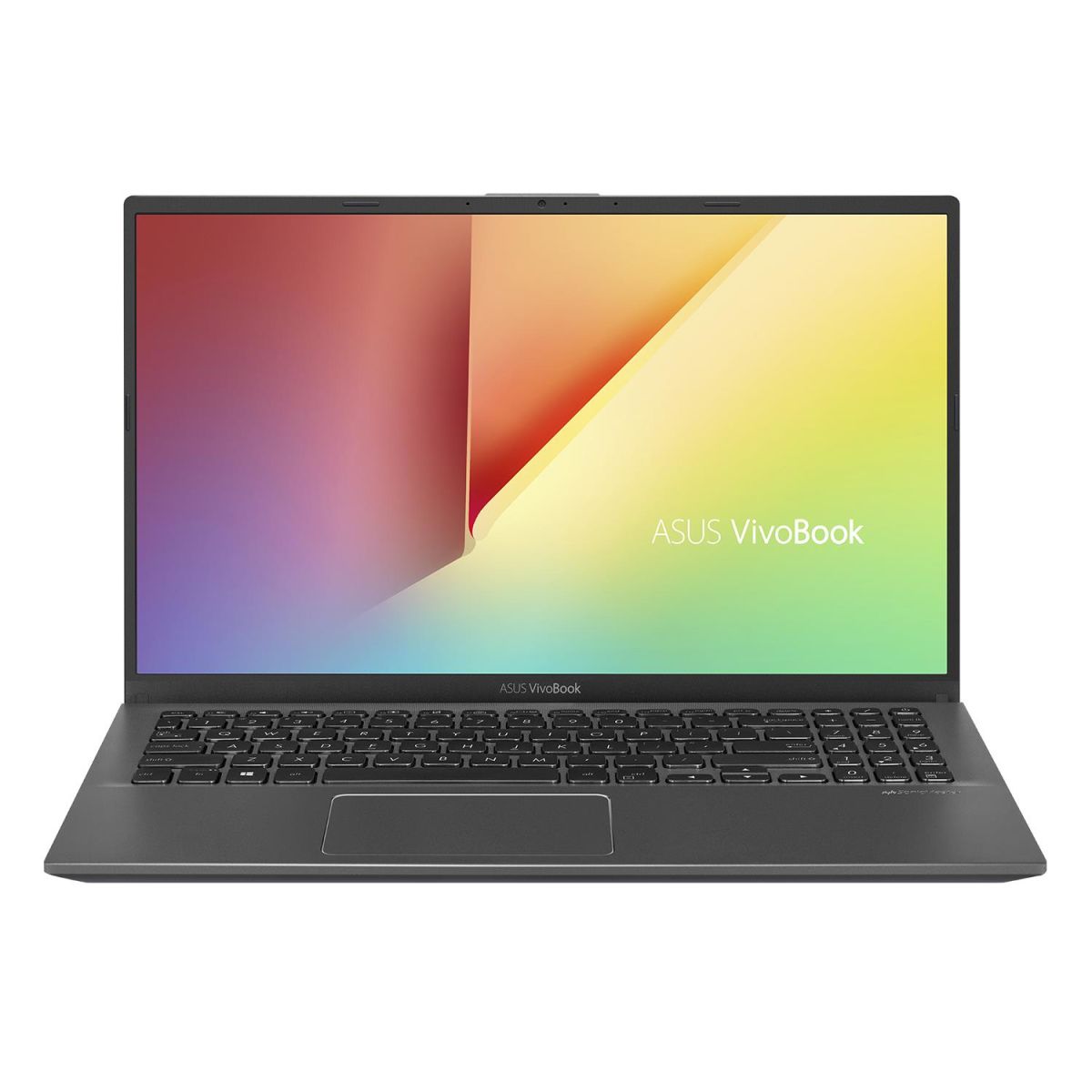

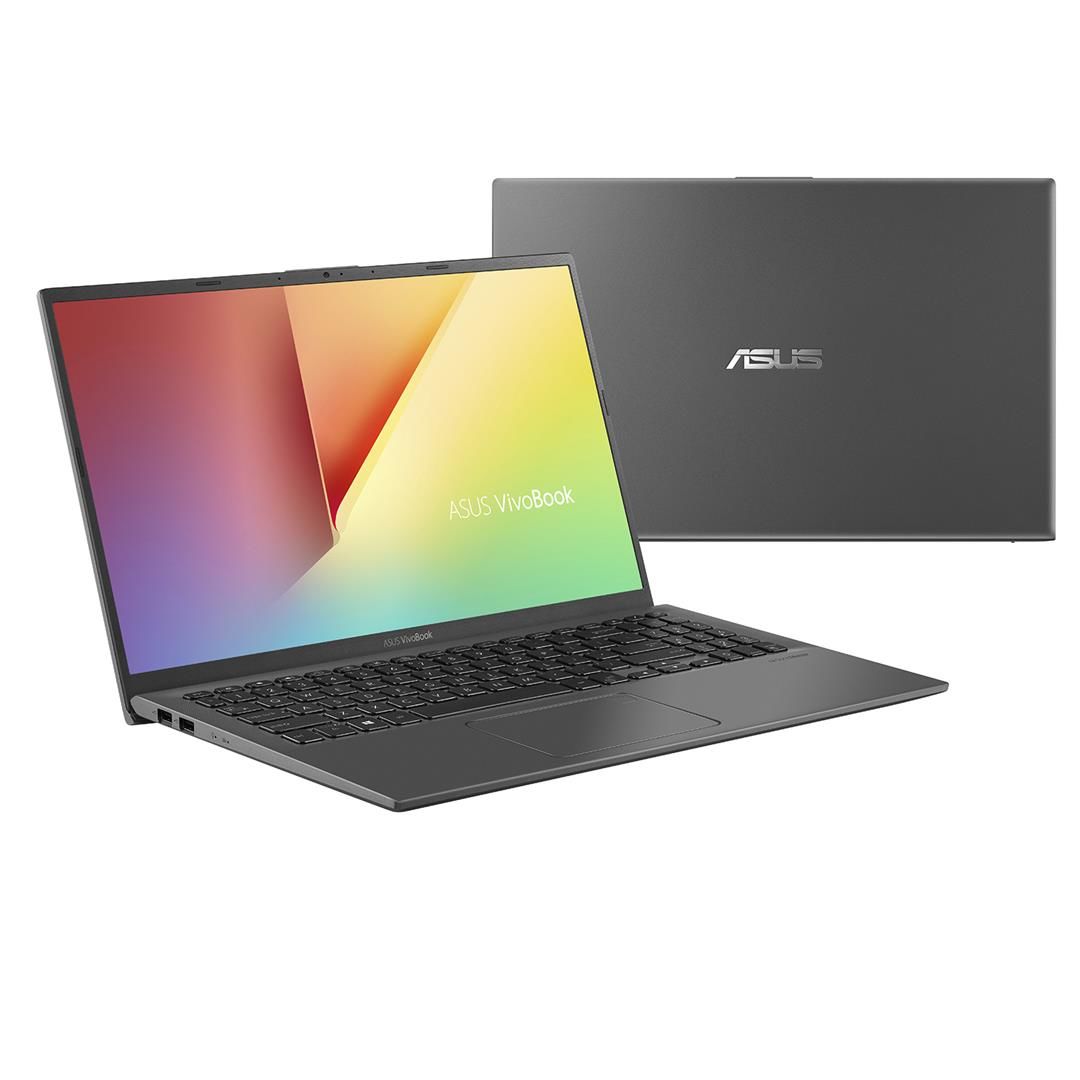

ASUS Vivobook F512DA-DB34 RAM upgrade specifications
The ASUS Vivobook 15 Series F512DA-DB34 features DDR4-SDRAM memory specifications compatible with upgrade configurations. The laptop contains one SO-DIMM memory slot alongside on-board memory, supporting maximum RAM capacity of 12 GB. Memory operates at 2400 MHz frequency. Upgrade specifications indicate compatible DDR4 modules for expanding the system's total memory capacity through the available SO-DIMM slot.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 12 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 17 November 2019 |
Additional Notes
- The presence of on board memory indicates that a portion of the system RAM is permanently soldered to the motherboard and cannot be replaced or upgraded.
- System memory operates in a dual channel configuration only when the capacity of the module in the single SO-DIMM slot matches the soldered capacity of the ASUS Vivobook F512DA-DB34.
- Installing a memory module with a higher frequency than 2400 MHz results in an automatic downclock to match the hardware controller limitations of the chipset.
- The total memory threshold of 12 GB suggests a configuration consisting of 4 GB of soldered memory and a single 8 GB module in the expansion slot.
- Mismatching the density or ranks between the soldered memory and the removable module can lead to asynchronous dual channel modes which reduce overall memory bandwidth.
- Accessing the single SO-DIMM slot requires the removal of the entire base panel which involves navigating plastic clips and internal ribbon cables.
- Latency timings are restricted to the highest common denominator between the fixed on board chips and the added expansion card.
