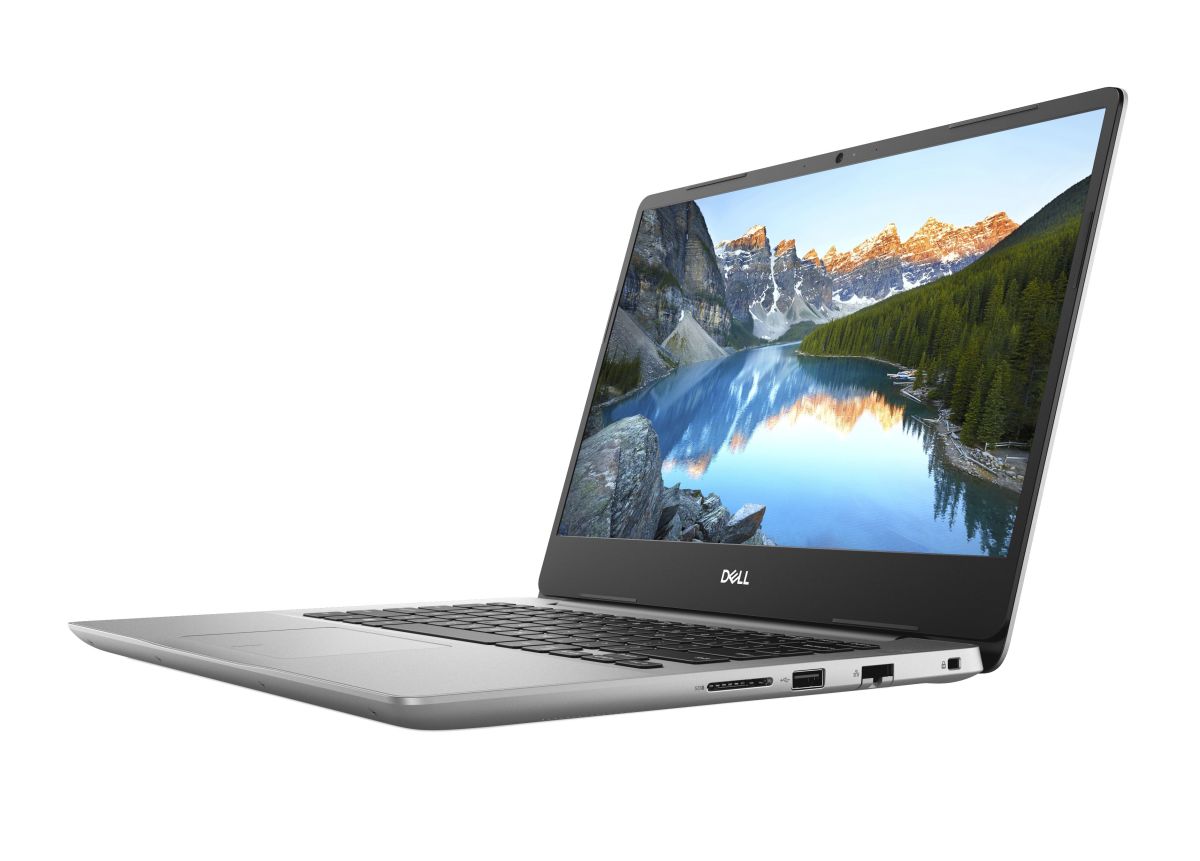

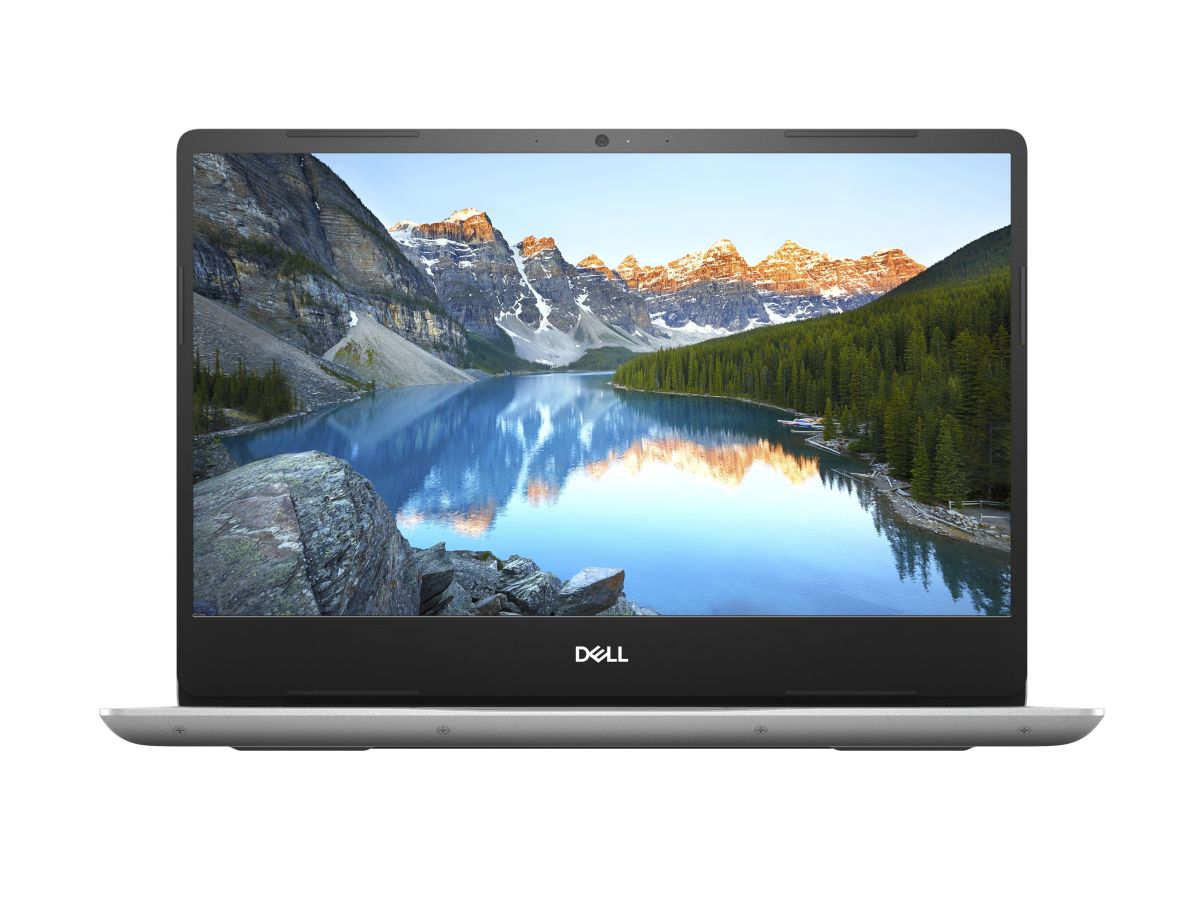

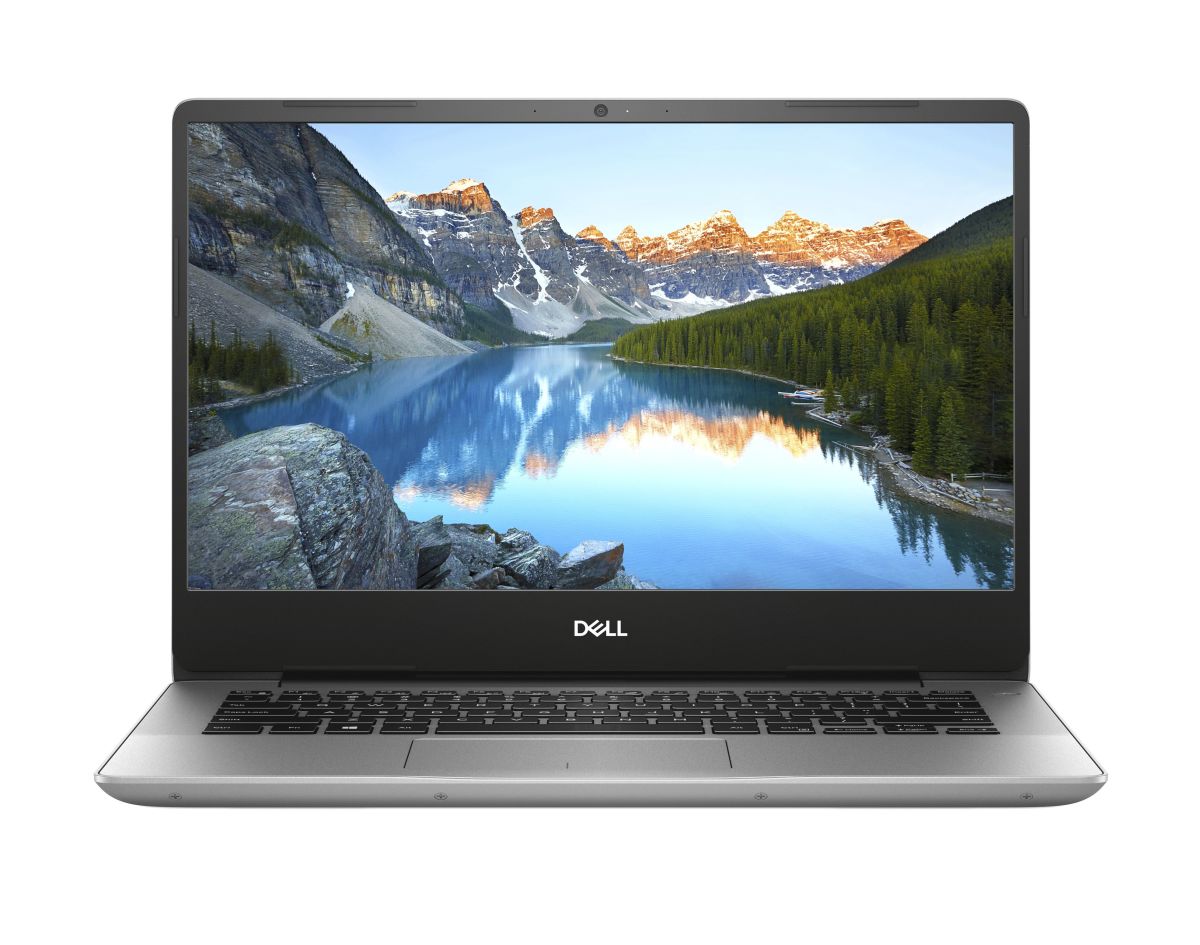

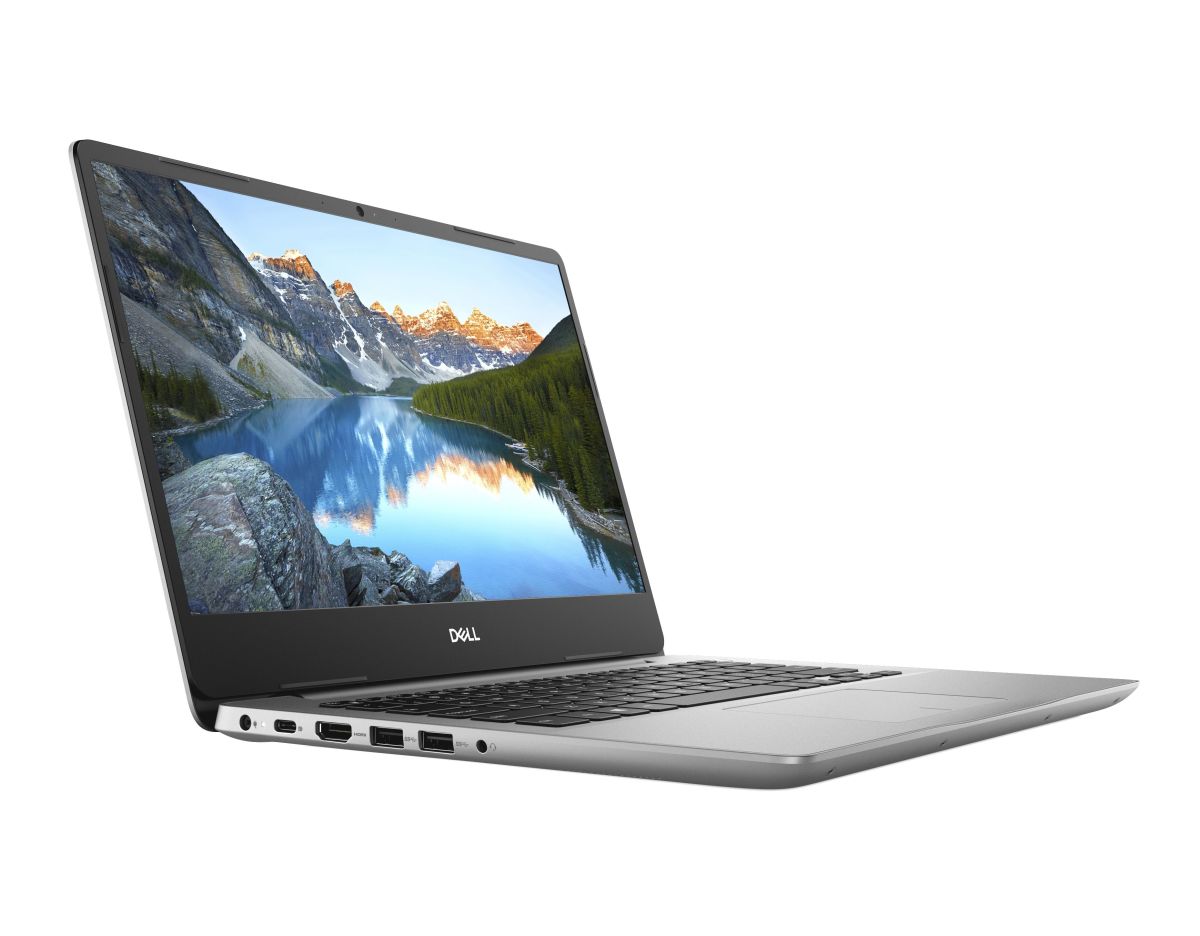

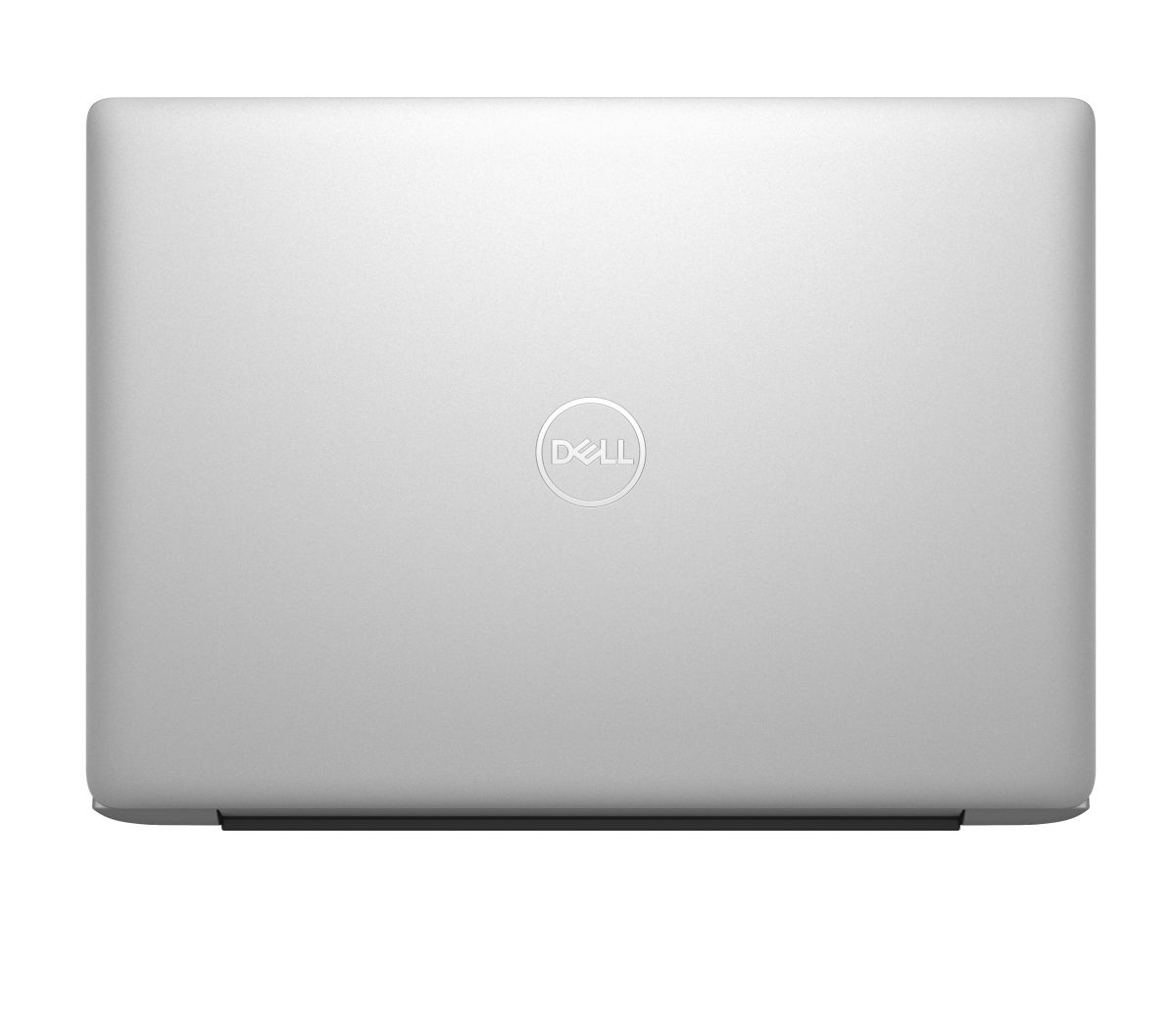

DELL Inspiron 5480 RAM upgrade specifications
DELL Inspiron 5000 Series 5480 features DDR4-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting maximum capacity of 32 GB. Memory modules operate at 2666 MHz frequency. Compatible RAM upgrades utilize SO-DIMM form factor for laptop integration. Specifications enable users to expand memory capacity beyond factory default configurations to enhance system performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 17 January 2019 |
Additional Notes
- Dual channel mode functionality requires installing memory in matched pairs to bypass single channel bandwidth limitations.
- The BIOS will automatically downclock higher frequency modules to the system maximum of 2666 MHz during operation.
- Utilizing both SO-DIMM slots for the maximum 32 GB capacity necessitates replacing any existing pre-installed modules as no empty expansion slots remain available after reaching this limit.
- Non-ECC unbuffered modules are required to ensure boot compatibility with the Dell Inspiron 5480 motherboard architecture.
- Physical installation of thin profile SO-DIMM sticks is mandatory due to the internal height restrictions of the chassis design.
- Installation of memory modules with lower latency timings than the factory defaults will still be restricted by the preset latency profiles in the system firmware.
- The memory controller integrated into the processor determines the final data transfer rate regardless of the theoretical maximums of the individual RAM sticks.
