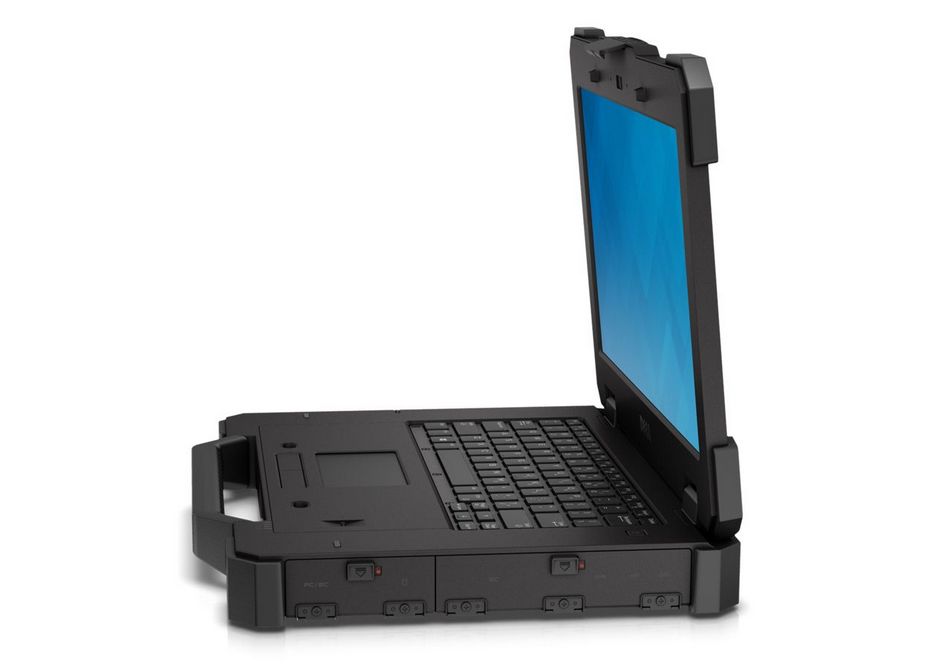

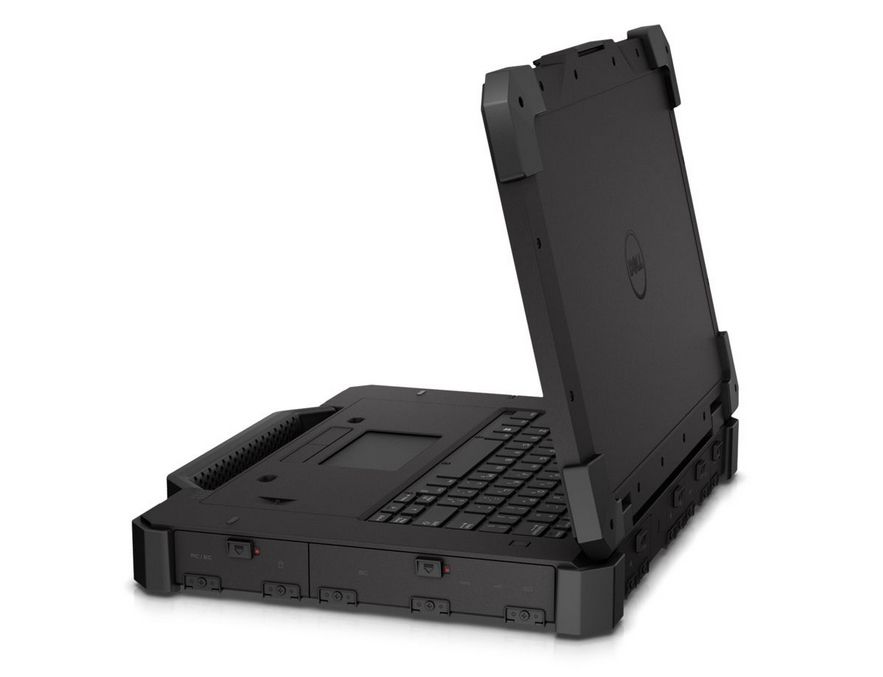

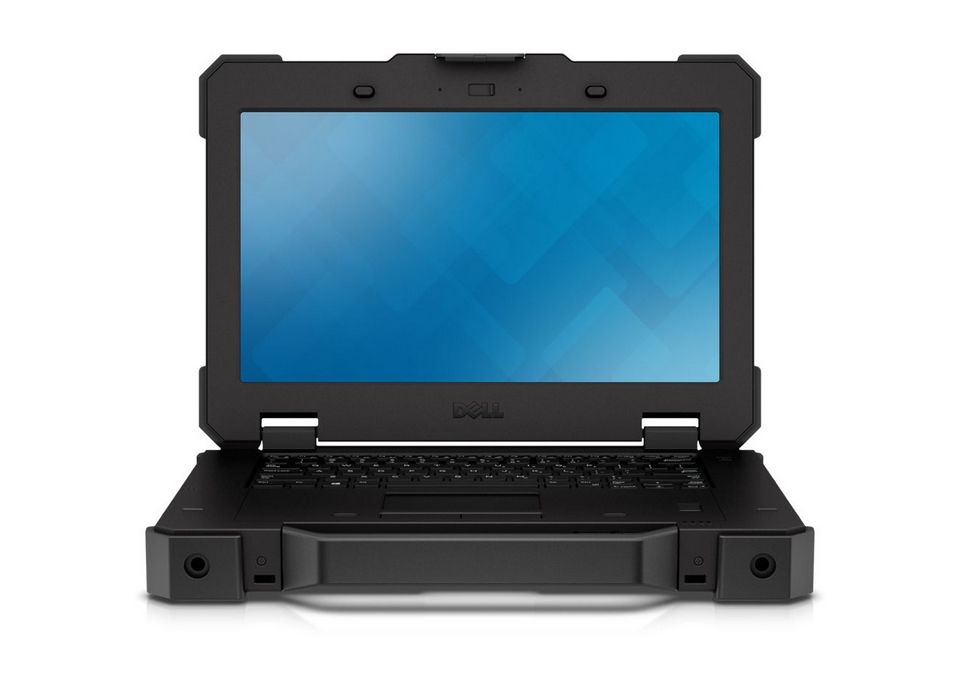

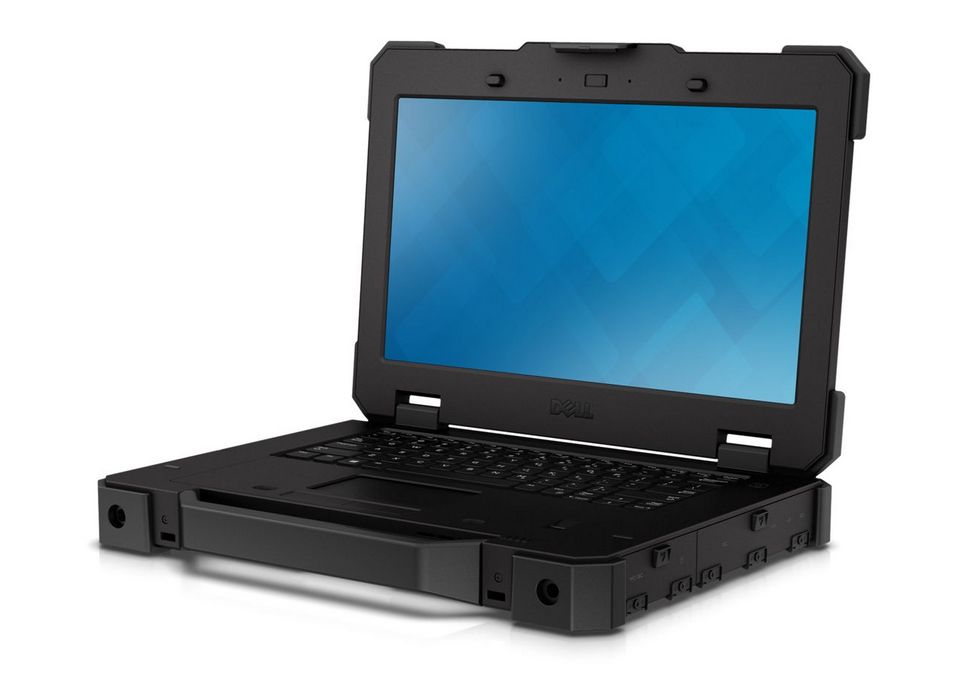

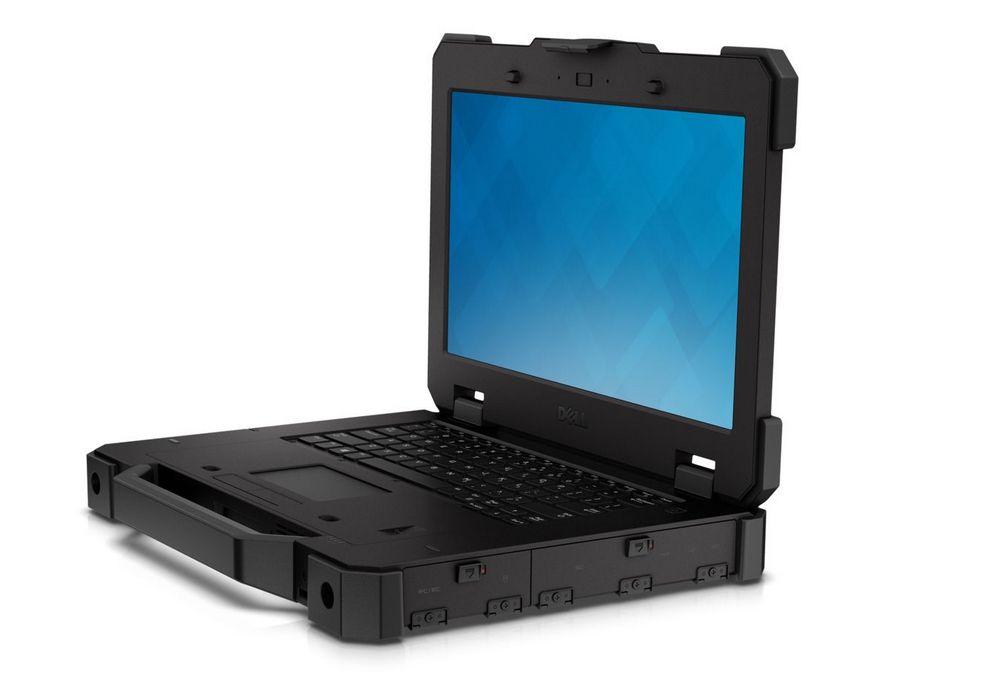

DELL Latitude 7414 RAM upgrade specifications
The DELL Latitude Rugged 7414 features DDR4-SDRAM memory upgrade specifications. The mobile workstation contains 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 2133 MHz frequency. The SO-DIMM form factor enables standard memory expansion for this rugged laptop series. Specifications allow dual-channel memory configuration to enhance system performance through compatible DDR4 upgrades.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2133 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2133 (PC4-17064) |
| Bandwidth | 17.1 GB/s |
| Laptop Release date | 09 November 2018 |
Additional Notes
- Dual channel memory architecture requires installing matched pairs of modules to maximize available bus bandwidth.
- Operating at a frequency of 2133 MHz indicates compatibility with early generation DDR4 modules which may downclock higher speed sticks to maintain system stability.
- The 32 GB capacity threshold suggests the motherboard firmware utilizes a memory controller limited to 16 GB per slot density.
- Physical access to the SO-DIMM slots on the Dell Latitude 7414 involves navigating a ruggedized chassis design that often requires specialized tools to maintain the structural integrity and environmental seals.
- Utilizing low voltage DDR4 modules reduces thermal output within the enclosed rugged casing compared to older memory standards.
- Upgrading to the maximum supported volume assists in reducing page file reliance on the primary storage drive during heavy multitasking.
- Non ECC unbuffered modules are necessary for post installation boot success as the chipset lacks parity error correction support.
