LENOVO ThinkPad 13 (2nd Gen) RAM upgrade specifications

Lenovo ThinkPad 13 (2nd Gen) laptop RAM upgrade specifications detail memory configuration options. The device features two SO-DIMM slots supporting DDR4-SDRAM memory operating at 2133 MHz frequency. Maximum compatible RAM capacity reaches 32 GB total. Upgrade specifications indicate SO-DIMM form factor for memory modules. The ThinkPad 13 (2nd Gen) supports DDR4 memory technology with dual-slot configuration enabling modular RAM expansion. Specifications provide compatibility information for memory module replacement and capacity expansion options within stated maximum specifications.

Additional Notes

• The 2133 MHz frequency limitation represents DDR4-2133 standard, which will downclock any faster modules (DDR4-2400, DDR4-2666, or higher) to match this specification.
• The 2-slot SO-DIMM configuration allows symmetric dual-channel operation when populated with matching capacity modules, providing maximum memory bandwidth of approximately 34 GB/s theoretical throughput.
• Maximum capacity per slot calculates to 16 GB, meaning single 32 GB SO-DIMM modules will not function in this system regardless of compatibility labeling.
• DDR4 SO-DIMM modules operate at 1.2V standard voltage, incompatible with DDR3L or DDR3 modules due to different keying notches and electrical requirements.
• Asymmetric configurations such as 8 GB plus 16 GB will function but force the memory controller into flex mode, reducing performance compared to matched pairs.
• The SO-DIMM form factor measures 67.6mm in length, distinguishing it from standard DIMM modules used in desktop systems which will not physically fit.

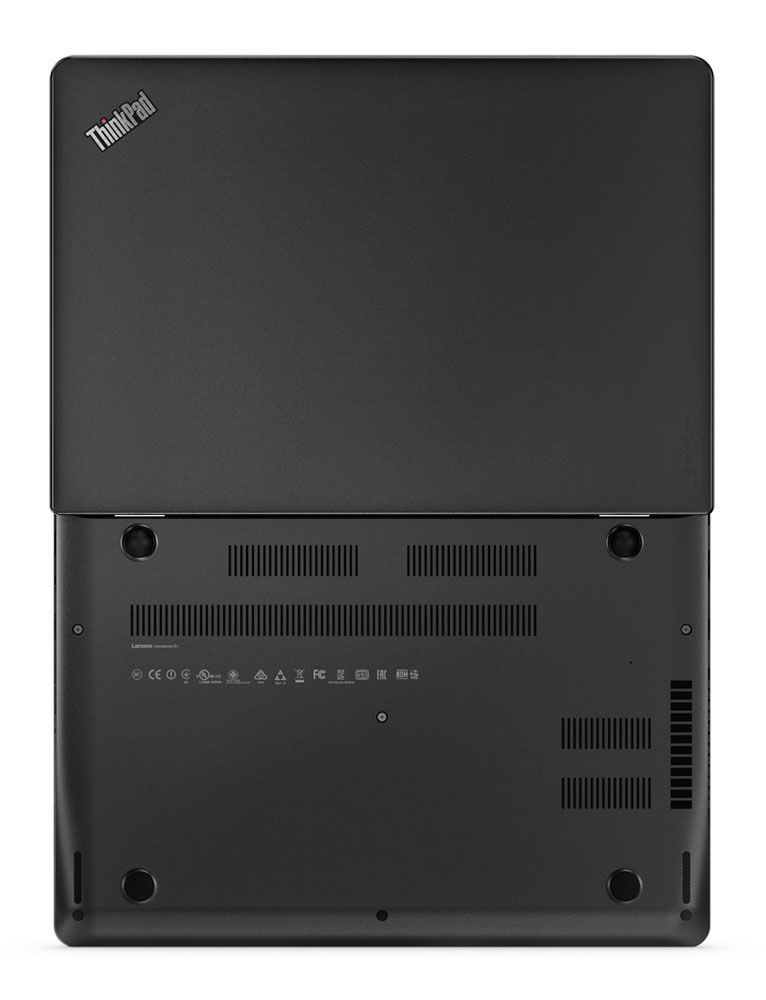

• Installation requires bottom panel removal on ThinkPad 13 2nd Gen models, with memory slots typically accessible without full disassembly, maintaining warranty coverage under most regional policies.
• Single-channel operation with only 1 occupied slot will halve memory bandwidth to approximately 17 GB/s, creating potential bottlenecks for integrated graphics workloads.
• CAS latency specifications (CL15, CL16, CL17) remain functional across different timing values, with the system automatically selecting SPD-programmed JEDEC standard timings.
• ECC SO-DIMM modules are physically compatible but non-functional, as ThinkPad 13 series uses consumer-grade memory controllers without error-correction support.
