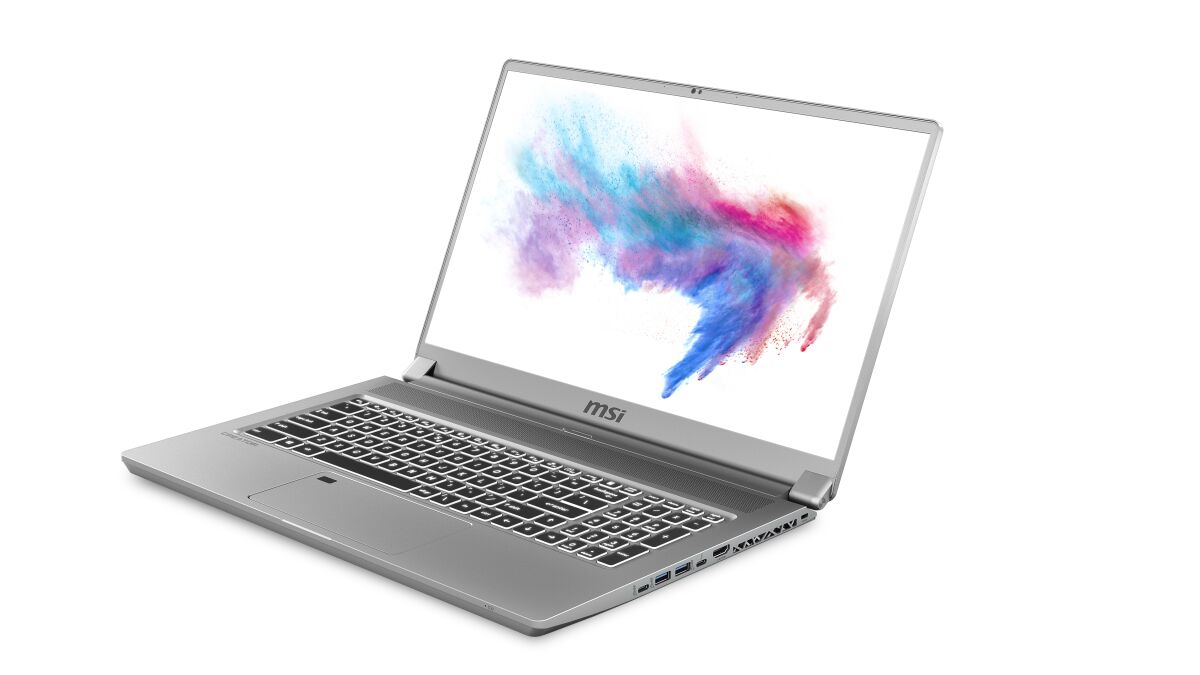

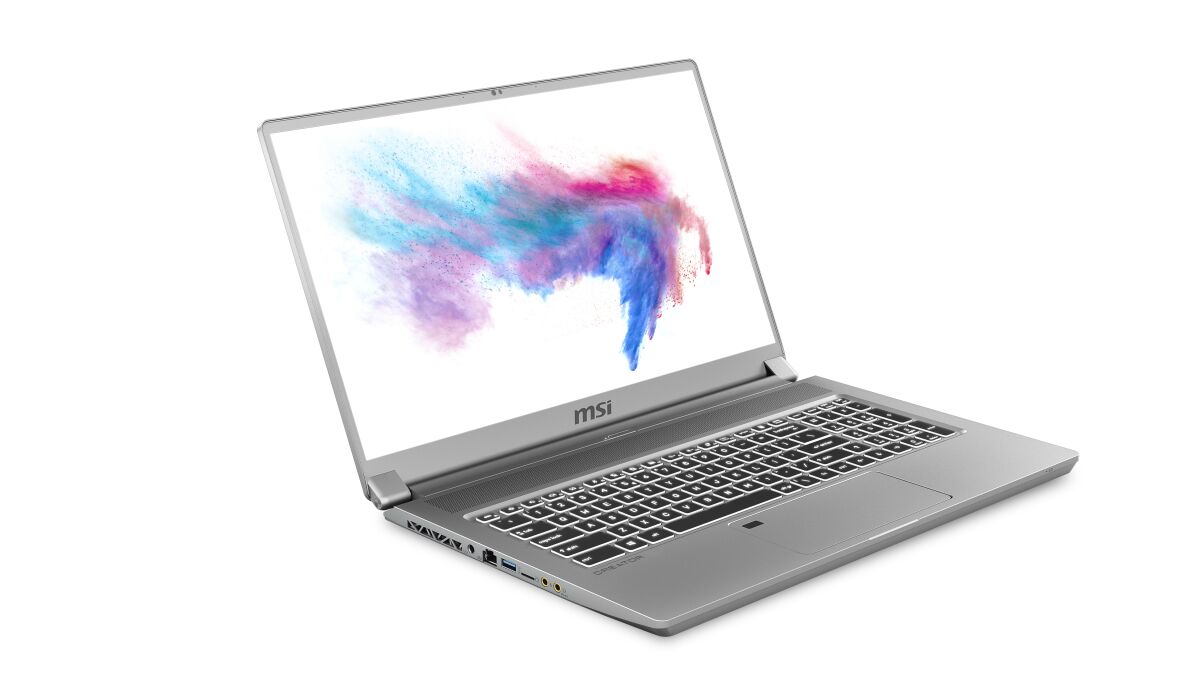

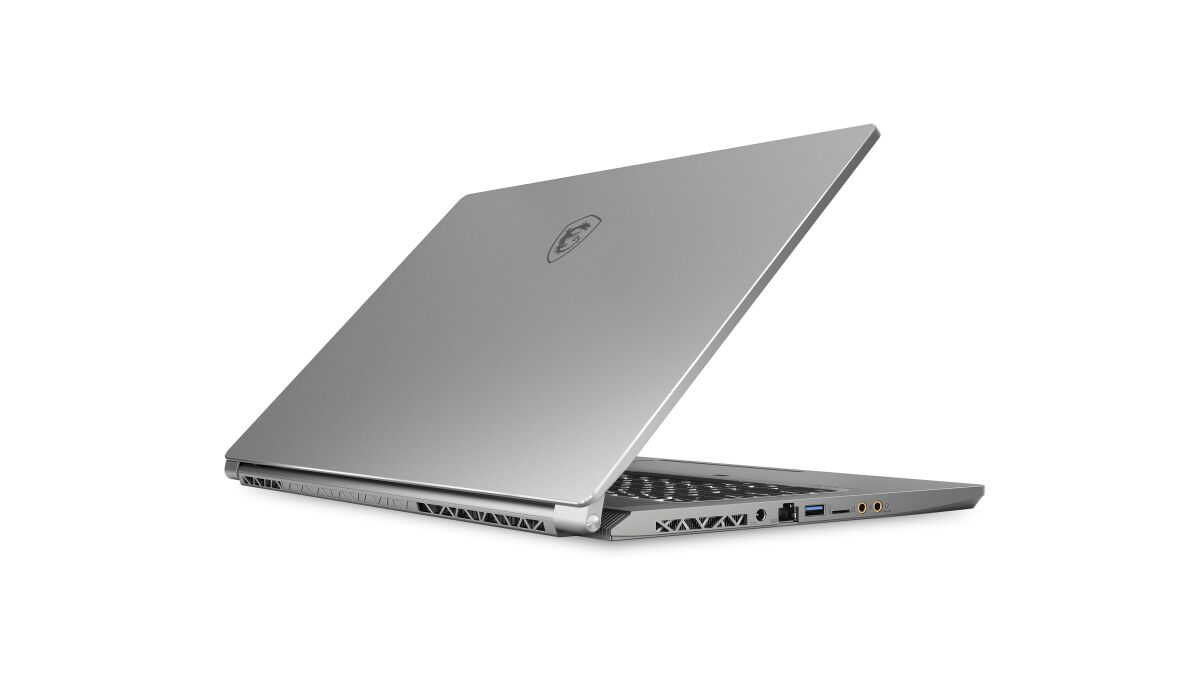

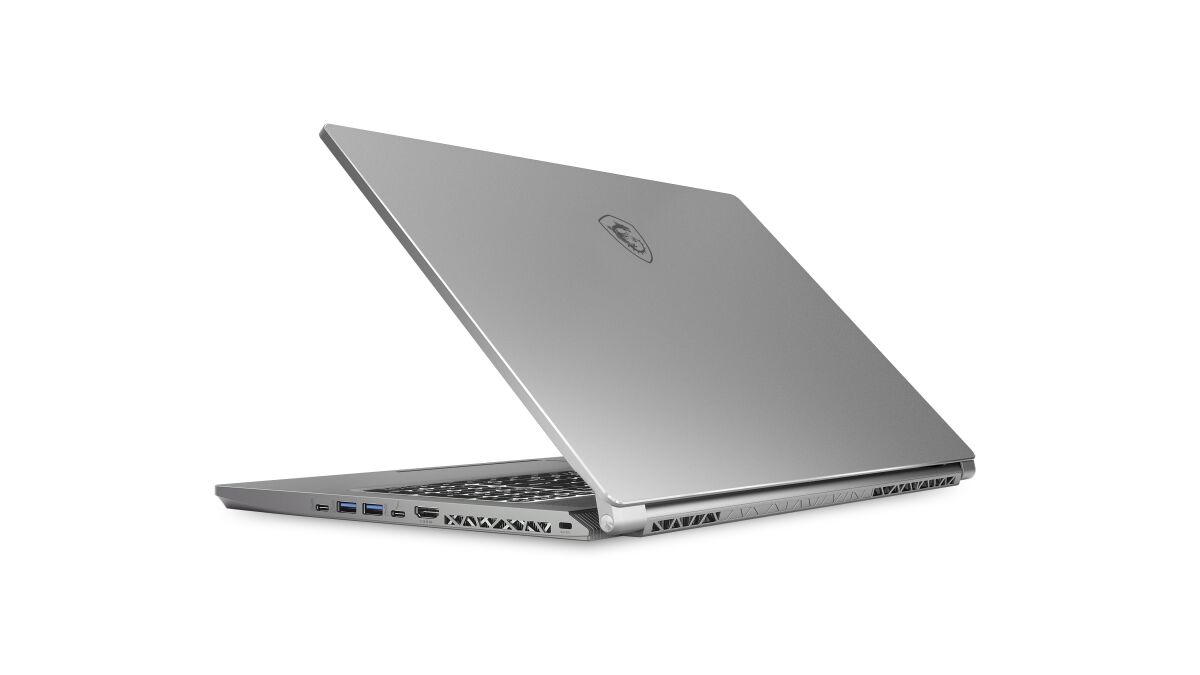

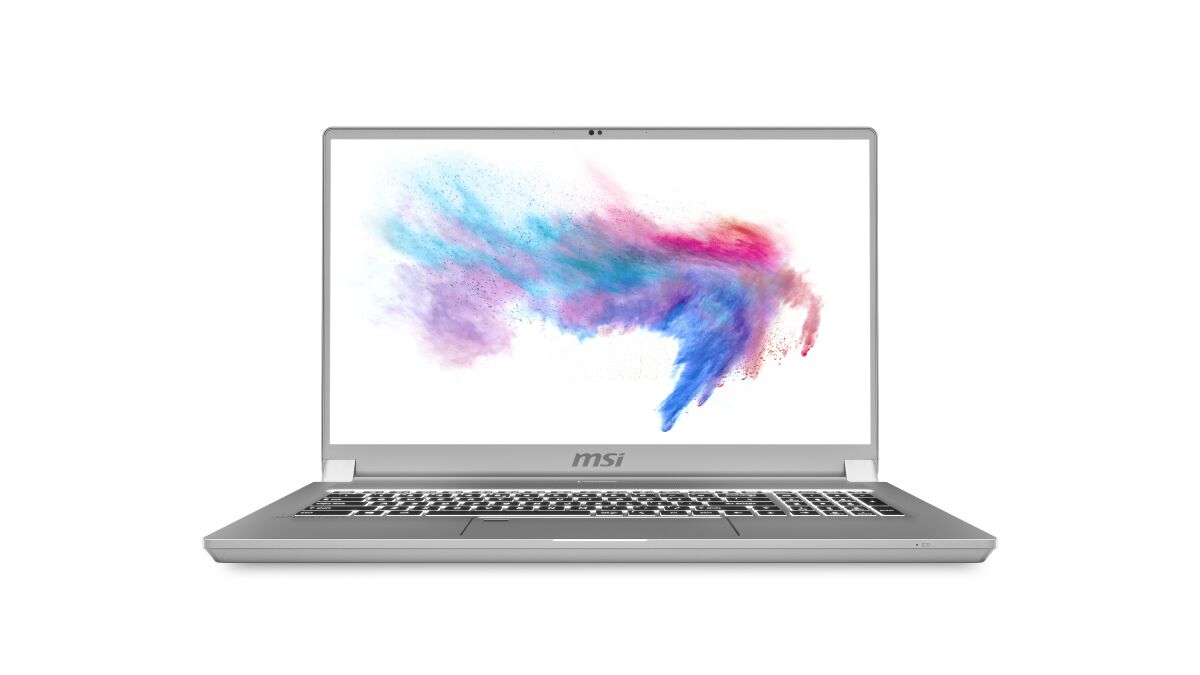

MSI Creator 17 A10SF-204ES RAM upgrade specifications
MSI Creator 17 A10SF-204ES laptop RAM upgrade specifications include two SO-DIMM memory slots supporting DDR4-SDRAM modules at 2666 MHz frequency. Maximum memory capacity reaches 64 GB total. Compatible upgrades utilize SO-DIMM form factor specifications. Specifications allow for modular memory expansion beyond factory-installed RAM configuration. Upgrade options accommodate standard DDR4 memory modules meeting slot and frequency requirements for the MSI Creator series model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 19 June 2020 |
Additional Notes
- The MSI Creator 17 A10SF-204ES uses DDR4-2666 memory, which operates at a lower frequency than contemporary DDR4 standards (3200 MHz or higher). Upgrading to faster DDR4 modules will not increase performance, as the laptop's memory controller locks speed at 2666 MHz regardless of DIMM specifications.
- Two SO-DIMM slots represent a soldered-first design constraint. If one memory module is factory-soldered, only 1 slot remains accessible for user upgrades, limiting expansion to 32 GB additional capacity rather than the theoretical 64 GB maximum if both slots were user-replaceable.
- The 64 GB ceiling implies a dual-channel configuration with 32 GB SO-DIMM modules as the maximum supported density per slot. Attempting to install larger modules will result in system non-recognition or POST failure.
- DDR4-2666 memory bandwidth totals approximately 42.7 GB/s in dual-channel mode. This constrains performance in memory-intensive workflows such as 4K video editing or large dataset processing, where applications may experience latency bottlenecks unrelated to processor capability.
- SO-DIMM modules are mechanically incompatible with standard UDIMM desktop memory and require verification of voltage specifications (1.2V for DDR4 standard). Non-compliant modules risk hardware damage during installation despite physical compatibility.
- RAM upgrades on this platform do not typically void manufacturer warranty if performed following MSI's documented procedures. Retention of original packaging and serial documentation protects warranty coverage.
