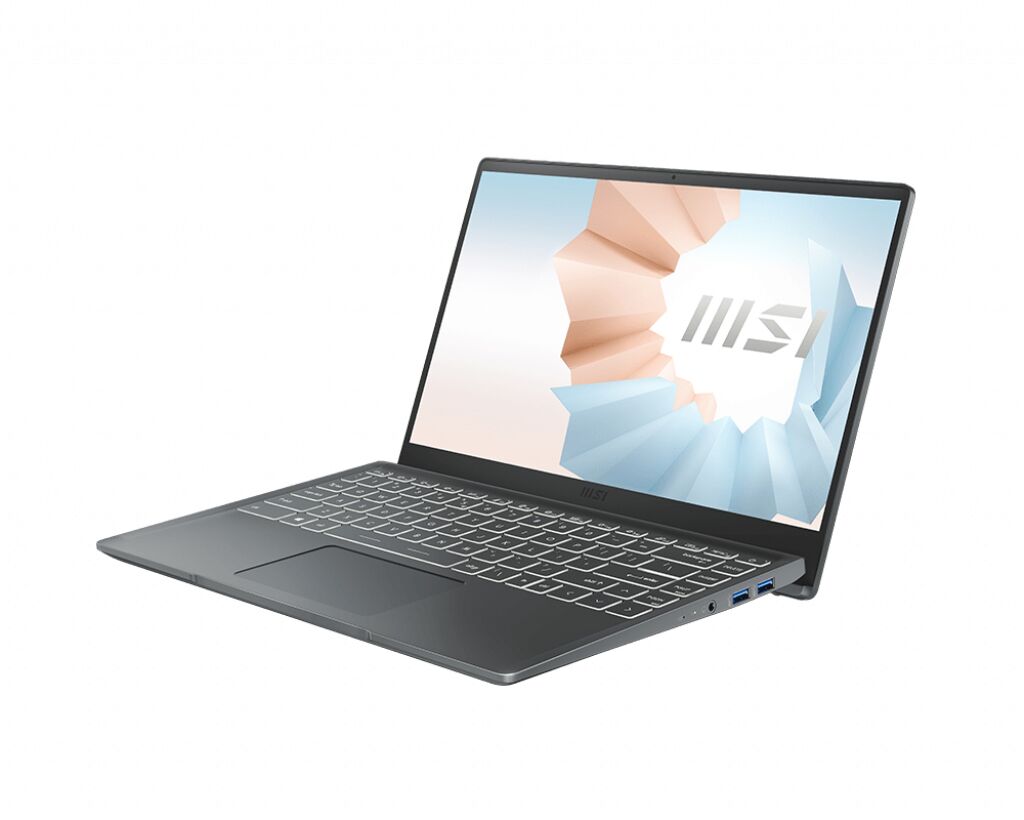

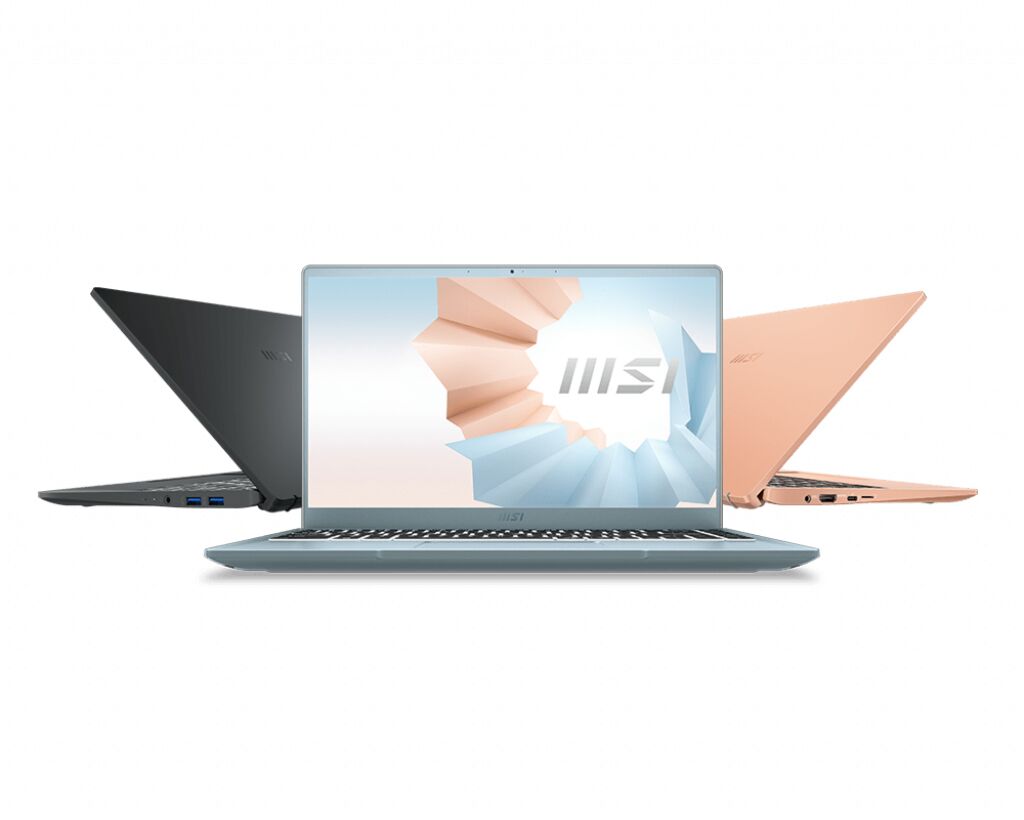

MSI Modern 14 B11SB-009XES RAM upgrade specifications
MSI Modern 14 B11SB-009XES laptop specifications include DDR4-SDRAM memory upgrade capabilities. The system features 1x SO-DIMM slot for memory expansion. Maximum compatible RAM capacity reaches 32 GB. Memory modules operate at 3200 MHz frequency. SO-DIMM form factor modules are required for upgrade compatibility. Specifications support DDR4 memory technology for enhanced performance and multitasking capabilities on this portable computing platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 25 August 2020 |
Additional Notes
- The presence of a single SO-DIMM slot excludes dual-channel memory configurations, resulting in a single-channel memory architecture that limits total available memory bandwidth.
- Upgrading the **MSI Modern 14 B11SB-009XES** requires the removal of the existing module since no secondary expansion slot exists for additive capacity.
- Integrated graphics performance will be constrained by the single-channel bus width regardless of the total memory capacity installed.
- The system accepts High-Density modules up to 32 GB, but the CPU memory controller will downclock faster modules to the maximum supported 3200 MHz frequency.
- Physical access to the memory slot necessitates the removal of the entire base panel and potentially penetrating a factory seal sticker which may impact warranty coverage in specific regions.
- Latency performance depends on the CAS latency of the single module used, as the motherboard cannot average timings across two sticks of RAM.
