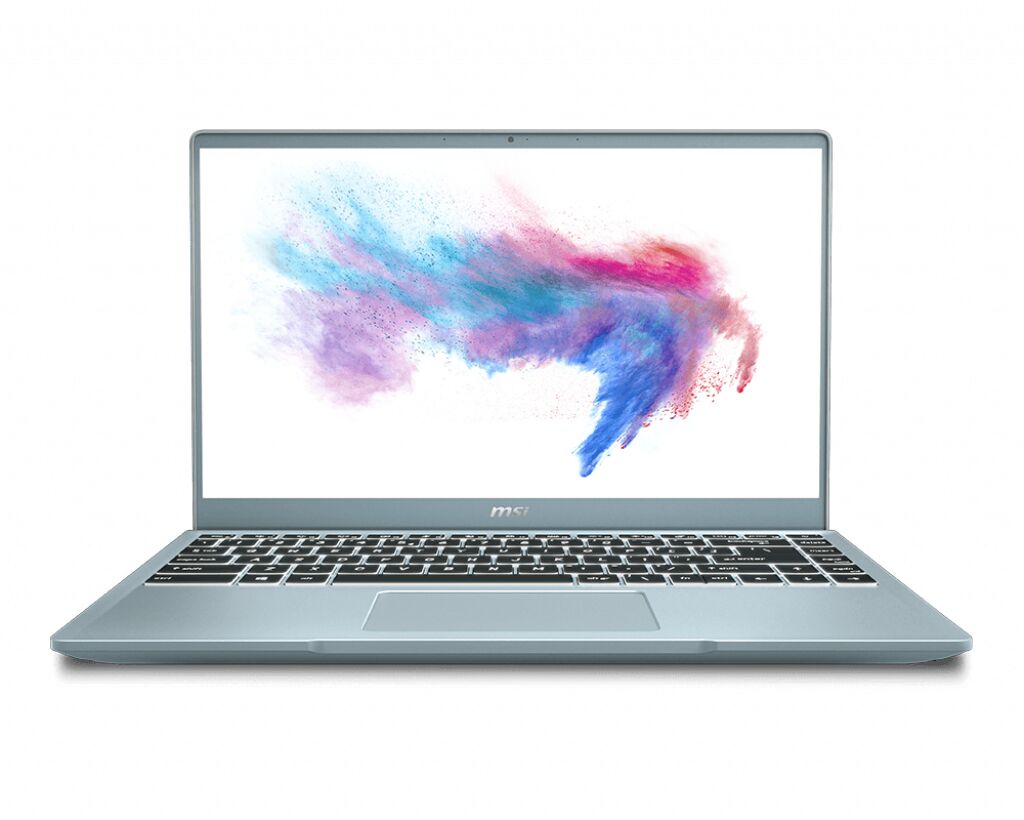

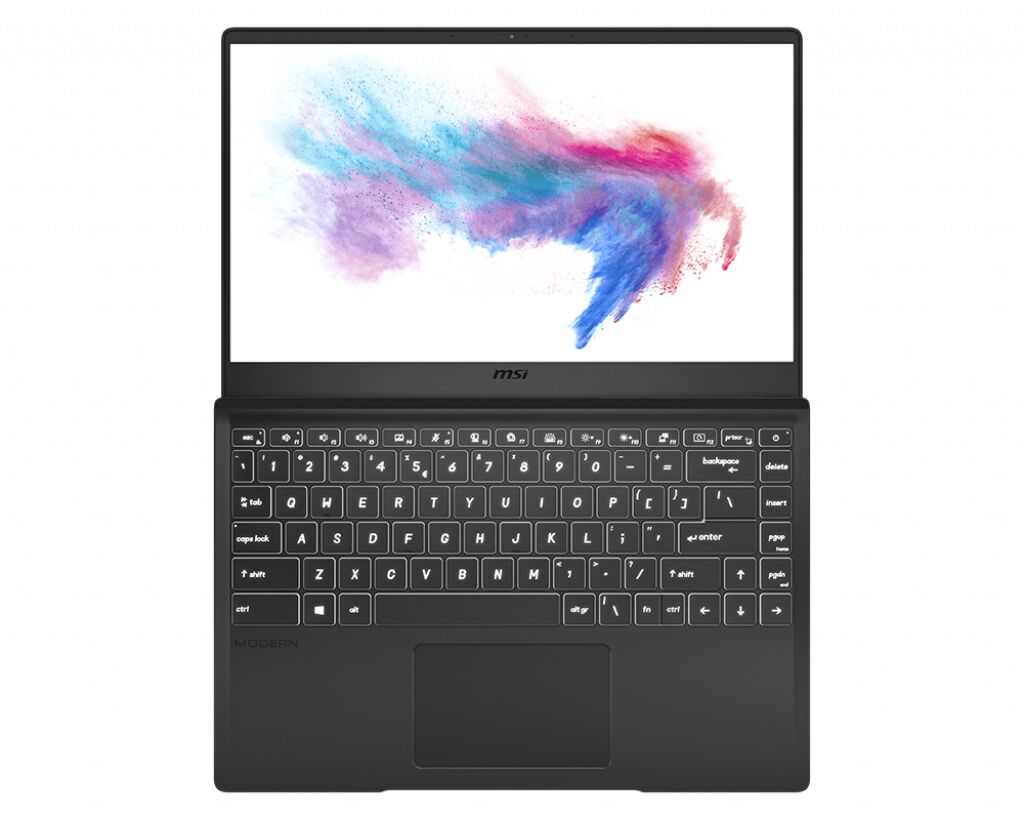

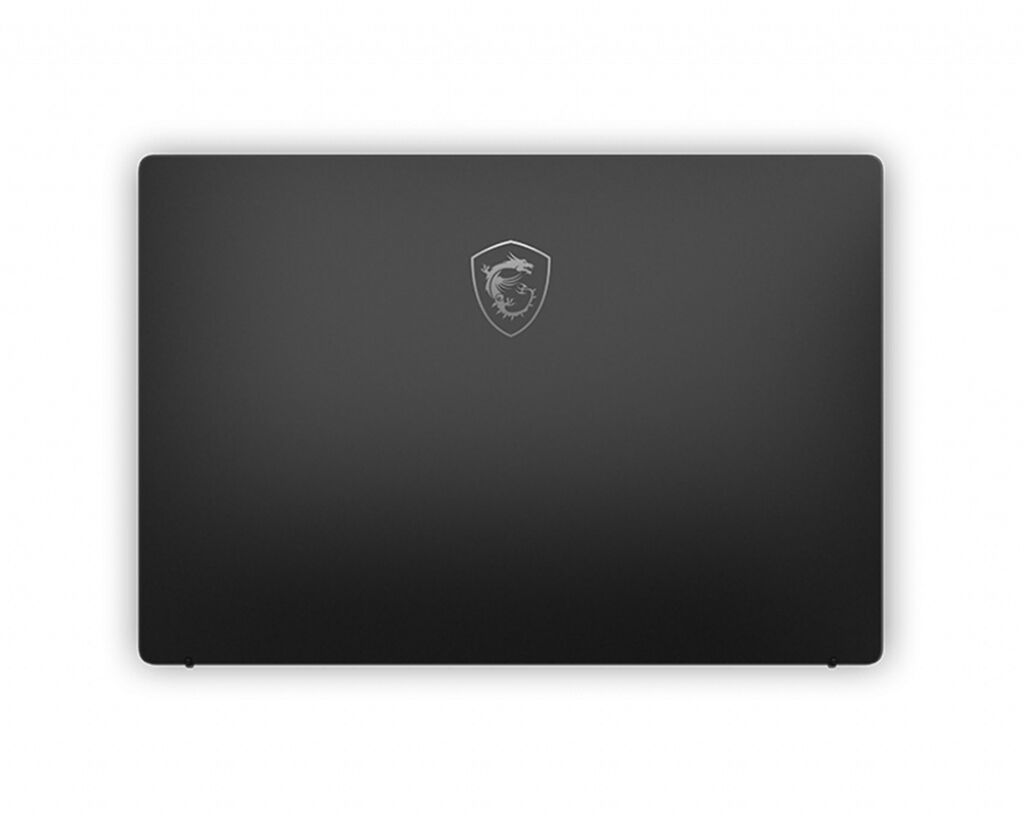

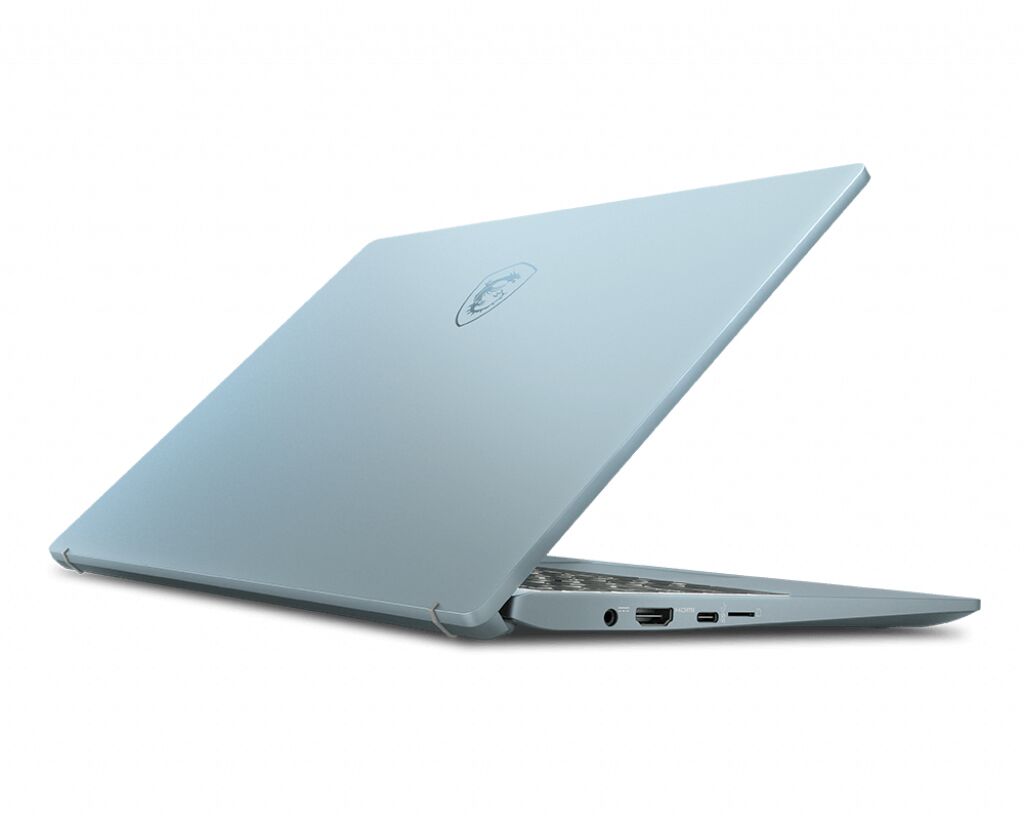

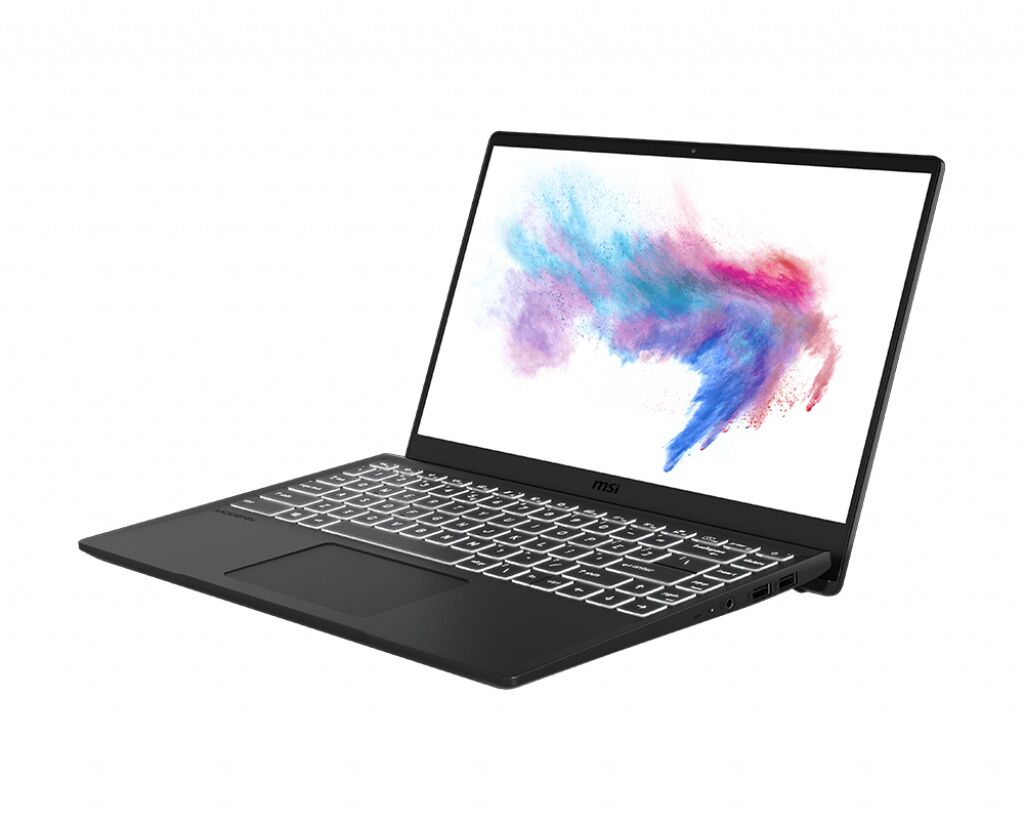

MSI Modern 14 B4MW-056XES RAM upgrade specifications
MSI Modern 14 B4MW-056XES laptop RAM upgrade specifications indicate two SO-DIMM memory slots compatible with DDR4-SDRAM modules operating at 3200 MHz frequency. Maximum RAM capacity reaches 64 GB total when both slots are fully populated. Upgrade options support standard SO-DIMM form factor memory modules, enabling users to expand from factory configuration up to the maximum specified capacity. Memory specifications remain compatible with the Mobile Intel processor architecture integrated within the Modern 14 series design.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 17 February 2021 |
Additional Notes
- The MSI Modern 14 B4MW-056XES contains 2 SO-DIMM slots operating at 3200 MHz, establishing a theoretical maximum throughput of 51.2 GB/s per channel under optimal conditions.
- DDR4-3200 memory operates at relatively conservative timings for the DDR4 generation. Aftermarket modules rated for DDR4-3600 or DDR4-4000 will downclock to 3200 MHz, eliminating compatibility risk but forfeiting performance gains from higher-speed silicon.
- SO-DIMM modules occupy minimal physical space, requiring removal of the bottom panel for access. Dual-slot architecture means one memory module can be added or replaced without full system memory reinstallation, enabling asymmetric configurations during transition phases.
- Upgrading to the 64 GB maximum requires 2x 32 GB SO-DIMM modules. This configuration doubles memory bandwidth utilization compared to single-channel operation but does not eliminate potential latency penalties inherent to mobile form factors versus desktop alternatives.
- SO-DIMM availability at 32 GB capacity in DDR4-3200 specification remains limited in retail channels. Lead times for sourcing matched pairs may extend timelines for warranty-compliant upgrades.
- The 3200 MHz specification predates DDR4 overclocking maturity in consumer BIOS implementations. Most units lack granular memory frequency controls, restricting practical upgrade paths to manufacturer-validated modules only.
- Mobile SO-DIMM slots generate more thermal stress than desktop DIMM slots due to reduced airflow around compact memory modules. Extended operation at 64 GB may increase localized heat dissipation demands on the memory controller.
