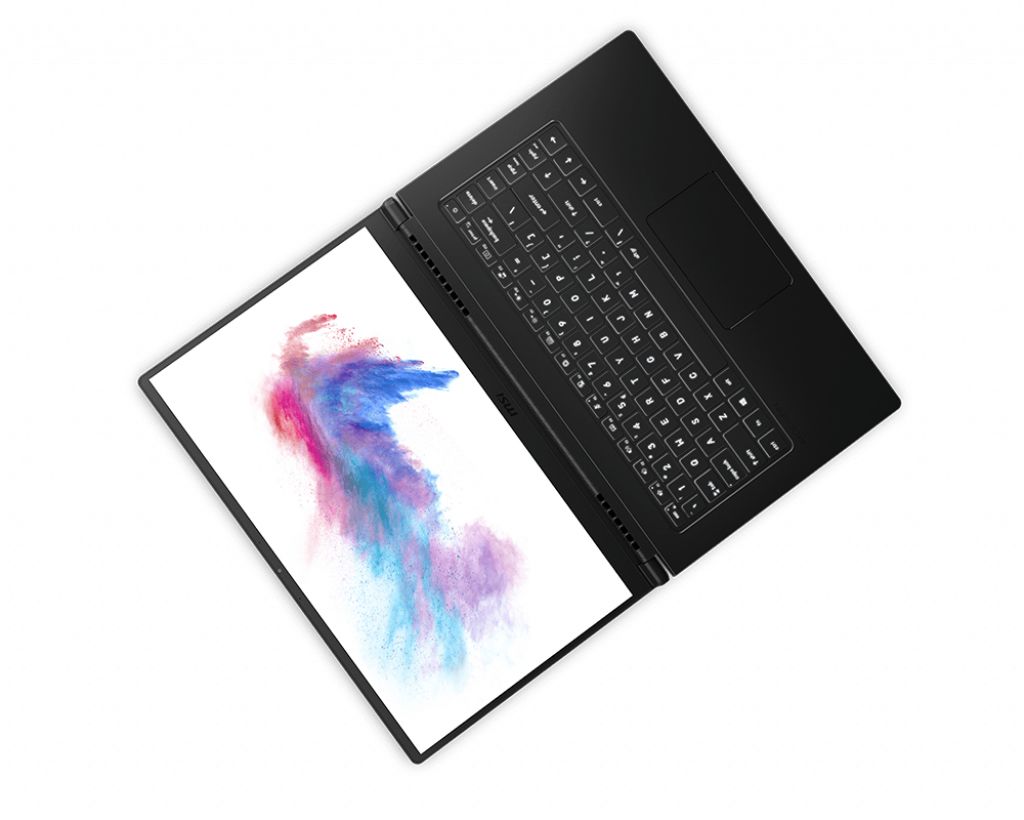

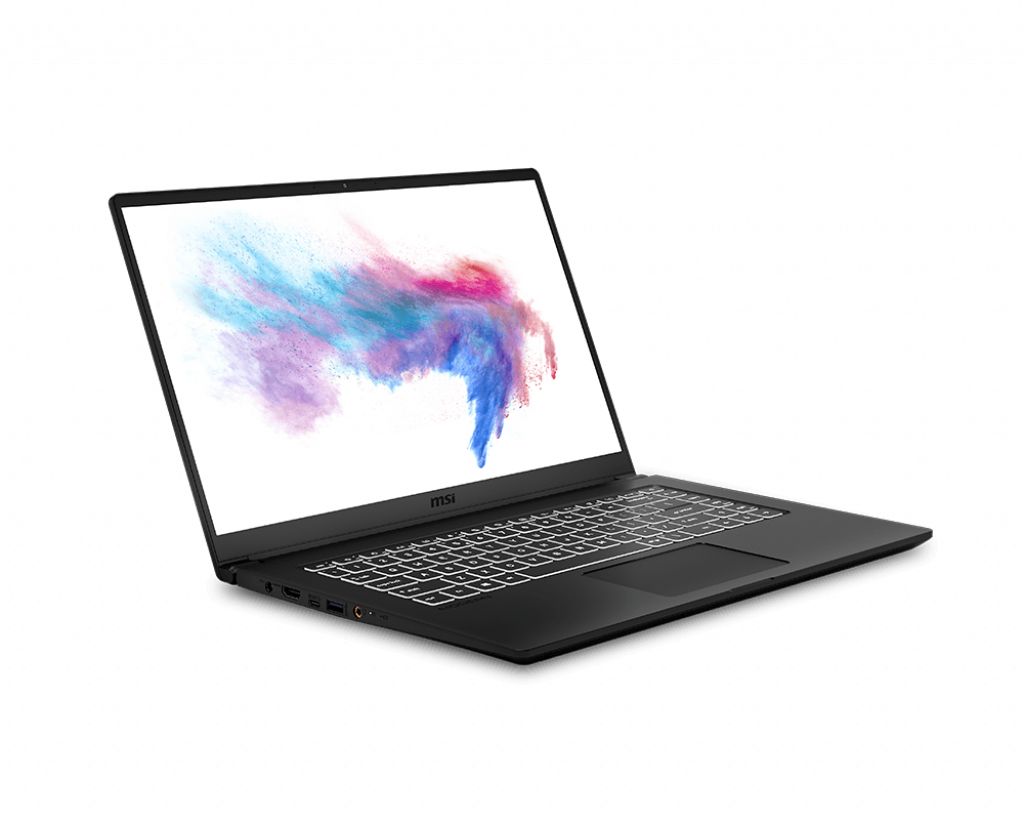

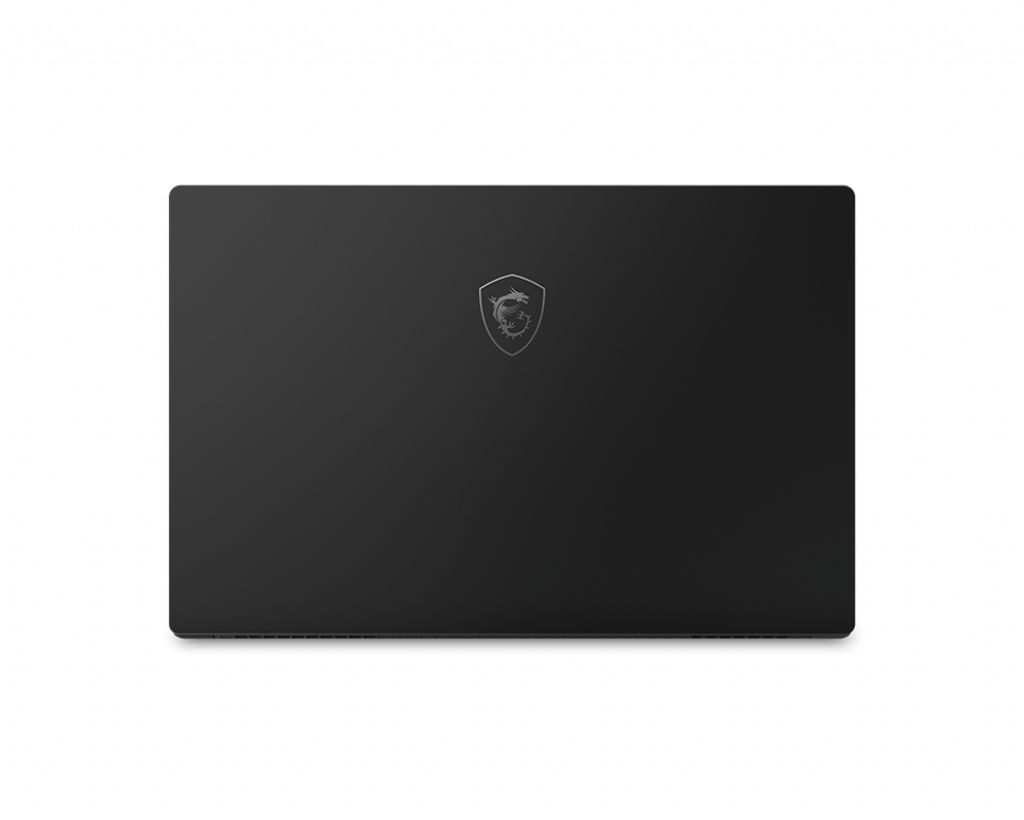

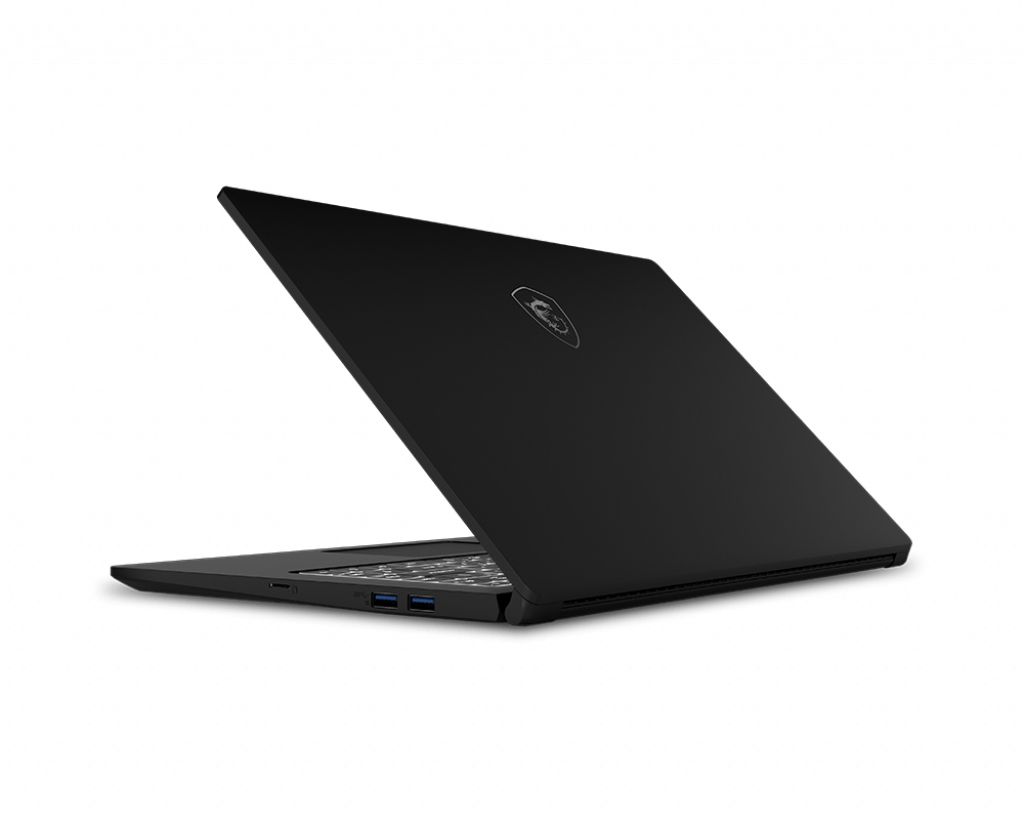

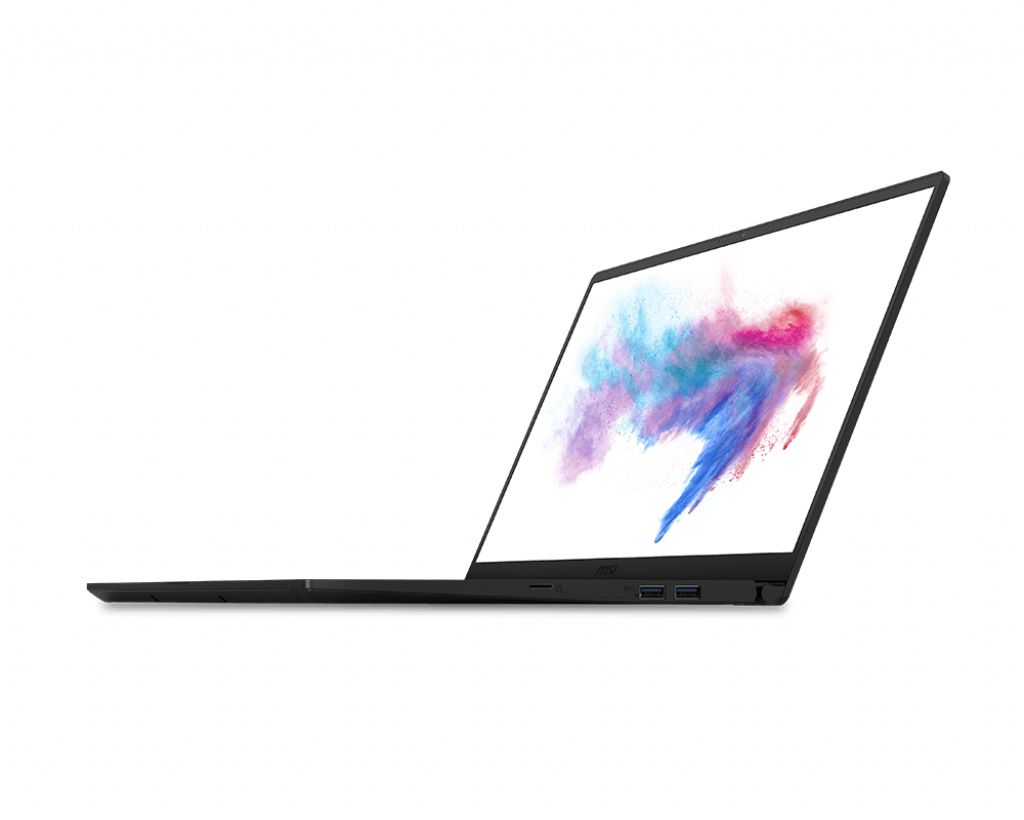

MSI Modern A10M-028 RAM upgrade specifications
The MSI Modern 15 A10M-028 laptop features two SO-DIMM slots for DDR4-SDRAM memory upgrades. Compatible memory modules operate at 2666 MHz frequency, with maximum supported capacity reaching 64 GB total. The upgrade specifications support DDR4 SO-DIMM form factor memory modules, enabling users to expand RAM capacity through compatible memory upgrades. Each slot accommodates individual memory modules up to 32 GB capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 29 November 2019 |
Additional Notes
- Dual channel memory architecture is achievable by installing identical modules in both slots to provide increased bandwidth for the integrated graphics processor.
- The MSI Modern A10M-028 utilizes a motherboard design that requires removing the bottom panel for internal access, which might involve piercing a factory seal sticker.
- Installing memory modules with speeds higher than 2666 MHz will result in the system downclocking the hardware to match the maximum supported bus frequency of the chipset.
- The 64 GB limit indicates compatibility with high density 32 GB sticks, allowing for workstation level multitasking despite the compact chassis design.
- Latency mismatches between disparate brands in the two SO-DIMM slots will force the system to operate at the timings of the slowest installed module.
- Upgrading from a single stick to a dual stick configuration reduces potential CPU bottlenecks during memory intensive operations by doubling the available data paths.
