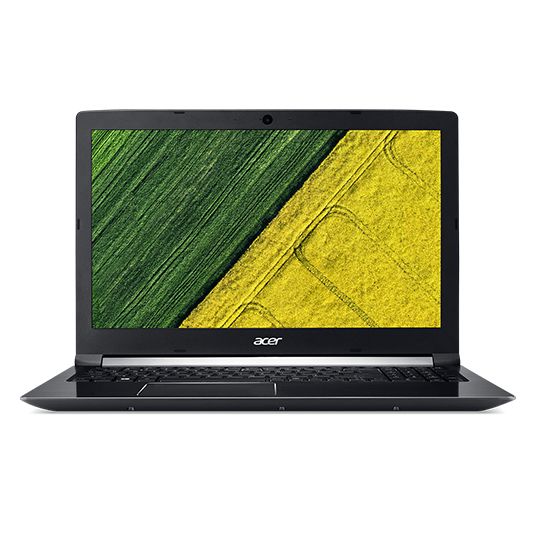

ACER Aspire A717-71G-59FW RAM upgrade specifications
The ACER Aspire 7 Series A717-71G-59FW laptop features DDR4-SDRAM memory upgrade specifications. The system contains 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 2400 MHz frequency with SO-DIMM form factor. Upgrade configurations allow for memory expansion to achieve the maximum specifications supported by this laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 01 August 2017 |
Additional Notes
- Dual channel mode functionality requires symmetrical module pairs to maximize memory bus throughput.
- The chipset imposes a hard limit of 16 GB per individual slot regardless of higher density modules available on the market.
- Installation of memory modules with frequencies exceeding 2400 MHz results in automatic downclocking to match the native system bus speed.
- Standard 260 pin SO-DIMM architecture prevents the use of low power LPDDR4 or older DDR3 hardware.
- Emptying both slots for a total 32 GB configuration necessitates the removal and displacement of any factory installed memory.
- Physical access to the SO-DIMM bays typically involves removing the base enclosure which may involve static sensitive components.
- Latency timings default to the slowest installed module if non identical sticks are utilized in the two available slots.
- The 32 GB threshold provides sufficient overhead for professional virtualization and high resolution video editing tasks that exceed standard consumer requirements.
