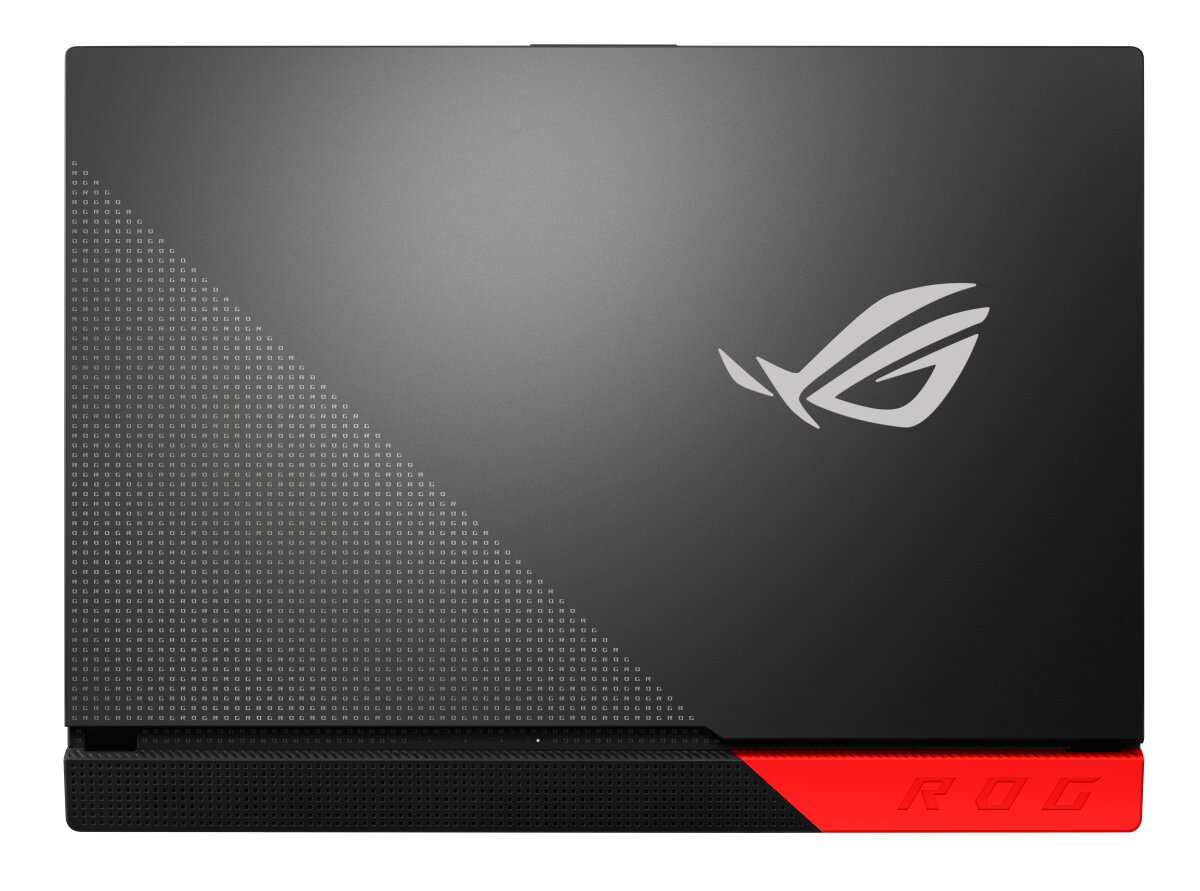

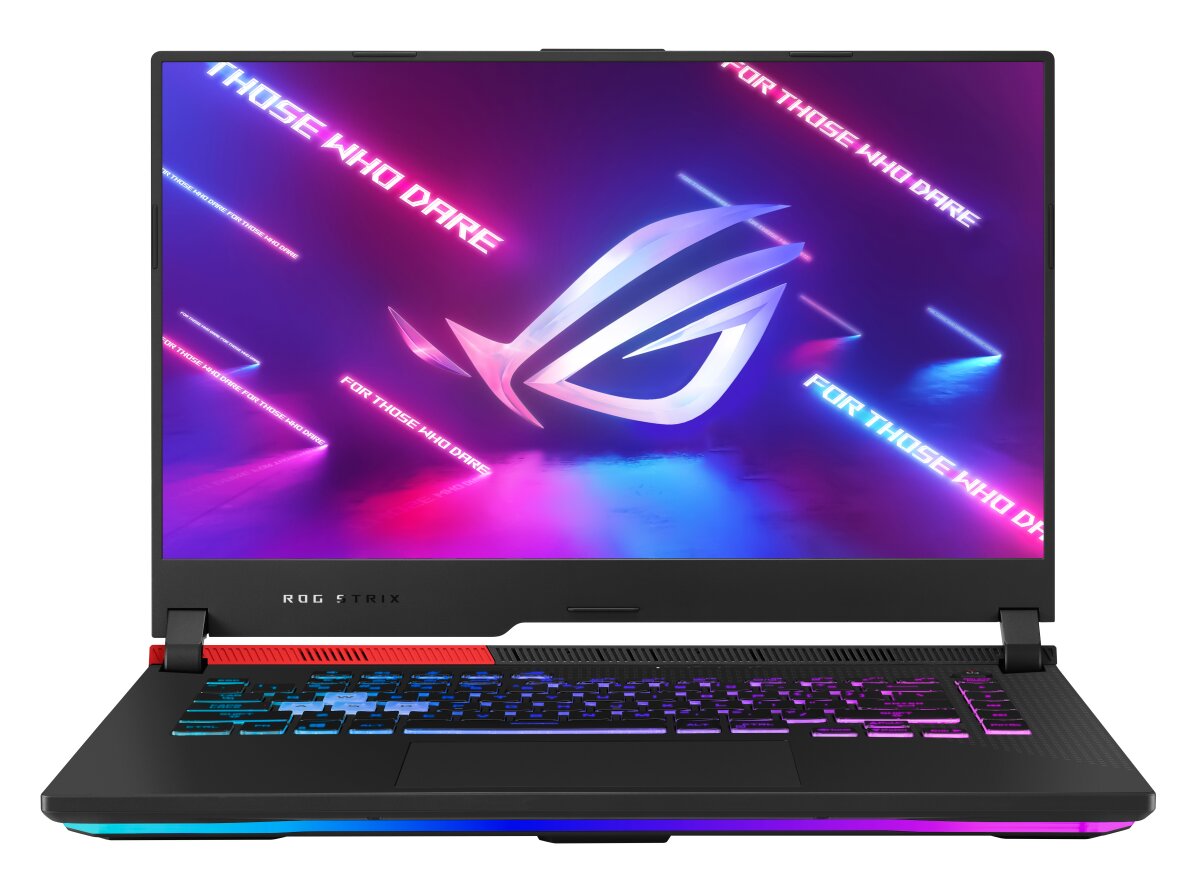

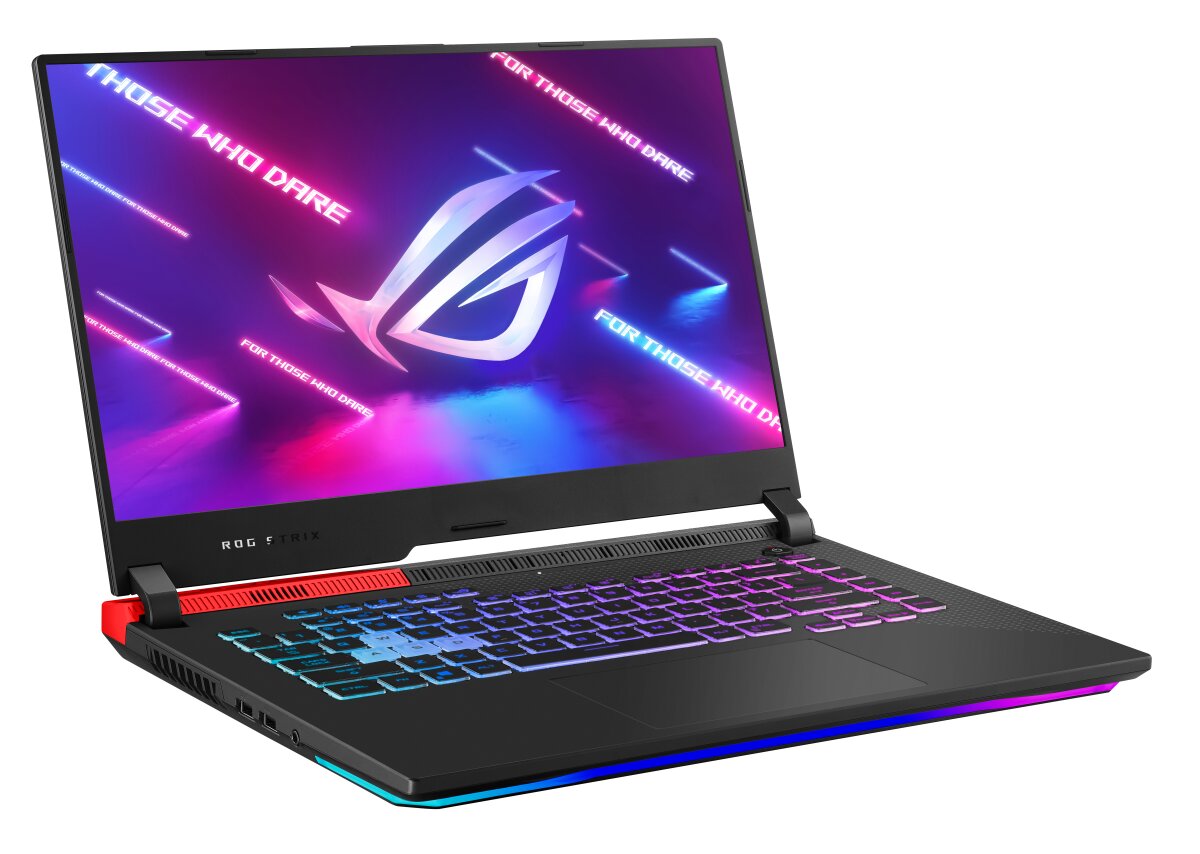

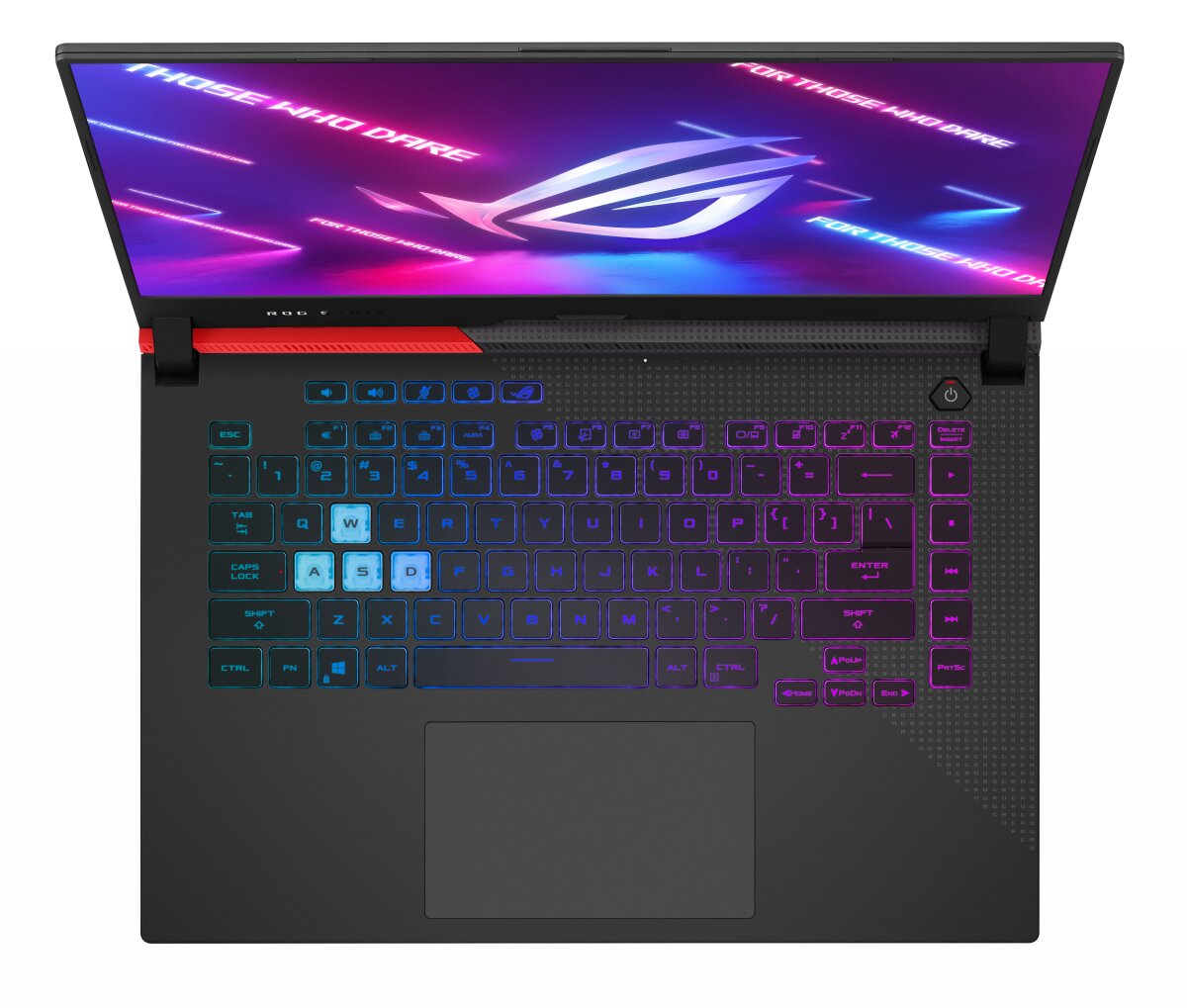

ASUS ROG G513IC-HN003T-BE RAM upgrade specifications
ASUS ROG Strix G15 G513IC-HN003T-BE laptop memory upgrade specifications include two SO-DIMM slots supporting DDR4-SDRAM memory. Maximum RAM capacity reaches 32 GB total. Compatible memory operates at 3200 MHz frequency. Upgrade options allow installation of higher-capacity modules within slot constraints. Specifications define memory compatibility and expansion parameters for this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 21 October 2021 |
Additional Notes
- The dual-slot configuration allows for the utilization of dual-channel memory architecture which significantly improves bandwidth compared to single-channel setups.
- Upgrading the ASUS ROG G513IC-HN003T-BE to the maximum capacity requires the removal of existing modules as there are no vacant slots available beyond the initial 2.
- Installing modules with speeds exceeding 3200 MHz will result in automatic downclocking to match the hardware-coded bus limitations of the system firmware.
- The 32 GB ceiling indicates a limitation in the internal memory controller address space or motherboard traces which prevents the use of high-density 32 GB single sticks.
- Matching both latency and voltage across both slots is critical to avoid system instability or failure to boot during the POST process.
- Hardware parity between the 2 slots ensures optimal data throughput and prevents the system from defaulting to asynchronous mode operations.

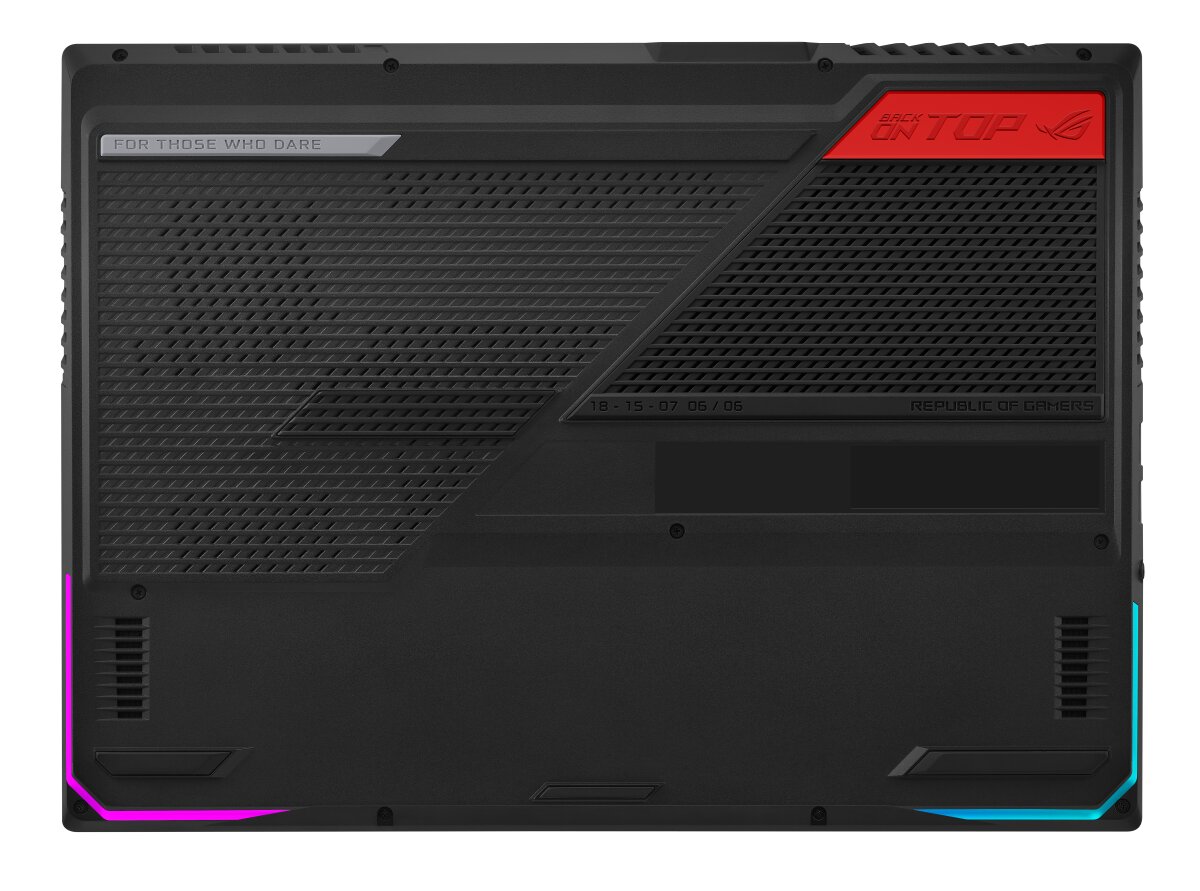

- Access to the SO-DIMM slots requires the removal of the bottom chassis panel which may involve navigating internal ribbon cables for the integrated lighting zones.
