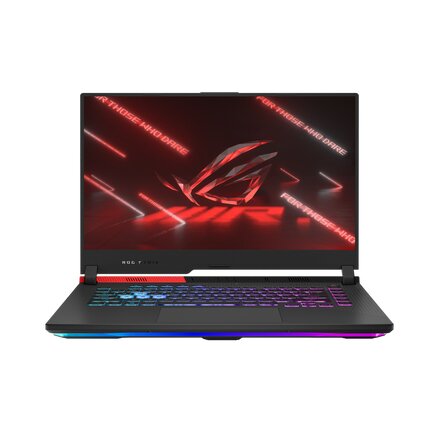

ASUS ROG G513QY-HQ007T RAM upgrade specifications
The ASUS ROG Strix G15 G513QY-HQ007T laptop features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum capacity of 32 GB total RAM. The memory operates at 3200 MHz frequency. This gaming laptop model accommodates SO-DIMM form factor modules, allowing users to upgrade existing memory configurations by replacing or populating available slots. Specifications indicate compatibility with standard DDR4 memory upgrades within the stated maximum capacity and frequency parameters.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 31 December 2021 |
Additional Notes
- Dual channel architecture requires matching memory modules in both slots to provide maximum memory bandwidth for the Ryzen processor.
- The absence of soldered memory on the ASUS G513QY-HQ007T motherboard ensures the entire memory pool remains replaceable if a module fails.
- Installation of 3200 MHz modules with high CAS latency or x16 density will negatively impact CPU performance in memory intensive applications.
- The maximum capacity limit suggests the BIOS firmware may not recognize 32 GB high density modules or 64 GB total configurations.
- Internal motherboard access for component replacement necessitates the removal of the bottom chassis panel and careful disconnection of the battery to prevent electrical shorting.
- Standard voltage DDR4 SO-DIMM components are required as the platform does not support low voltage DDR5 or LPDDR standards.
- Maintaining a matched pair of ranks between the 2 slots minimizes memory controller latency during heavy multitasking cycles.
