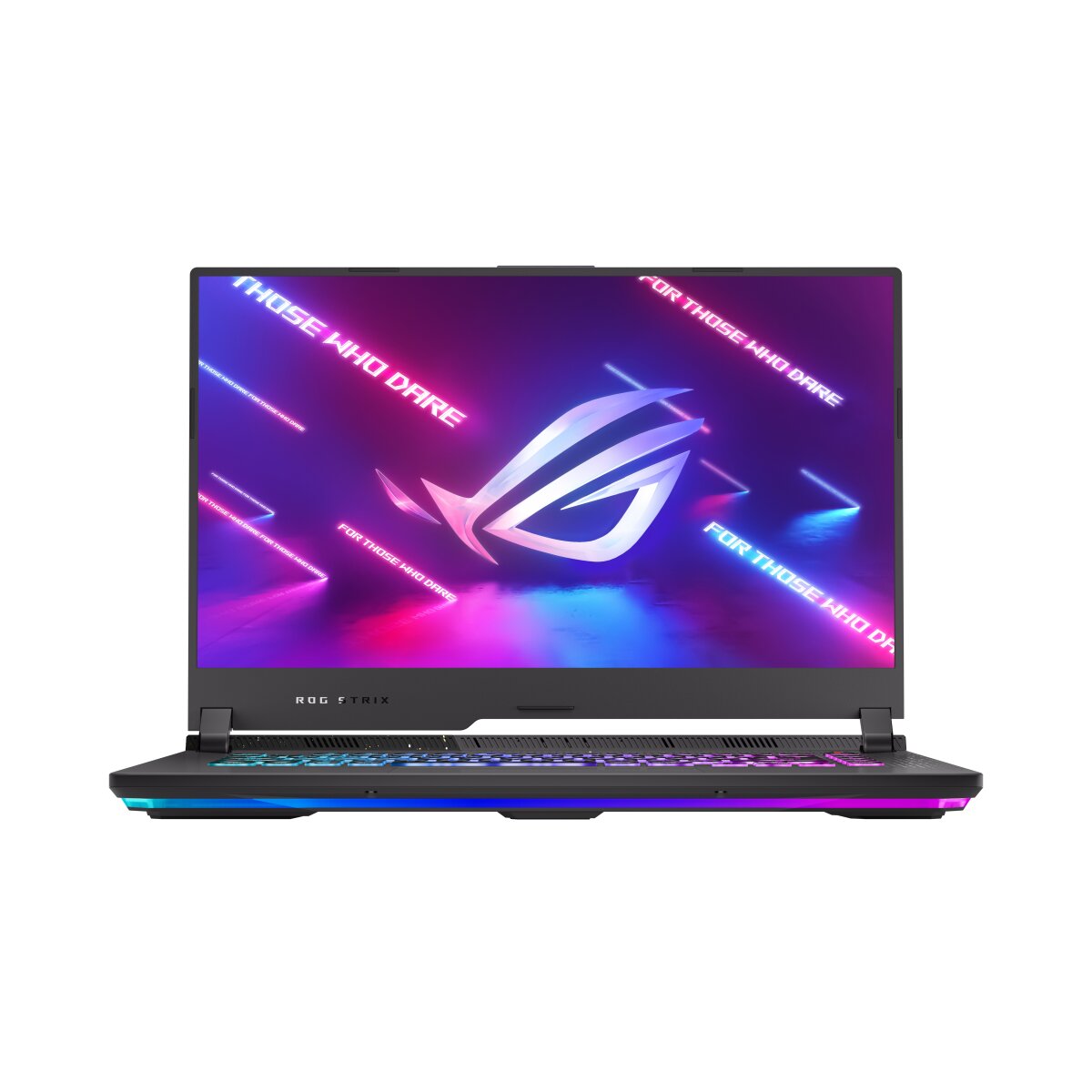

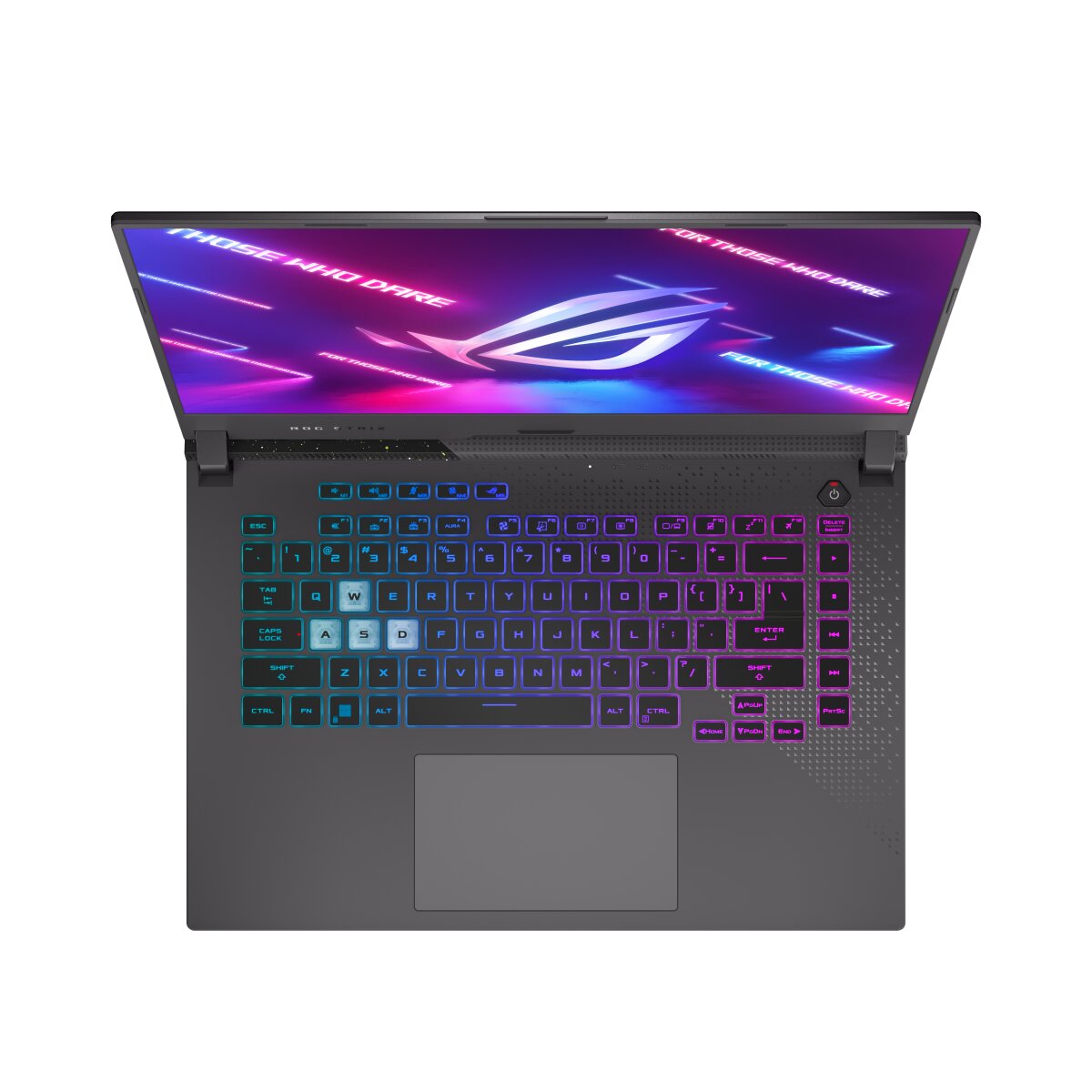

ASUS ROG G513RW-HF208 RAM upgrade specifications

ASUS ROG Strix G15 model G513RW-HF208 features DDR5-SDRAM memory upgrade specifications. The laptop contains two SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 4800 MHz frequency. Upgrade options accommodate DDR5 SO-DIMM form factor modules, enabling users to expand memory capacity by replacing or adding modules to the available slots.

Additional Notes

• The ASUS ROG G513RW-HF208 accepts only DDR5 modules, making DDR4 SO-DIMMs physically incompatible due to different notch positions in the connector design.
• The 32 GB ceiling requires either a single 32 GB module or a dual-channel configuration of 2x16 GB modules, as exceeding this limit may prevent POST completion.
• Installing a single module sacrifices dual-channel bandwidth, effectively halving memory throughput from 76.8 GB/s to 38.4 GB/s in GPU-intensive workloads.
• DDR5 modules rated below 4800 MHz will function but operate at their native lower speed, while modules rated above 4800 MHz will downclock to the controller's maximum supported frequency.
• The SO-DIMM form factor excludes standard desktop DIMM modules, which are physically 33 mm longer and will not fit the laptop's memory slots.
• Both slots must remain accessible without motherboard removal to maintain warranty coverage, as invasive disassembly typically voids manufacturer service agreements.
• Mixing modules with different CAS latencies forces both sticks to operate at the slower timing specification, potentially increasing memory access delays by 2-4 nanoseconds.
• Combining modules of unequal capacity still enables dual-channel mode in the overlapping capacity range through flex mode architecture, though asymmetric configurations may cause minor scheduling inefficiencies.
• DDR5's on-die ECC operates independently of system ECC support, providing background error correction without requiring specific module selection or BIOS configuration.
• The 4800 MHz specification represents JEDEC standard speed for DDR5, ensuring broad compatibility across manufacturing vendors without requiring XMP profile activation.
