ASUS ROG G614FR-S5022W RAM upgrade specifications

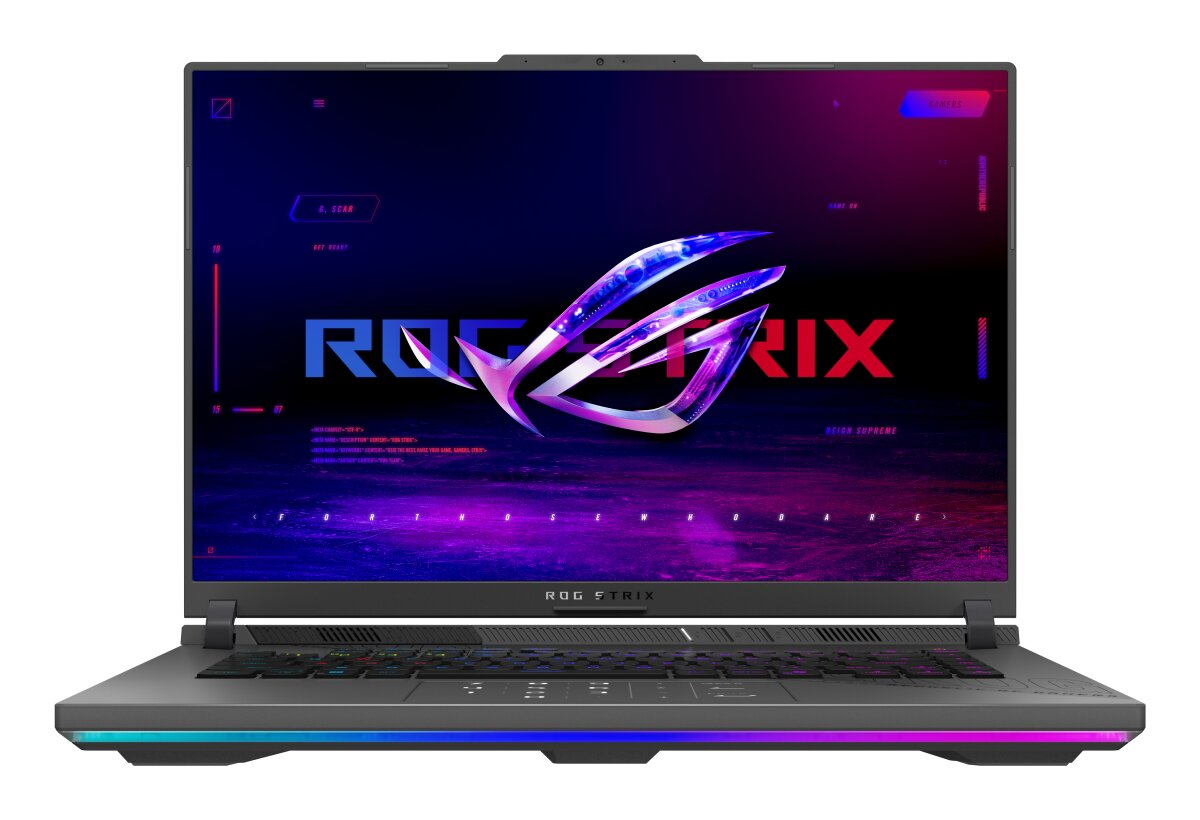

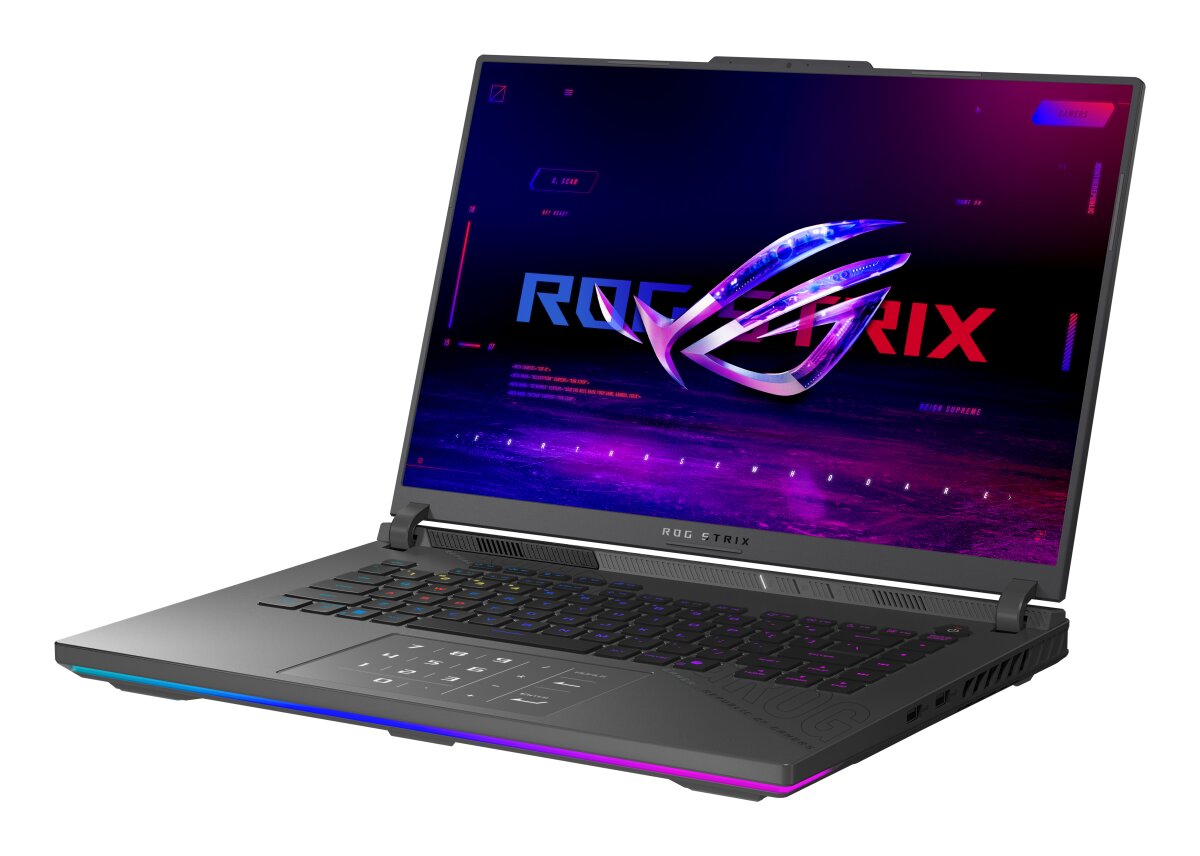

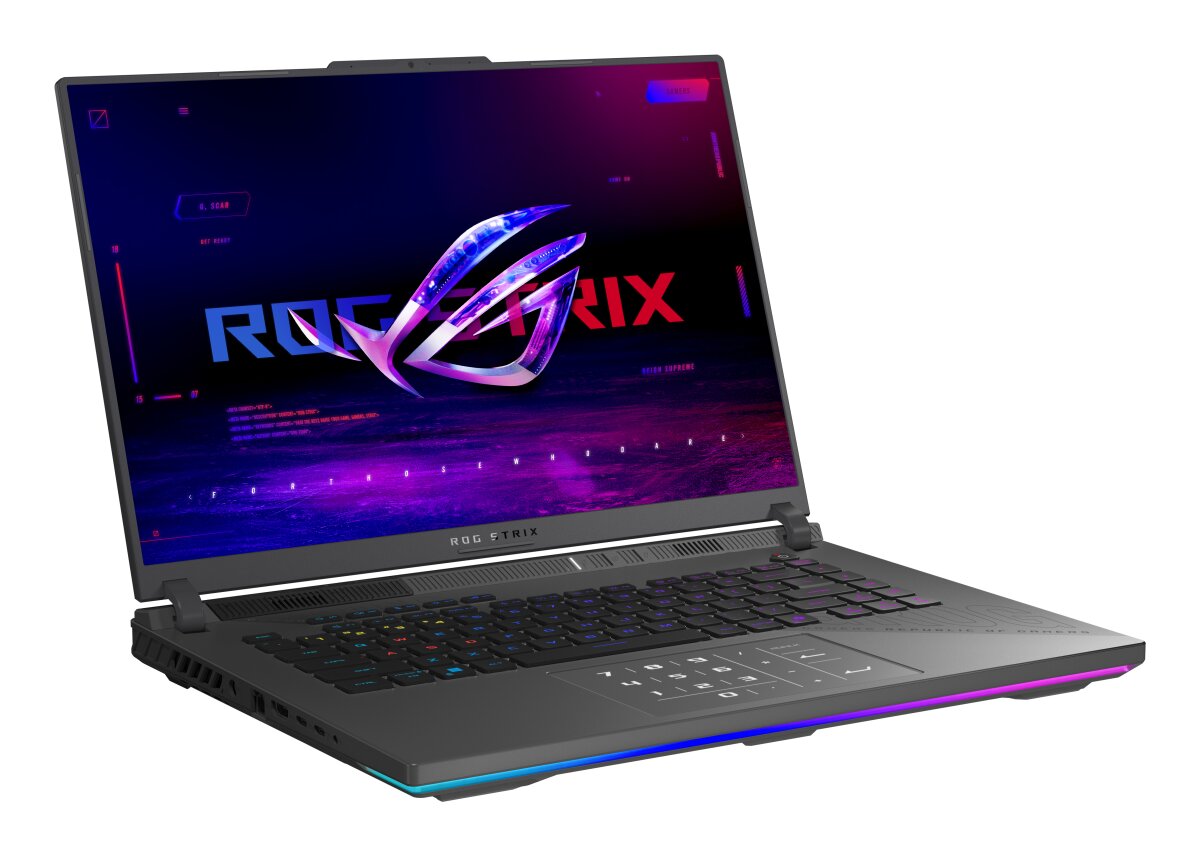

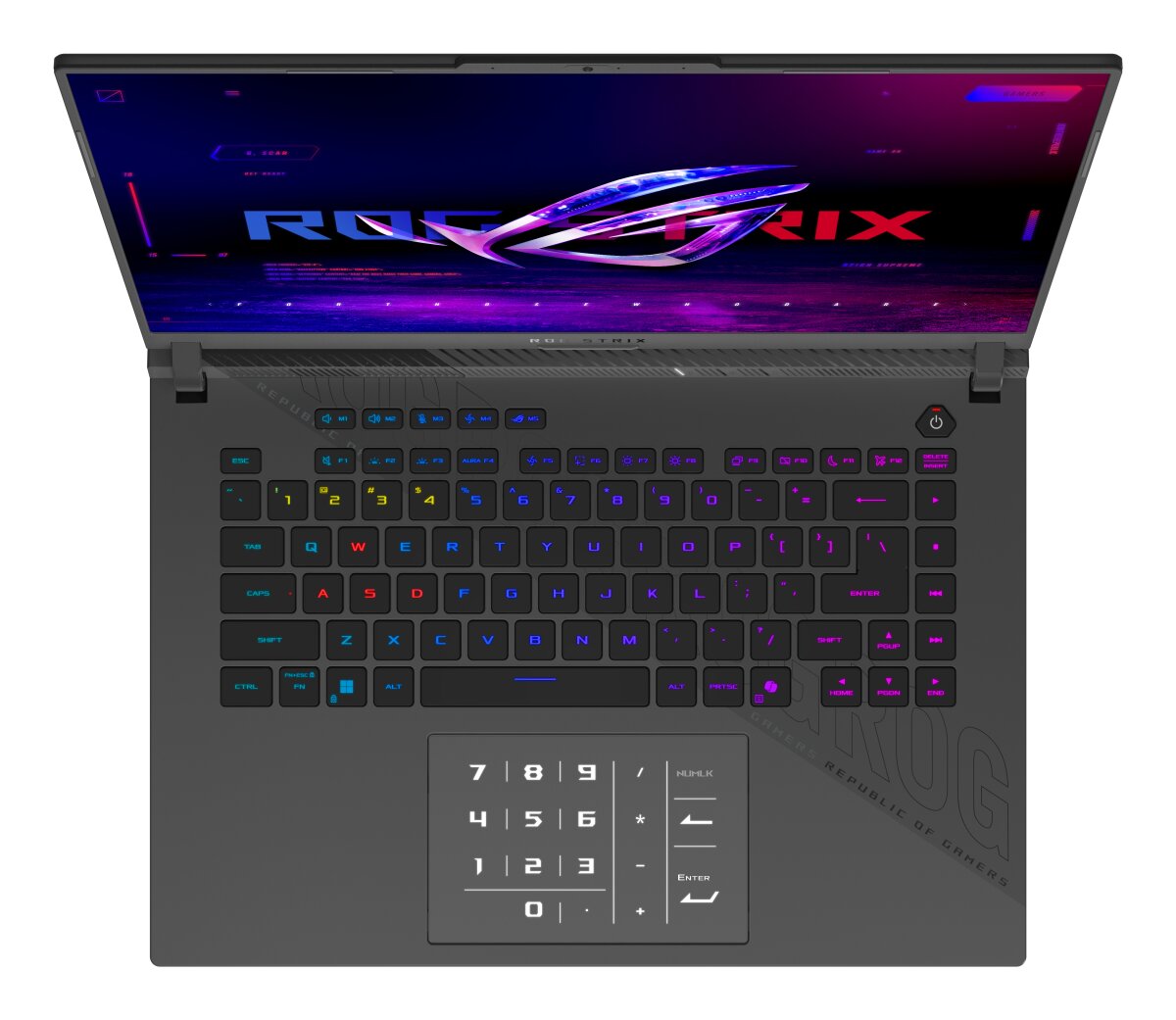

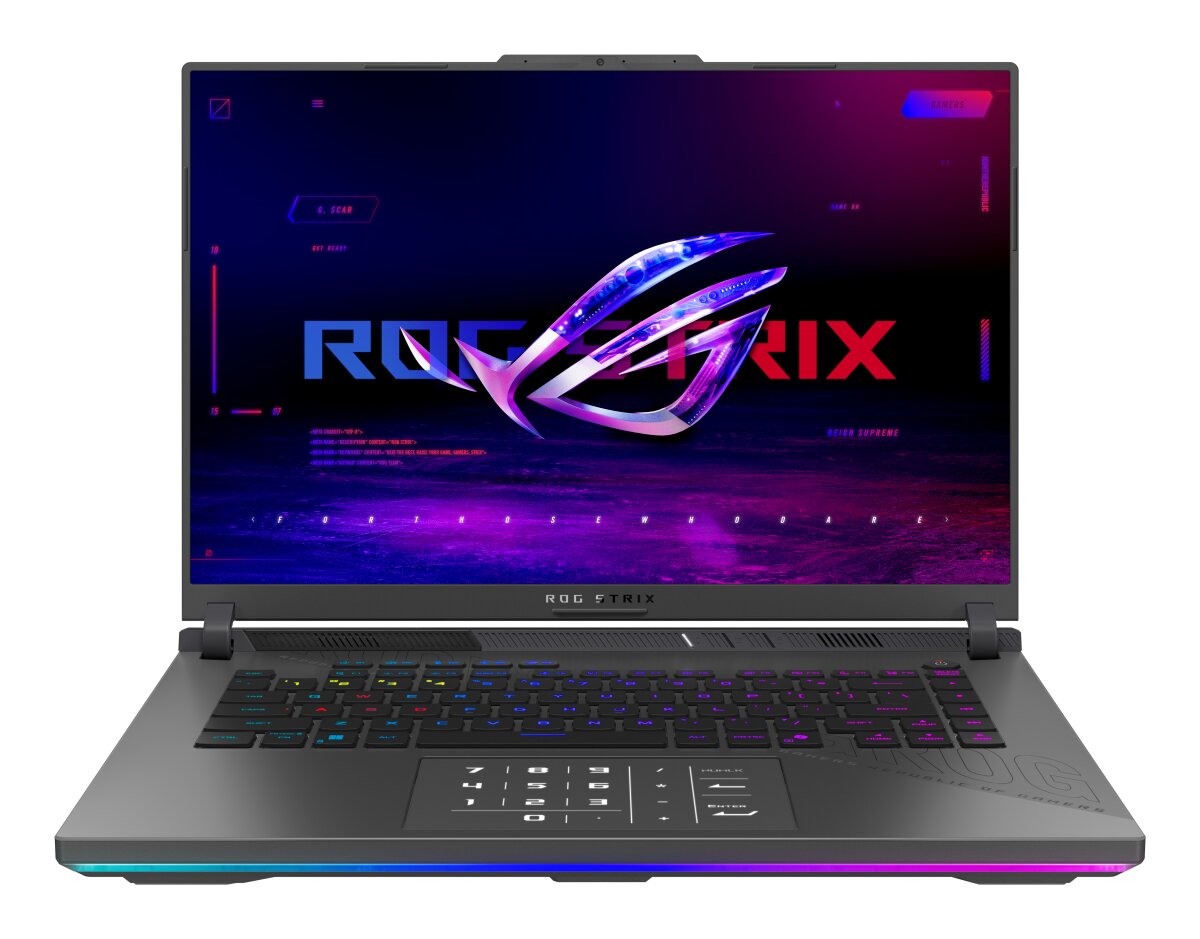

The ASUS ROG Strix G16 G614FR-S5022W laptop features two SO-DIMM slots supporting DDR5-SDRAM memory modules. The upgrade specifications allow maximum RAM capacity of 64 GB total. Compatible memory operates at 5600 MHz frequency. The SO-DIMM form factor enables straightforward memory expansion on the G614FR-S5022W model. Current memory configuration can be upgraded by installing additional DDR5 modules in available slots to reach maximum capacity specifications.

Additional Notes

• The DDR5-SDRAM architecture in this ASUS ROG G614FR-S5022W operates at significantly higher voltages than legacy DDR4 modules, preventing any backward compatibility with older generation memory regardless of physical slot dimensions.
• The 5600 MHz operating frequency requires motherboard firmware support for proper JEDEC timing tables, as lower-rated modules will default to conservative speeds if XMP profiles fail to initialize.
• The 64 GB ceiling imposes a practical limitation of 32 GB modules per slot when fully populated, restricting configurations to dual-channel arrangements only.
• SO-DIMM form factor modules generate concentrated thermal output in confined laptop chassis spaces, potentially triggering throttling if ambient cooling proves insufficient during sustained workloads.
• Mixing modules with different density ranks (single-rank versus dual-rank) across the 2 available slots may force the memory controller to operate at reduced speeds to maintain stability.
• The dual-channel configuration depends on symmetrical population across both slots, as installing a single module results in halved theoretical bandwidth regardless of its individual capacity.
• Third-party modules lacking vendor-specific thermal sensor integration may prevent the system from reporting accurate temperature data to power management firmware.
• JEDEC-standard DDR5 modules at 4800 MHz represent the safest upgrade path for warranty preservation, while higher-binned 5600 MHz variants may fall outside factory validation testing.
• The SO-DIMM slot retention mechanism requires precise perpendicular insertion angles, as skewed installations risk damaging the surface-mounted connectors permanently attached to the motherboard.
• Non-ECC unbuffered modules represent the only compatible architecture for consumer-grade chipsets in this configuration, as server-class registered memory will fail POST diagnostics.
• Voltage regulation for DDR5 transitions from motherboard-level to module-level PMIC chips, meaning defective power management on a single stick can prevent the entire system from booting.
• The 2-slot limitation eliminates incremental upgrade strategies, forcing users to replace existing modules entirely when expanding beyond the factory configuration.
