ASUS ROG G614PM-S5028-GAMING RAM upgrade specifications

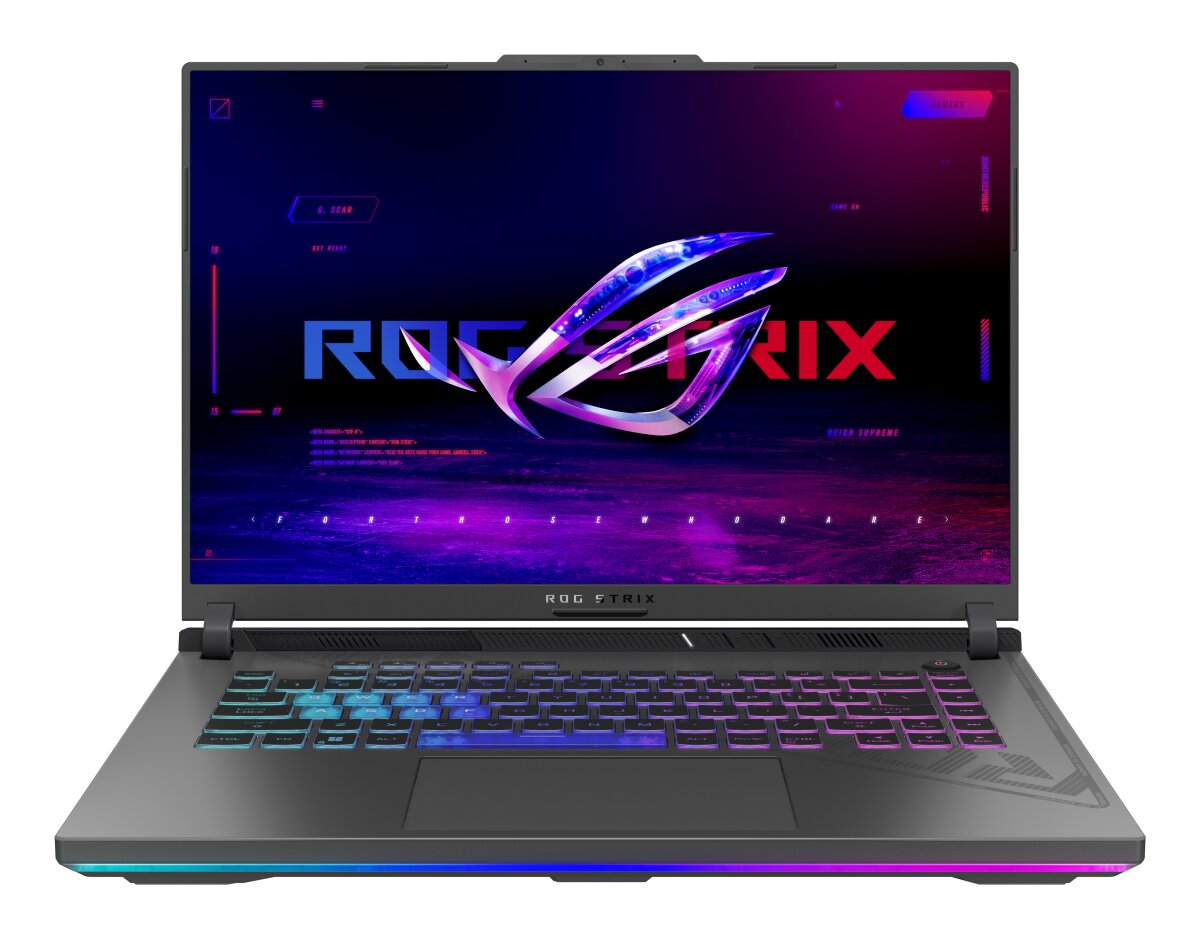

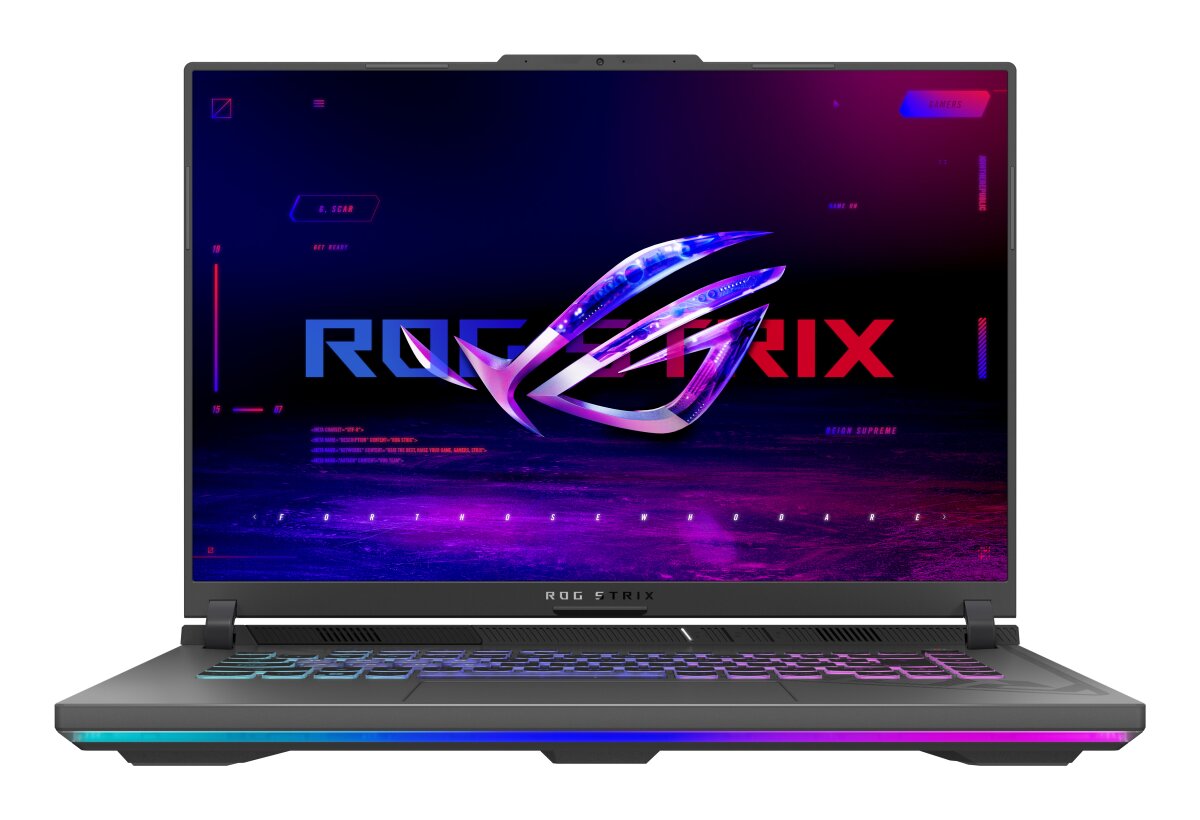

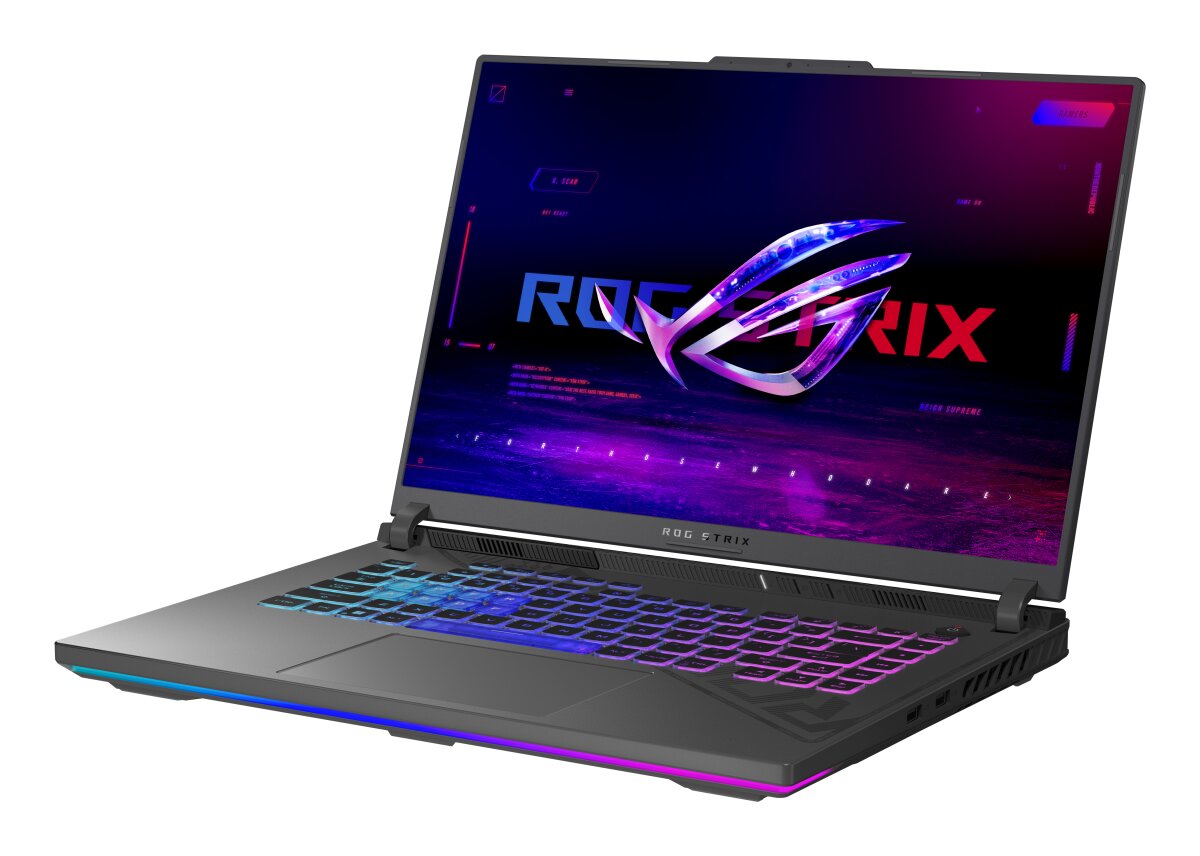

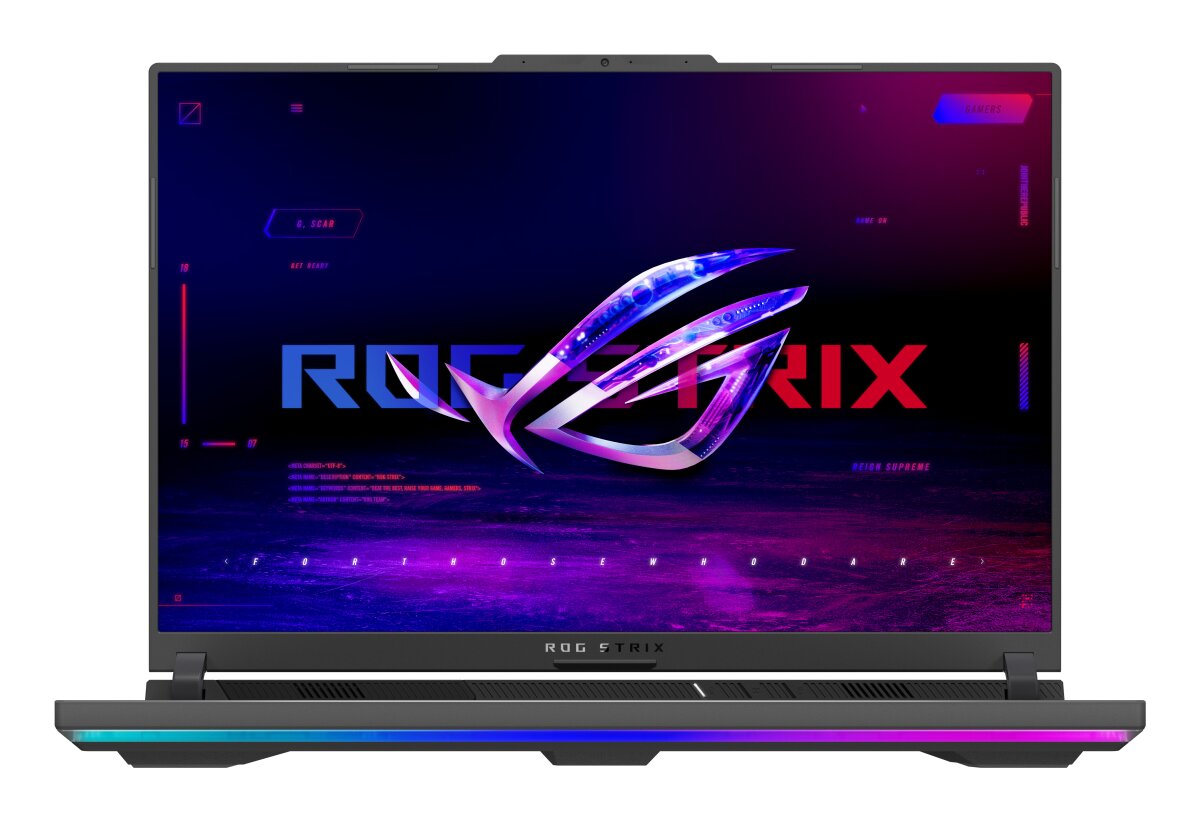

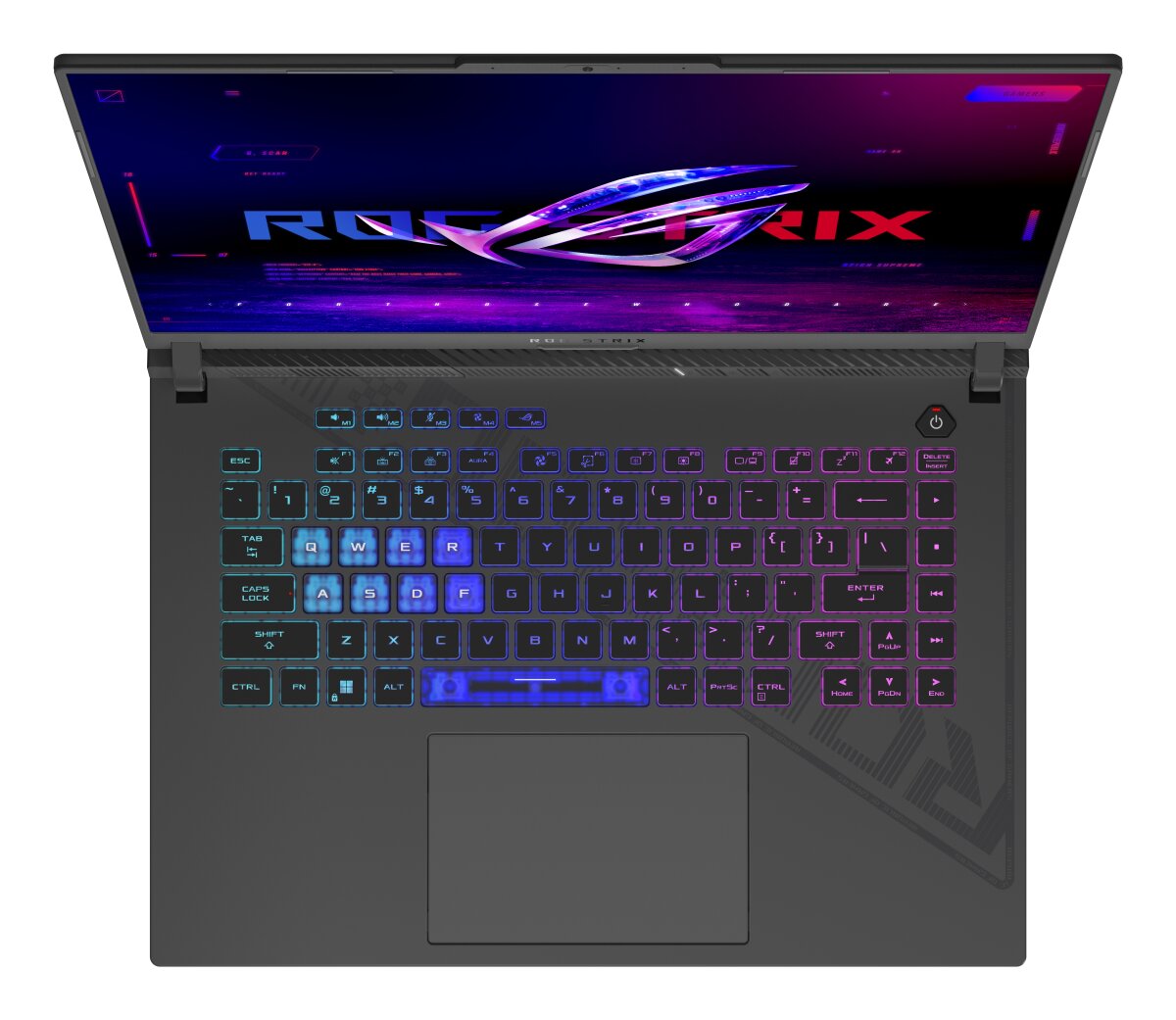

ASUS ROG Strix G16 G614PM-S5028-GAMING laptop features 2x SO-DIMM memory slots supporting DDR5-SDRAM upgrade specifications. Maximum RAM capacity reaches 64 GB with compatible DDR5-5200 MHz modules. Specifications indicate SO-DIMM form factor compatibility for memory expansion and upgrades. This gaming laptop model supports DDR5 memory technology for enhanced performance specifications and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 5200 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-5200 (PC5-41600) |
| Bandwidth | 41.6 GB/s |
Additional Notes
- The presence of 2 SO-DIMM slots confirms a dual-channel memory architecture which requires matched pairs to achieve maximum bandwidth potential.
- Upgrading the ASUS ROG G614PM-S5028-GAMING to the 64 GB limit involves replacing both existing modules because no additional unoccupied slots exist for expansion.
- Installing memory modules with frequencies higher than 5200 MHz will result in downclocking to the system bus limit as defined by the firmware.
- Mixing modules with different CAS latencies will force the system to operate at the timings of the slowest installed chip.
- Total memory capacity is restricted by the motherboard controller despite the physical ability of DDR5 architecture to support larger individual modules.
- Performance scaling in memory-intensive applications relies on the installation of identical density ranks across both slot positions.
- Opening the chassis to access the SO-DIMM slots requires careful handling of internal ribbon cables and potentially the thermal management system depending on the internal layout.
