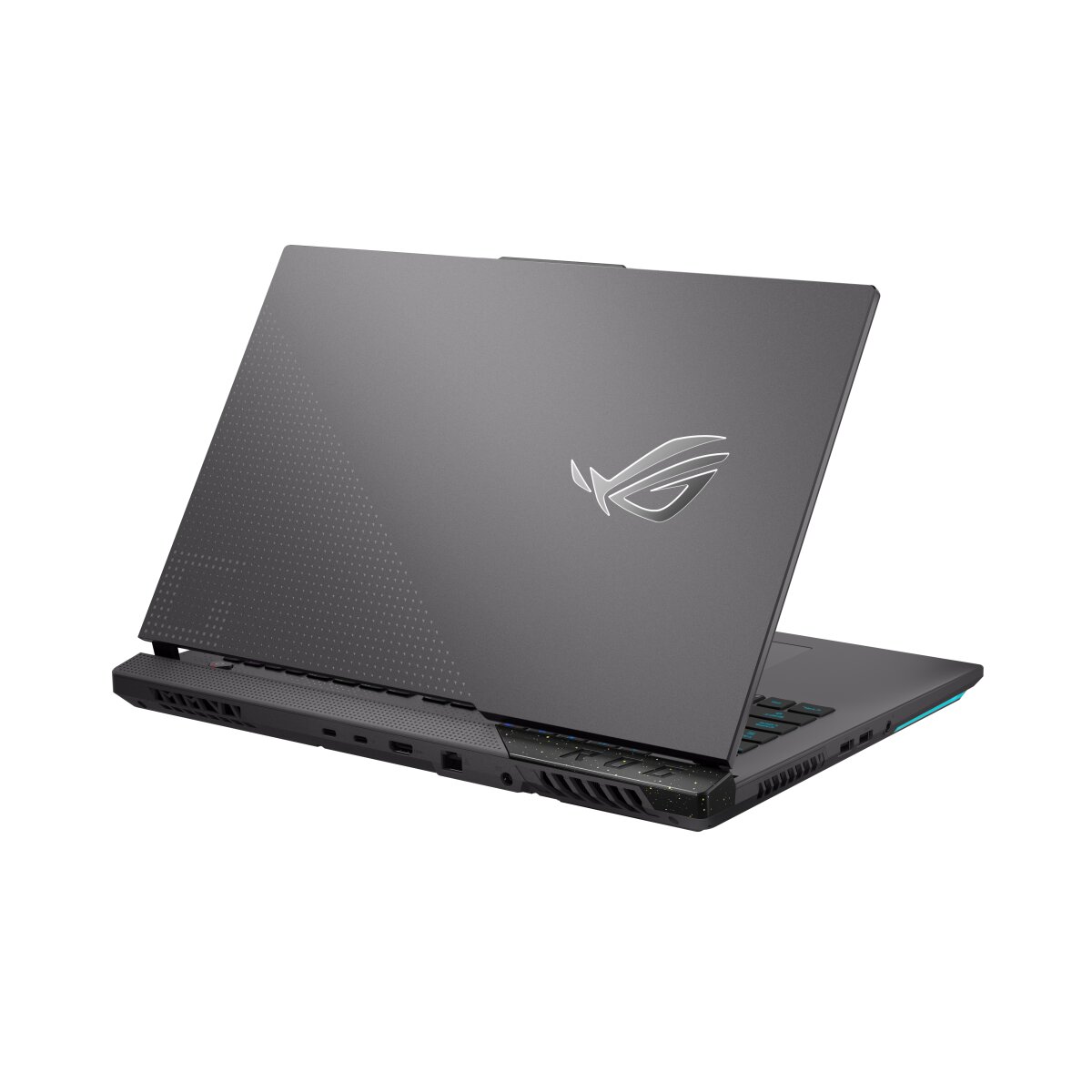

ASUS ROG G713PV-LL014W RAM upgrade specifications
ASUS ROG Strix G17 model G713PV-LL014W features DDR5-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 4800 MHz frequency. The laptop's memory architecture accommodates SO-DIMM form factor components, enabling users to expand system RAM through dual-slot configuration for enhanced performance. Specifications indicate upgrade potential through additional memory installation in available slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 27 February 2023 |
Additional Notes
- The ASUS ROG G713PV-LL014W contains 2 memory slots operating as a dual-channel configuration, which means both slots must be populated to achieve rated bandwidth of 76.8 GB/s. Single-slot population results in single-channel operation with 50% bandwidth reduction, creating a performance penalty in memory-intensive gaming and content creation workloads.
- DDR5-4800 memory operates at JEDEC standard frequency, indicating native support without requiring manual overclocking or BIOS modifications. Aftermarket DDR5 modules rated above 4800 MHz will downclock to 4800 MHz on this platform unless Intel XMP 3.0 profiles are explicitly enabled in firmware, which may void certain warranty provisions.
- The SO-DIMM form factor limits upgrade capacity to 32 GB maximum (16 GB per module), as desktop DDR5 U-DIMM modules are physically incompatible with the SO-DIMM socket. This constraint persists across all future BIOS updates and cannot be circumvented through firmware modifications.
- Memory speed becomes a secondary consideration during GPU-bound scenarios typical of high-refresh gaming at native 1920x1200 resolution. CPU-bound workloads such as video encoding, physics simulation, or development compilation will scale directly with both memory capacity and latency characteristics of installed modules.
- Replacement or addition of memory modules requires complete system shutdown and battery disconnection (minimum 30 seconds) to prevent electrical damage during SO-DIMM insertion or removal. Hot-swapping is not supported on this platform.
