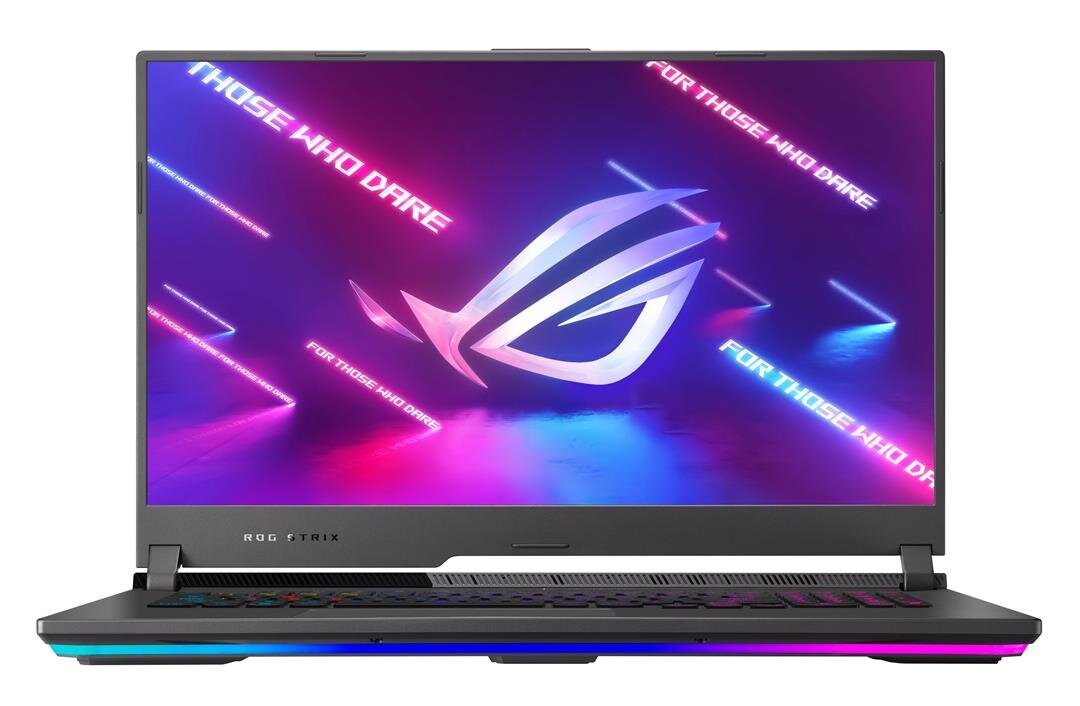

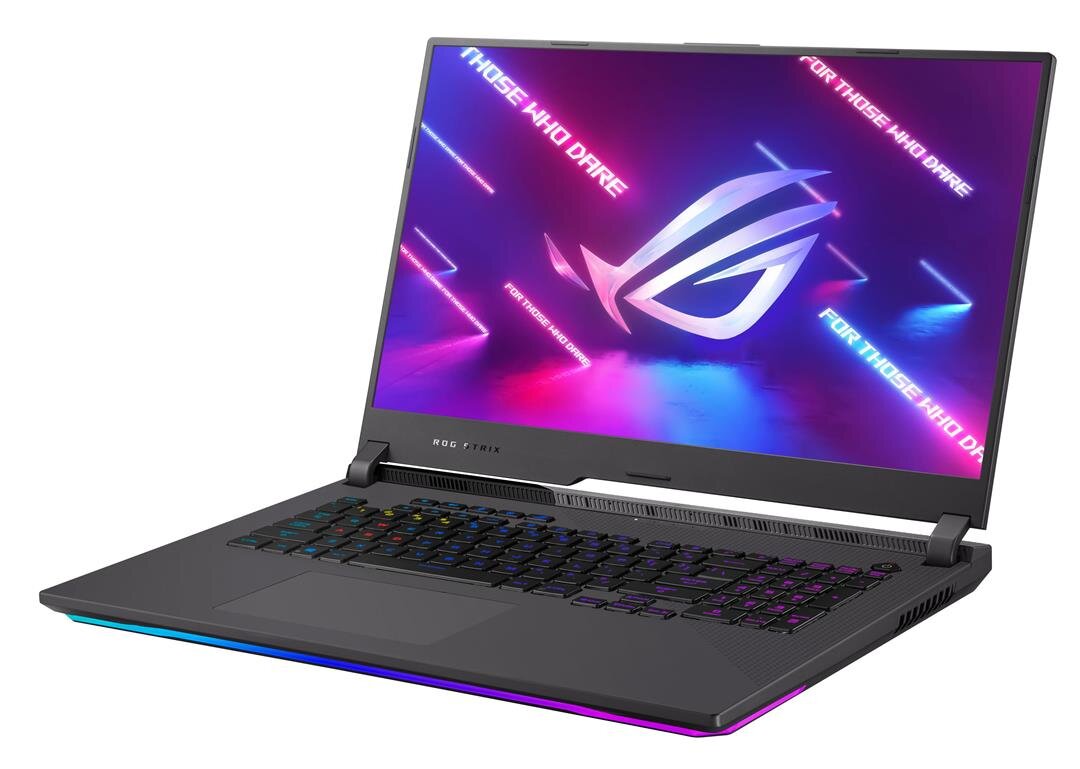

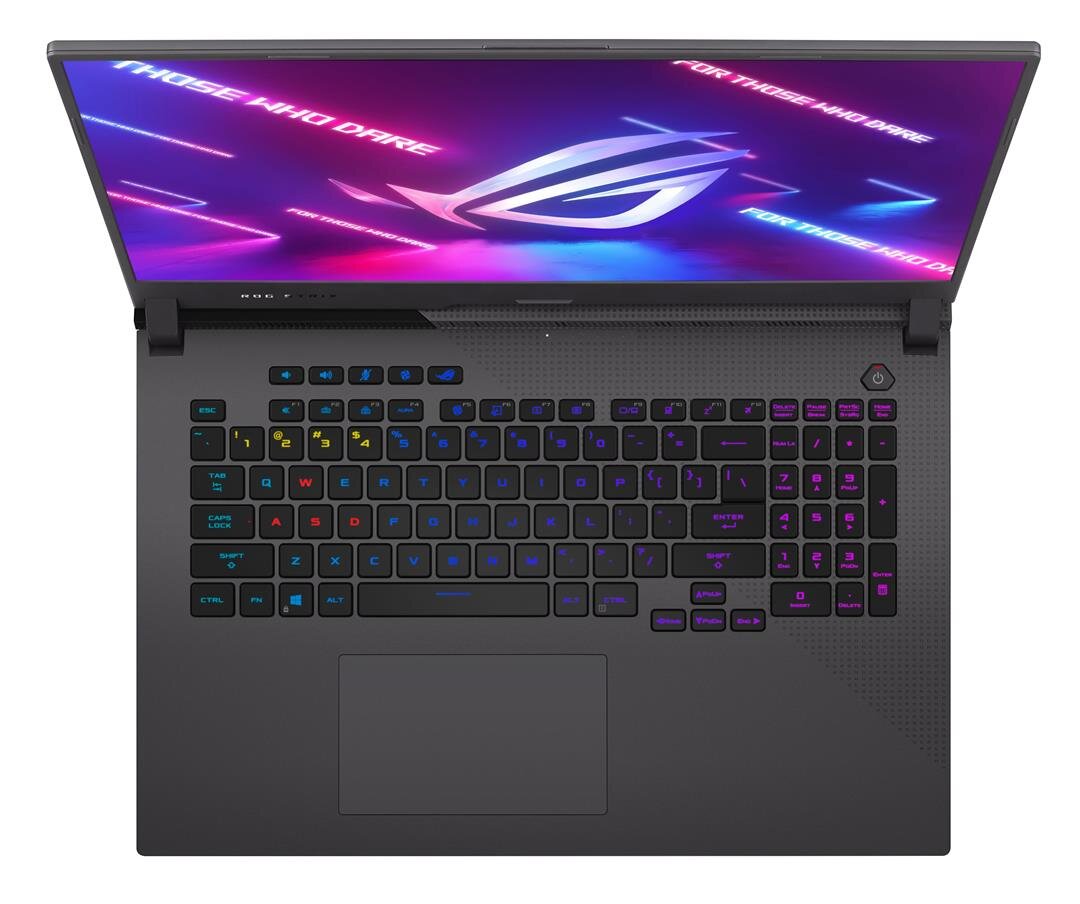

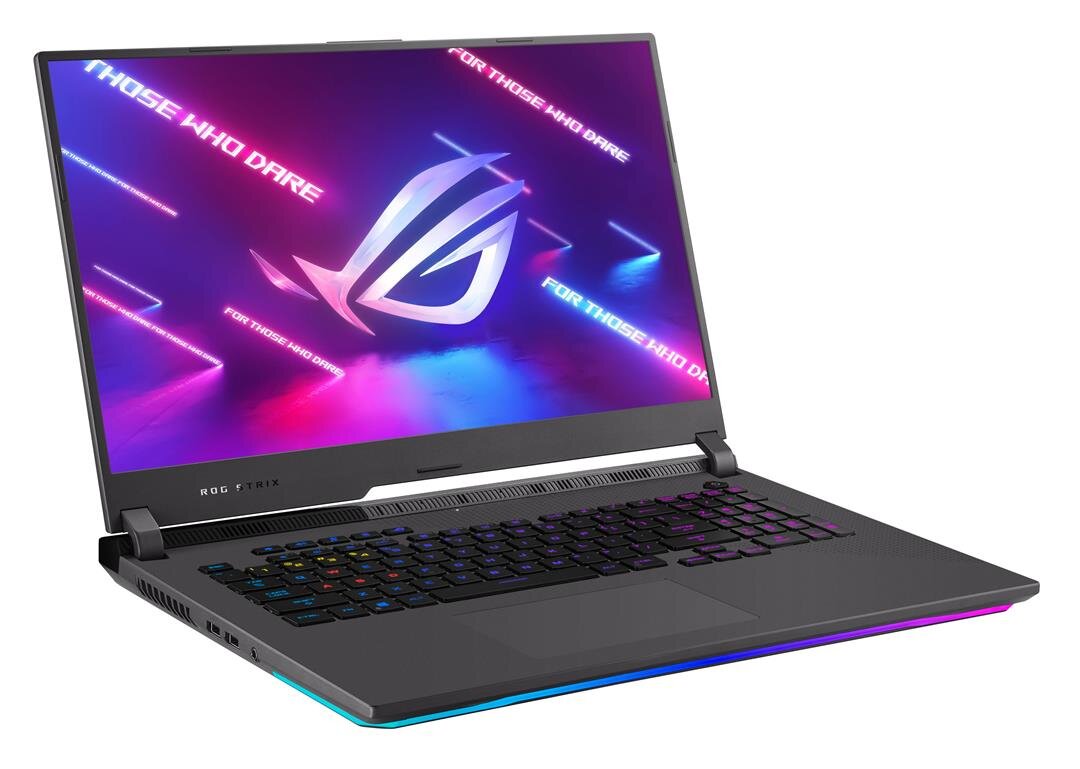

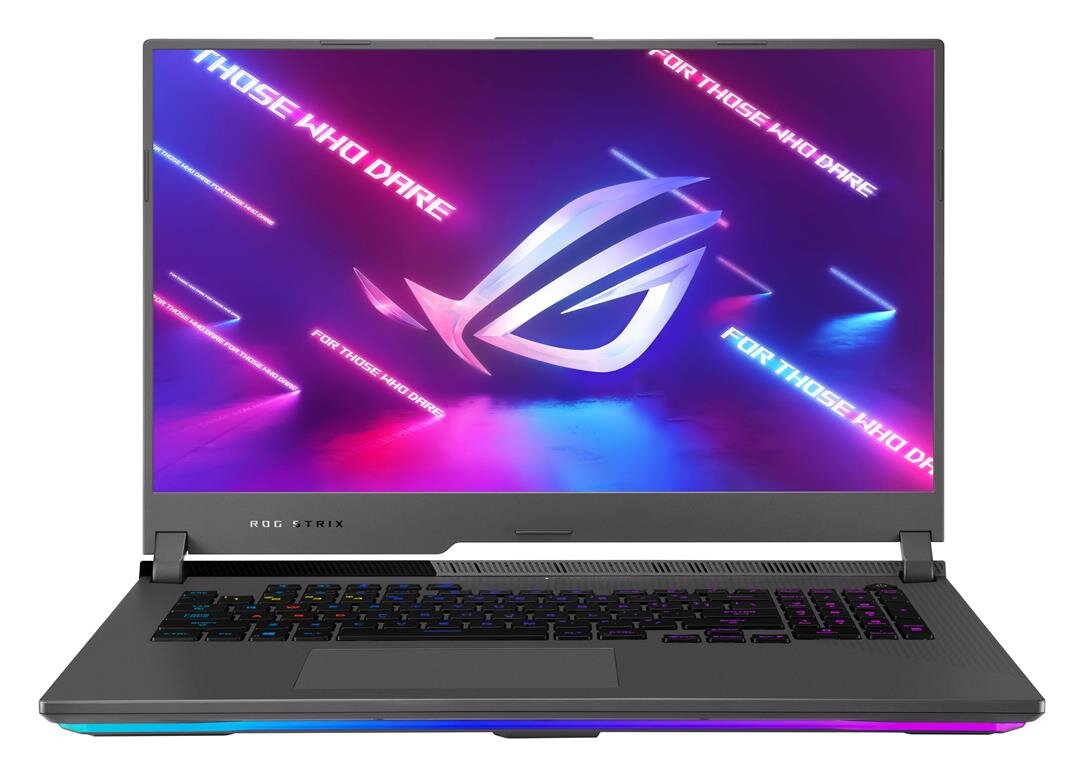

ASUS ROG G713QR-K4189 RAM upgrade specifications

The ASUS ROG Strix G17 G713QR-K4189 features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting a maximum RAM capacity of 32 GB. The upgrade is compatible with DDR4 memory modules operating at 3200 MHz frequency. The SO-DIMM form factor specifications enable memory expansion for enhanced multitasking performance on the gaming laptop model.

Additional Notes

• The ASUS ROG G713QR-K4189 supports dual-channel memory architecture through its 2 SO-DIMM slots, enabling up to twice the theoretical bandwidth compared to single-channel configurations when both slots are populated with matched modules.
• The 32 GB maximum capacity limitation stems from either chipset memory controller restrictions or BIOS constraints, preventing the use of individual 32 GB SO-DIMM modules even if the DDR4 specification permits them.
• DDR4-3200 represents the official JEDEC specification ceiling for this configuration, though actual performance depends on the AMD Ryzen processor's integrated memory controller capabilities and thermal conditions under sustained workloads.
• Installation requires verification that replacement modules conform to the SO-DIMM 260-pin physical standard rather than desktop DIMM 288-pin modules, as the connectors are mechanically incompatible despite identical DDR4 voltage specifications.
• Mixing RAM modules with different CAS latencies or timings may force the memory controller to default to the slowest common denominator specification, potentially negating speed advantages of higher-grade modules.
• Access to the SO-DIMM slots typically requires bottom panel removal, which may involve breaking factory seals that affect warranty status depending on regional consumer protection laws and ASUS service policies.
• The 3200 MHz frequency operates at 1.2V standard voltage, eliminating compatibility concerns with higher-voltage DDR4 variants marketed for desktop overclocking that could exceed SO-DIMM thermal design parameters.
• Asymmetric memory configurations, such as pairing 8 GB with 16 GB modules, will operate but may disable flex-mode optimizations in the memory controller, reducing performance in bandwidth-sensitive applications.
• Heat dissipation relies on the laptop's chassis and internal airflow rather than module-mounted heatspreaders, making densely-packed component layouts on certain SO-DIMM brands irrelevant to thermal performance.
