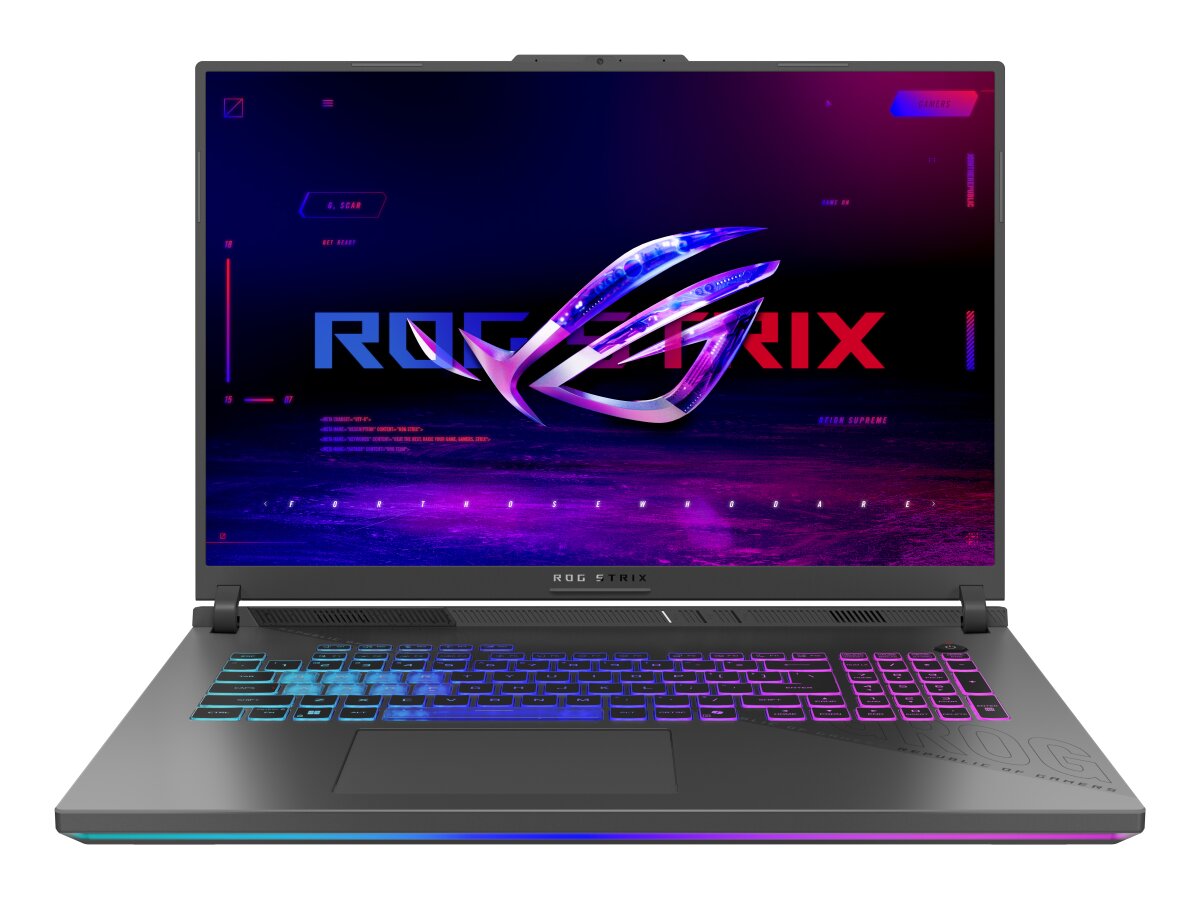

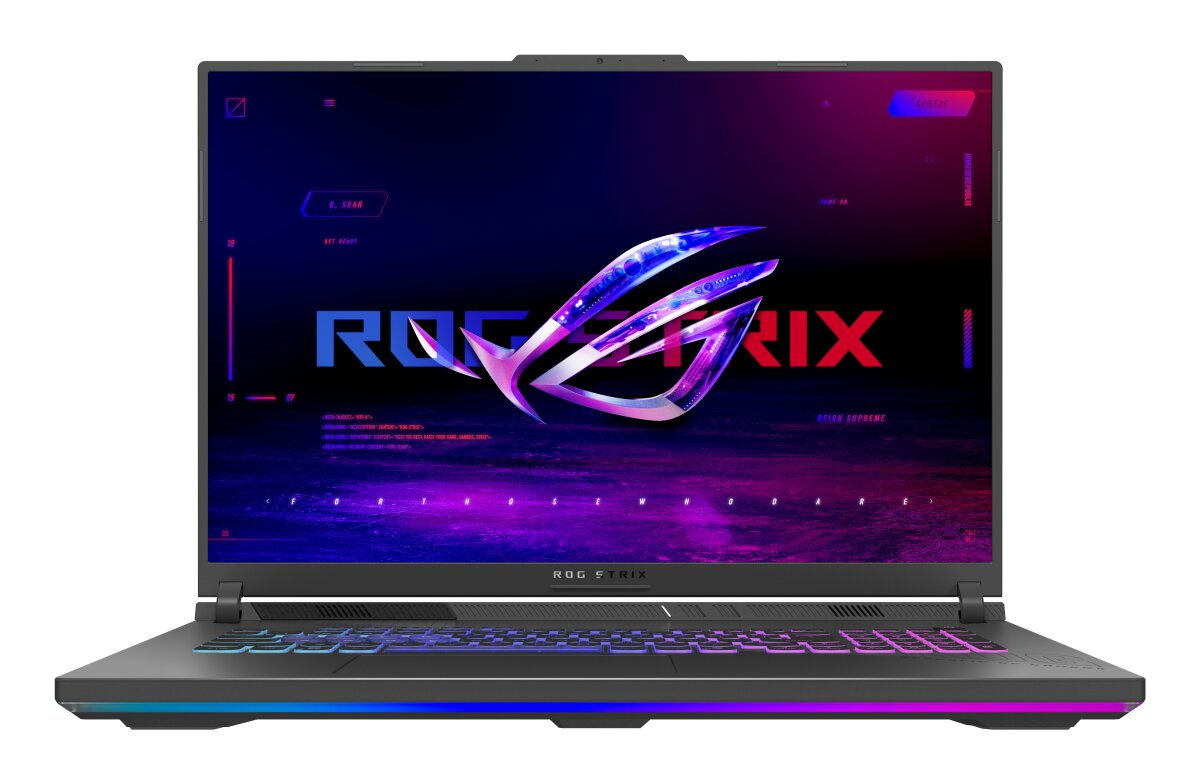

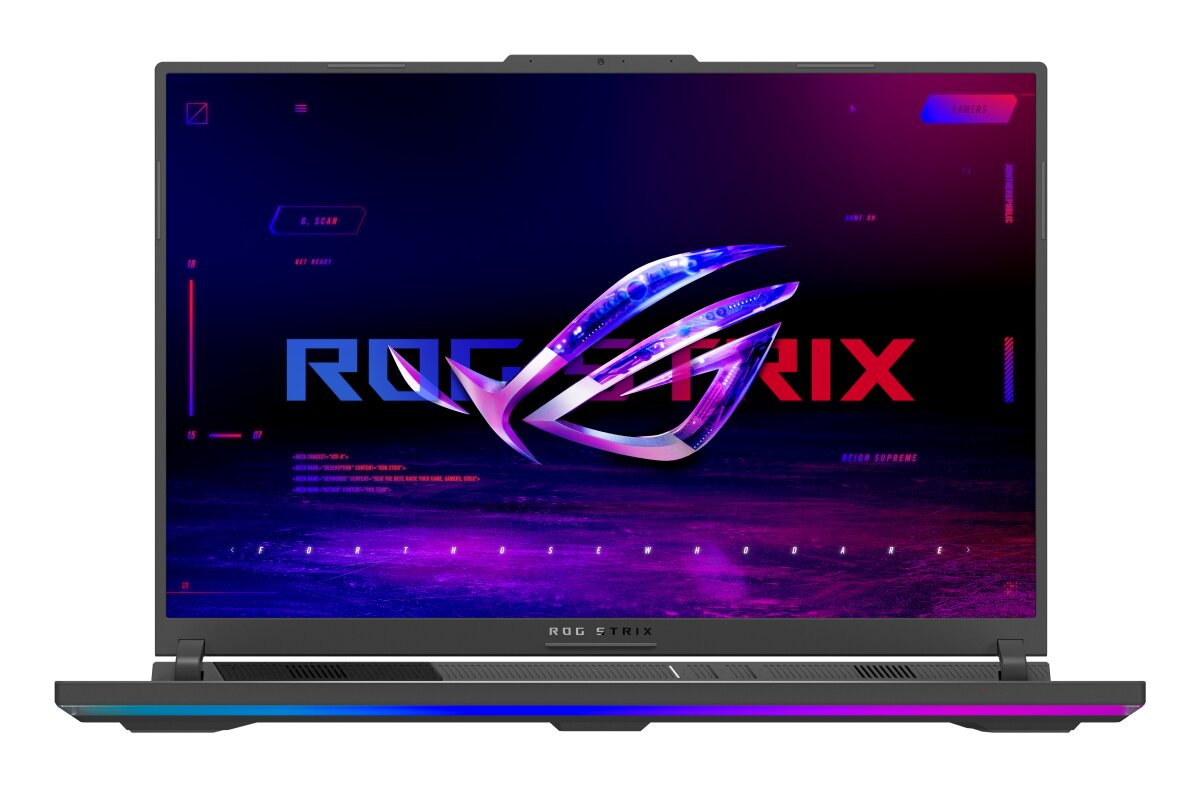

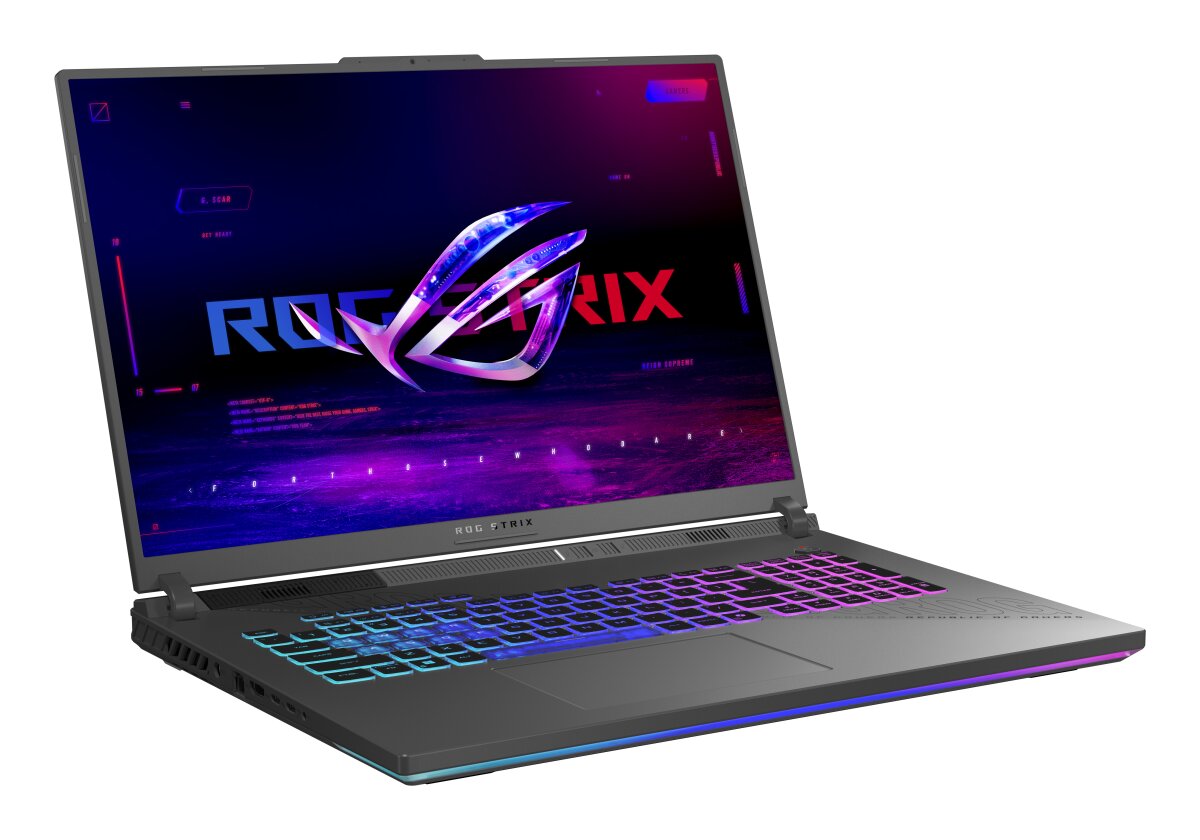

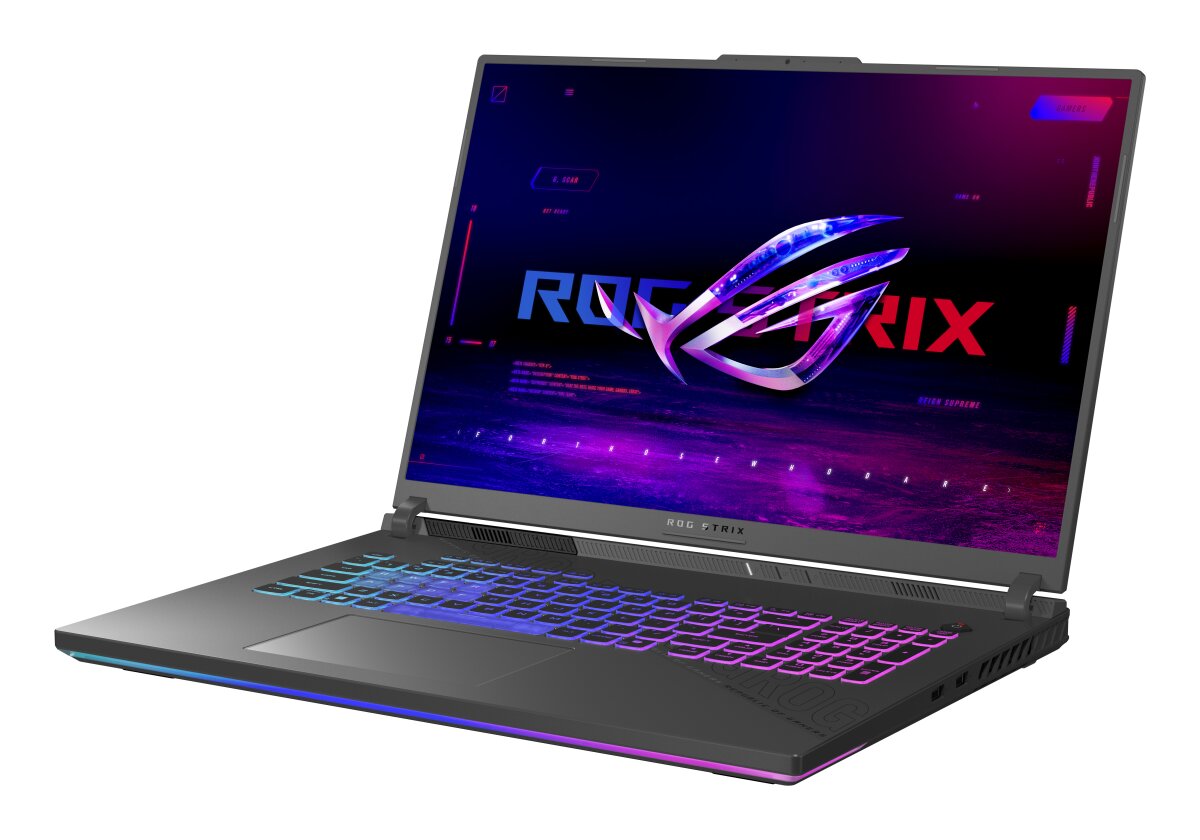

ASUS ROG G814PM-S8009W RAM upgrade specifications

ASUS G814PM-S8009W ASUS G814PM-S8009W ASUS G814PM-S8009W ASUS G814PM-S8009W ASUS G814PM-S8009W

ASUS ROG Strix G18 model G814PM-S8009W compatible RAM upgrade specifications include DDR5-SDRAM memory with maximum capacity of 32 GB across 2x SO-DIMM slots. Supported memory operates at 5200 MHz frequency. Upgrade options accommodate SO-DIMM form factor modules for enhanced system performance and multitasking capabilities on gaming-oriented laptop architecture.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR5-SDRAM
Frequency5200 MHz
Maximum RAM32 GB
Voltage1.1V
Number of pins262-pin
InterfacePC5
PC Speed RatingPC5-5200 (PC5-41600)
Bandwidth41.6 GB/s

Additional Notes

  • Dual channel memory architecture requires matching module pairs to achieve full theoretical bandwidth for the processor.
  • The 32 GB ceiling indicates a motherboard firmware limit that prevents the use of high density 32 GB single sticks despite DDR5 architectural capabilities.
  • Upgrading the ASUS ROG G814PM-S8009W requires total replacement of existing modules because both available slots are occupied to reach the factory maximum.
  • Higher frequency memory modules will automatically downclock to 5200 MHz if the system chipset lacks XMP or manual timing adjustment support.
  • Physical installation requires a non conductive pry tool to release the specialized clips found on SO-DIMM retention brackets.
  • Integrated graphics performance scales directly with memory frequency, meaning sub 5200 MHz replacements will create a video rendering bottleneck.
  • Latency variations between different memory brands may cause stability issues or boot failures if timings are not identical across both channels.
