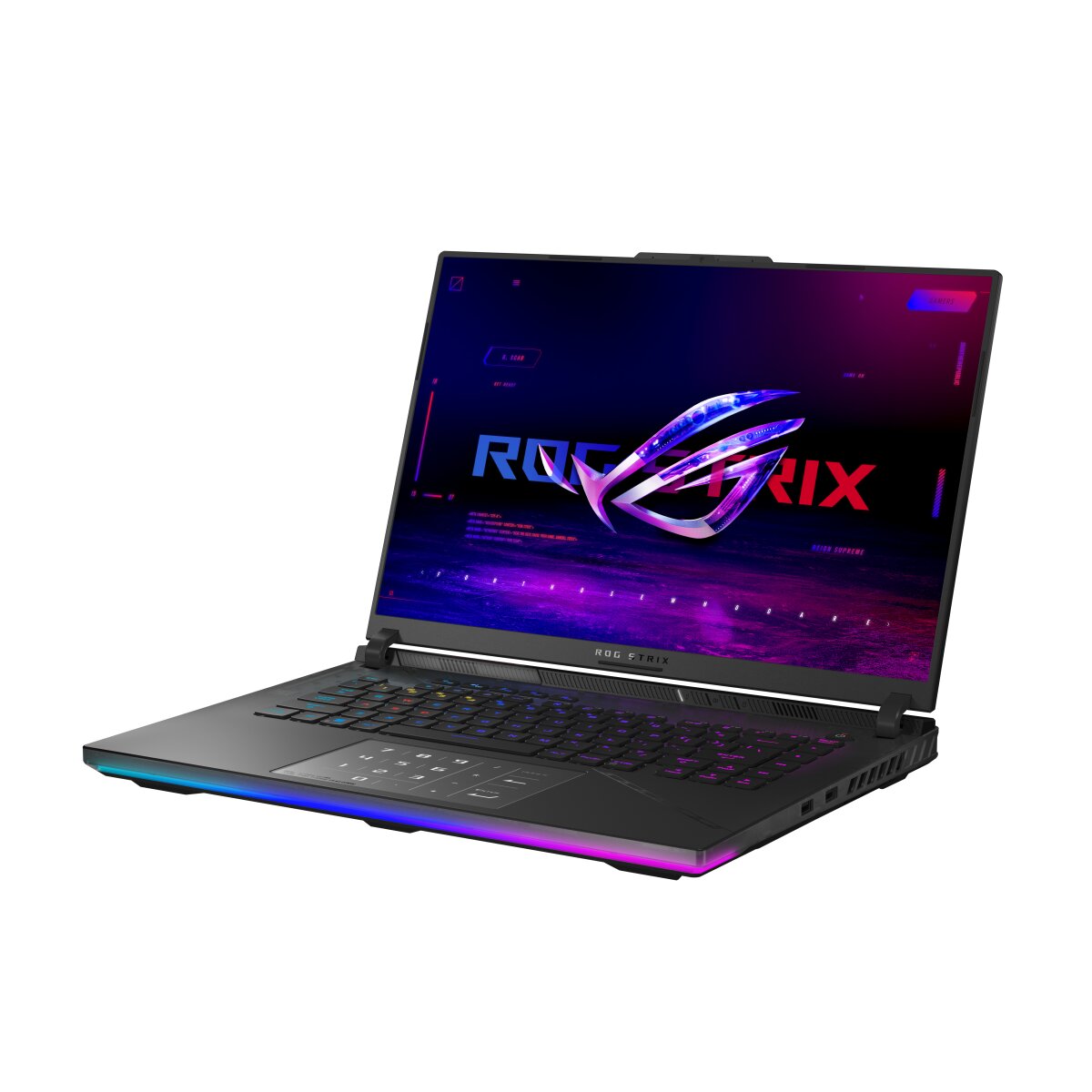

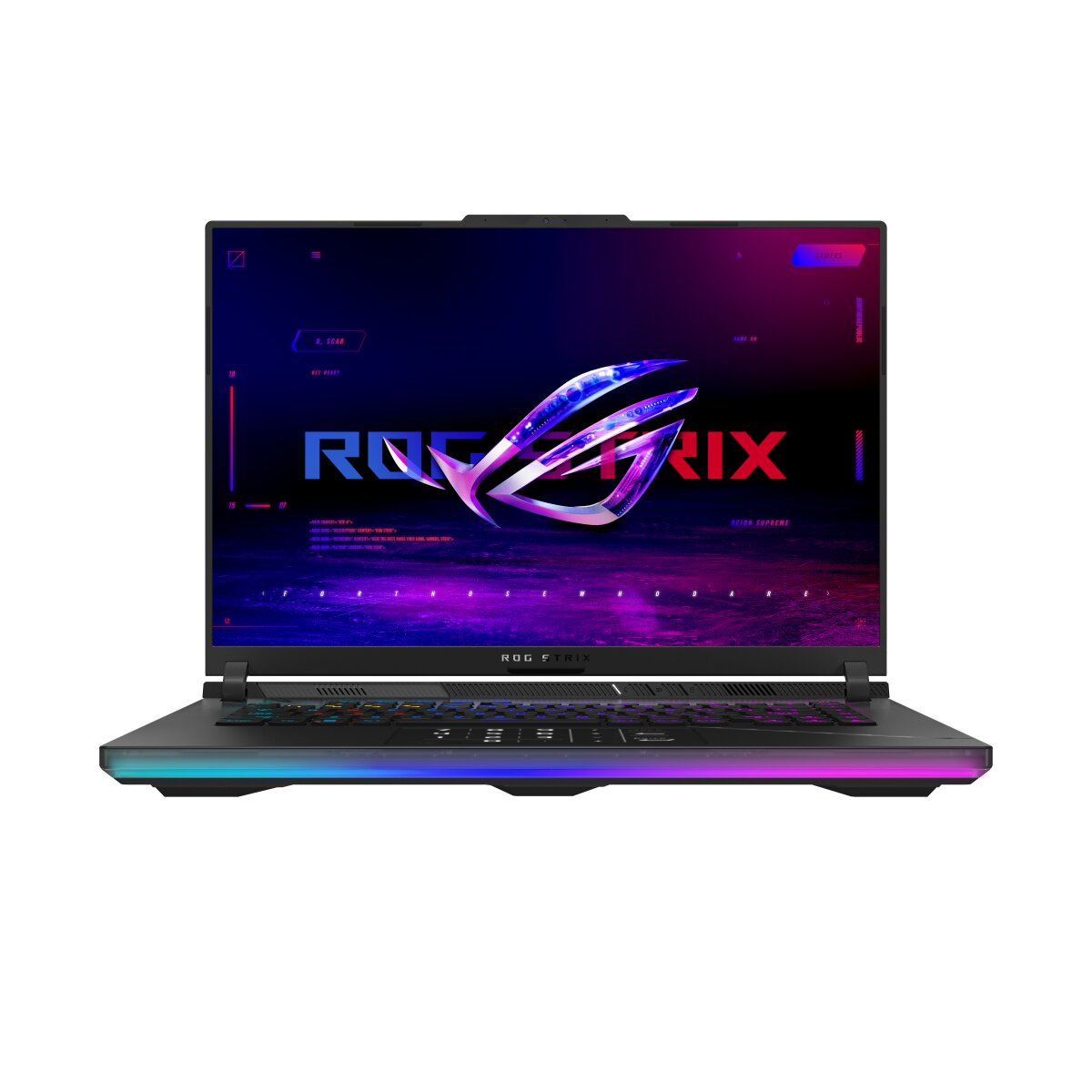

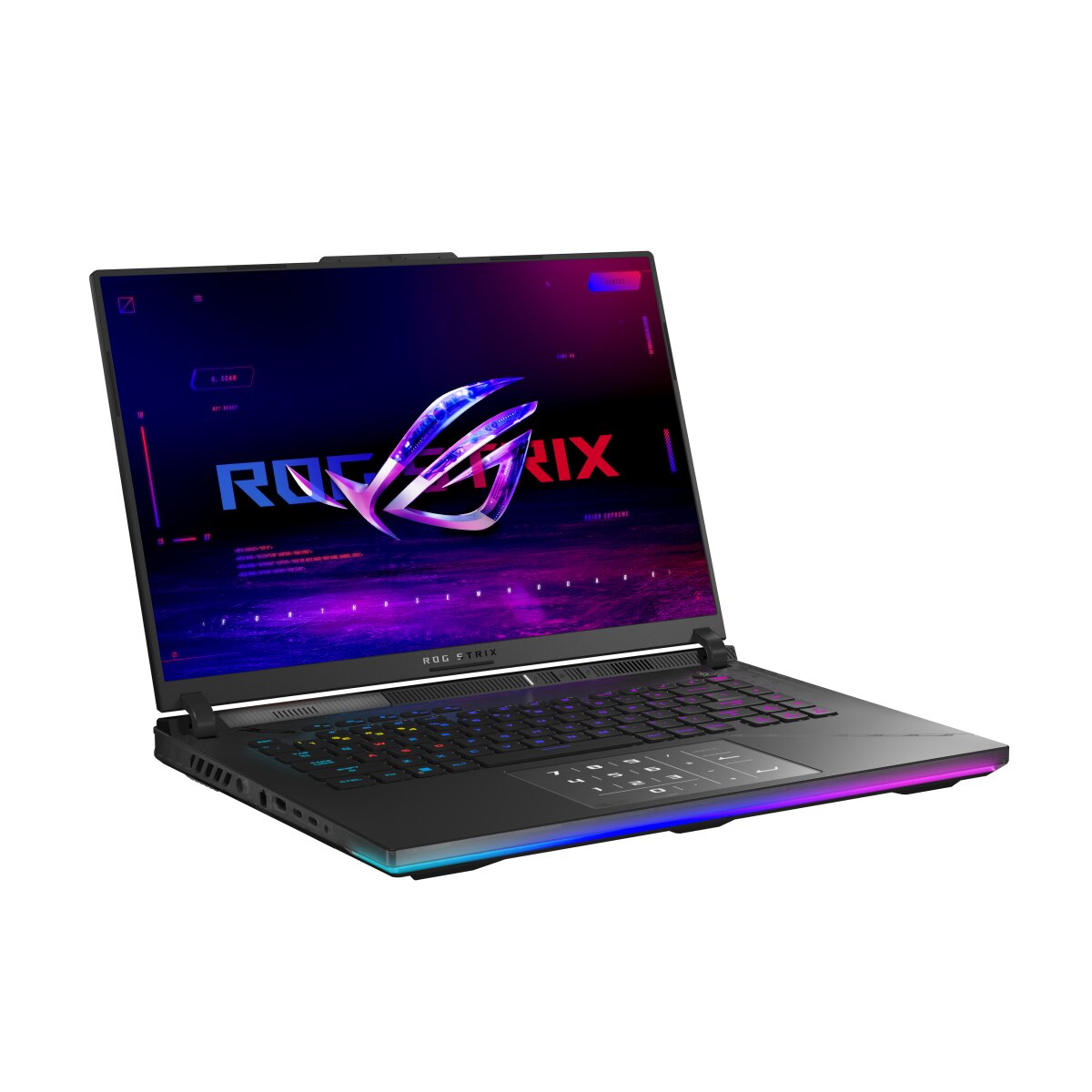

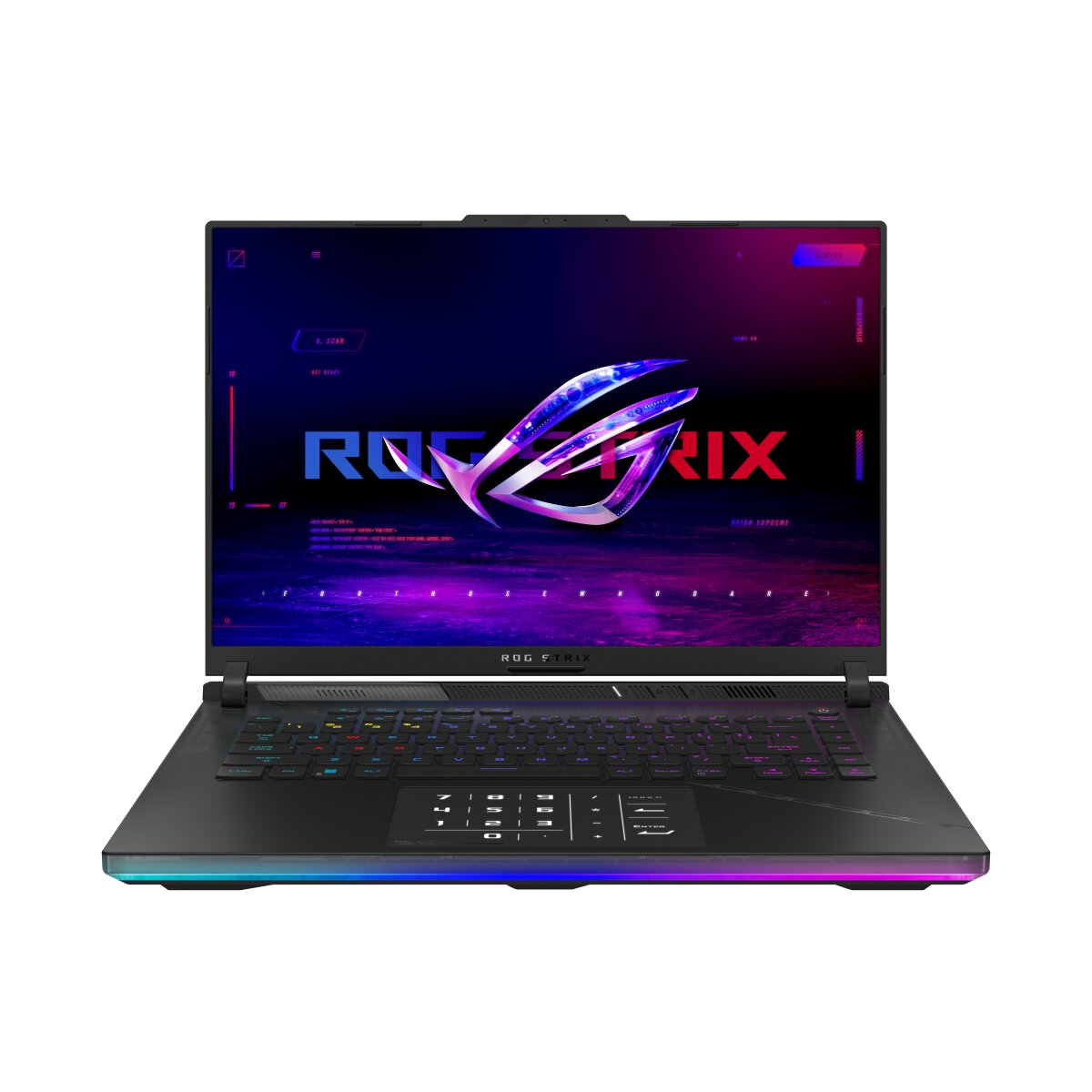

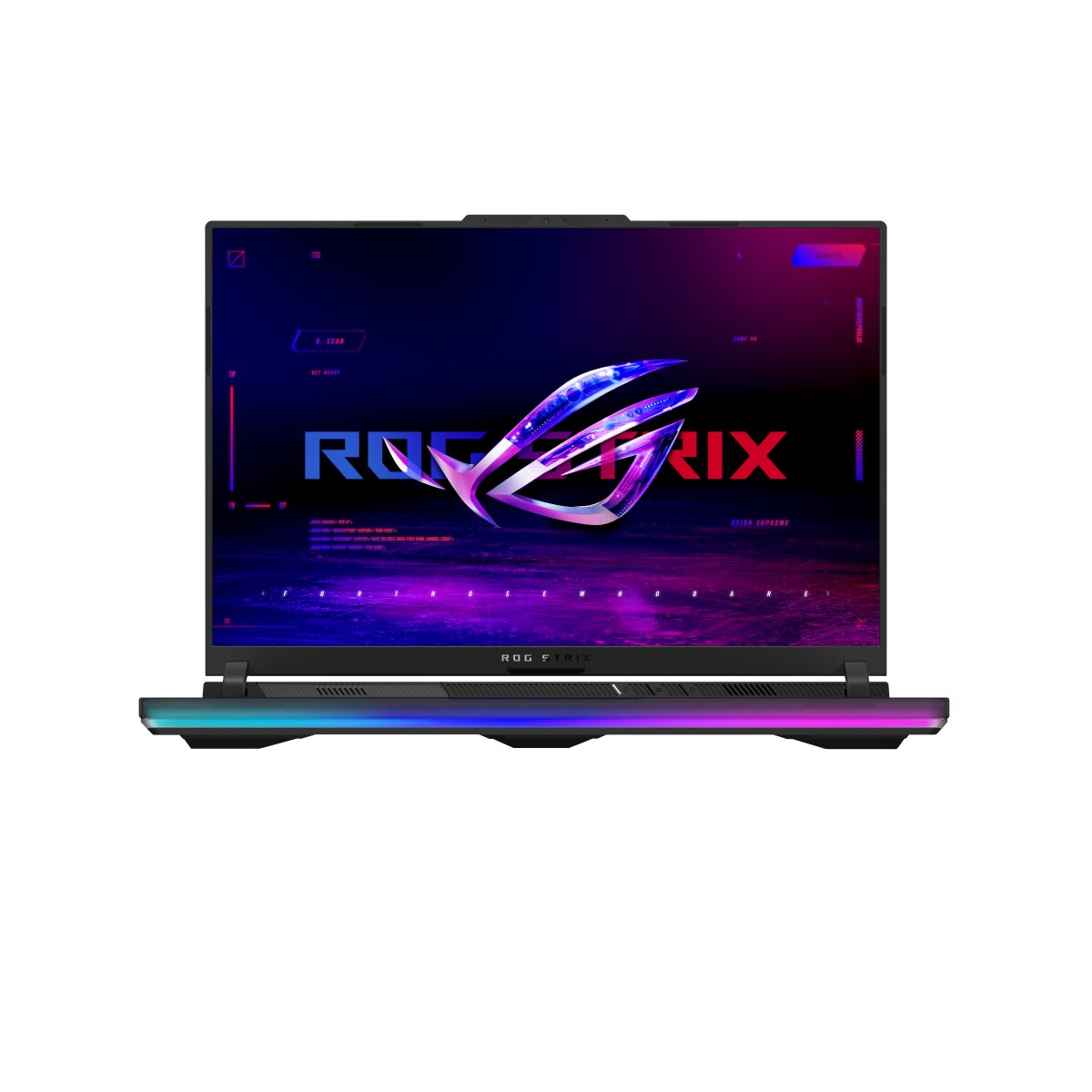

ASUS ROG G634JY-NM048W RAM upgrade specifications

ASUS ROG Strix SCAR 16 model G634JY-NM048W accommodates DDR5-SDRAM memory upgrades through two SO-DIMM slots. Maximum RAM capacity reaches 64 GB total. Compatible memory specifications include DDR5-SDRAM operating at 4800 MHz frequency. Upgrade slots support SO-DIMM form factor modules, enabling users to expand memory configuration beyond factory specifications.

Additional Notes

• The ASUS ROG G634JY-NM048W contains 2 SO-DIMM slots with a combined capacity ceiling of 64 GB, requiring matched pairs for dual-channel operation to achieve rated memory bandwidth of 76.8 GB/s at 4800 MHz.
• DDR5-4800 modules operate at higher voltage (1.4V nominal) compared to DDR4 equivalents, necessitating verification that replacement modules meet JEDEC or OEM specifications to prevent stability degradation or hardware damage.
• SO-DIMM form factor constrains upgrade options to laptop-specific memory modules; desktop DDR5 DIMMs are physically incompatible and cannot be fitted into available slots.
• Populating both slots asymmetrically (mismatched capacities or speeds) reduces effective bandwidth and forces the memory controller to operate at the speed of the slower module, creating a performance bottleneck below rated 4800 MHz capability.
• The 2-slot architecture prohibits incremental single-module upgrades; expansion from baseline configuration requires removal and replacement of existing modules to reach the 64 GB maximum without wasting capacity.
• SO-DIMM slots typically feature spring-loaded retention clips requiring gentle angled insertion and full seating until clips engage; improper installation results in POST failures or intermittent crashes despite electrical compatibility.
• Most manufacturer warranties cover memory upgrades performed by end users without special approval, provided replacement modules originate from qualified vendor lists or meet OEM electrical/thermal specifications.
