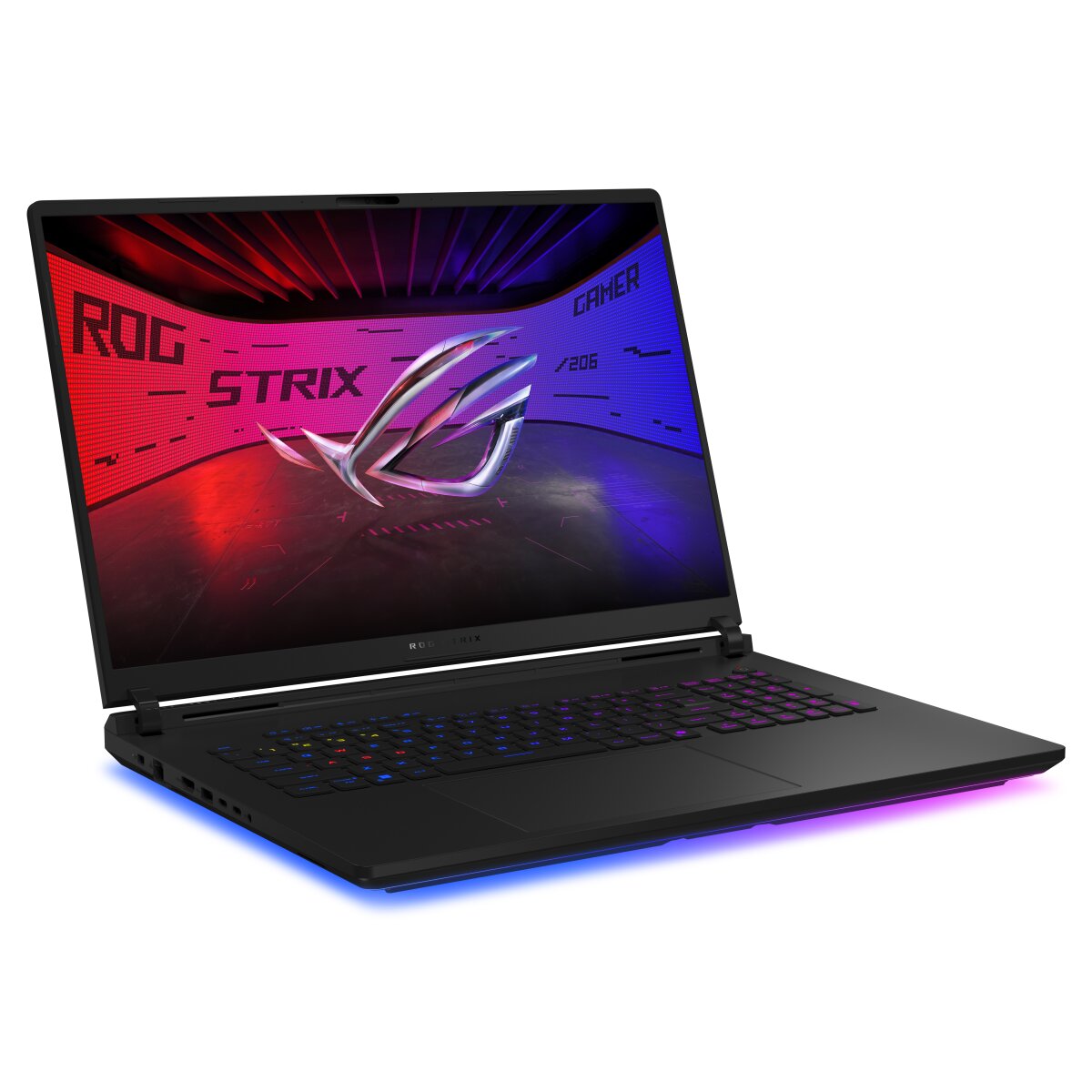

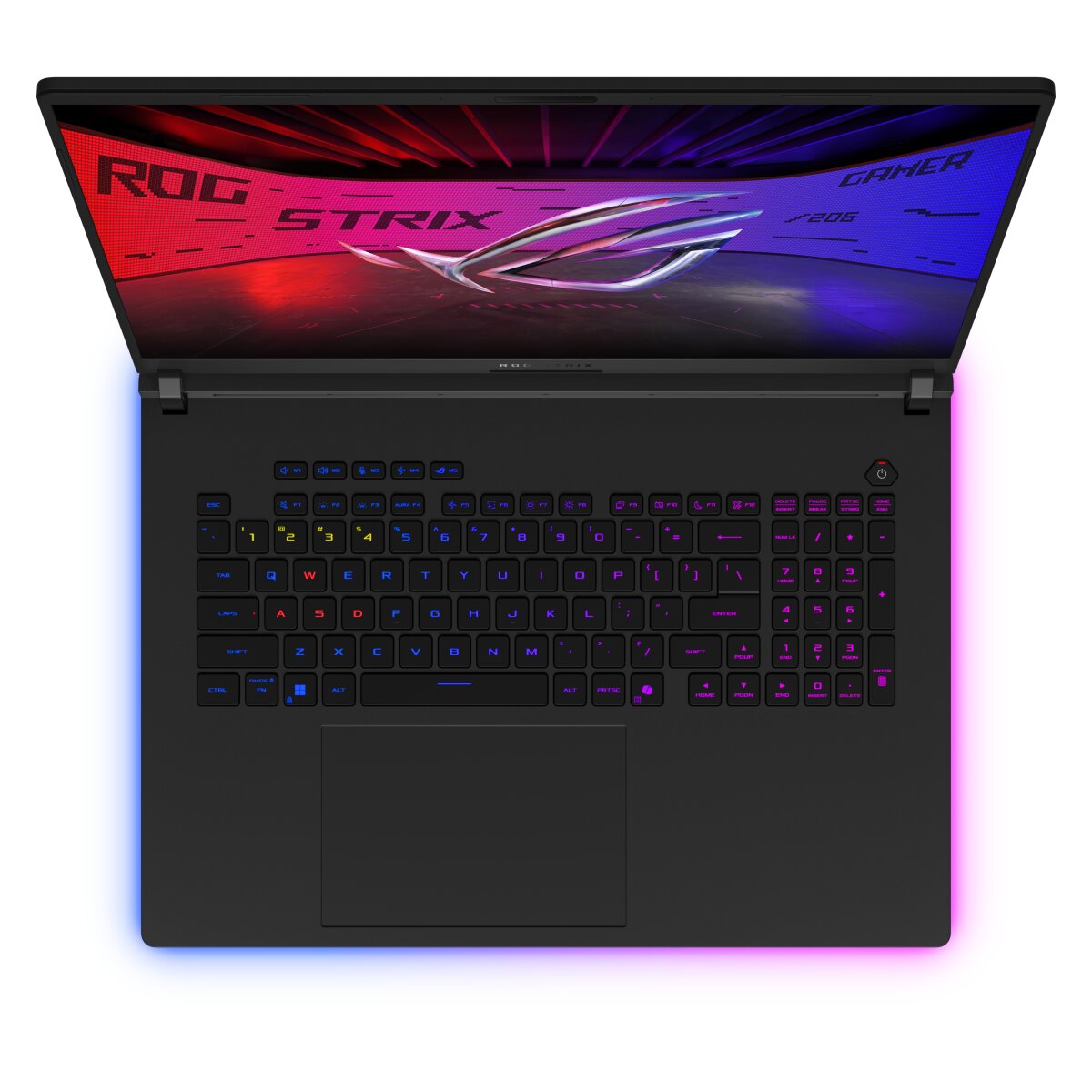

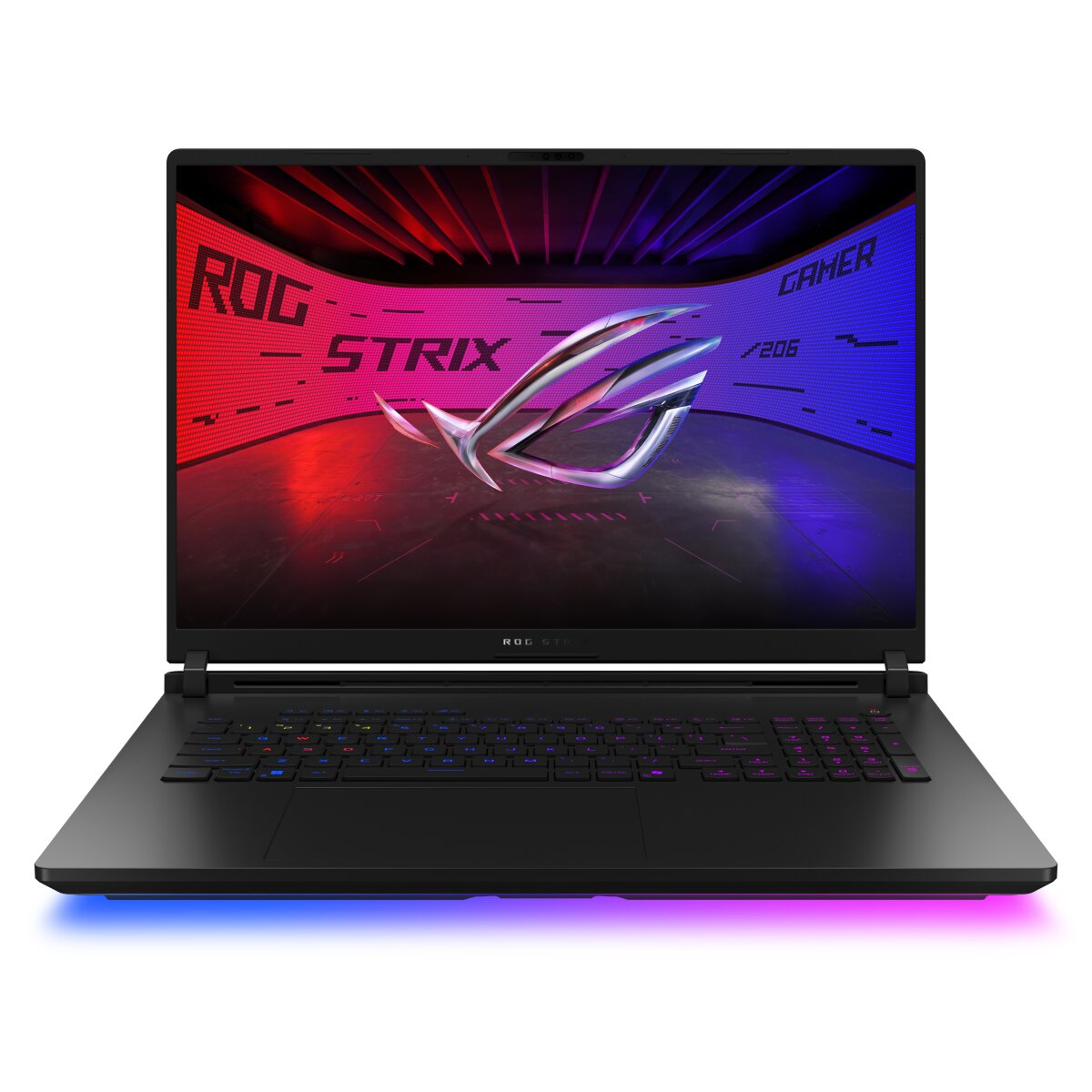

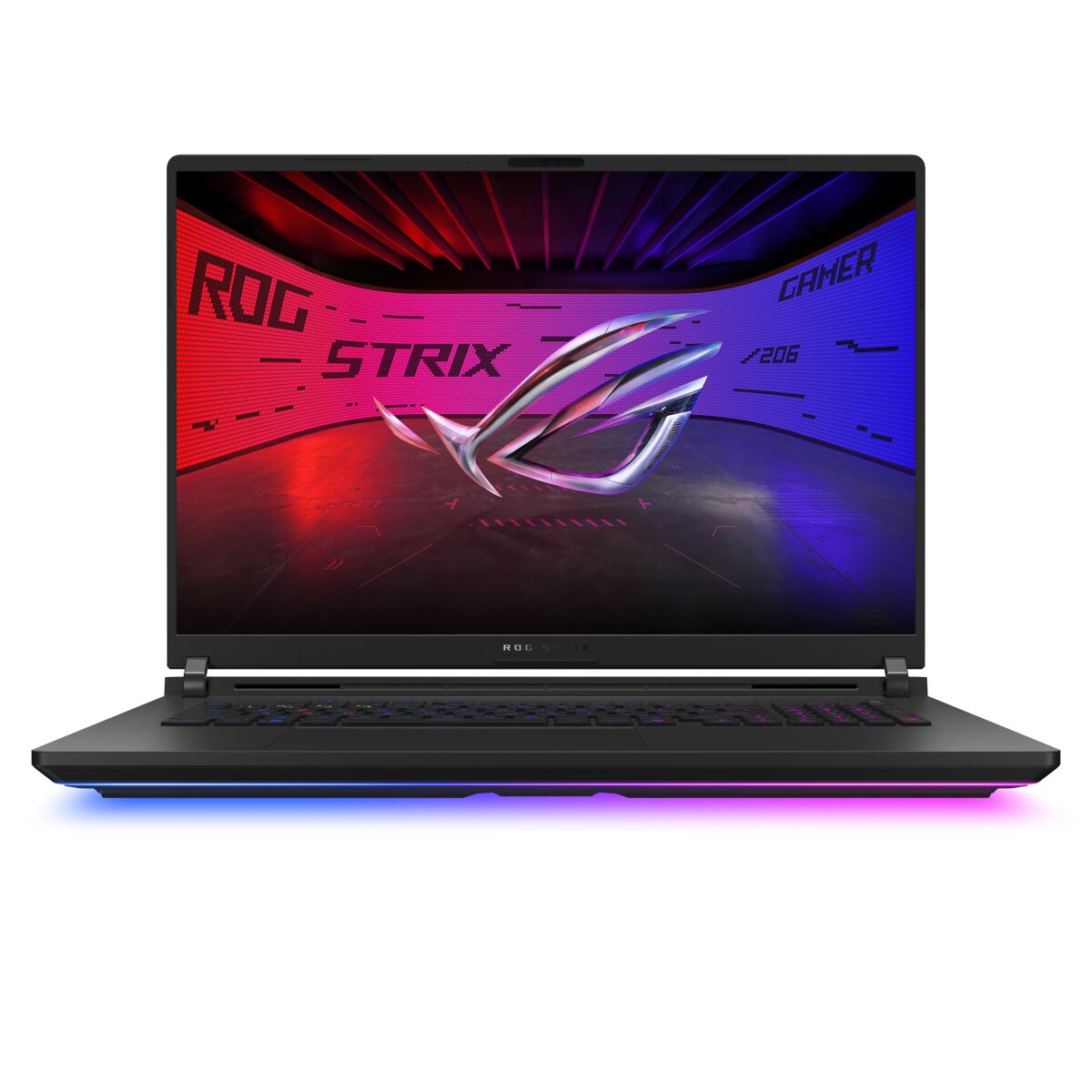

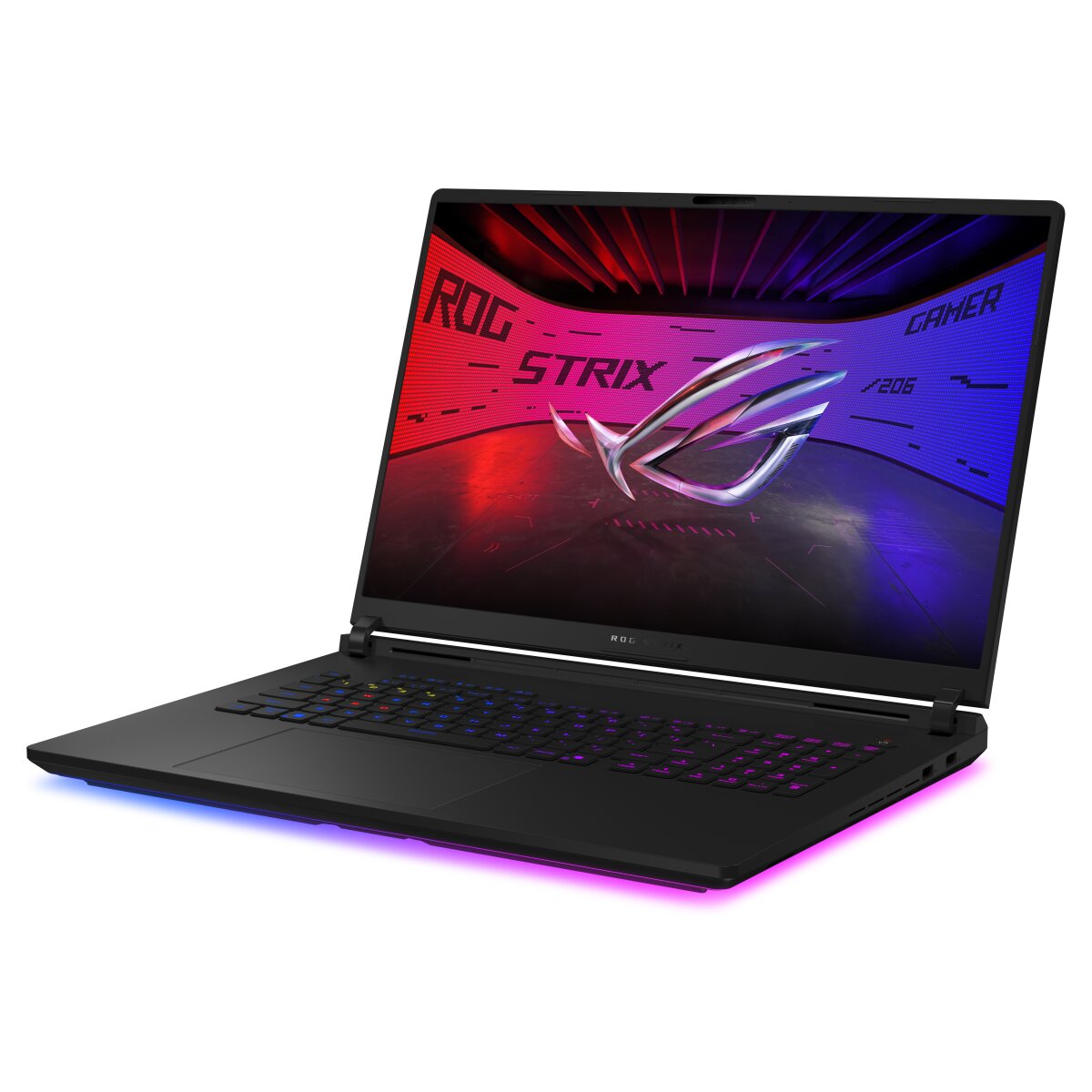

ASUS ROG G835LR-XS96 RAM upgrade specifications
The ASUS ROG Strix SCAR 18 G835LR-XS96 laptop features DDR5-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting a maximum RAM capacity of 64 GB. Compatible memory modules operate at 5600 MHz frequency utilizing SO-DIMM form factor. Specifications indicate dual-slot configuration enabling memory expansion up to the maximum capacity threshold for enhanced system performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 5600 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-5600 (PC5-44800) |
| Bandwidth | 44.8 GB/s |
Additional Notes
- The ASUS ROG G835LR-XS96 contains 2 SO-DIMM slots operating at 5600 MHz, establishing a hard ceiling of 64 GB total capacity regardless of individual module density. Expansion beyond this threshold requires replacement rather than addition of existing modules.
- DDR5-5600 memory operates with significantly reduced latency windows compared to DDR4 predecessors, meaning timing-sensitive applications and high-refresh gaming derive measurable performance gains from the native frequency specification. Underclocking to lower speeds negates this architectural advantage.
- SO-DIMM form factor imposes strict physical constraints on module height and length, eliminating compatibility with standard desktop DDR5 DIMMs. Sourcing replacement modules requires verified SO-DIMM variants specifically rated for mobile platforms.
- Two-slot architecture creates a single point of failure for each module. If one SO-DIMM fails, the system loses 50 percent of installed capacity, contingent on whether the remaining module can operate in single-channel configuration.
- Upgrading from factory configuration to maximum capacity (64 GB) requires removal and replacement of both modules simultaneously, as dual-channel performance depends on matched pairs. Mixed densities or mismatched speeds trigger bandwidth throttling or compatibility errors.
- DDR5-5600 modules carry JEDEC certification, meaning generic third-party variants meeting this standard specification maintain warranty compliance when sourced from authorized retailers, provided installation procedures avoid electrostatic discharge.
