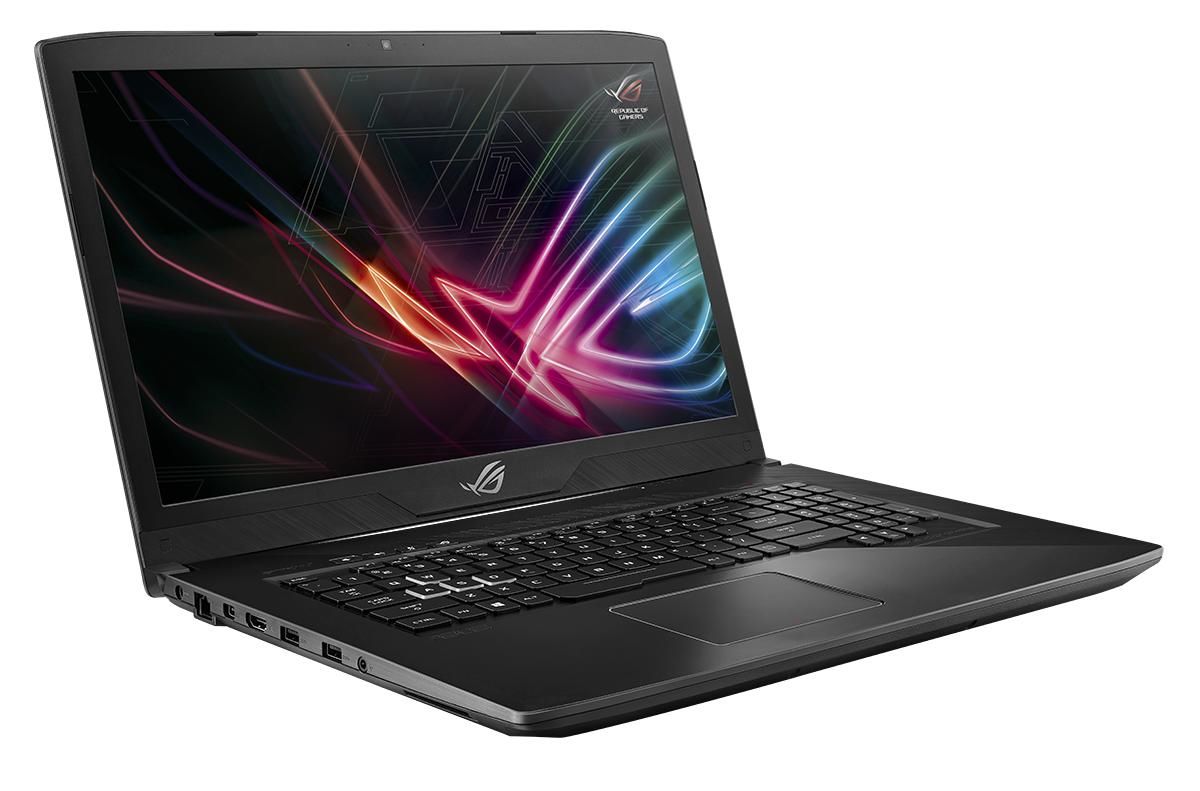

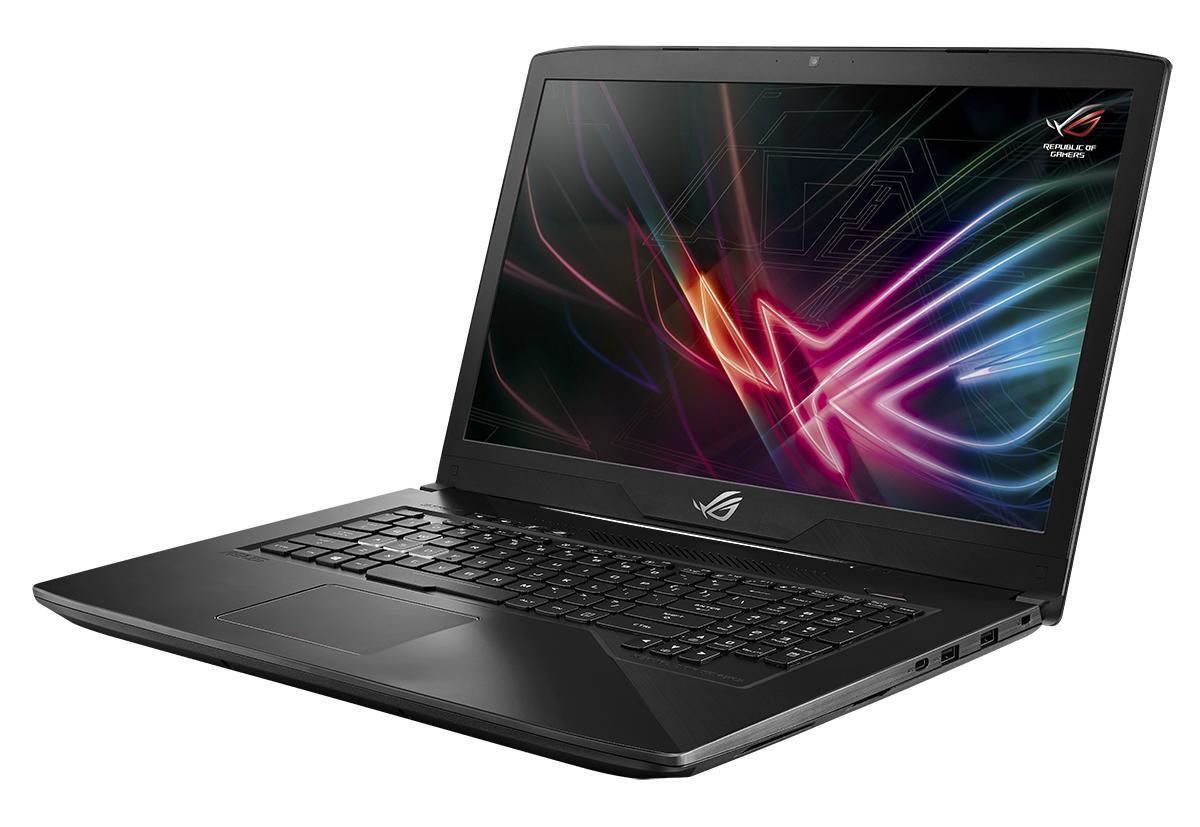

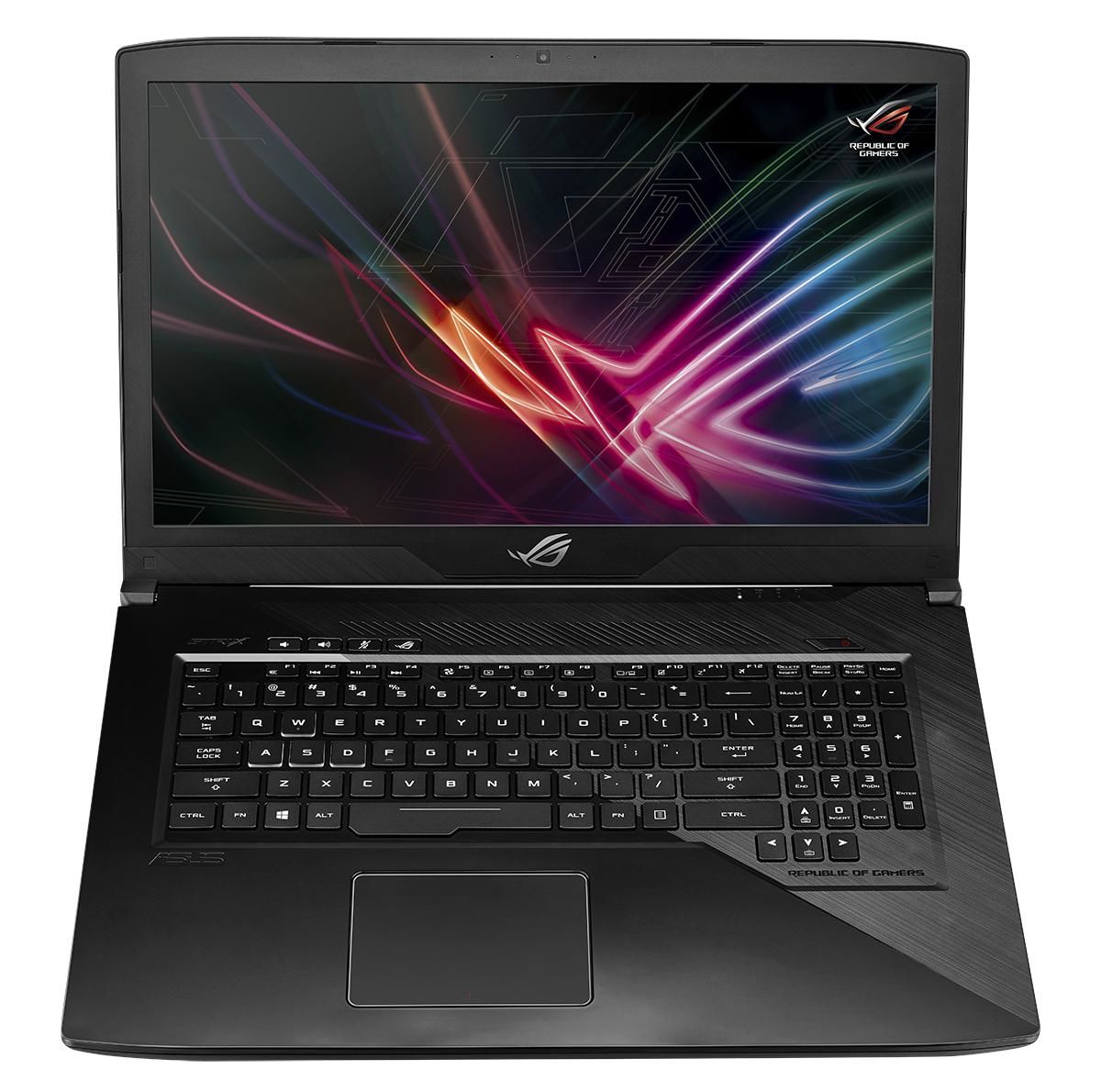

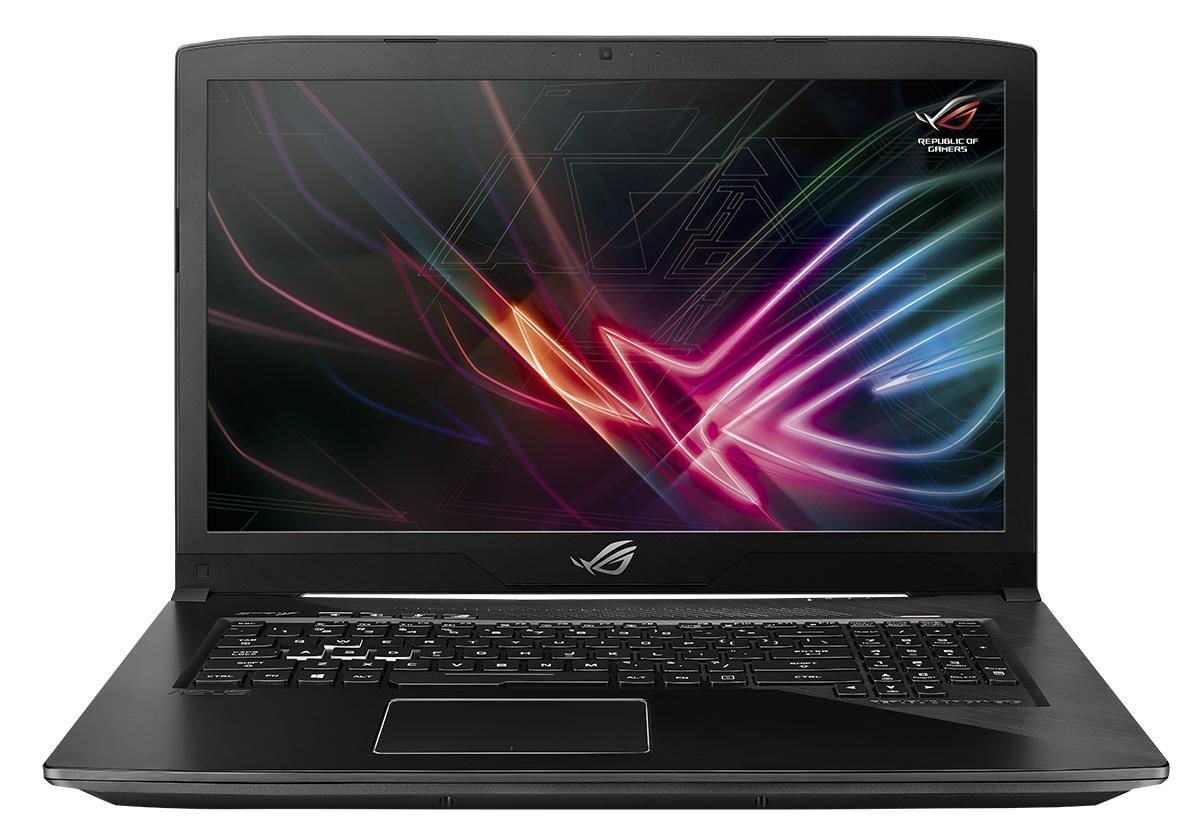

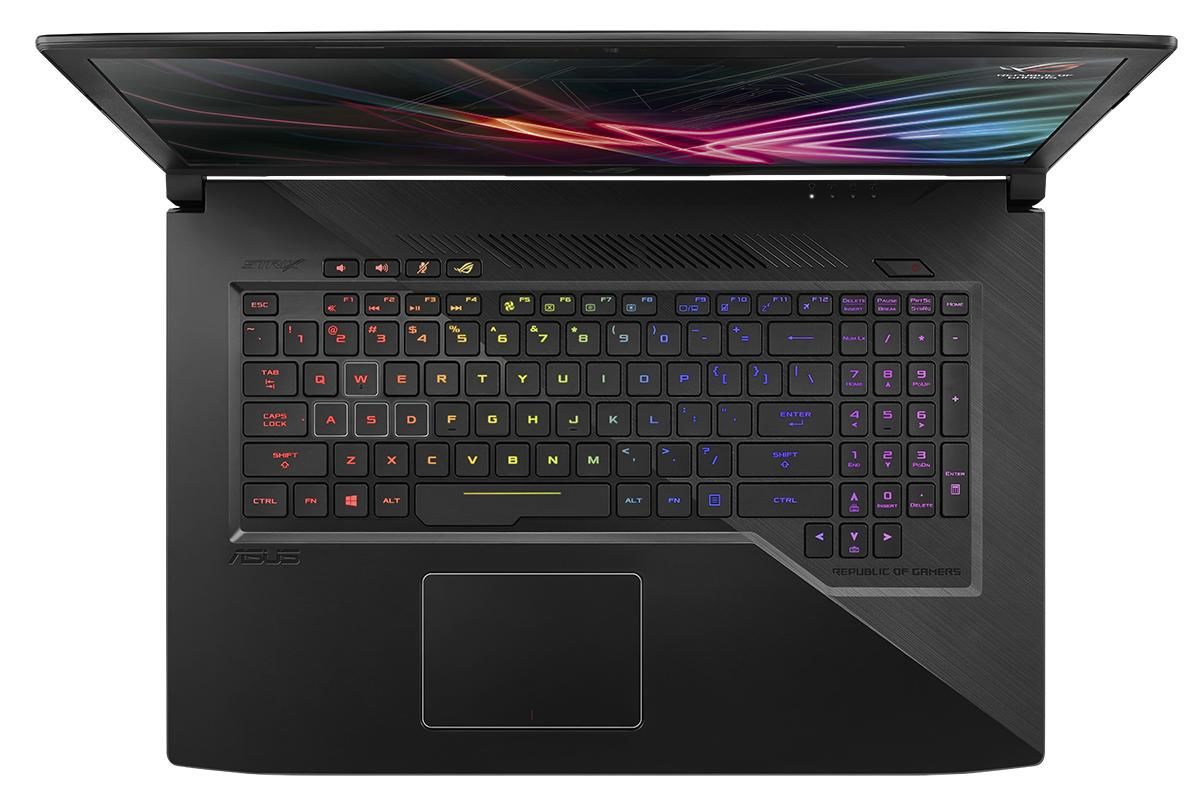

ASUS ROG GL703GM-E5086T RAM upgrade specifications

The ASUS ROG Strix GL703GM-E5086T laptop features DDR4-SDRAM memory upgrade capabilities with 2x SO-DIMM slots supporting a maximum RAM capacity of 32 GB. The memory specifications include DDR4-2666 MHz frequency support. Compatible RAM upgrades utilize SO-DIMM form factor modules. The upgrade slots accommodate standard DDR4 memory modules, enabling users to expand the laptop's memory beyond factory configuration to support enhanced multitasking and application performance.

Additional Notes

• Dual channel mode requires identical module densities across both slots to eliminate bandwidth throttling during memory intensive tasks.
• The 32 GB threshold indicates the motherboard firmware lacks support for high density 32 GB modules per slot.
• Mixing 2666 MHz modules with lower frequency units forces the system to operate at the slowest common clock speed due to SPD defaults.
• Accessing the SO-DIMM slots necessitates the removal of the entire base panel which involves navigating plastic clips prone to fatigue.
• The 1.2V DDR4 standard ensures thermal stability within the chassis without the need for dedicated memory heat spreaders.
• Populating only 1 slot creates a single channel bottleneck that reduces effective data throughput by 50 percent.
• High performance modules with CL15 or CL16 latencies may revert to CL19 if the BIOS does not provide XMP or manual timing overrides.
• The physical height of the SO-DIMM slots limits compatibility to standard height modules and excludes specialized tall heat sinks.
