ASUS ROG GU603HE-KR022T RAM upgrade specifications

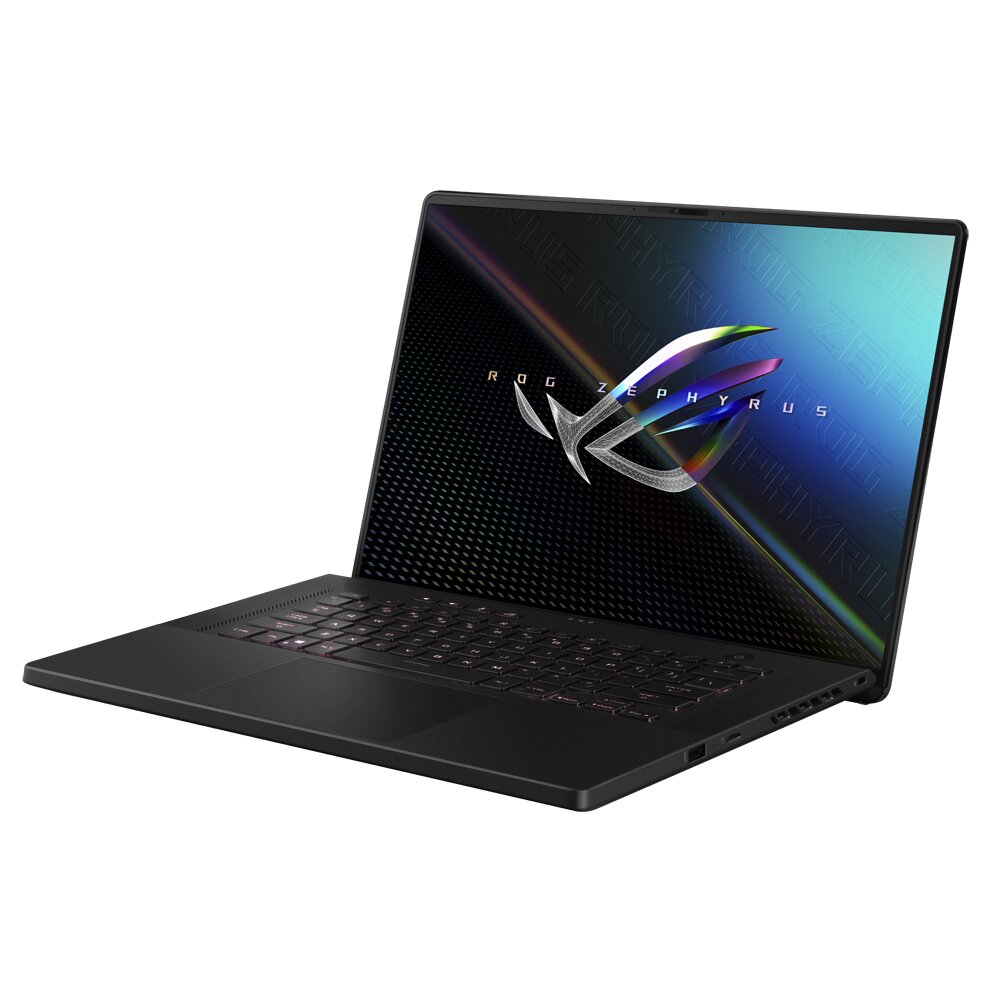

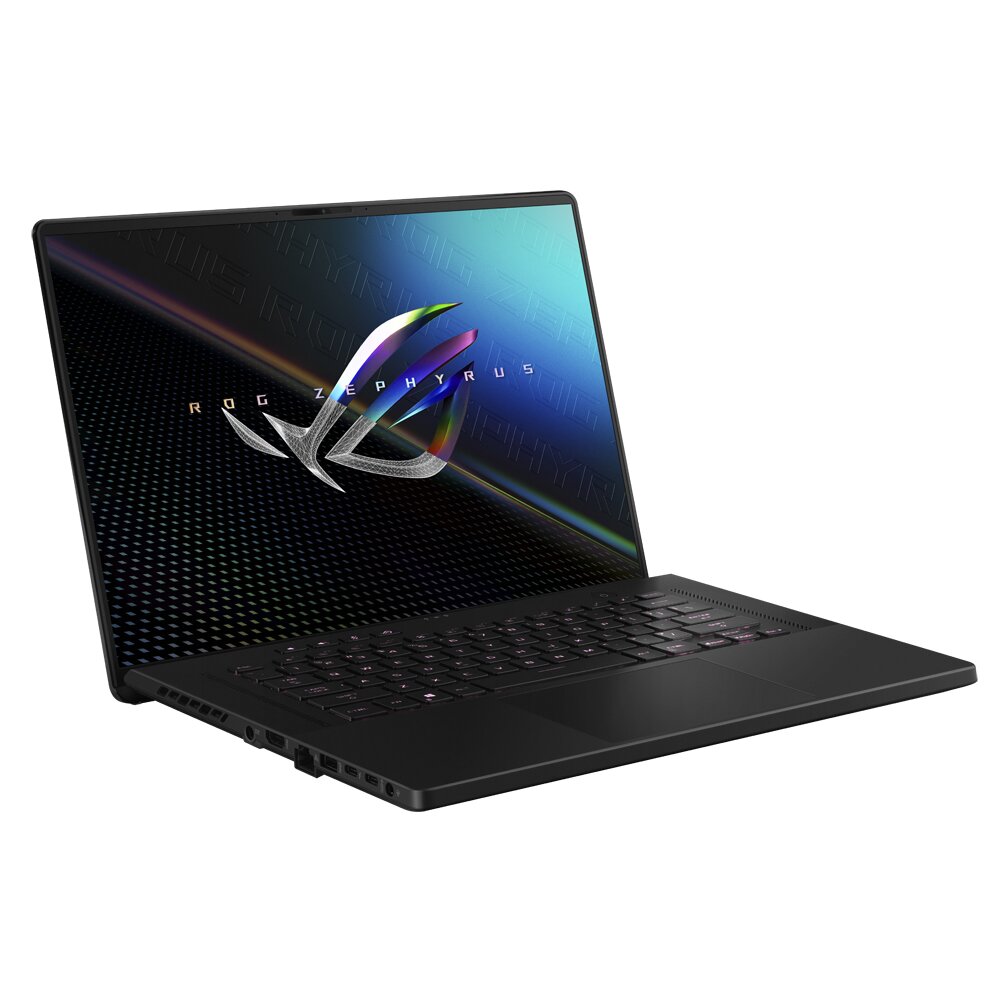

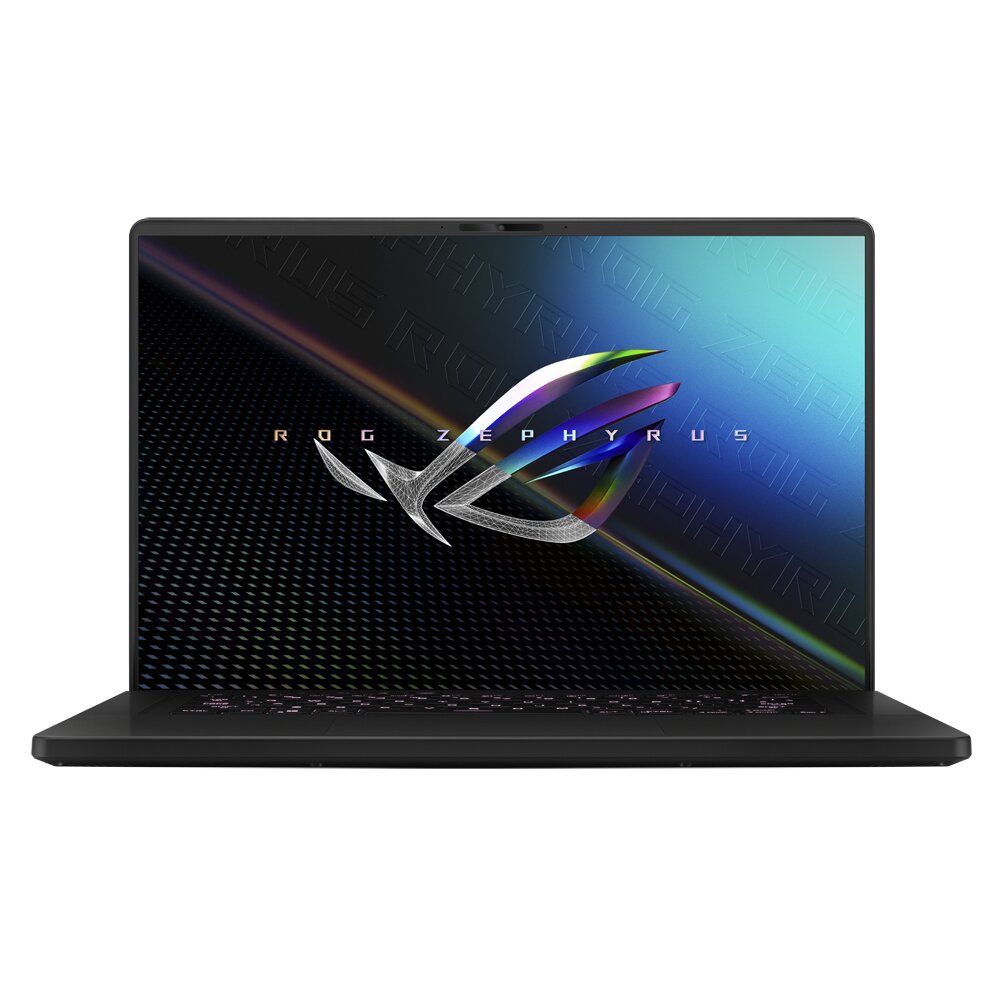

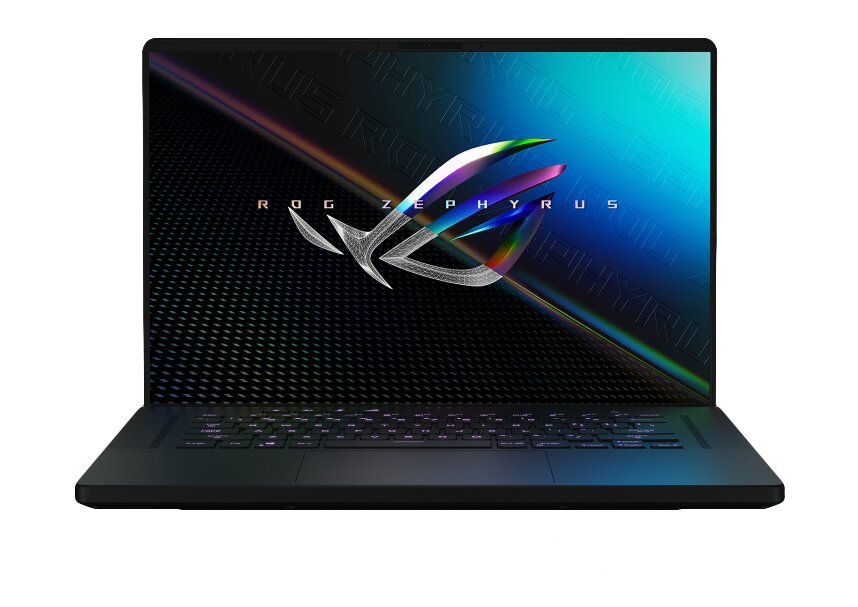

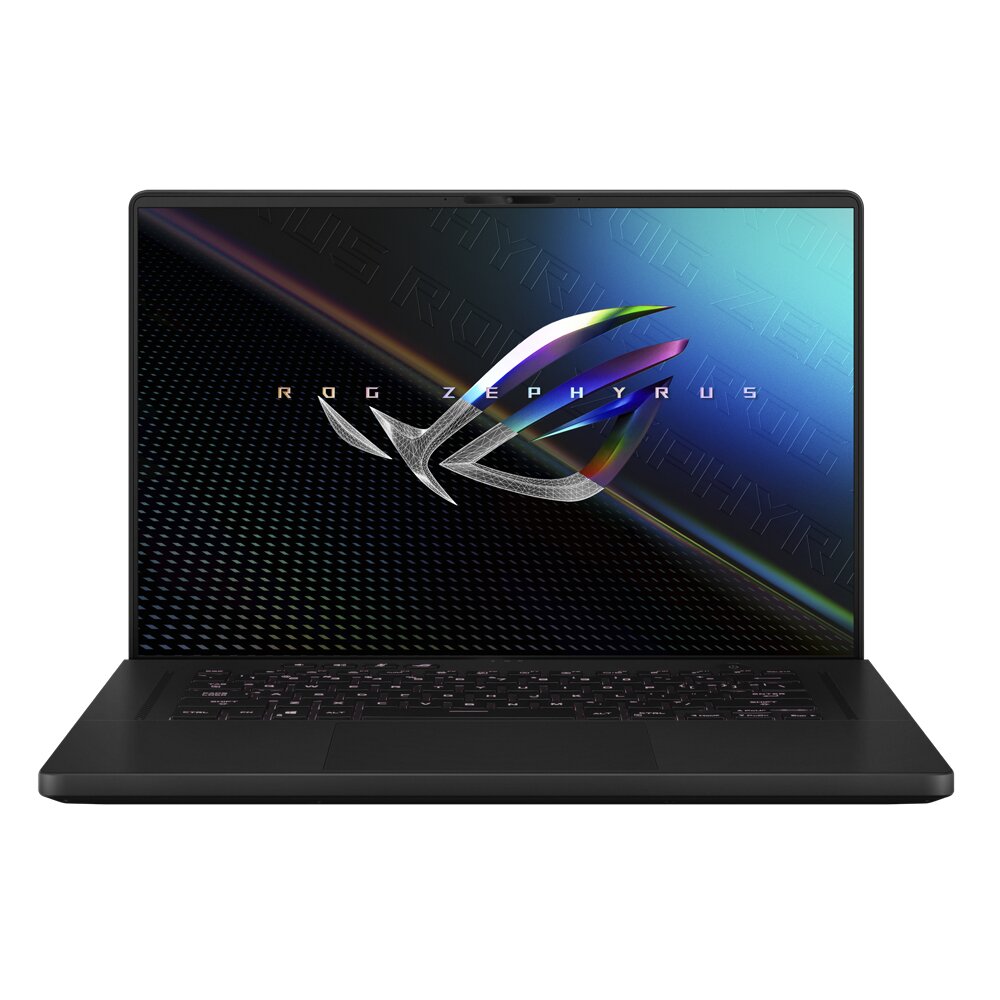

ASUS ROG Zephyrus M16 GU603HE-KR022T laptop contains DDR4-SDRAM memory configured with one SO-DIMM slot for upgrade capacity. Maximum RAM specifications support up to 48 GB total memory expansion. Compatible upgrade modules operate at 3200 MHz frequency. Memory architecture combines on-board integrated memory with one removable SO-DIMM slot, enabling modular memory enhancement without replacing existing components.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 48 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 01 July 2021 |
Additional Notes
- The presence of on board memory indicates that a portion of the system RAM is soldered directly to the motherboard and cannot be replaced or upgraded.
- Upgrading the **ASUS ROG GU603HE-KR022T** to its maximum capacity requires a single 32 GB module to complement the existing 16 GB soldered configuration.
- Dual channel performance only functions for the capacity where the removable module matches the on board memory size while any excess capacity operates in single channel mode.
- The single available expansion slot necessitates the removal of the currently installed module rather than adding a second one for capacity increases.
- Synchronizing clock speeds is critical because installing a module with higher latency or lower frequency than the soldered chips forces the entire system to downclock to the slowest speed.
- Physical access to the SO-DIMM slot involves removing the bottom chassis panel which requires specific tools and caution to avoid damaging internal ribbon cables.
- Memory modules exceeding 1.2V are incompatible with this architecture and may lead to boot failures or thermal instability.
