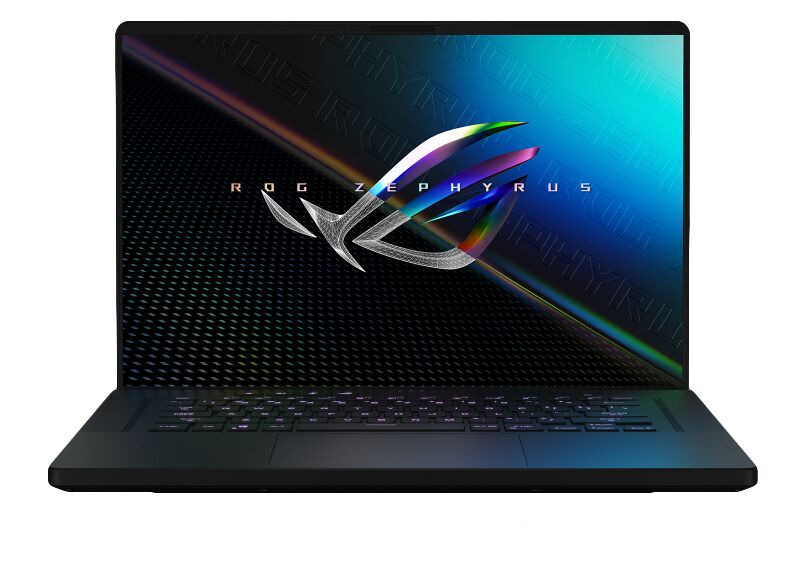

ASUS ROG GU603HR-KR007R RAM upgrade specifications
The ASUS ROG Zephyrus M16 GU603HR-KR007R supports DDR4-SDRAM memory upgrades with a single SO-DIMM slot available for expansion. The laptop features on-board memory combined with one upgradeable SO-DIMM slot, allowing a maximum RAM capacity of 48 GB. Compatible memory operates at 3200 MHz frequency. The specifications indicate the upgrade slot accommodates SO-DIMM form factor modules, enabling users to expand the system memory beyond its factory configuration for enhanced multitasking and performance capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 48 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 28 February 2021 |
Additional Notes
- The ASUS ROG GU603HR-KR007R contains soldered on-board memory paired with a single accessible SO-DIMM slot, meaning only 1 of the 2 memory modules can be replaced or upgraded without factory intervention.
- Reaching the 48 GB maximum requires the SO-DIMM slot to accept a 32 GB module, as DDR4 SO-DIMM availability above 16 GB remains limited in the consumer market and commands premium pricing.
- Mixed-capacity configurations (soldered base + upgraded SO-DIMM) operate in single-channel mode across the upgrade portion, reducing bandwidth efficiency compared to matched dual-channel setups typical in desktop systems.
- DDR4-3200 MHz compatibility constrains module selection to JEDEC standard timing; higher-frequency SO-DIMM modules will downclock to 3200 MHz, eliminating any performance advantage from premium memory purchases.
- Installation of aftermarket SO-DIMM modules does not void warranty coverage under standard manufacturer policies, provided the module meets DDR4-3200 specifications and installation follows documented procedures without physical damage to the slot.
- The single upgradeable slot creates a ceiling on parallel processing capacity; memory-bound workloads will not scale linearly with capacity increases due to the soldered portion remaining fixed.
