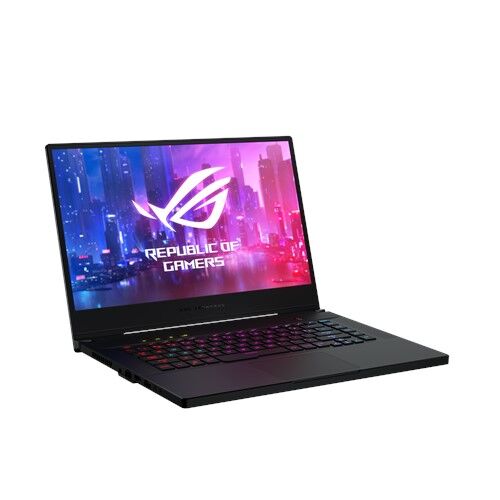

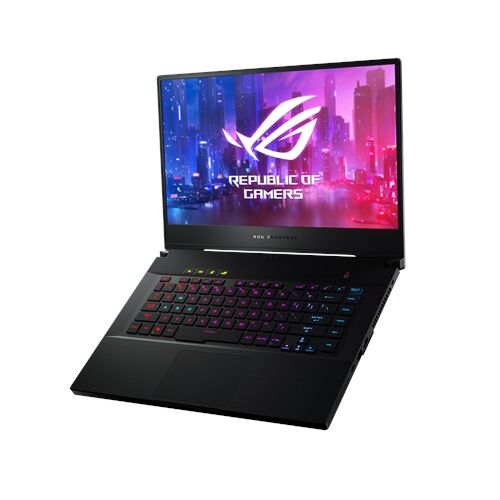

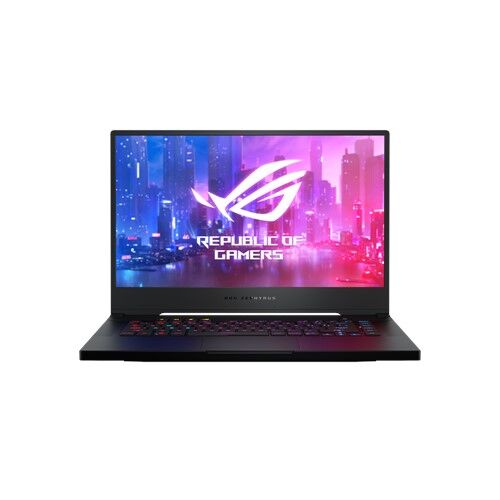

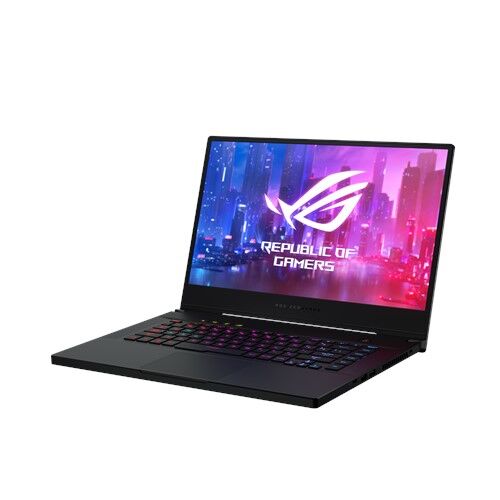

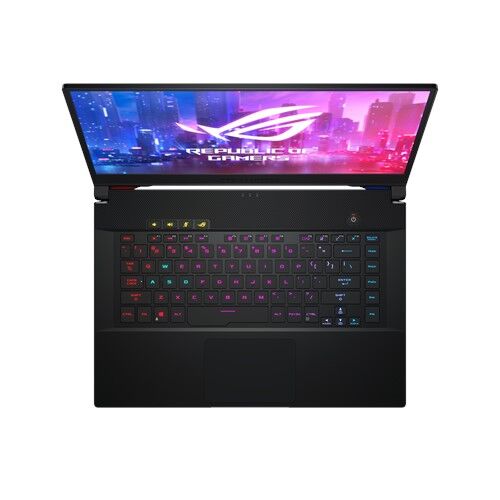

ASUS ROG GX502LXS-HF075T RAM upgrade specifications

The ASUS ROG Zephyrus S GX502LXS-HF075T laptop supports memory upgrades through a single SO-DIMM slot. The system features DDR4-SDRAM memory operating at 3200 MHz frequency. Maximum RAM capacity reaches 32 GB when upgrading the compatible SO-DIMM module. The upgrade specifications indicate one expandable memory slot paired with on-board memory configuration. Compatible DDR4 memory modules in appropriate form factor enable capacity expansion for enhanced multitasking performance on the gaming-class laptop.

Additional Notes

• The ASUS ROG GX502LXS-HF075T contains soldered memory that cannot be removed or replaced without specialized microelectronics equipment and invalidating manufacturer support.
• Total system capacity reaches 32 GB only when combining the fixed onboard module with a single SO-DIMM module, rather than using 2 independent slots.
• Upgrading requires matching the frequency and timings of the soldered module to avoid the memory controller downclocking both channels to the slower specification.
• The single SO-DIMM slot architecture prevents future dual-channel symmetric configurations after initial purchase, limiting bandwidth optimization opportunities.
• Mismatched capacity between the soldered module and the SO-DIMM module forces the memory controller into flex mode, which operates only the matched portion in dual-channel while the excess runs in single-channel.
• Physical access to the SO-DIMM slot requires bottom panel removal, which on most ROG designs involves disconnecting ribbon cables or removing the battery connector to prevent short circuits during installation.
• The 3200 MHz specification requires JEDEC standard voltage of 1.2V, as SO-DIMM modules with XMP profiles designed for desktop overclocking will not activate those profiles in this mobile platform.
• Warranty preservation depends on avoiding damage to the slot retention clips and ensuring the SO-DIMM module locks at the correct angle before applying pressure to the center of the module.
• Systems shipping with 16 GB soldered memory can accept a 16 GB SO-DIMM to reach the 32 GB maximum, but configurations with 24 GB or 8 GB soldered modules create asymmetric channel population that impacts memory interleaving efficiency.
• The SO-DIMM slot supports only standard 260-pin DDR4 modules, excluding registered, ECC, or low-voltage variants designed for server or embedded applications.
