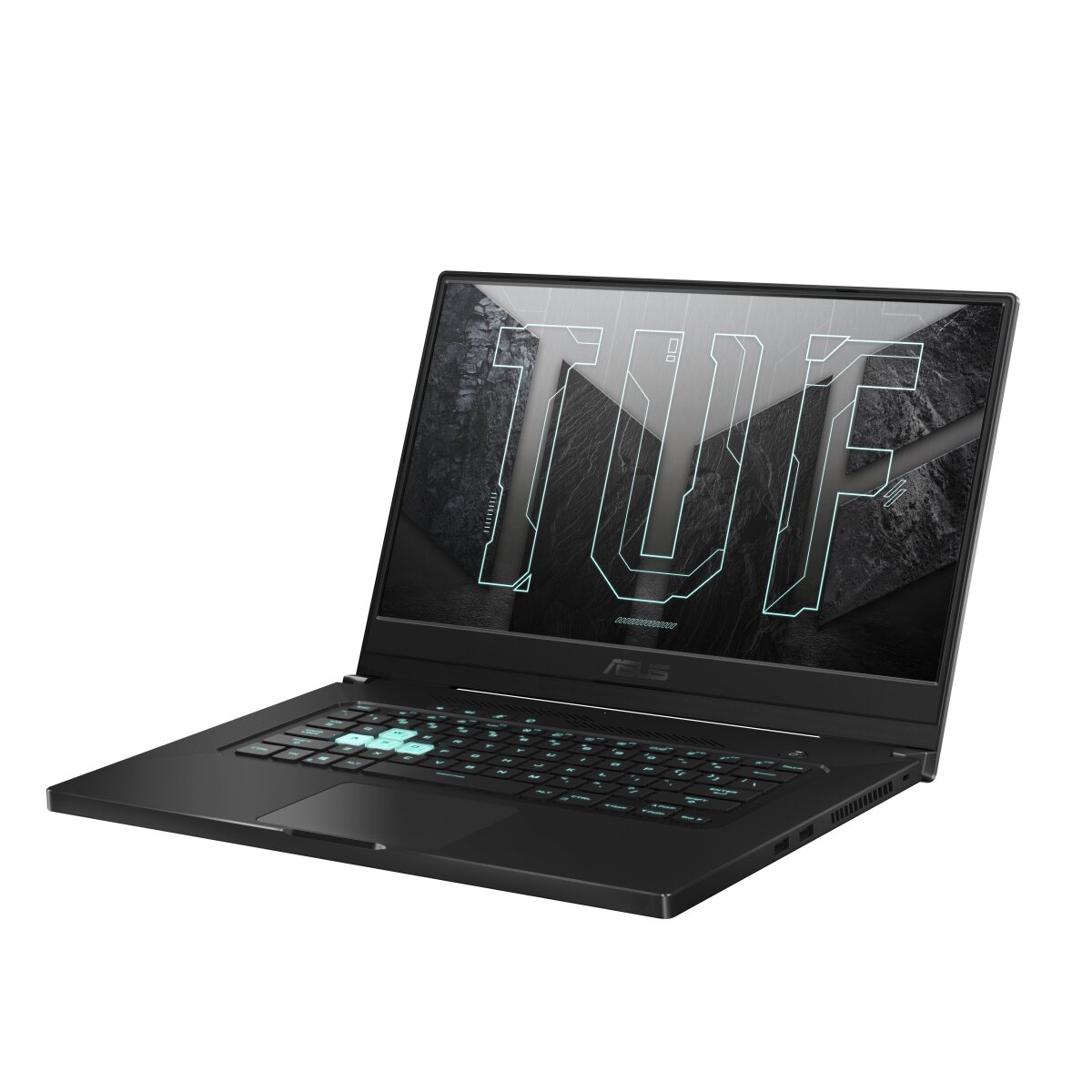

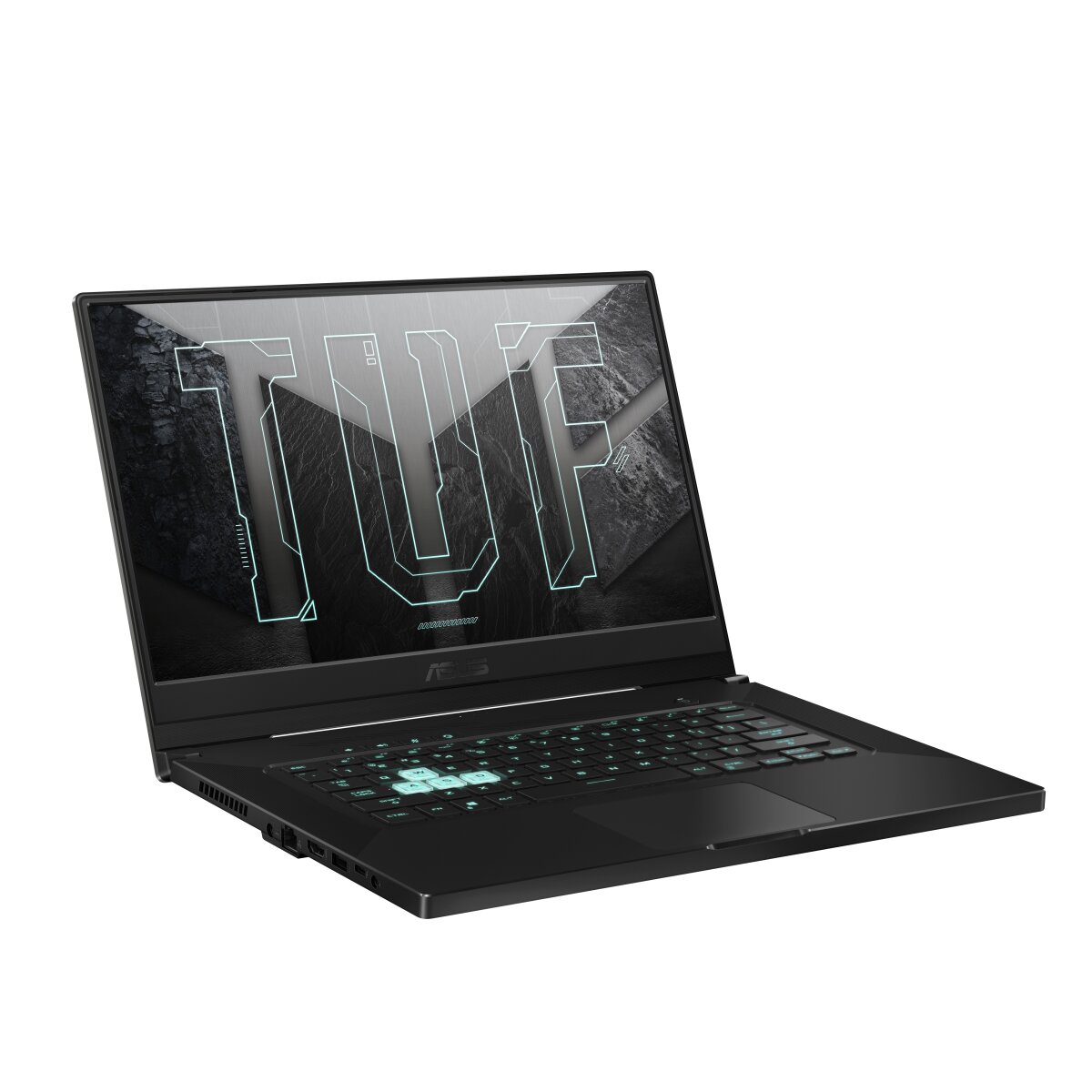

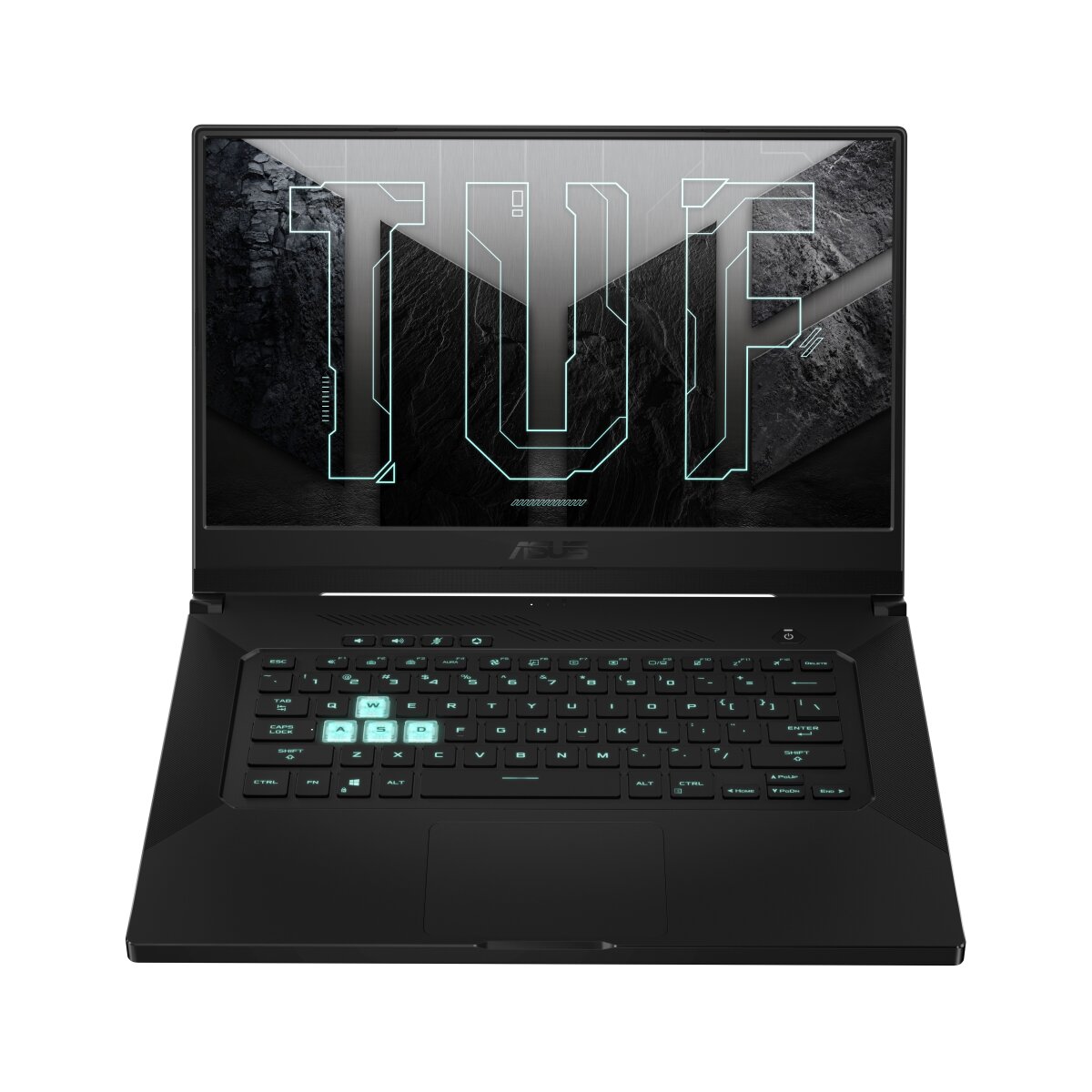

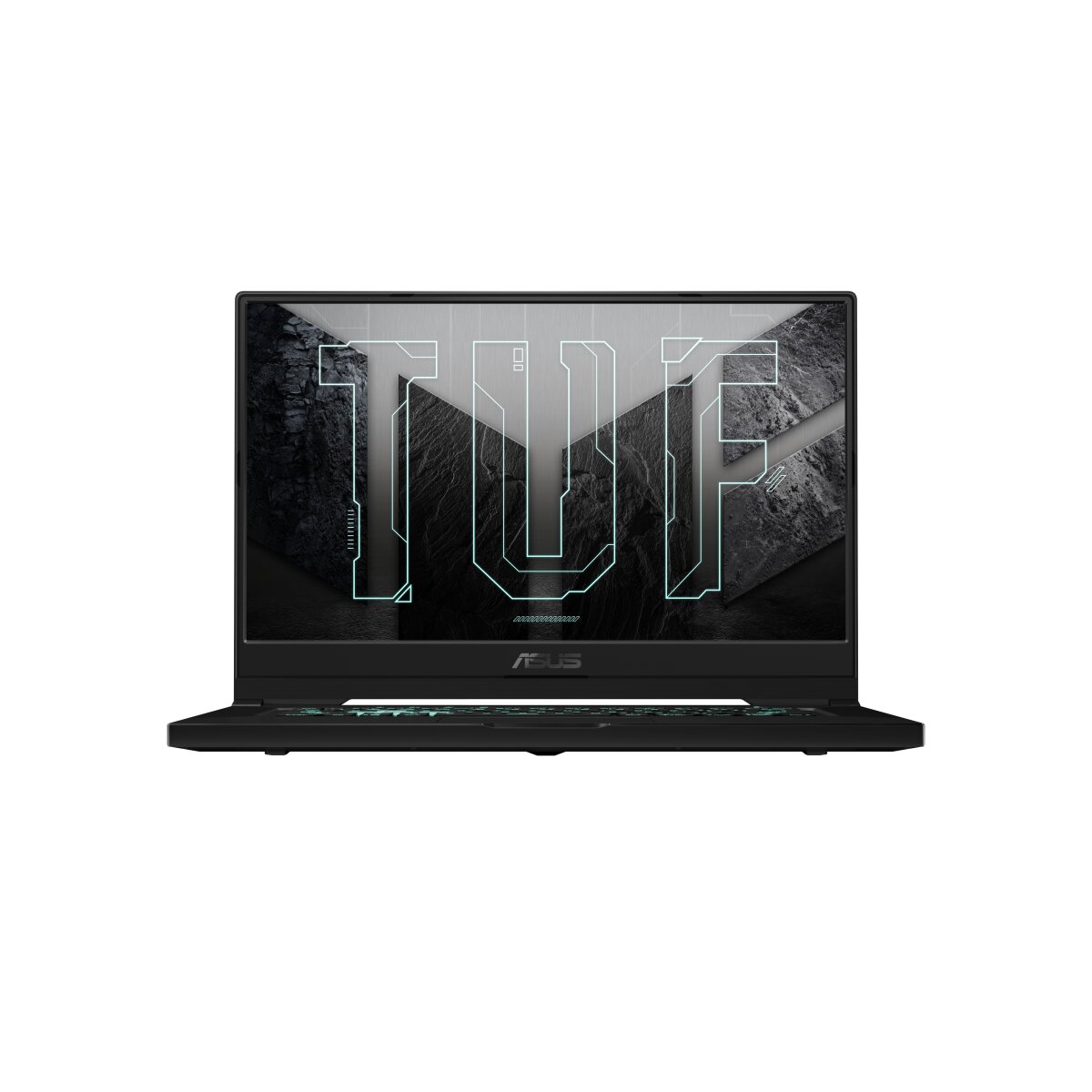

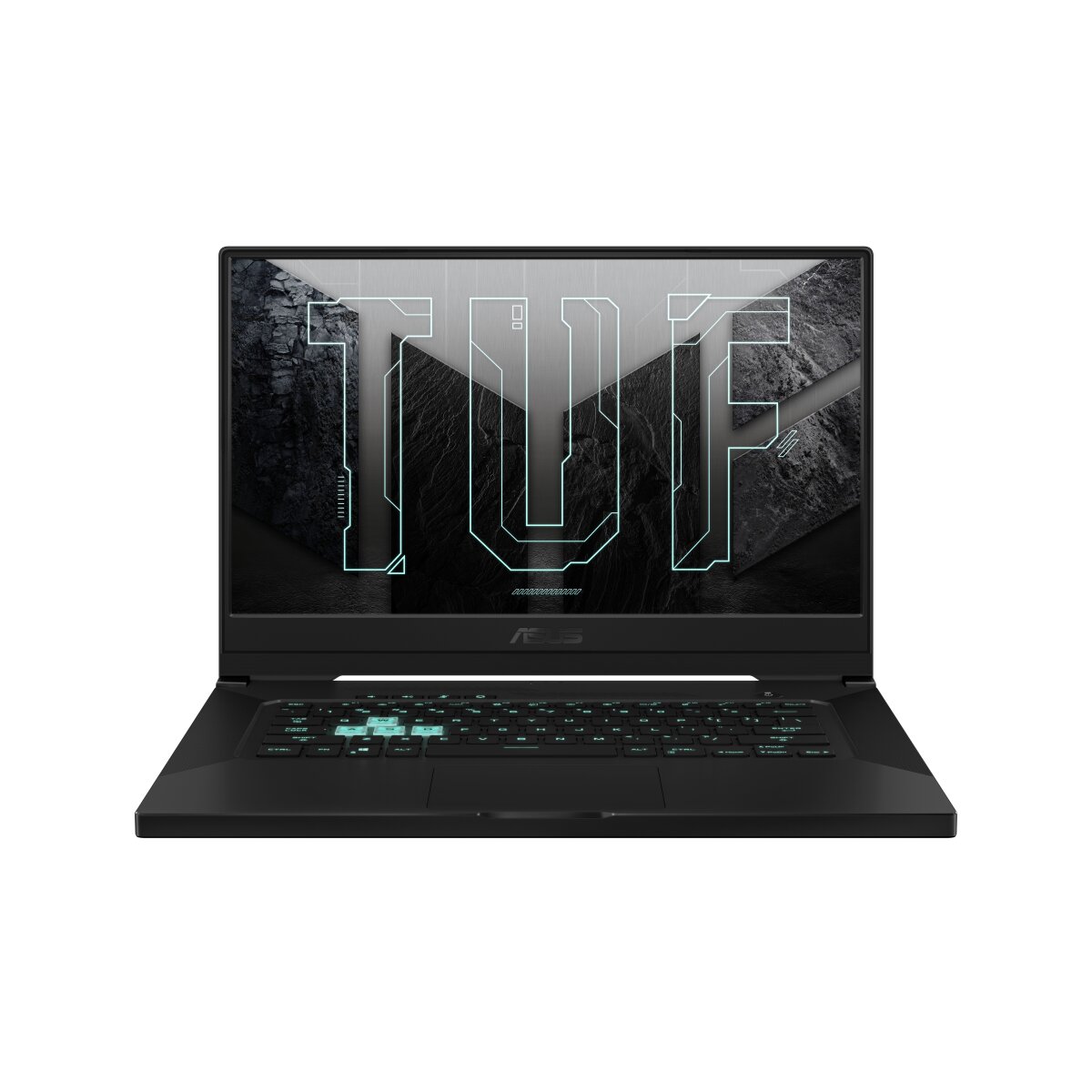

ASUS TUF Dash FX516PC-HN004T-BE RAM upgrade specifications
The ASUS TUF Dash F15 FX516PC-HN004T-BE supports DDR4-SDRAM memory upgrades. The laptop features one SO-DIMM slot for RAM expansion, with a maximum capacity of 32 GB. Memory modules operate at 3200 MHz frequency. The system combines on-board memory with an upgradeable SO-DIMM slot, allowing users to expand total memory specifications through compatible DDR4 RAM modules.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 July 2021 |
Additional Notes
- The presence of on-board memory means the total RAM capacity consists of a fixed module soldered to the motherboard and a single expansion slot.
- Installing a module with higher latency or lower frequency than the soldered memory will force the entire system to downclock to the slowest common denominator.
- Dual-channel memory performance is only active for the portion of the total RAM where the expansion module matches the capacity of the soldered chip.
- Upgrading the ASUS TUF Dash FX516PC-HN004T-BE requires a single 260-pin SO-DIMM module to reach the maximum supported architecture ceiling.
- Accessing the memory slot involves removing the bottom chassis cover which may require specialized prying tools to avoid damaging the internal plastic clips.
- Addressable memory beyond the capacity of the soldered module operates in asynchronous single-channel mode which reduces bandwidth for integrated graphics tasks.
- Heat dissipation from the soldered memory chips relies on the primary motherboard cooling system as these components cannot be swapped for modules with independent heat spreaders.
