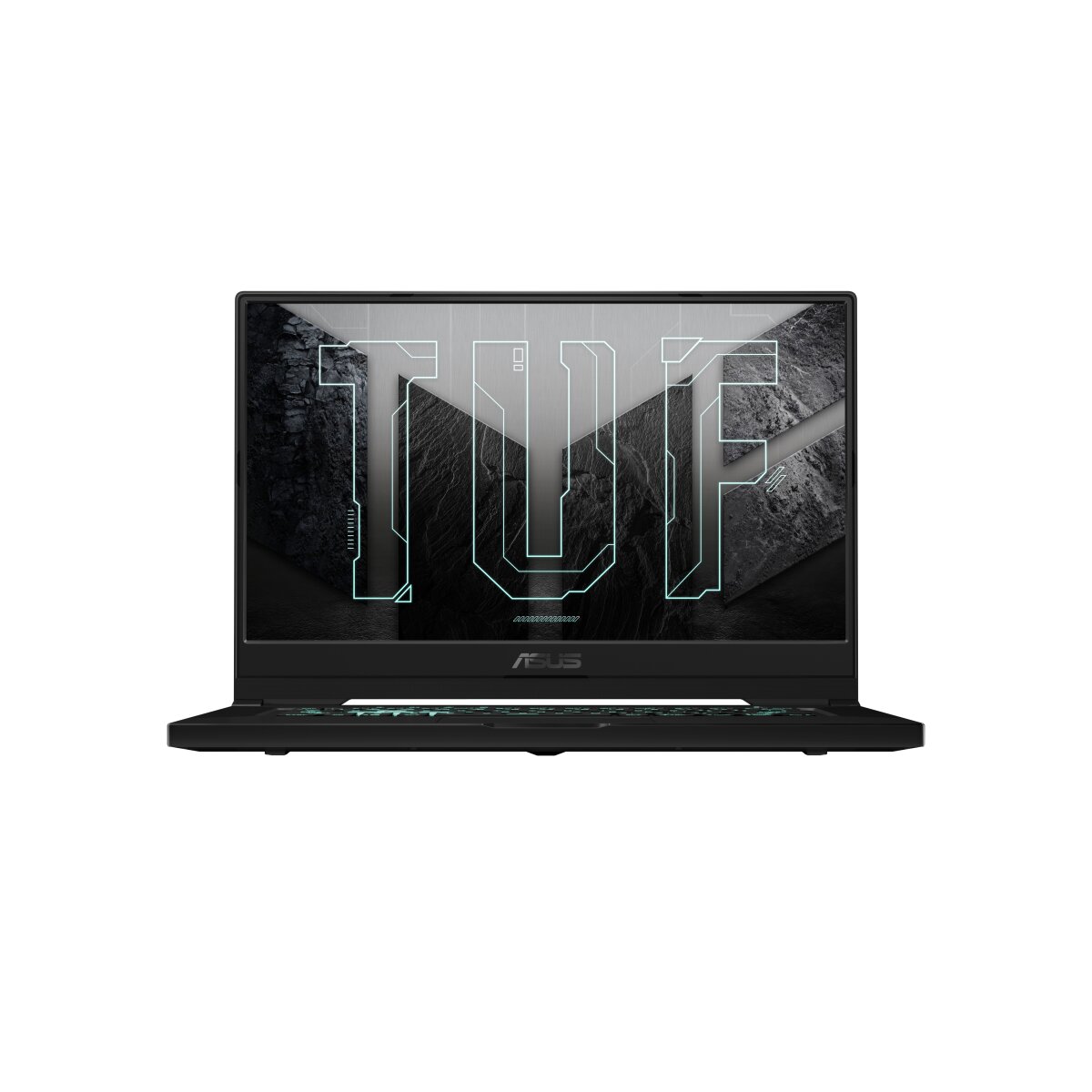

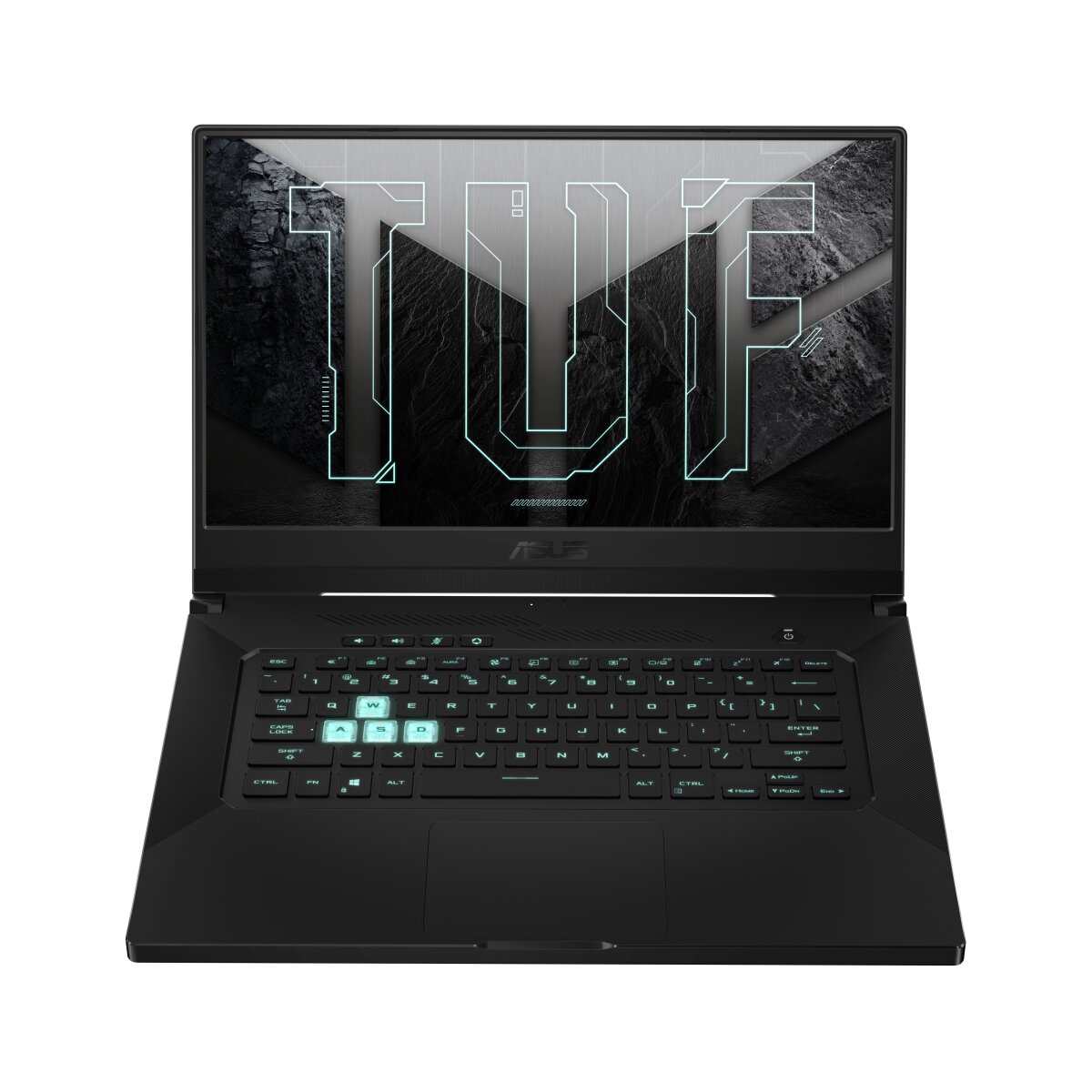

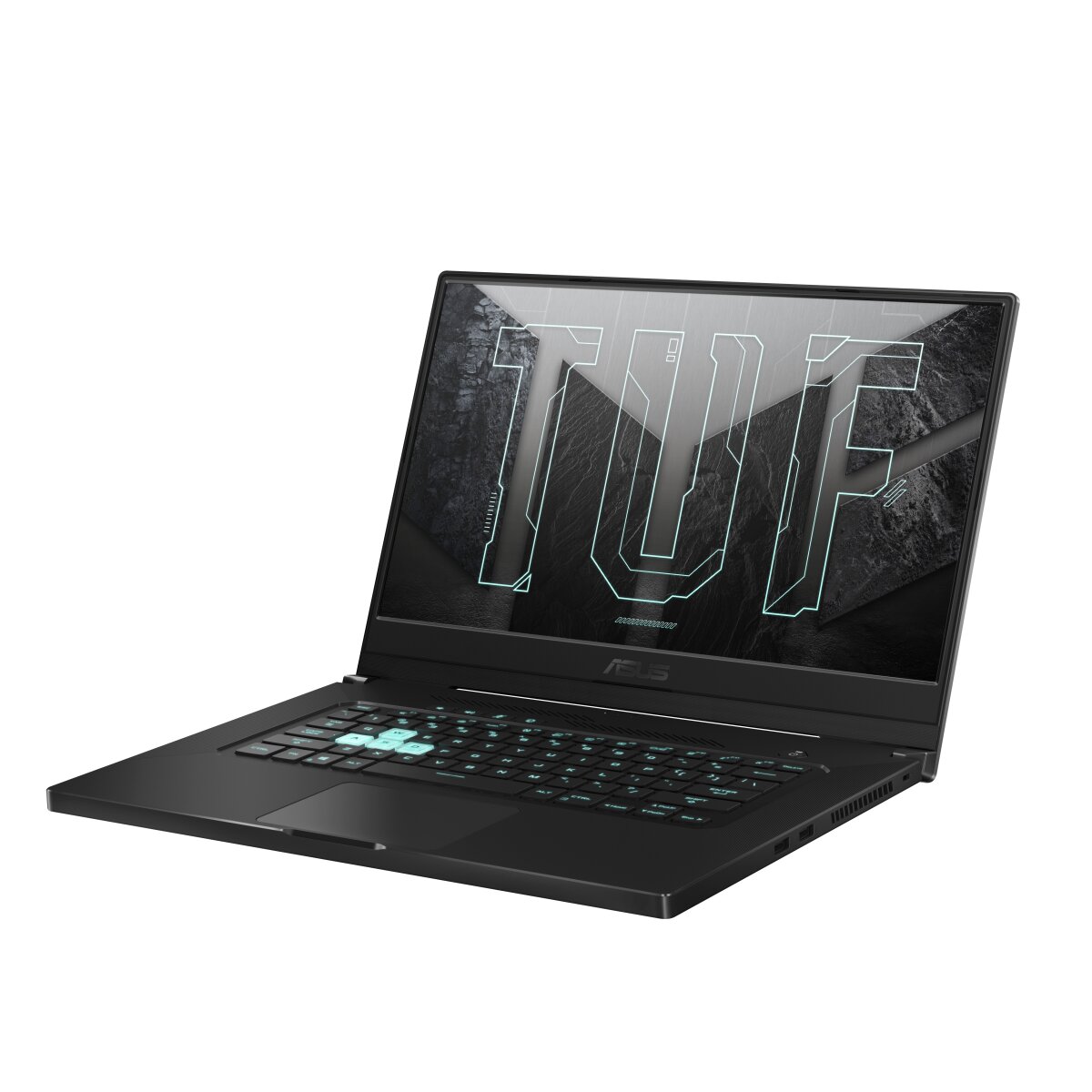

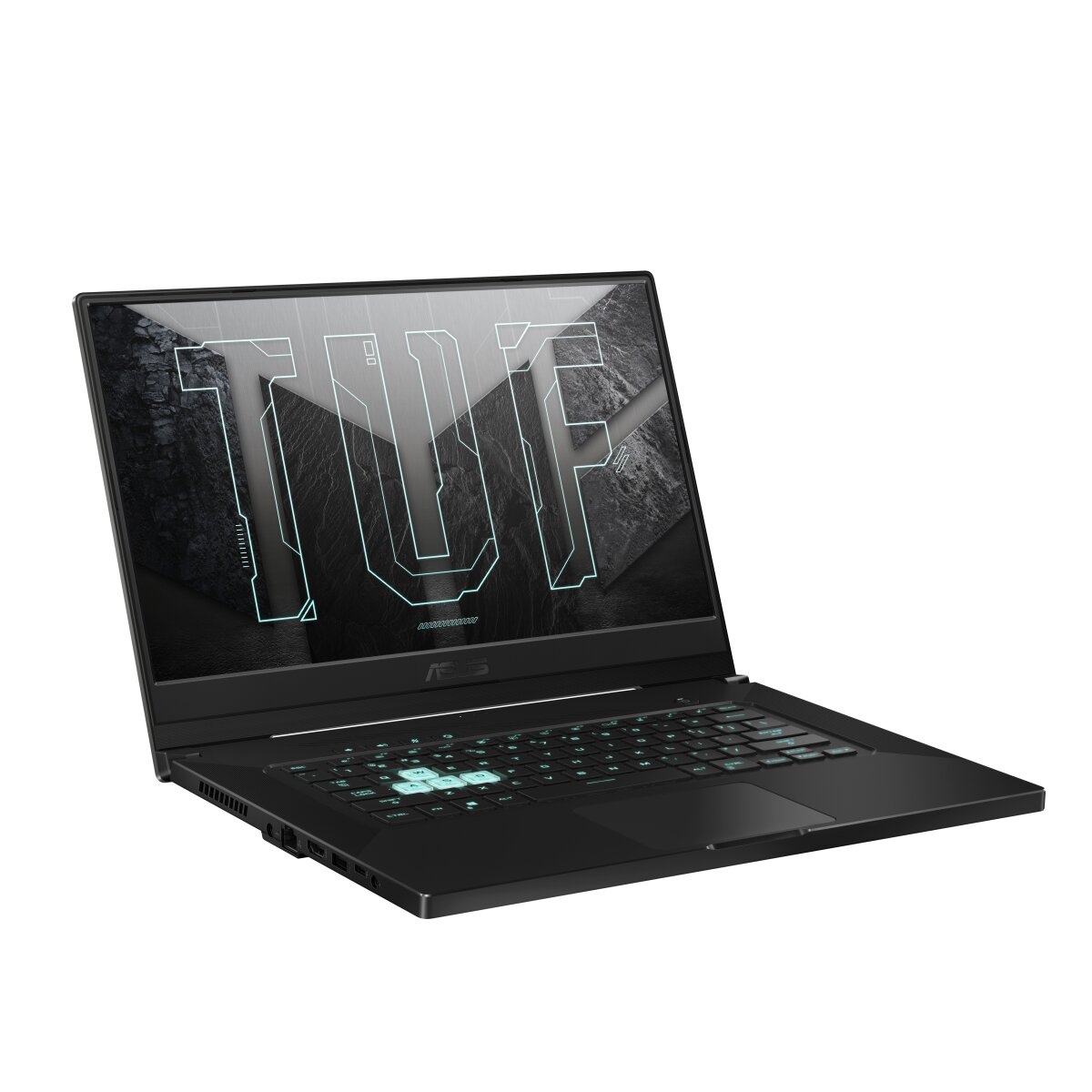

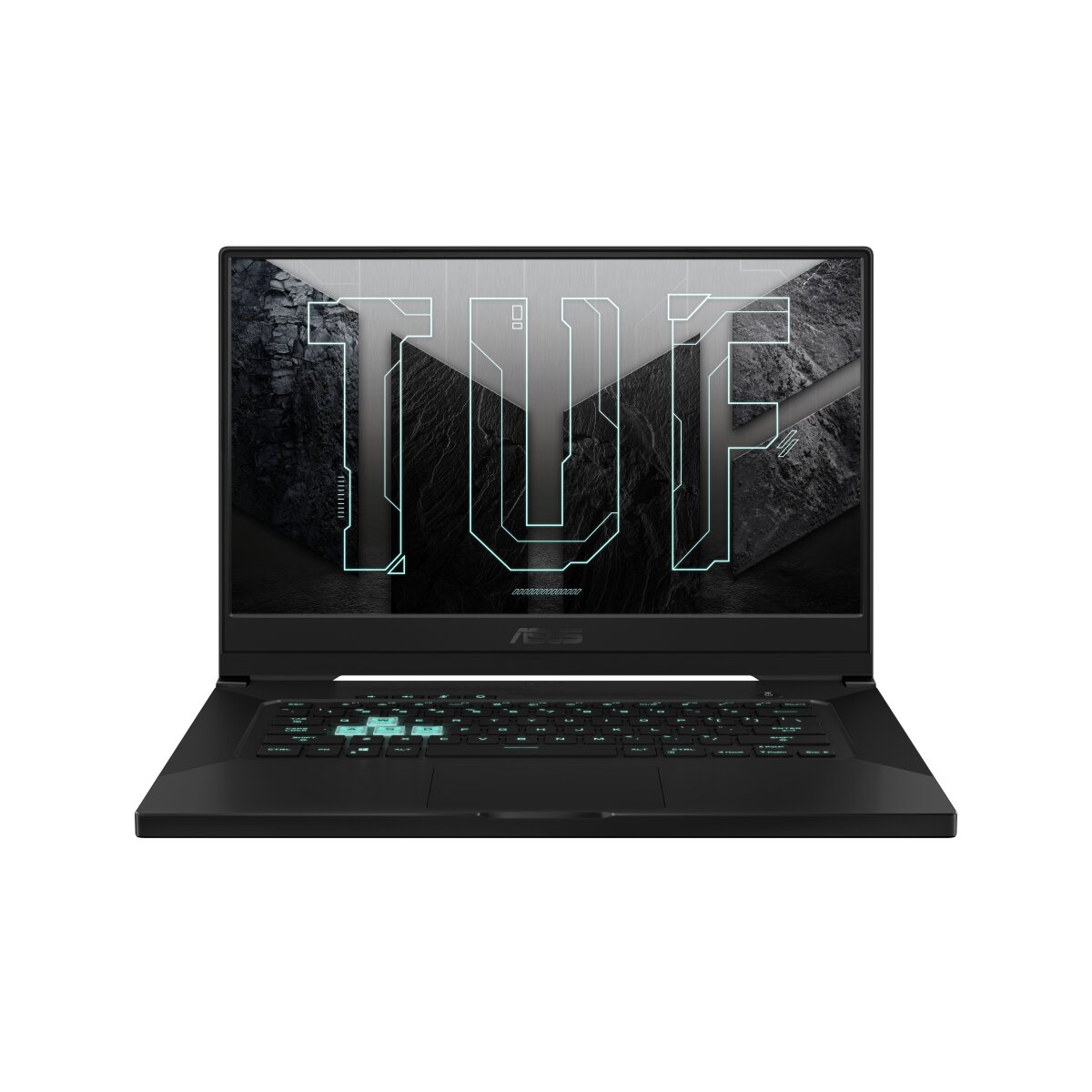

ASUS TUF Dash FX516PE-HN055T RAM upgrade specifications
ASUS TUF Dash F15 FX516PE-HN055T RAM upgrade specifications include DDR4-SDRAM memory compatible with the laptop. The device features one SO-DIMM slot for RAM upgrade capacity. Maximum supported memory reaches 32 GB total, operating at 3200 MHz frequency. The memory configuration comprises on-board and SO-DIMM modules. Upgrade specifications ensure compatibility with the FX516PE-HN055T model for expanded RAM capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 07 July 2021 |
Additional Notes
- The presence of a single SO-DIMM slot alongside on-board memory creates an asymmetrical dual-channel configuration if the capacities do not match.
- System stability depends on matching the 3200 MHz frequency of the soldered module to prevent the motherboard from downclocking to the lowest common denominator.
- Expansion capacity is limited by the integrated module because the 32 GB maximum includes both the permanent motherboard memory and the removable chip.
- Physical access to the RAM requires removal of the entire base panel which involves navigating plastic clips and several screws of varying lengths.
- The ASUS TUF Dash FX516PE-HN055T utilizes a specific internal layout where the soldered memory cannot be replaced or repaired in the event of a chip failure.
- Optimal memory bandwidth is achieved when the expansion module matches the density and rank of the soldered primary bank.
- Upgrading the SO-DIMM slot does not void the standard manufacturer warranty provided no internal components are damaged during the mechanical installation process.
- Thermal management constraints within the slim chassis favor modules without thick heat spreaders to ensure proper clearance once the bottom cover is sealed.
