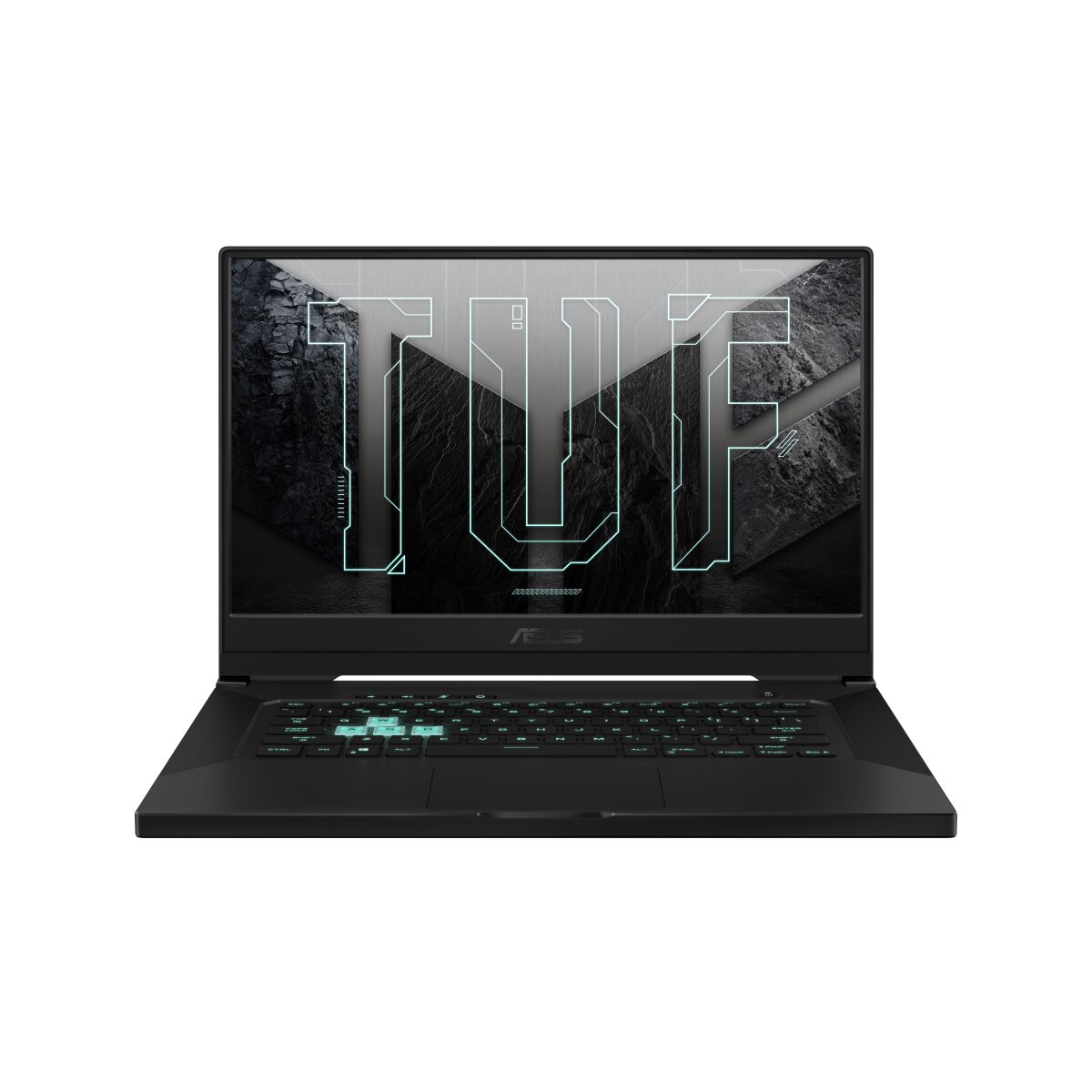

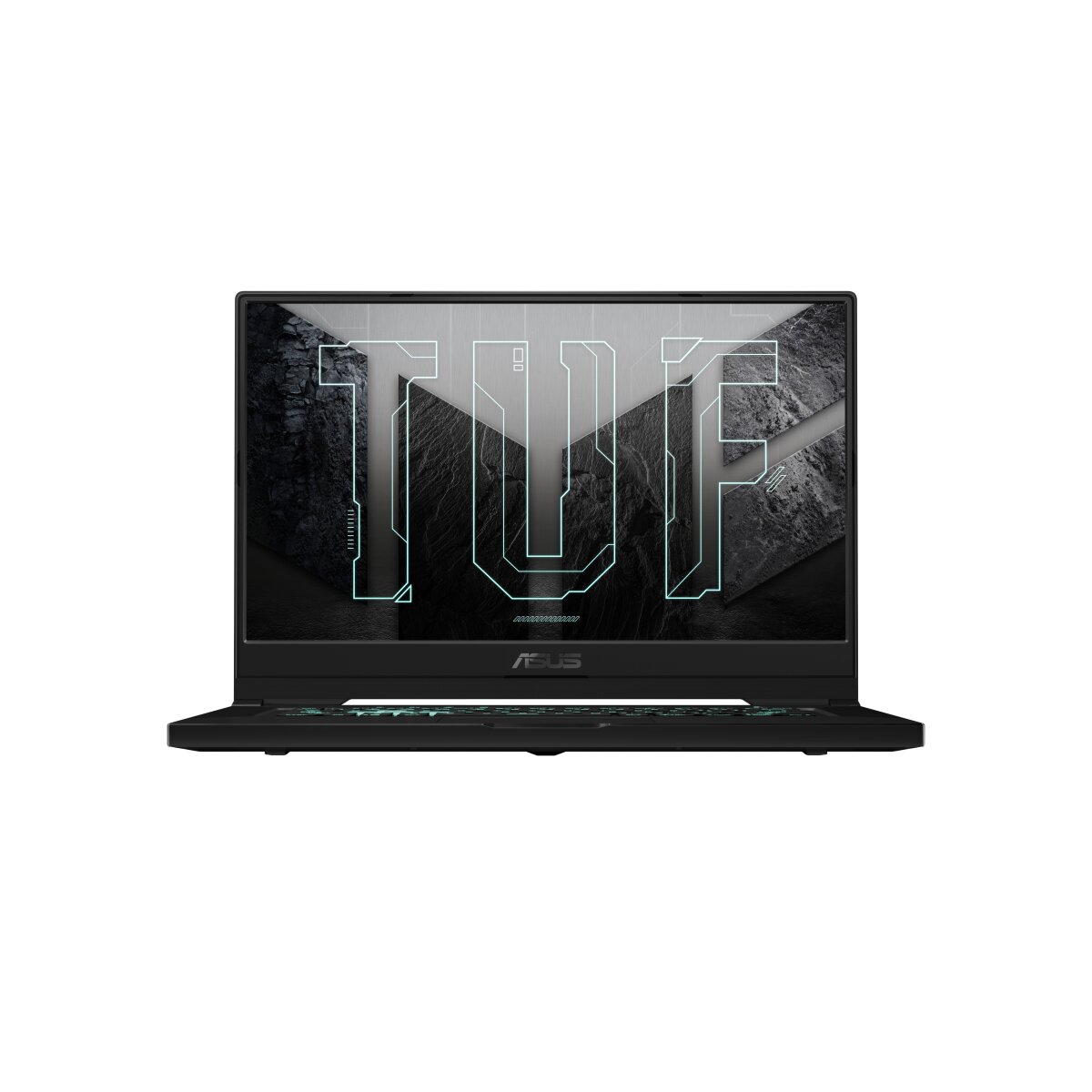

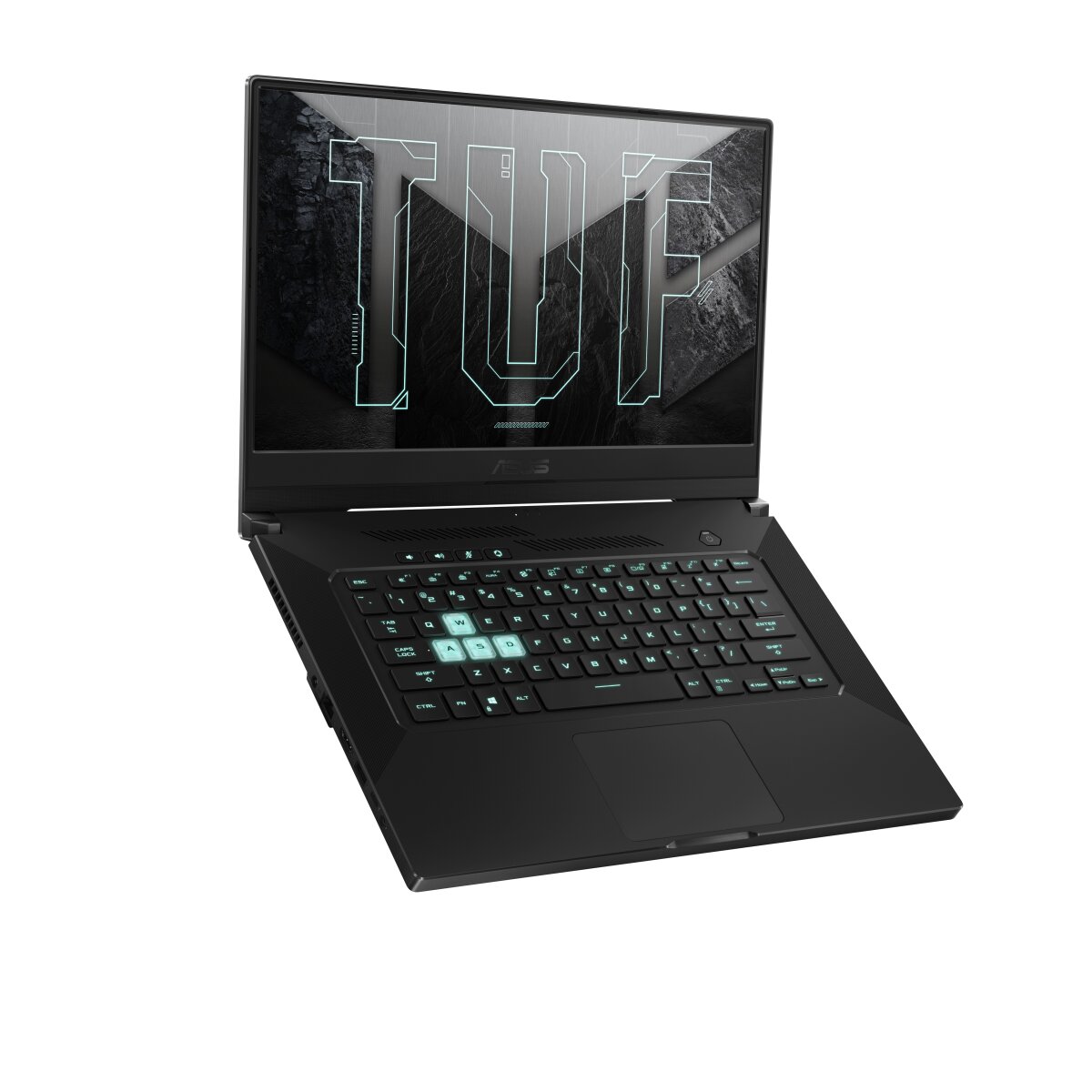

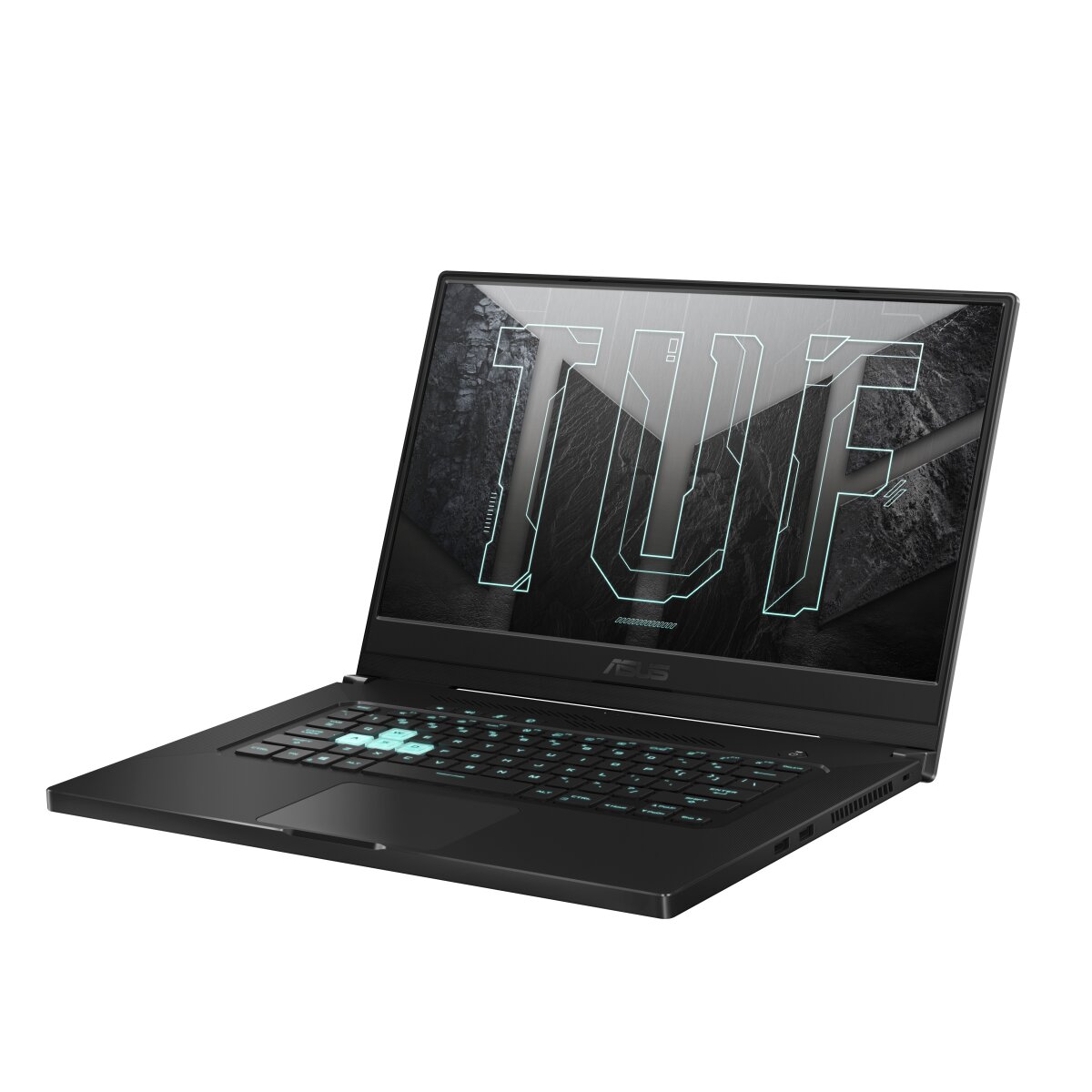

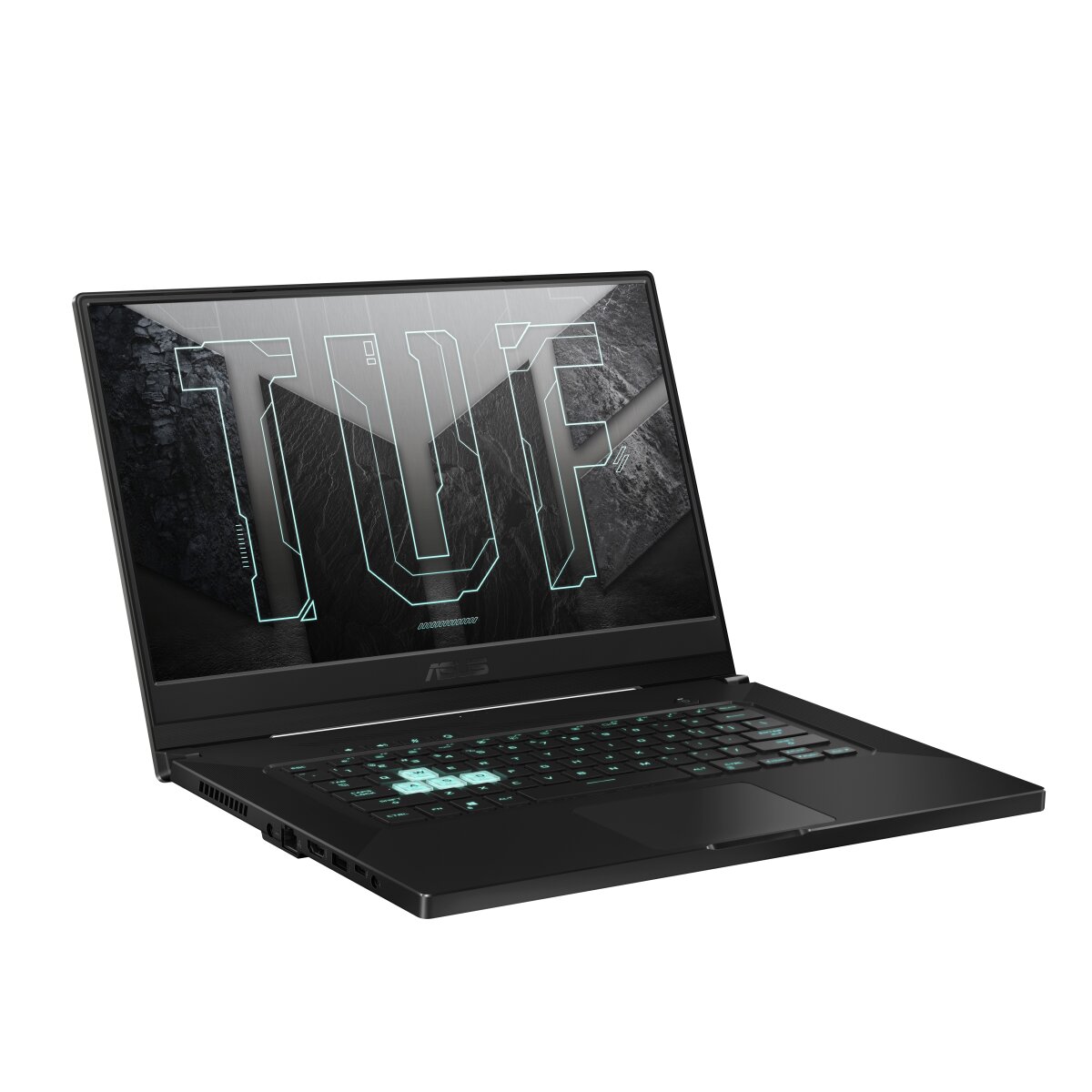

ASUS TUF Dash FX516PM-AZ003T RAM upgrade specifications

The ASUS TUF Dash F15 model FX516PM-AZ003T features DDR4-SDRAM memory specifications with one SO-DIMM slot available for upgrade. The laptop contains on-board memory combined with one expandable slot, supporting a maximum RAM capacity of 32 GB. The compatible memory operates at 3200 MHz frequency. Users can upgrade the single SO-DIMM slot to enhance the laptop's memory specifications for improved performance.

Additional Notes

• The ASUS TUF Dash FX516PM-AZ003T features soldered memory paired with a single expansion slot, meaning partial system RAM remains inaccessible for replacement or repair without motherboard-level service.
• Dual-channel operation requires the SO-DIMM module to match the specifications of the soldered memory, including speed grade and potentially rank configuration, to avoid reverting to single-channel mode.
• The 32 GB maximum capacity indicates the chipset and motherboard design impose an addressing limitation that prevents recognition of higher-density modules, even if physically compatible.
• DDR4-3200 represents the JEDEC standard speed, but actual operating frequency depends on CPU memory controller support and may default to lower speeds if the installed module lacks XMP/JEDEC profiles.
• Installing a module slower than 3200 MHz will downclock the entire memory subsystem, including the soldered portion, creating a performance bottleneck across all RAM channels.
• The single SO-DIMM slot limits future expansion to one upgrade cycle, after which further capacity increases would require replacing the existing module rather than adding supplementary memory.
• Mixing different module capacities between soldered and socketed memory maintains functionality but may introduce asymmetric channel configurations that reduce peak bandwidth in memory-intensive workloads.
• SO-DIMM installation requires access to the bottom panel, and certain manufacturer warranties remain intact only if no chassis seals are broken during the upgrade process.
• Voltage specifications must match the soldered memory standard, as DDR4 SO-DIMMs operating at non-standard voltages may cause POST failures or system instability despite physical compatibility.
• The hybrid memory architecture means total system RAM reflects the sum of soldered and socketed capacities, but the non-upgradeable portion establishes the baseline performance floor regardless of module selection.
