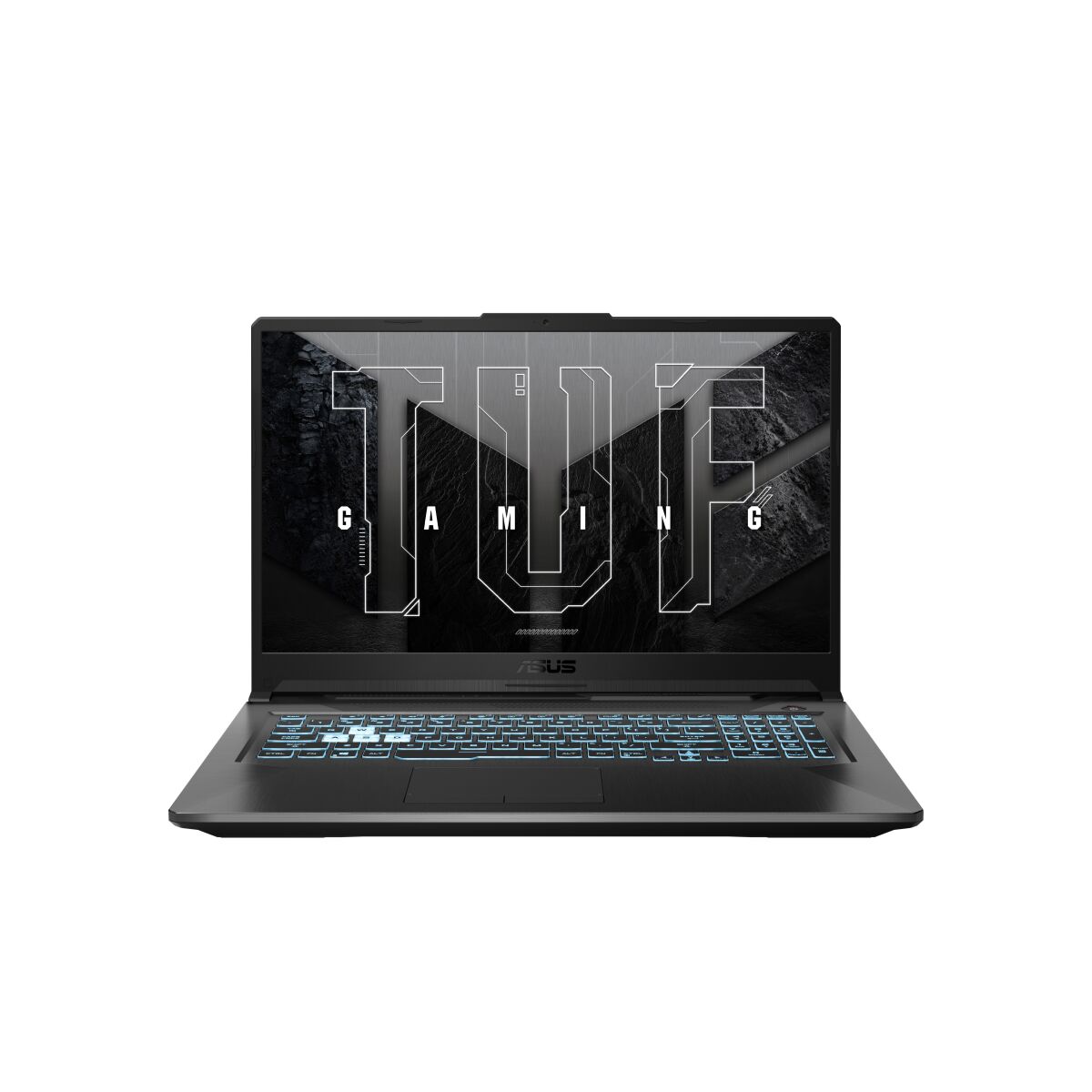

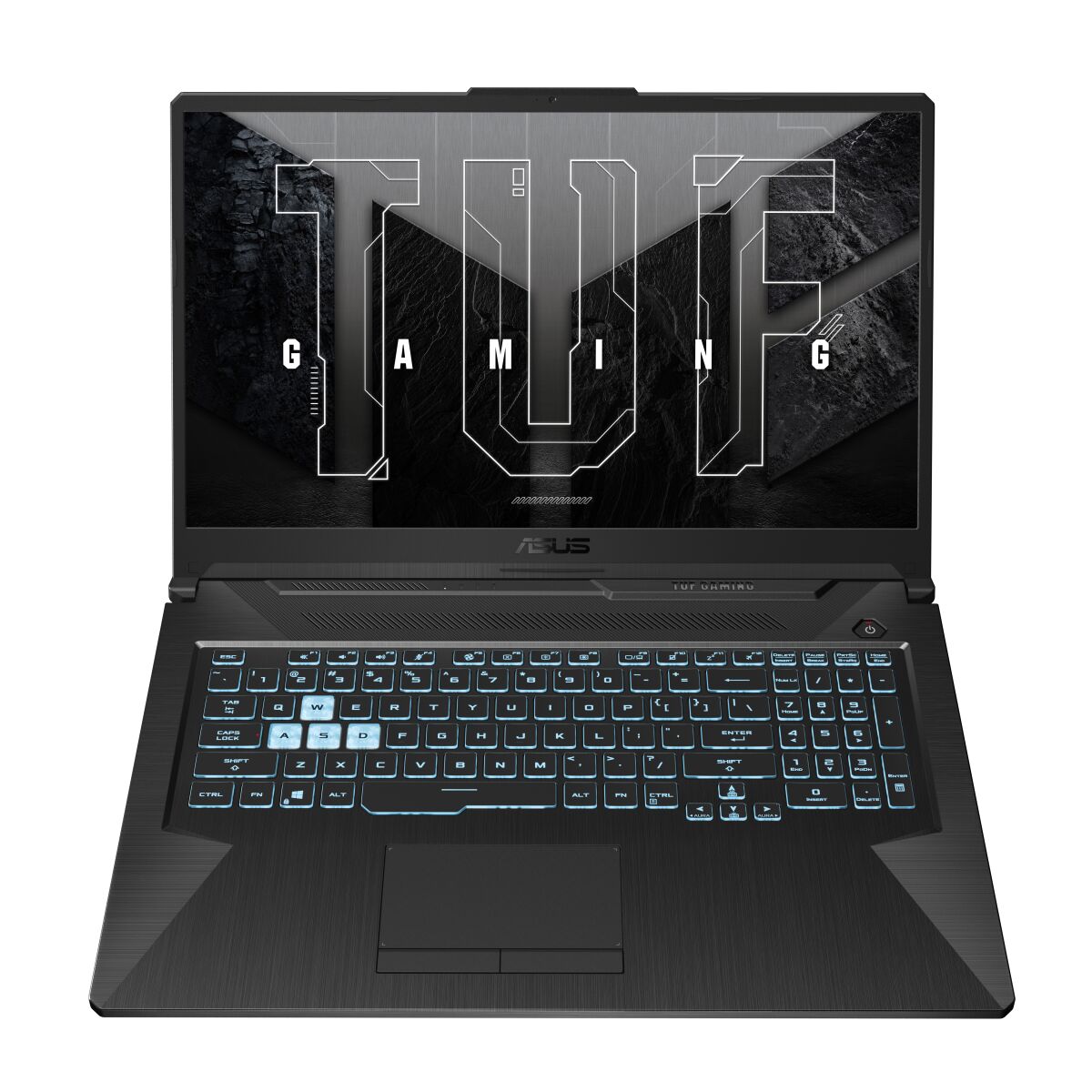

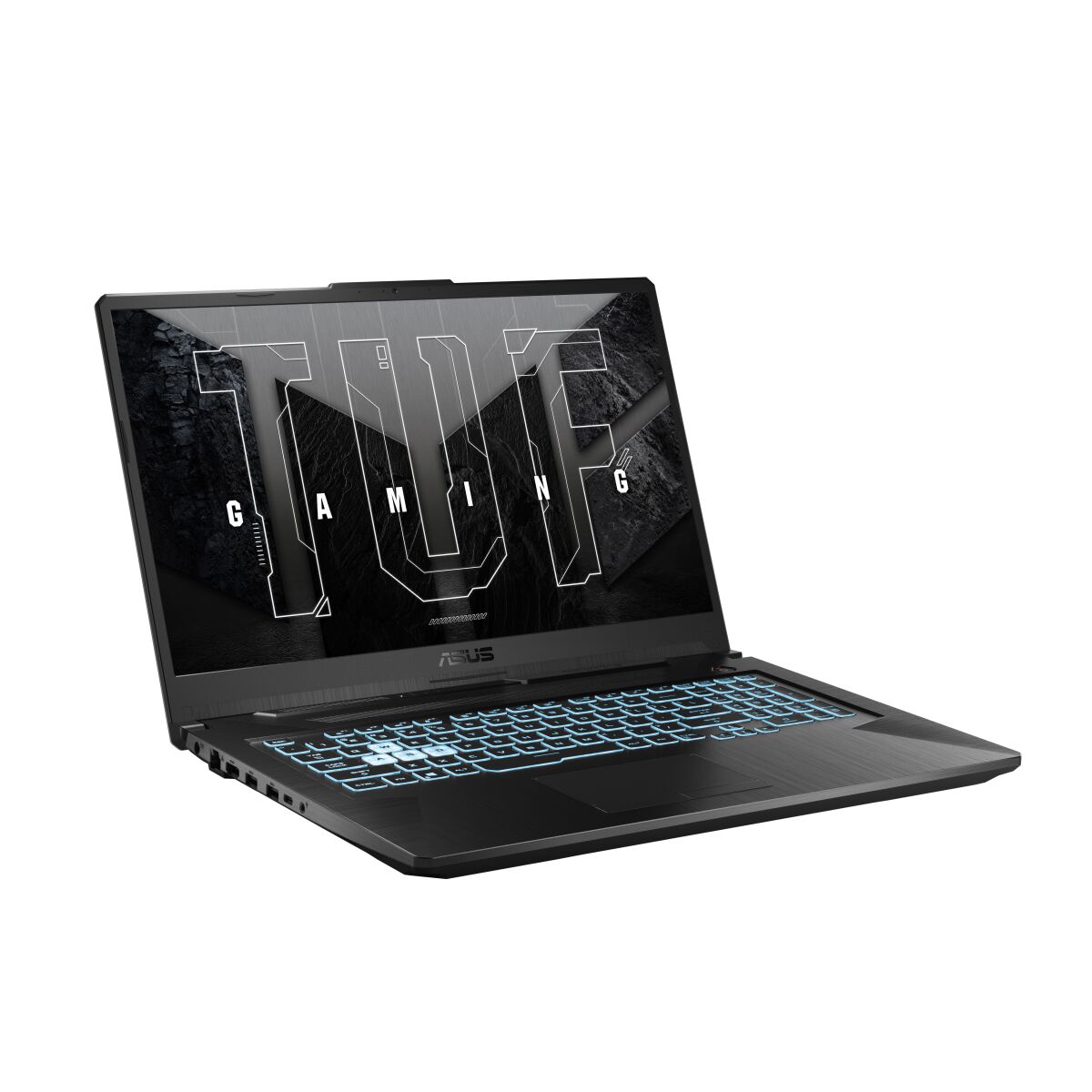

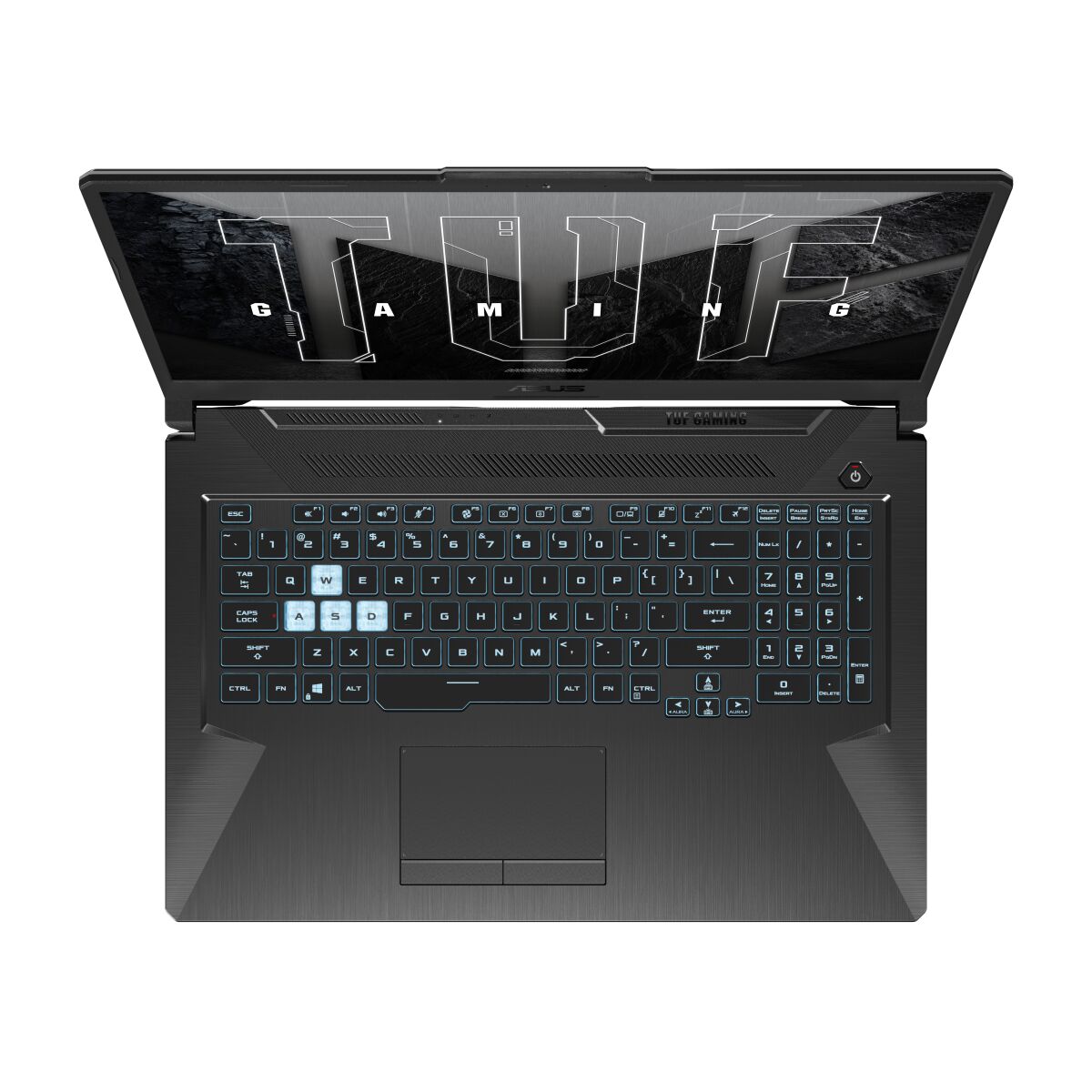

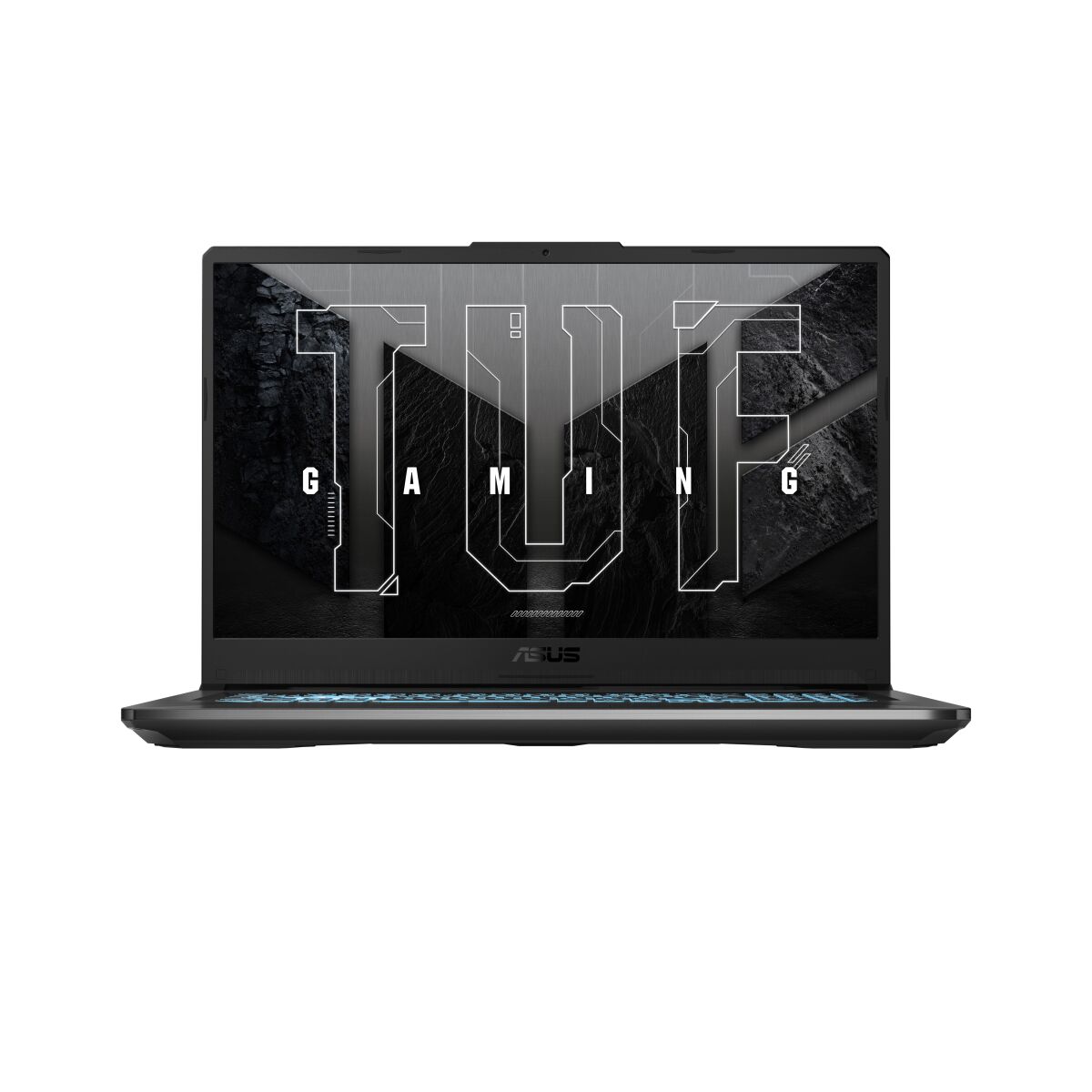

ASUS TUF Gaming TUF706IC-HX024W RAM upgrade specifications
The ASUS TUF Gaming A17 Series model TUF706IC-HX024W features DDR4-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting a maximum RAM capacity of 32 GB. The memory operates at 3200 MHz frequency. Compatible upgrades utilize SO-DIMM form factor modules. Users seeking to upgrade the laptop's memory should reference these specifications to ensure compatibility with the TUF706IC-HX024W configuration.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 15 March 2022 |
Additional Notes
- Dual channel memory architecture requires installing a matching pair of modules to maximize the available bandwidth for the processor and integrated graphics.
- The maximum capacity threshold ensures the system retains compatibility with standard high density memory modules without encountering BIOS level addressing limitations.
- Utilizing memory modules with higher frequency ratings will result in automatic downclocking to 3200 MHz due to hardware controller restrictions on the ASUS TUF706IC-HX024W motherboard.
- Empty secondary slots facilitate a symmetrical upgrade path that prevents single channel performance bottlenecks during high load gaming or rendering tasks.
- The SO-DIMM form factor necessitates modules with a 260 pin configuration to match the physical footprint of the internal motherboard headers.
- Latency timings should remain consistent between both slots to avoid stability issues or system POST failures during the initialization phase.
- Hardware access for memory replacement typically involves removing the base panel which may require caution to avoid damaging internal ribbon cables or thermal pads.
