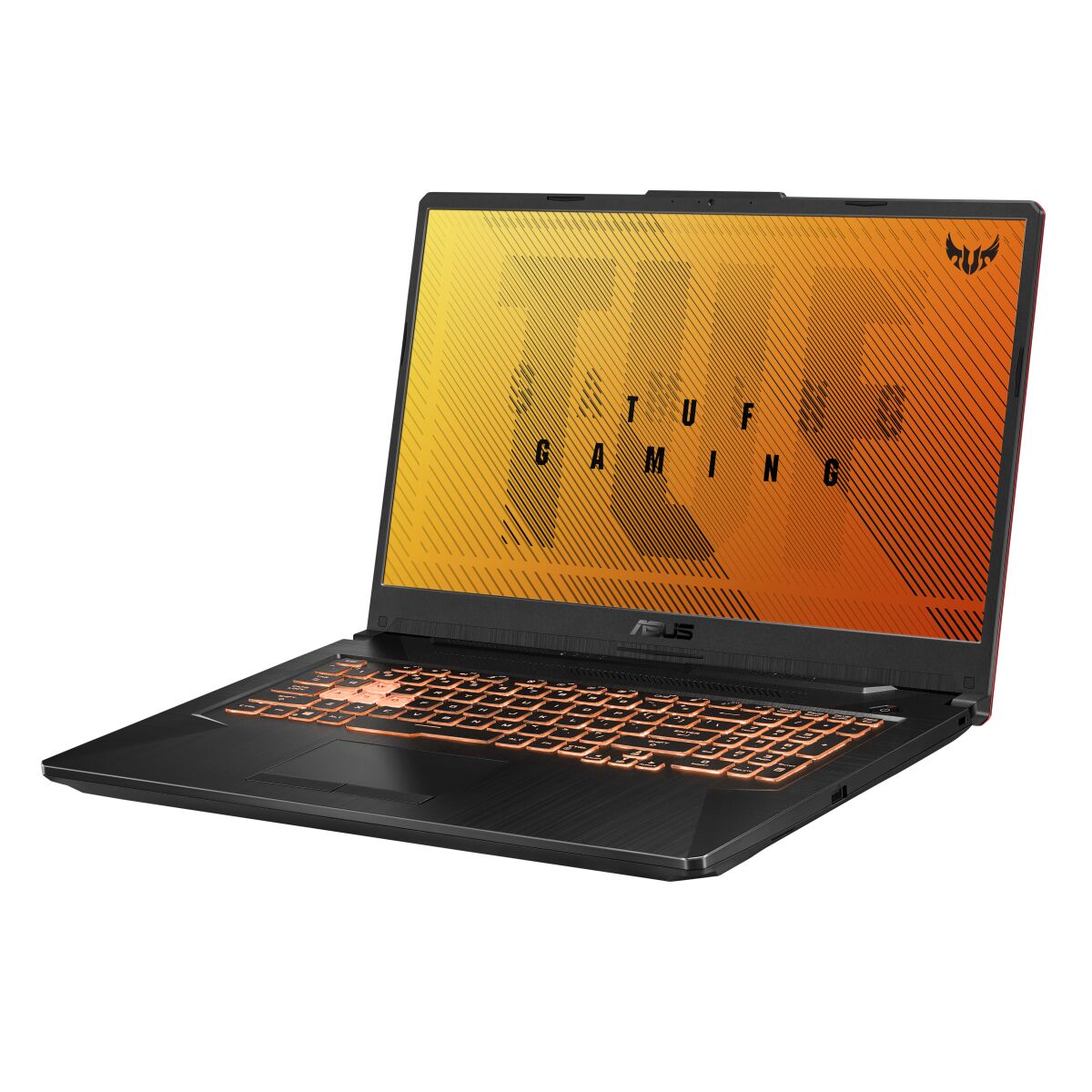

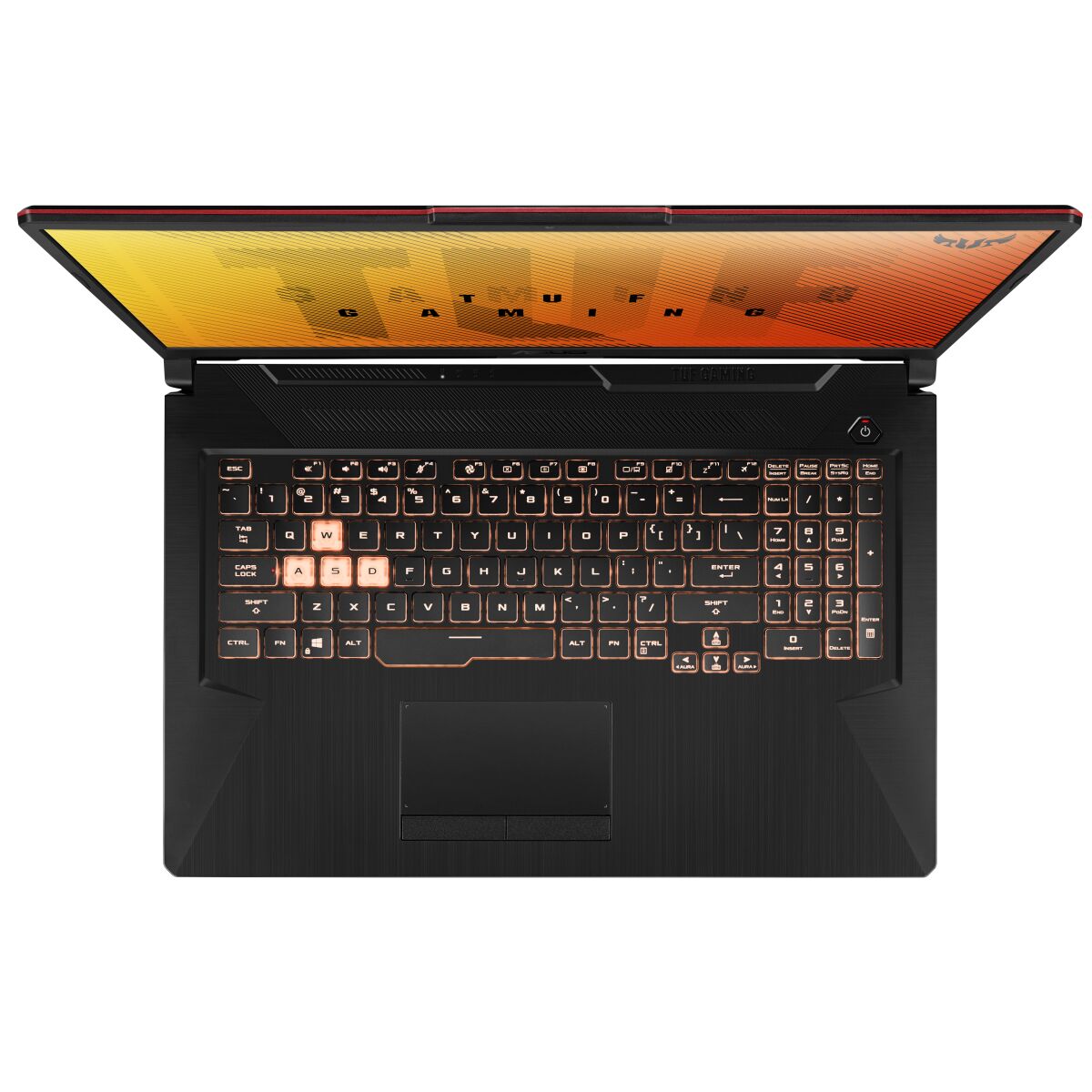

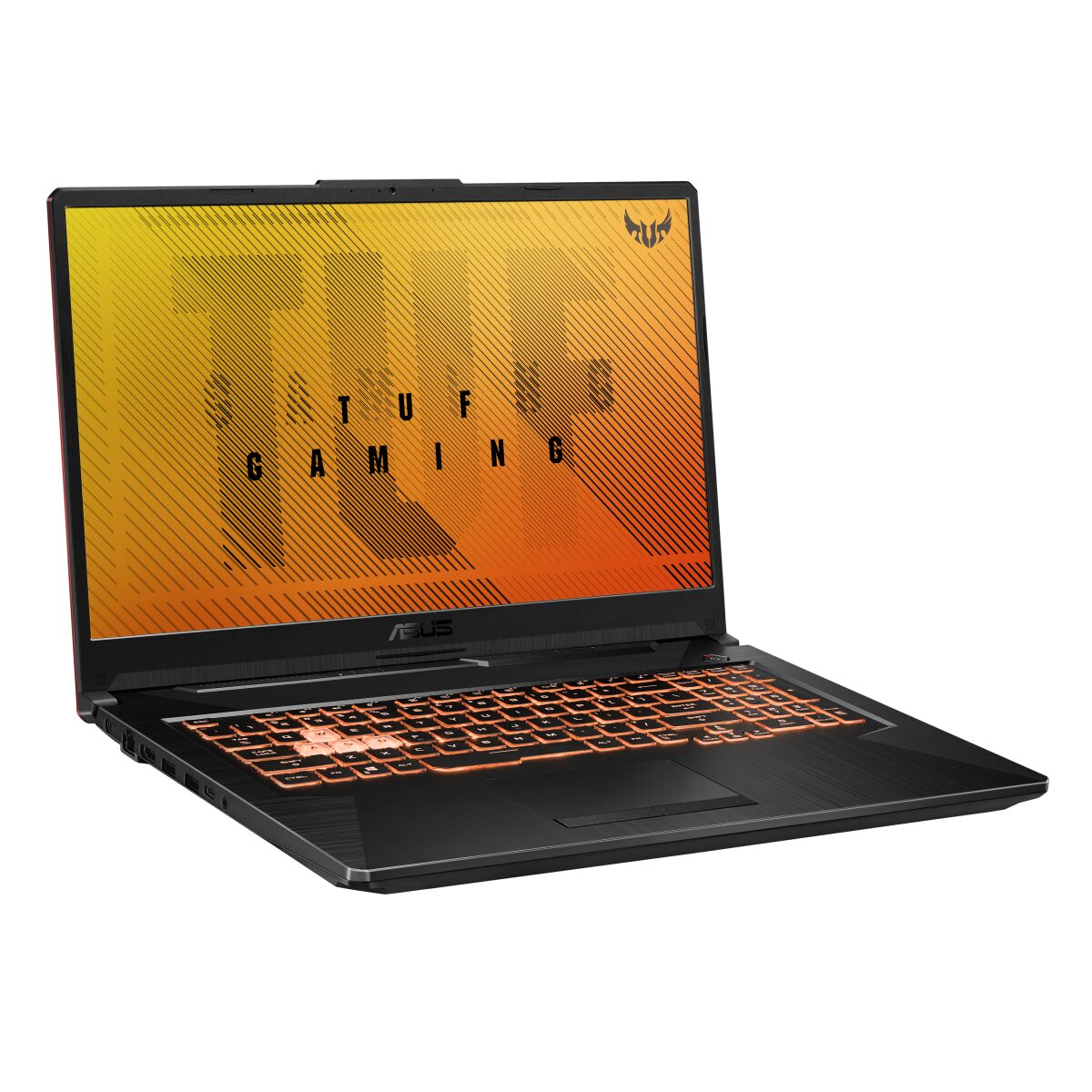

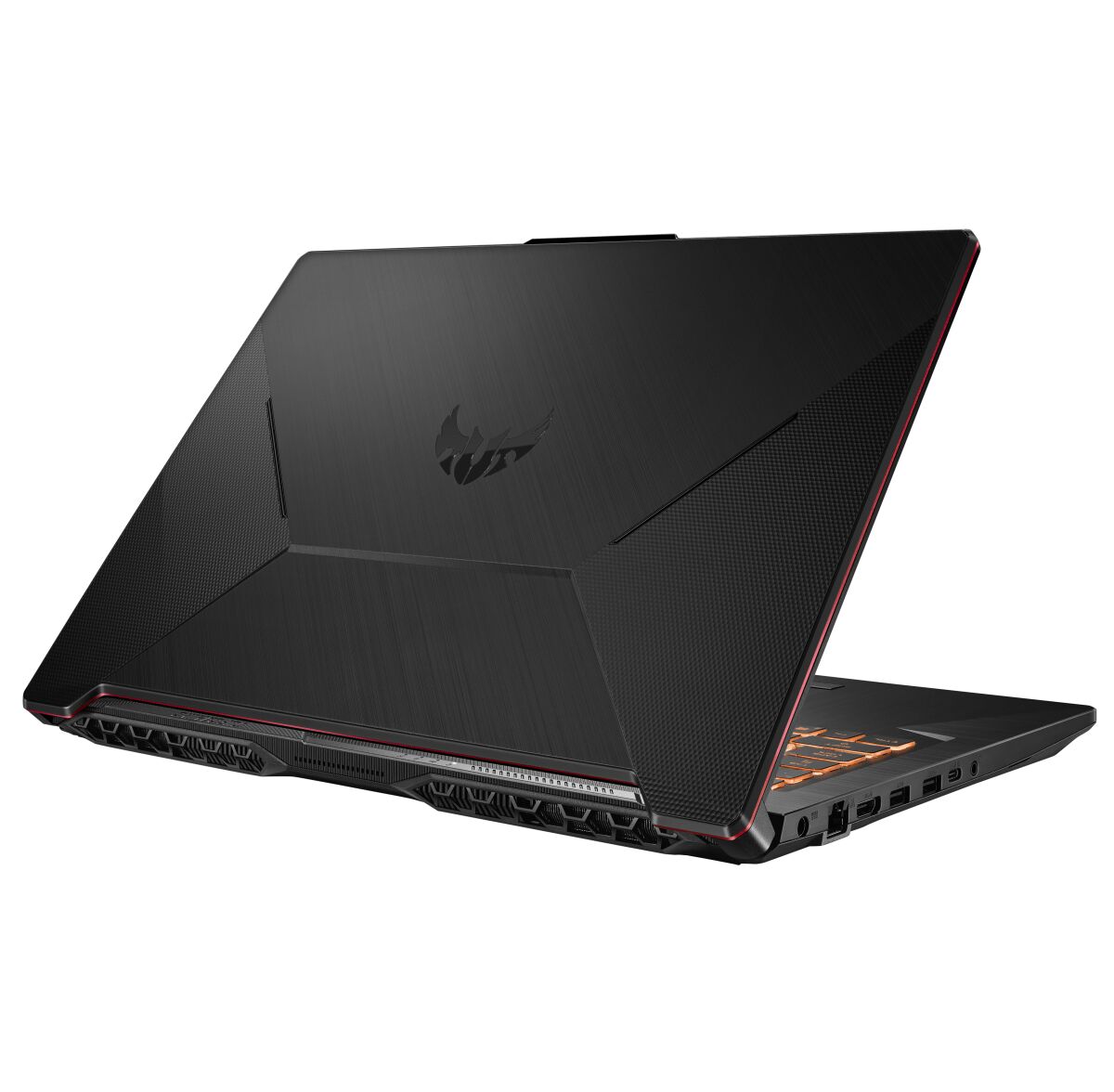

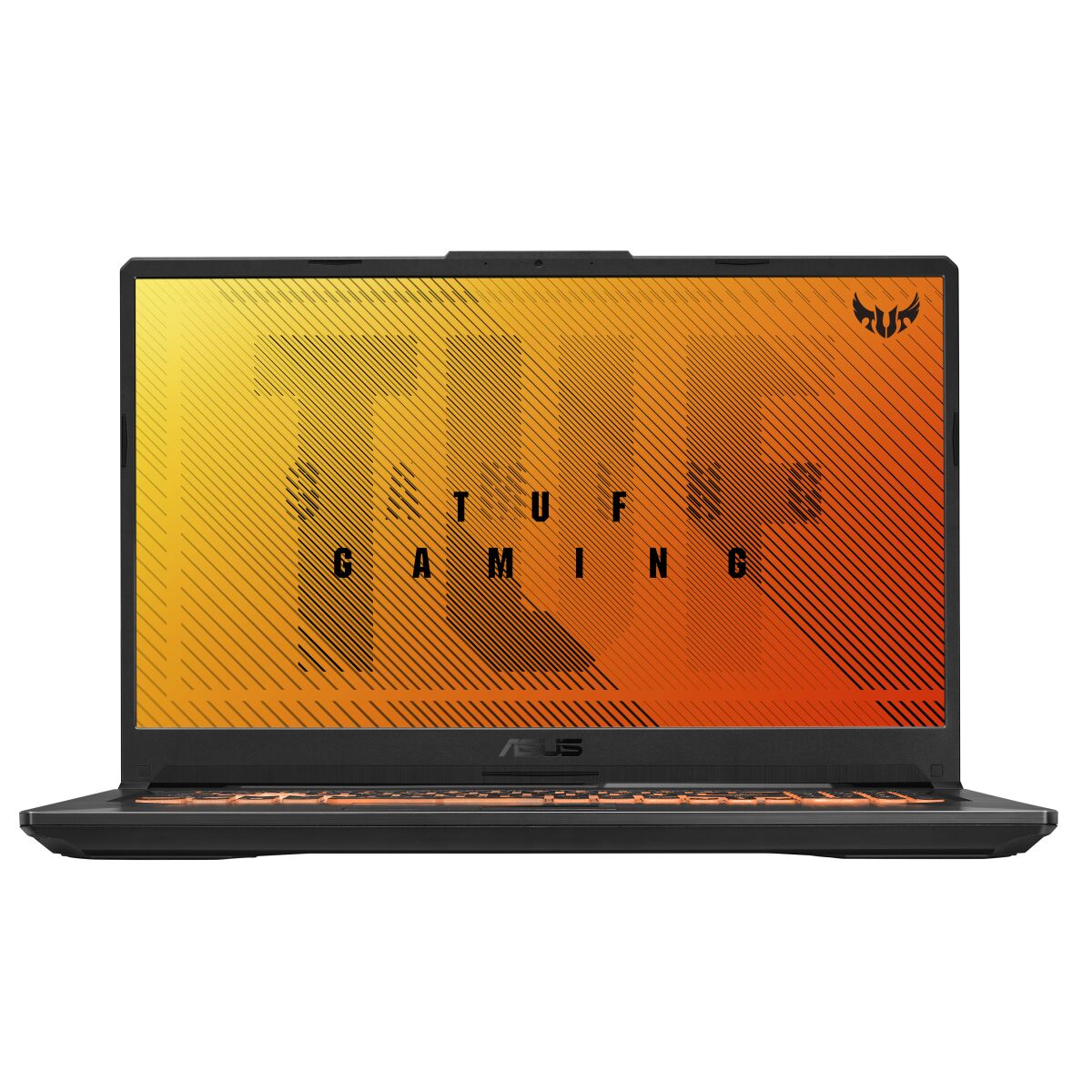

ASUS TUF Gaming FX706LI-H7134T-BE RAM upgrade specifications
ASUS TUF Gaming FX706LI-H7134T-BE memory upgrade specifications indicate DDR4-SDRAM compatibility with 2x SO-DIMM slots supporting maximum capacity of 32 GB total RAM. The upgrade specifications confirm 3200 MHz frequency support for compatible memory modules. This A17 series laptop model accommodates SO-DIMM form factor memory upgrades, with specifications enabling users to expand system memory up to the maximum supported capacity through available slot configuration.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 January 2021 |
Additional Notes
- The dual channel architecture requires symmetrical module pairs to achieve maximum memory bandwidth for the processor.
- The ASUS TUF Gaming FX706LI-H7134T-BE motherboard firmware caps total addressable memory at 32 GB regardless of higher capacity modules being physically compatible with the slots.
- Utilizing modules with higher frequencies than 3200 MHz will result in automatic downclocking to match the system bus limitations.
- Internal component access for memory replacement necessitates the removal of the entire base plate which may involve varying screw lengths that must be tracked for proper reassembly.
- The SO-DIMM form factor excludes the use of desktop sized memory modules or high voltage sticks due to physical spacing and power delivery constraints.
- Populating both slots reduces the latency overhead common in single channel configurations during heavy gaming or rendering workloads.
- Standard maintenance procedures for these memory slots typically allow for hardware swaps without voiding the manufacturer warranty if no physical damage occurs to the logic board.
