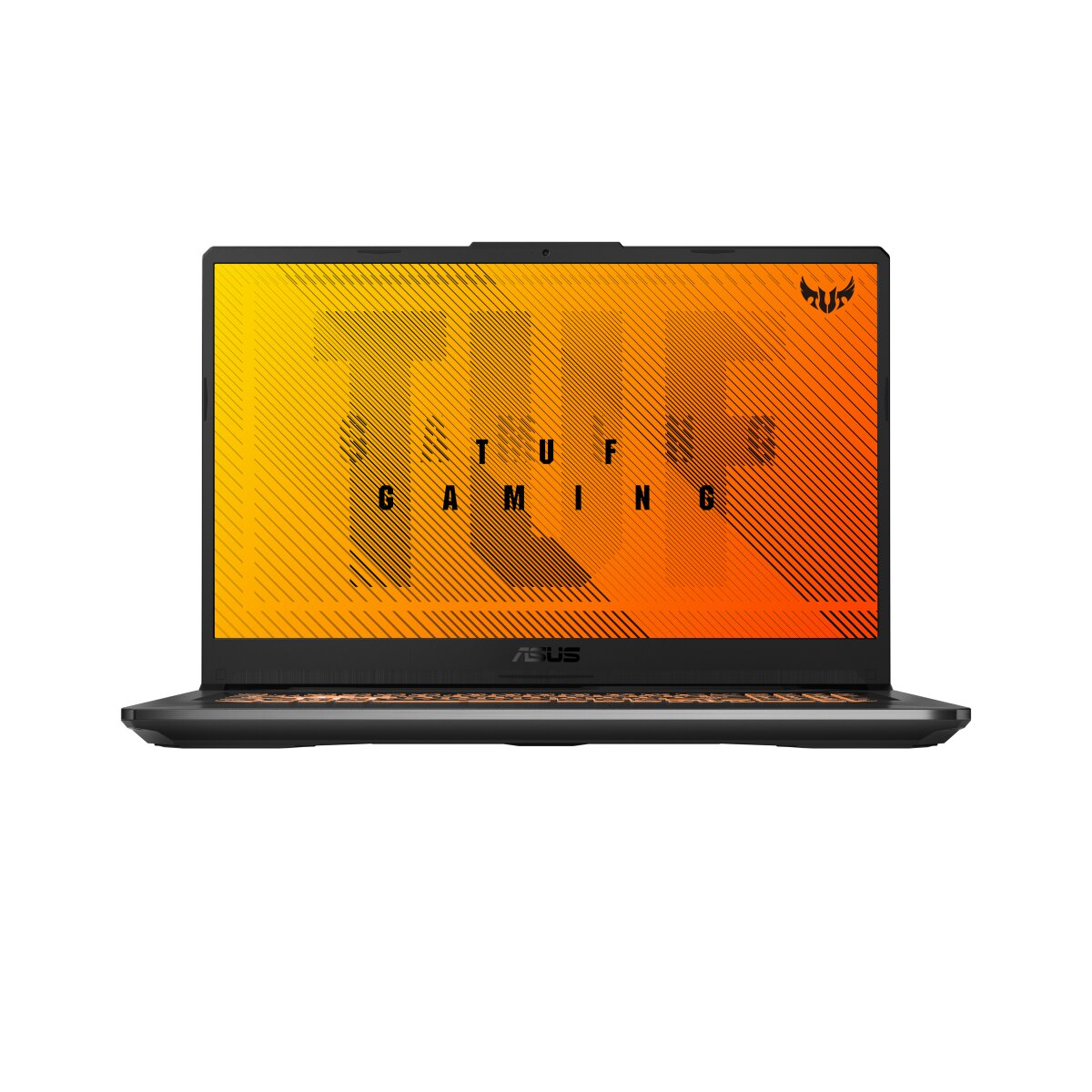

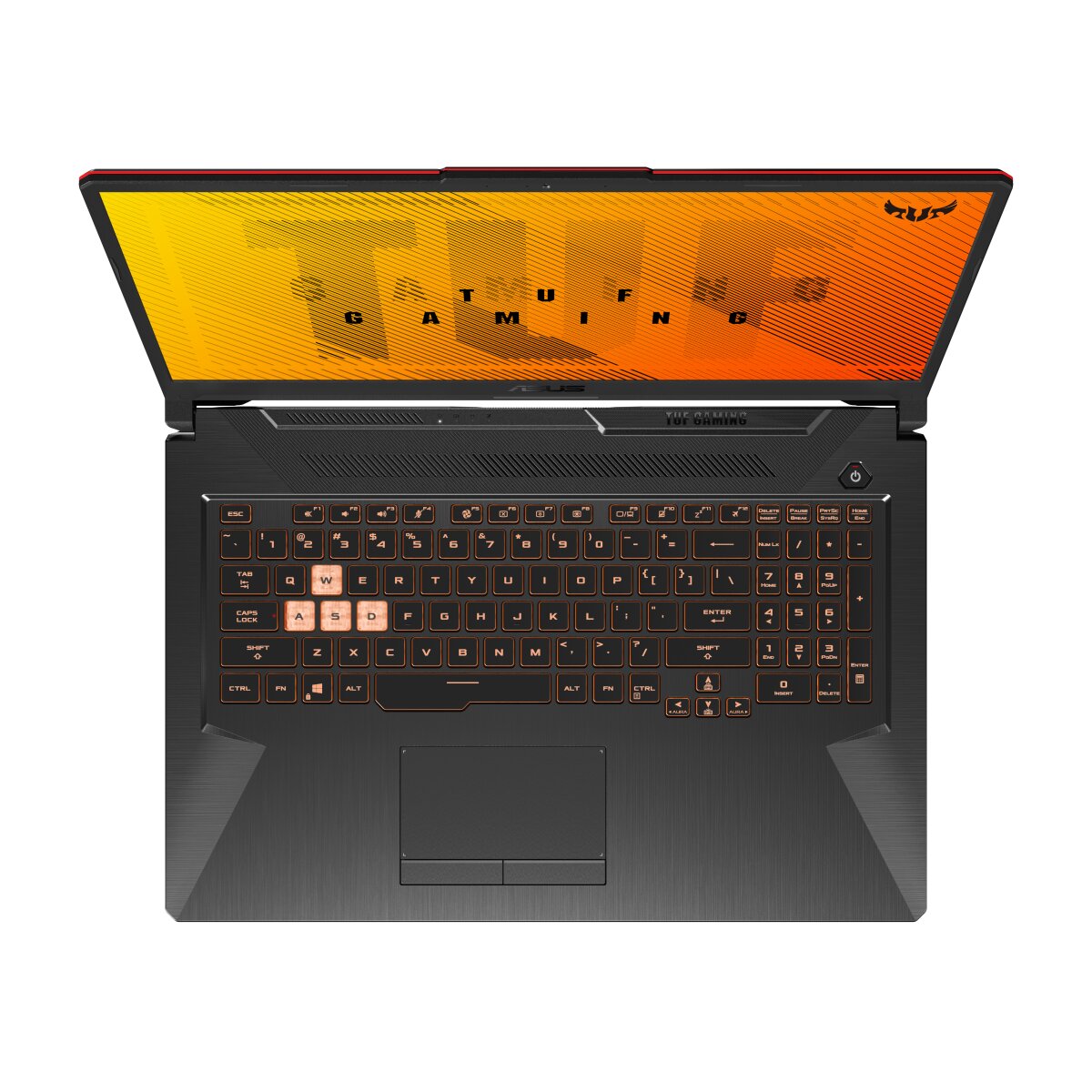

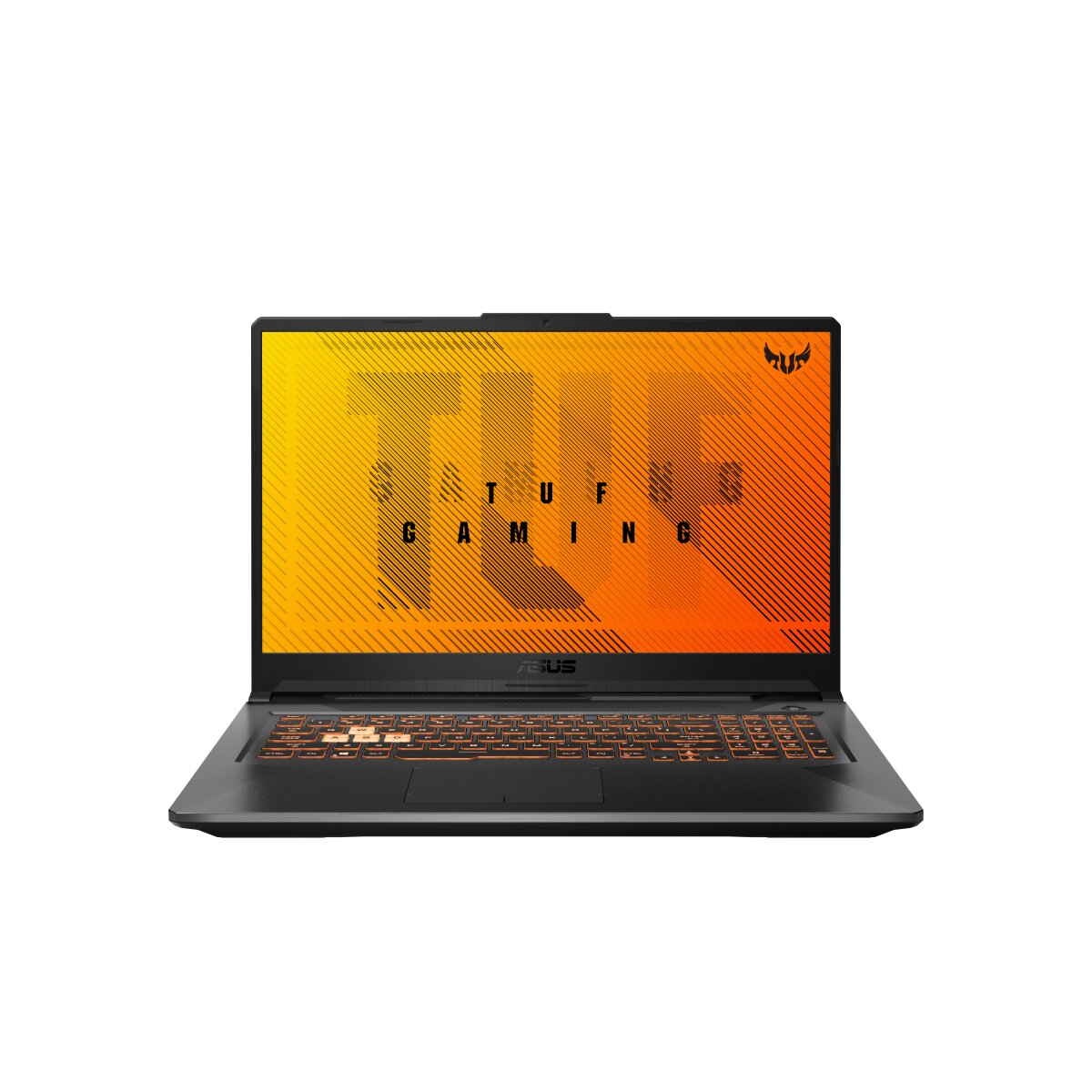

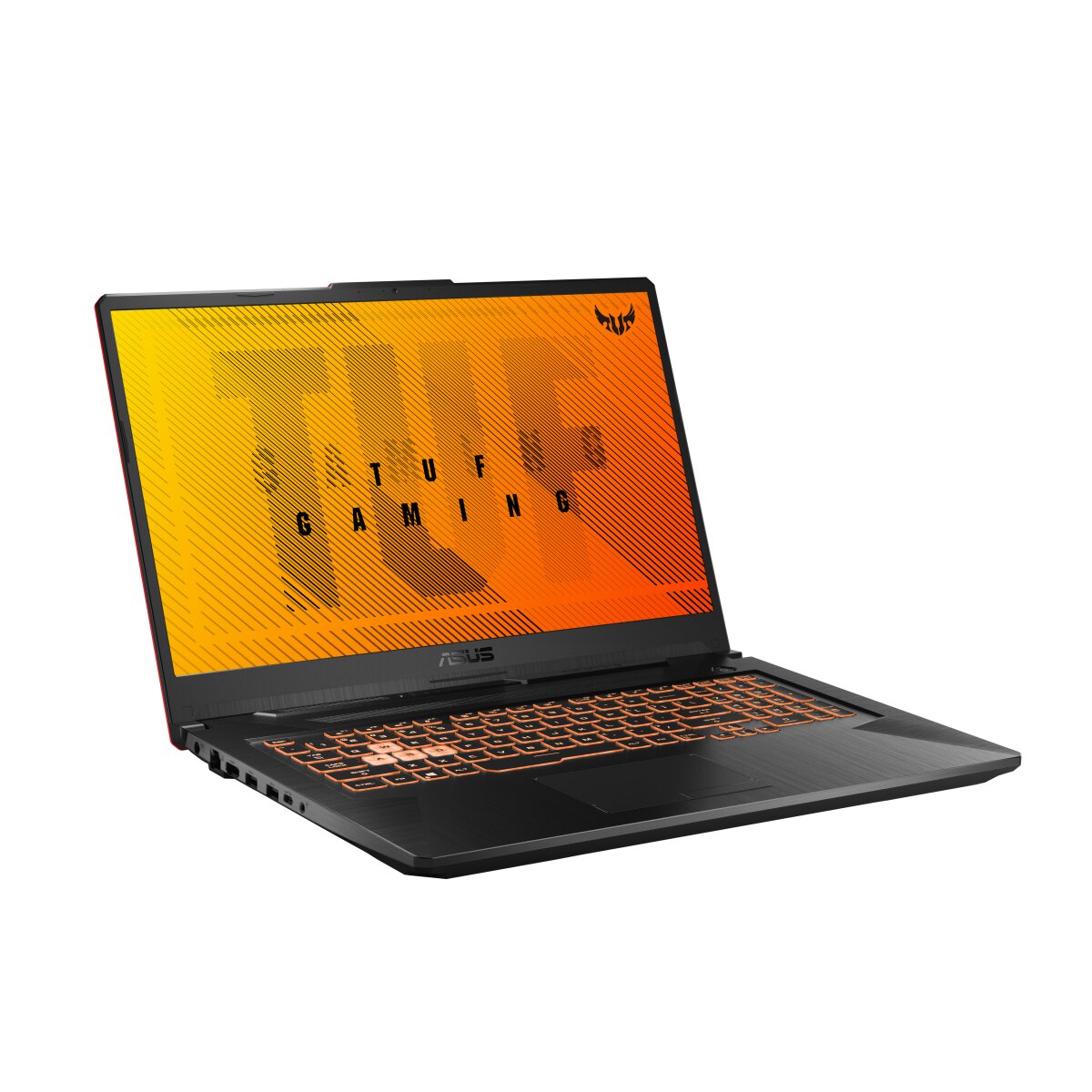

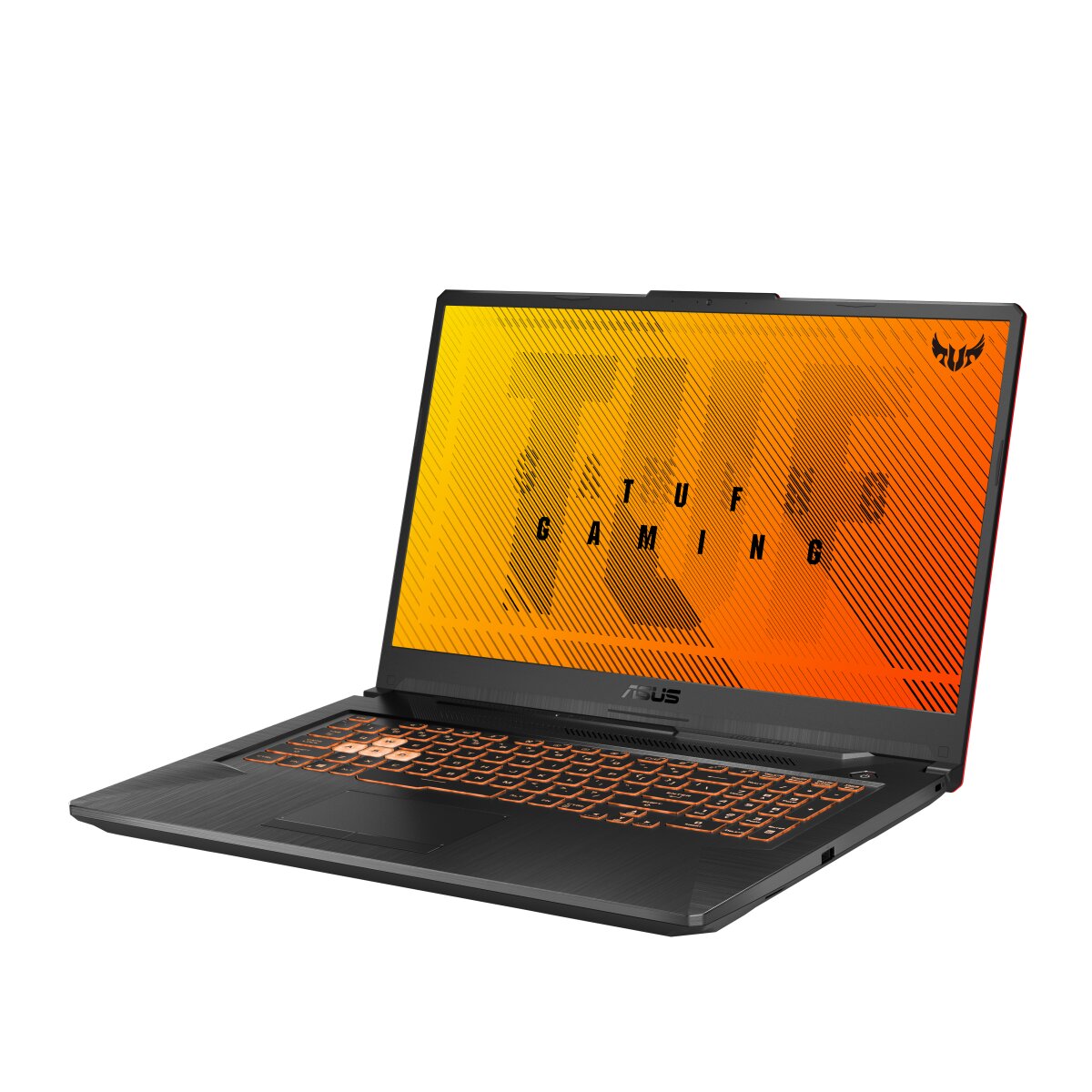

ASUS TUF Gaming TUF706IHNT-HX022 RAM upgrade specifications
ASUS TUF Gaming A17 series model TUF706IHNT-HX022 features DDR4-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting maximum capacity of 32 GB total RAM. Compatible memory operates at 3200 MHz frequency with SO-DIMM form factor. Upgrade specifications enable expansion of system memory for enhanced multitasking and performance capabilities on gaming and productivity workloads.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 31 December 2021 |
Additional Notes
- Dual channel memory architecture requires installing modules in pairs to achieve maximum memory bandwidth for the Ryzen processor in the ASUS TUF706IHNT-HX022.
- Integrated graphics performance scales directly with memory frequency and dual channel configuration because the system allocates a portion of system RAM for video tasks.
- The absence of soldered memory on the motherboard allows for the replacement of both factory modules to reach the 32 GB threshold.
- Latencies remain restricted to standard JEDEC profiles as the chipset typically lacks support for XMP or manual timing adjustments in the BIOS.
- Upgrading beyond the 32 GB limit can result in system instability or failure to POST due to firmware level addressable memory constraints.
- Installation of memory modules with frequencies higher than 3200 MHz will result in downclocking to match the maximum supported hardware bus speed.
- Static discharge protection is necessary during the physical installation process to prevent permanent damage to the open SO DIMM traces.
