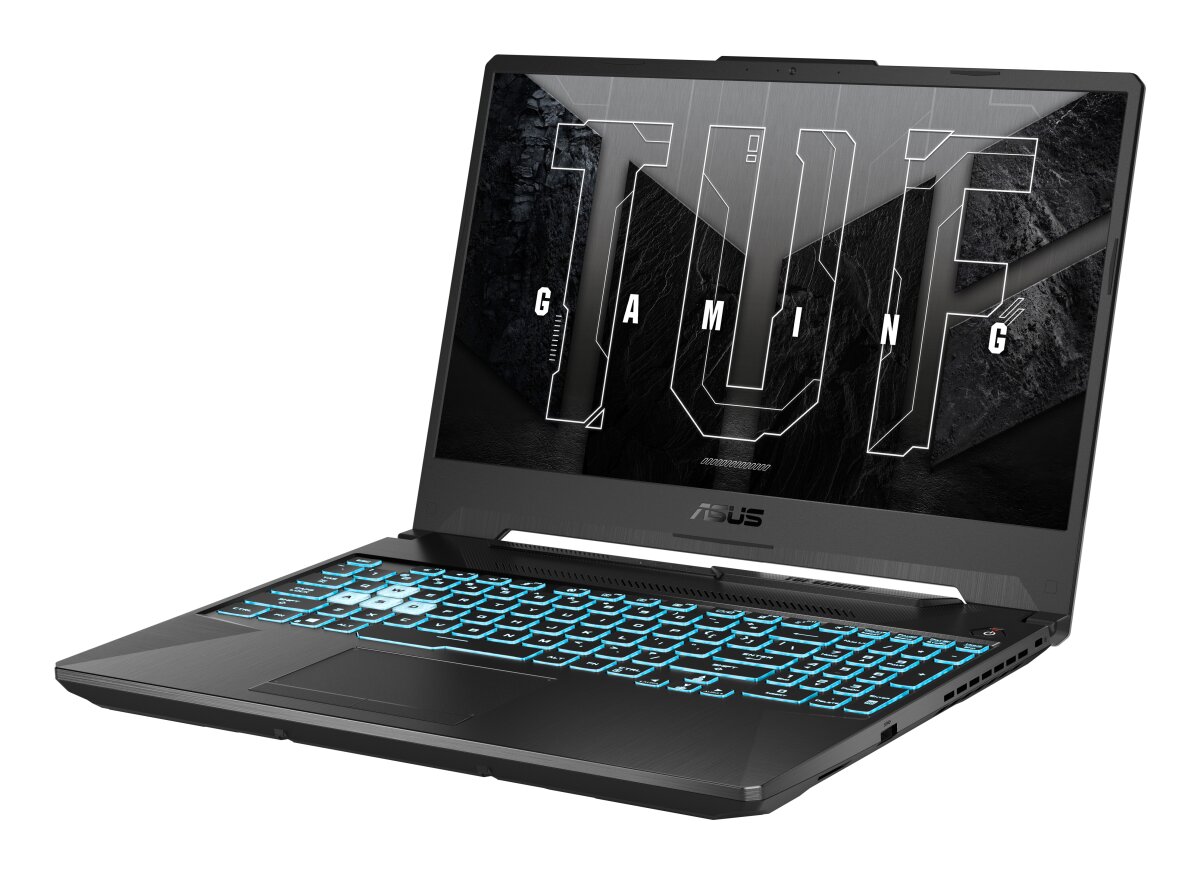

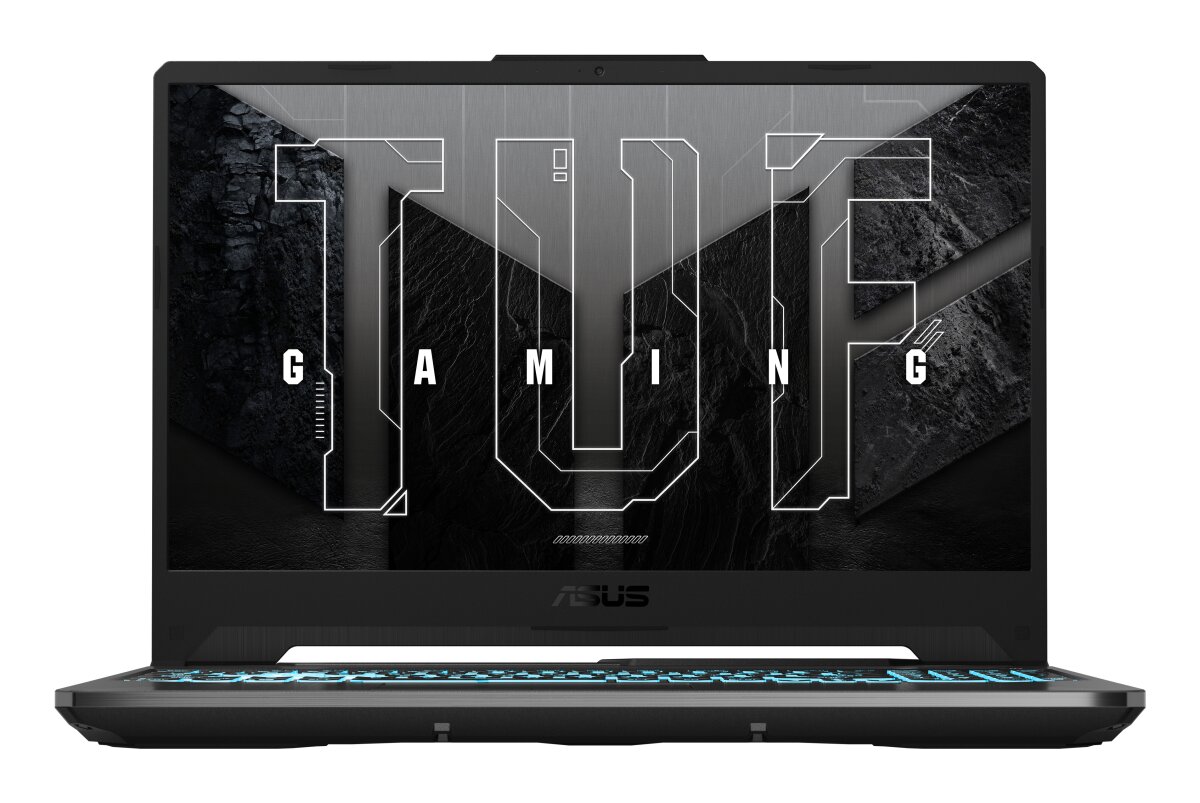

ASUS TUF Gaming FX506HCB-HN216T RAM upgrade specifications

The ASUS TUF Gaming F15 FX506HCB-HN216T laptop features two SO-DIMM memory slots supporting DDR4-SDRAM modules at 3200 MHz frequency. The system supports a maximum RAM capacity of 32 GB total, allowing for upgrade configurations such as dual 16 GB modules. Compatible memory upgrades utilize the SO-DIMM form factor specifications designed for portable computing devices. Users requiring additional multitasking performance or demanding applications may consider RAM upgrade options within the maximum capacity constraints of this gaming notebook model.

Additional Notes

• The ASUS TUF Gaming FX506HCB-HN216T implements a dual-channel SO-DIMM architecture that requires matched memory pairs to maintain optimal bandwidth throughput between the CPU and system memory.
• The 32 GB ceiling necessitates 2x16 GB module configuration, as any single module exceeding 16 GB capacity would either fail POST or trigger automatic downclocking on this platform.
• Installing modules with mismatched densities forces the memory controller to operate in asymmetric mode, degrading interleaving efficiency and creating a performance penalty in bandwidth-sensitive applications.
• The 3200 MHz specification represents JEDEC DDR4-3200 standard rather than XMP-based overclocking, meaning compatibility depends on SPD-programmed default timings without BIOS intervention.
• Both SO-DIMM slots typically share direct proximity to heat-generating components in gaming chassis designs, creating thermal throttling risk when modules lack adequate heatspreader surface area during sustained workloads.
• Memory upgrades beyond factory configuration may void regional warranty terms unless performed by authorized service centers, depending on jurisdiction-specific consumer protection regulations.
• The SO-DIMM form factor restriction eliminates compatibility with standard desktop DIMM modules, requiring explicit laptop-specific procurement despite identical DDR4-3200 electrical specifications.
• Mixing memory modules with different rank configurations creates command/address timing conflicts that force the controller to apply conservative delay parameters, reducing effective throughput below rated frequency.
• The platform lacks support for DDR4 frequencies exceeding 3200 MHz, causing automatic downclocking of any higher-rated modules to match the chipset's maximum supported data rate.
• Single-channel operation resulting from populating only 1 slot halves the available memory bandwidth, creating observable performance degradation in integrated graphics workloads and memory-intensive multitasking scenarios.
