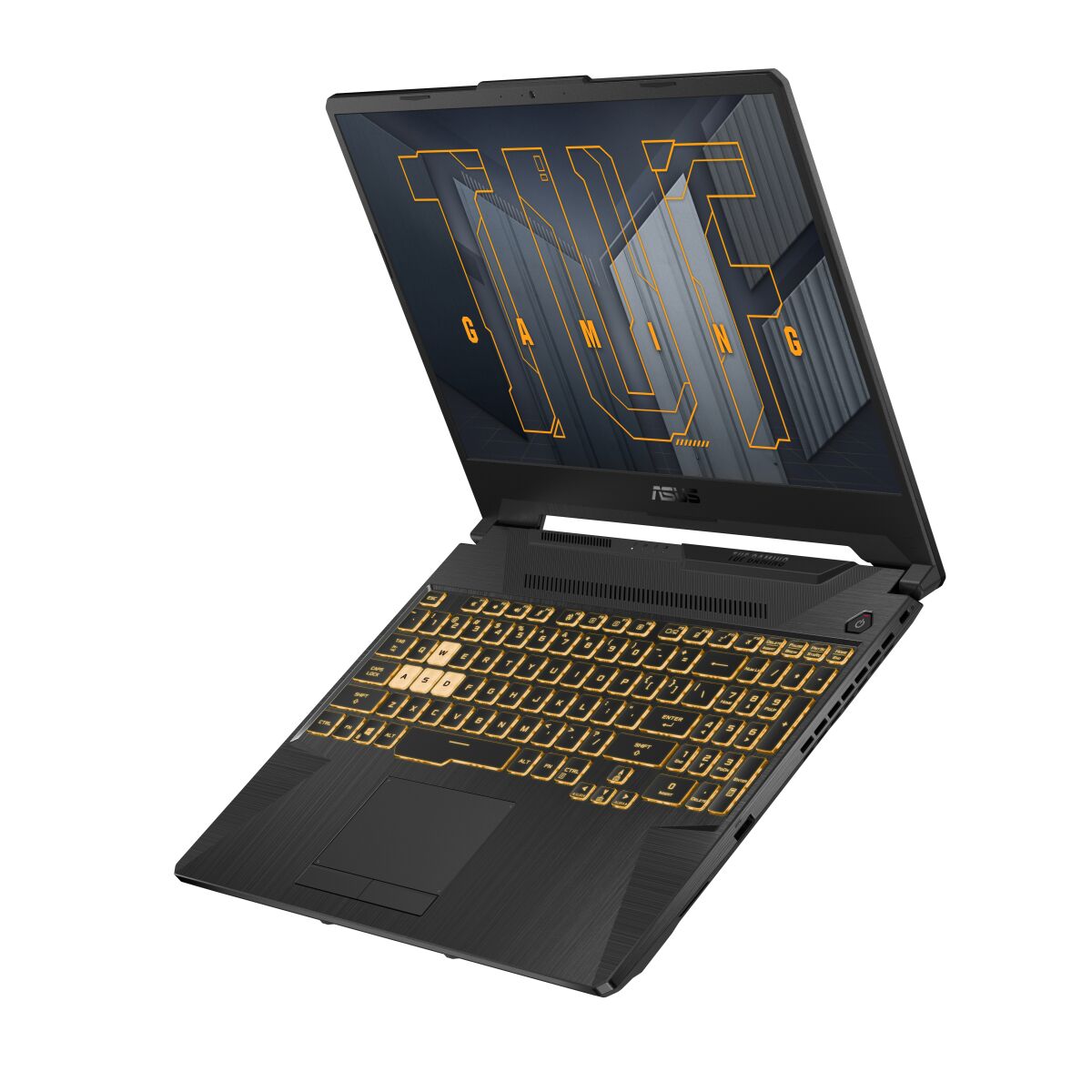

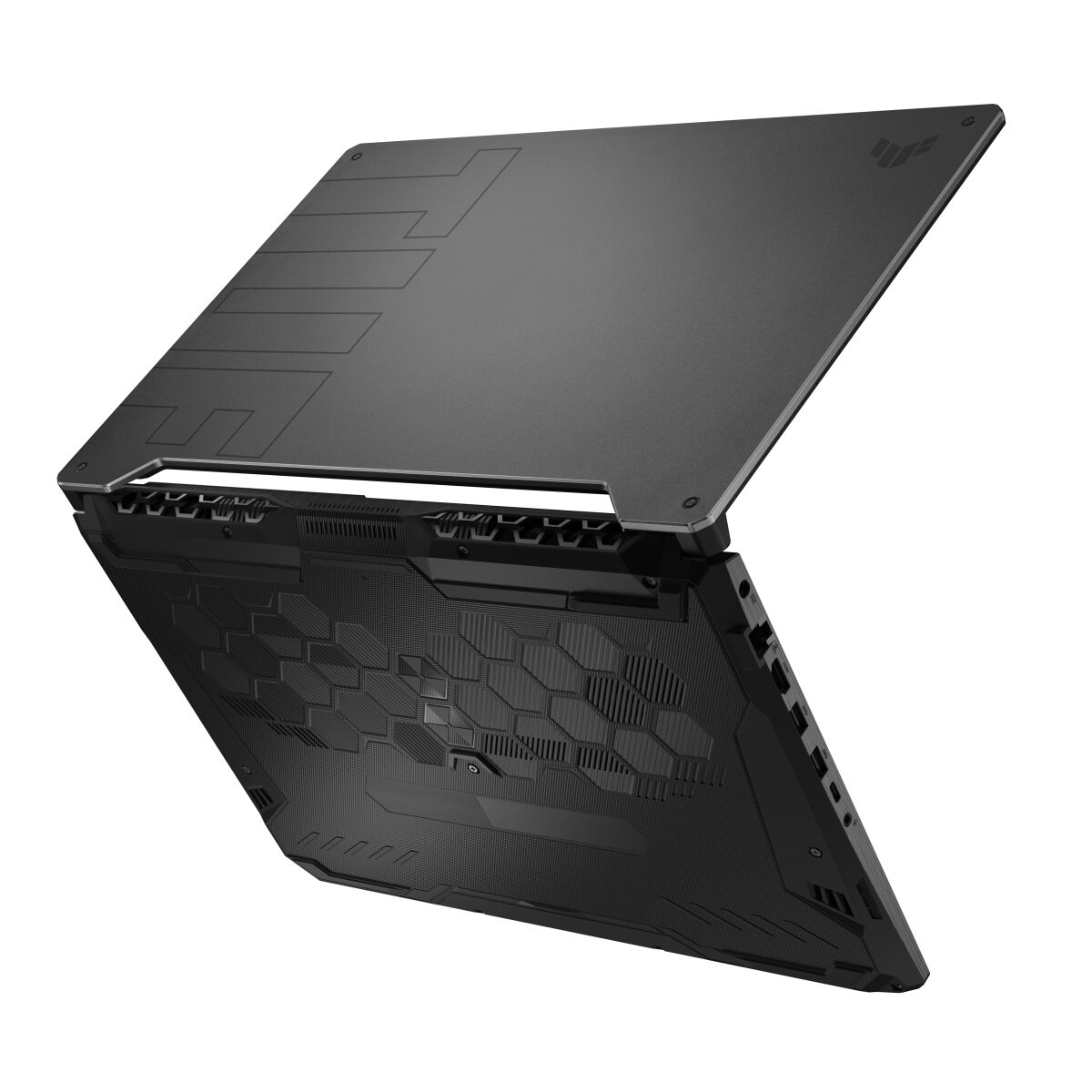

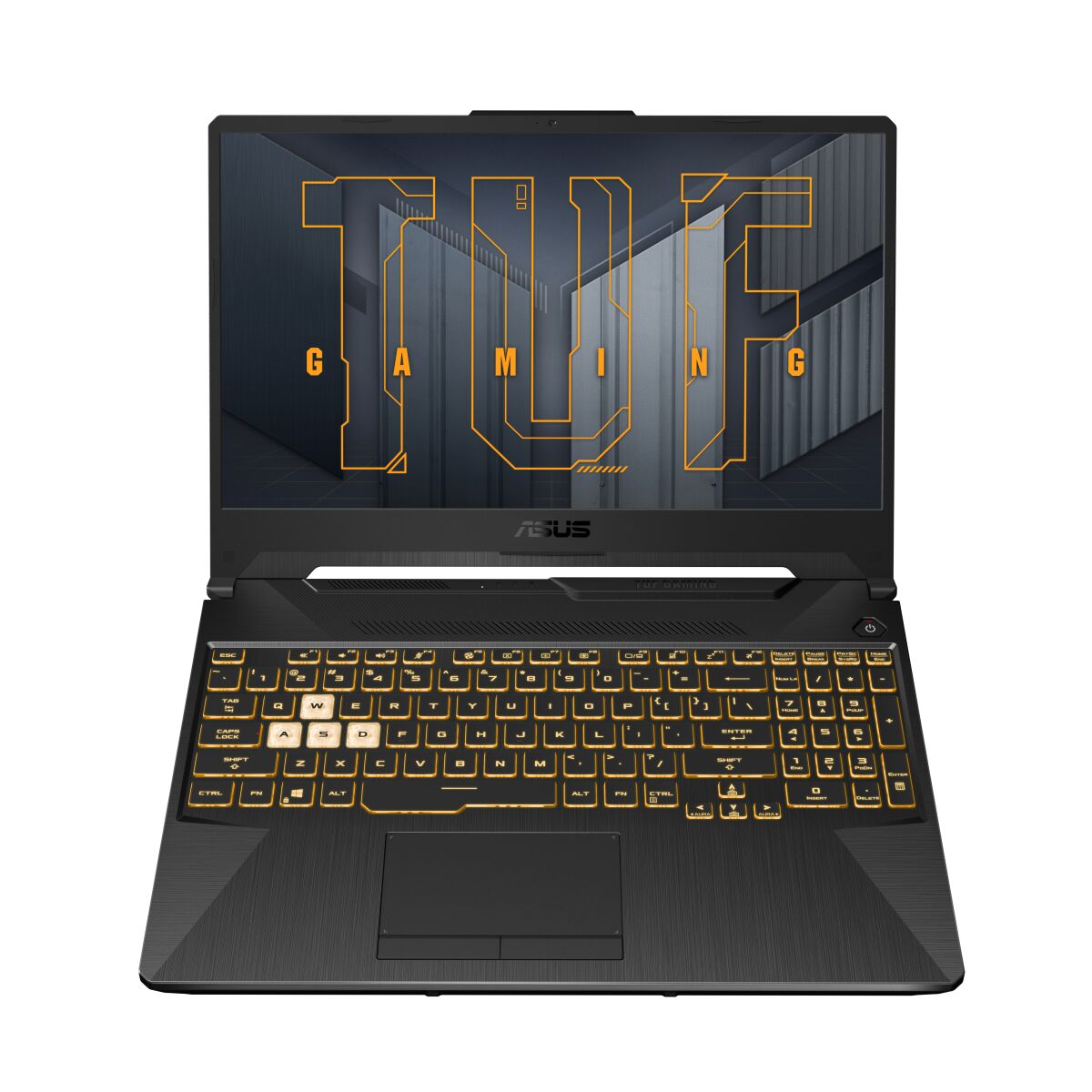

ASUS TUF Gaming FX506HM-AZ121T-BE RAM upgrade specifications
The ASUS TUF Gaming F15 FX506HM-AZ121T-BE features DDR4-SDRAM memory configuration with 2x SO-DIMM slots supporting maximum capacity of 32 GB. Upgrade specifications include DDR4 memory operating at 3200 MHz frequency. Compatible RAM modules utilize SO-DIMM form factor. The laptop's memory upgrade slots accommodate DDR4-SDRAM upgrades to reach full 32 GB maximum specifications. Existing memory can be expanded through the two available SO-DIMM slots using compatible DDR4-SDRAM modules.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 31 May 2021 |
Additional Notes
- Dual channel architecture requires matching memory modules in both slots to maximize memory bandwidth for the ASUS TUF Gaming FX506HM-AZ121T-BE processor.
- The 32 GB ceiling implies the motherboard firmware restricts the use of high density 32 GB individual sticks.
- Memory modules with higher frequencies will automatically downclock to 3200 MHz due to chipset limitations.
- Installation of non parity modules is necessary as the system lacks ECC support for error correction.
- The SO-DIMM form factor prevents the use of desktop sized RAM or soldered LPDDR alternative modules.
- Latency timings should match the existing factory module to prevent system instability or boot failures.
- Physical access to the dual slots necessitates the removal of the entire base plate which typically requires a Phillips head size 0 or 1 screwdriver.
- The use of 1.2 volt rated modules is standard for this hardware generation to maintain thermal efficiency within the chassis.
