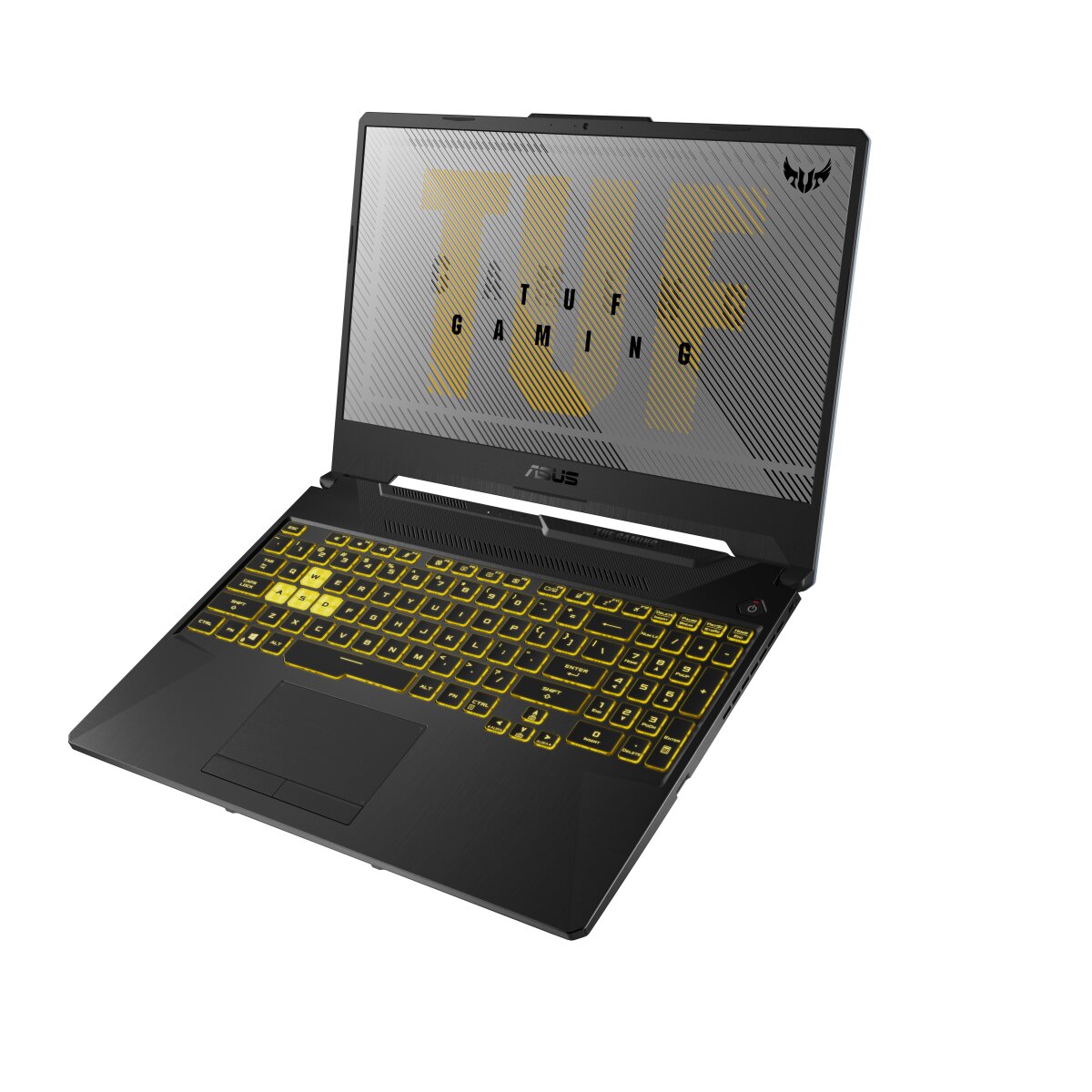

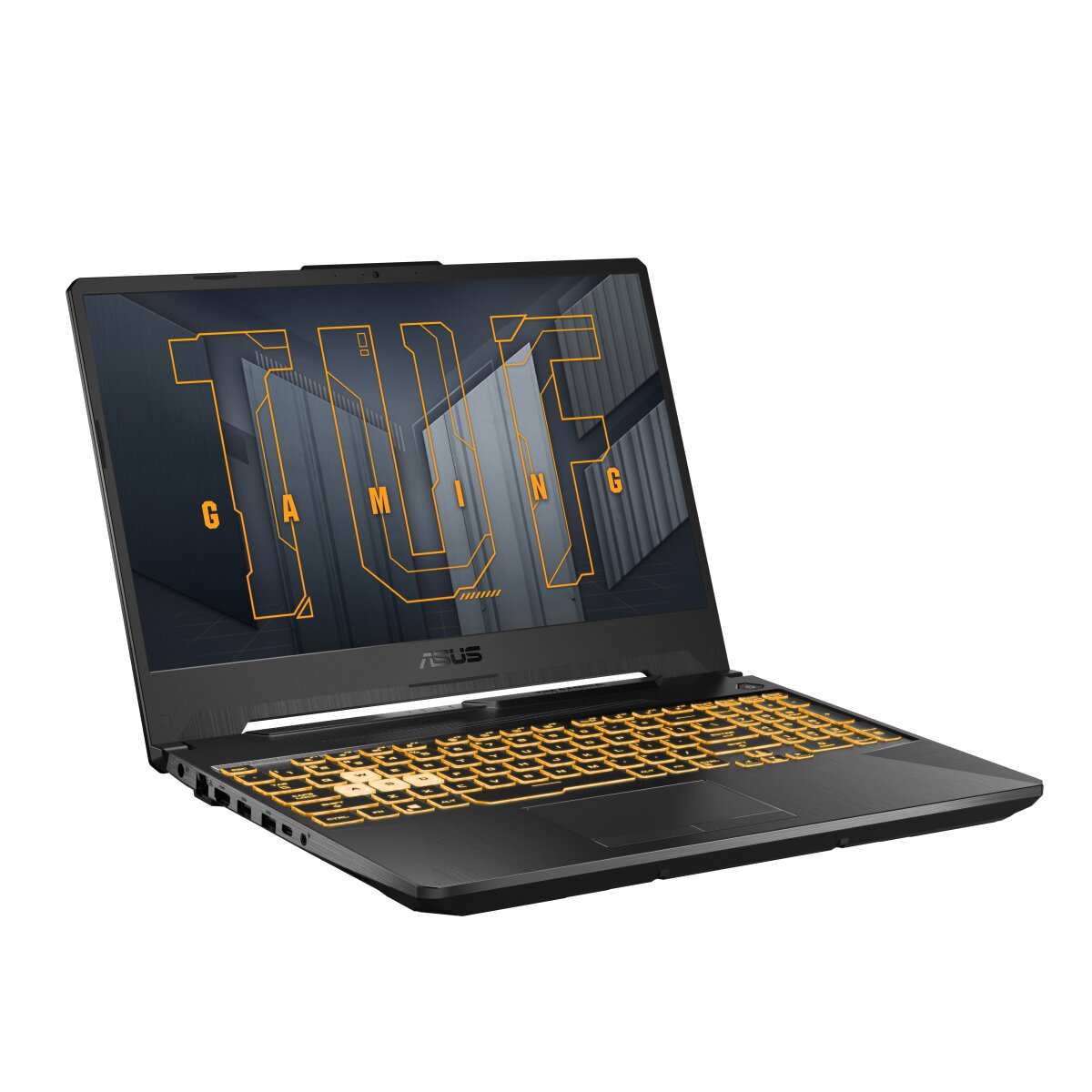

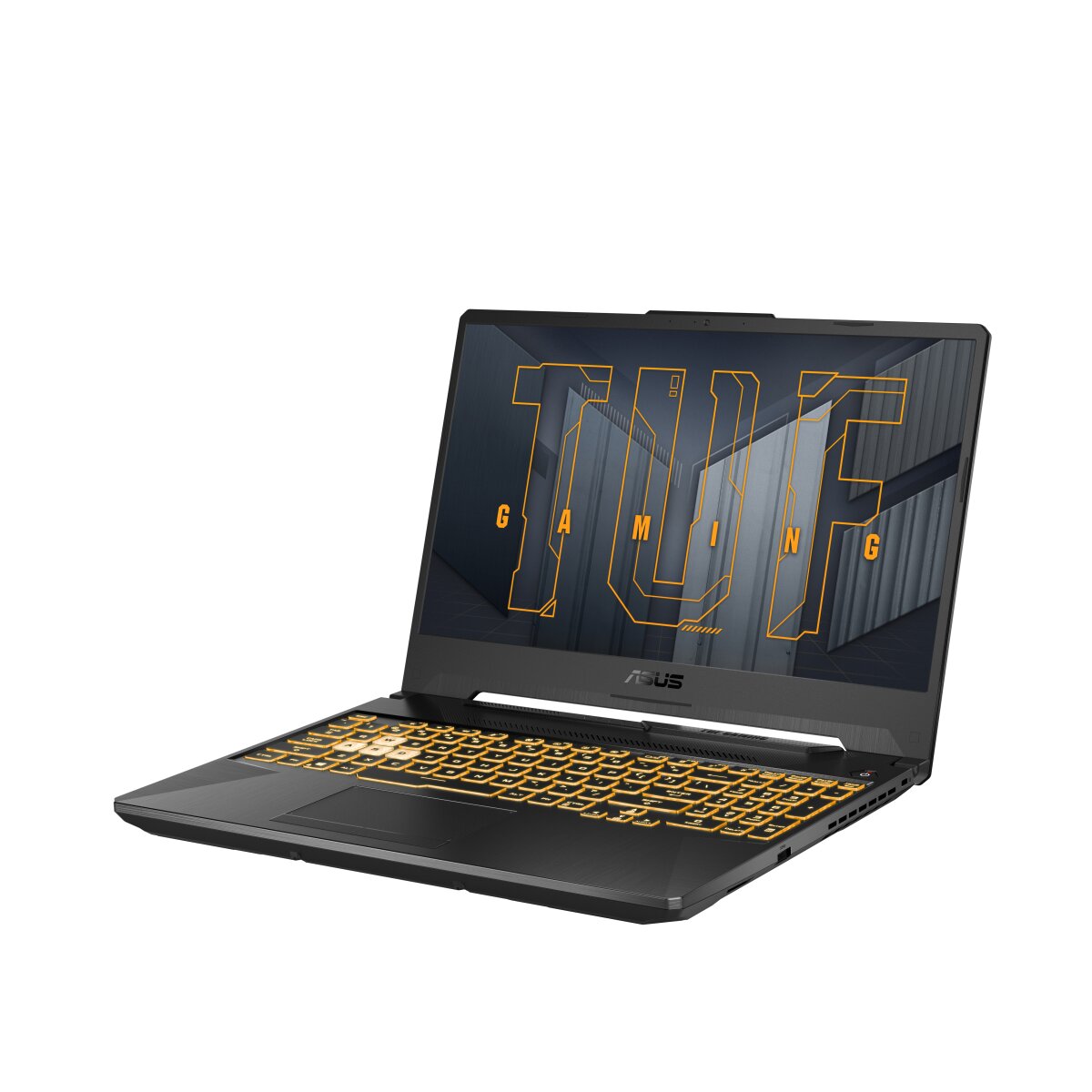

ASUS TUF Gaming FX506HM-AZ884 RAM upgrade specifications
ASUS TUF Gaming F15 series FX506HM-AZ884 laptop features DDR4-SDRAM memory configuration with two SO-DIMM slots. Maximum RAM upgrade capacity reaches 32 GB total. Compatible memory modules operate at 3200 MHz frequency. Specifications support SO-DIMM form factor for RAM upgrade compatibility. Current memory specifications and maximum capacity provide upgrade parameters for this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 11 October 2021 |
Additional Notes
- The absence of soldered memory on the ASUS TUF Gaming FX506HM-AZ884 motherboard ensures that both memory channels remain fully accessible for matching module pairs to enable synchronous dual channel bandwidth.
- Operating at the maximum supported capacity requires the removal of all factory installed modules because the system lacks additional expansion headers beyond the 2 primary slots.
- Installing modules with XMP profiles or frequencies exceeding 3200 MHz will result in automatic downclocking to the processor's native JEDEC limit unless the BIOS provides manual voltage and timing overrides.
- System stability and power efficiency depend on selecting 1.2V modules since high voltage overclocking sticks may cause thermal throttling or boot failures in this chassis design.
- The 32 GB ceiling indicates a firmware or hardware limitation that prevents the use of high density 32 GB single sticks to reach 64 GB configurations.
- Achieving peak integrated graphics performance and reduced frame time variance in CPU bound scenarios requires a symmetrical memory population across both SO DIMM interfaces.
- Physical installation necessitates a non conductive pry tool for bottom panel removal to avoid static discharge or structural damage to the plastic retaining clips near the cooling vents.
