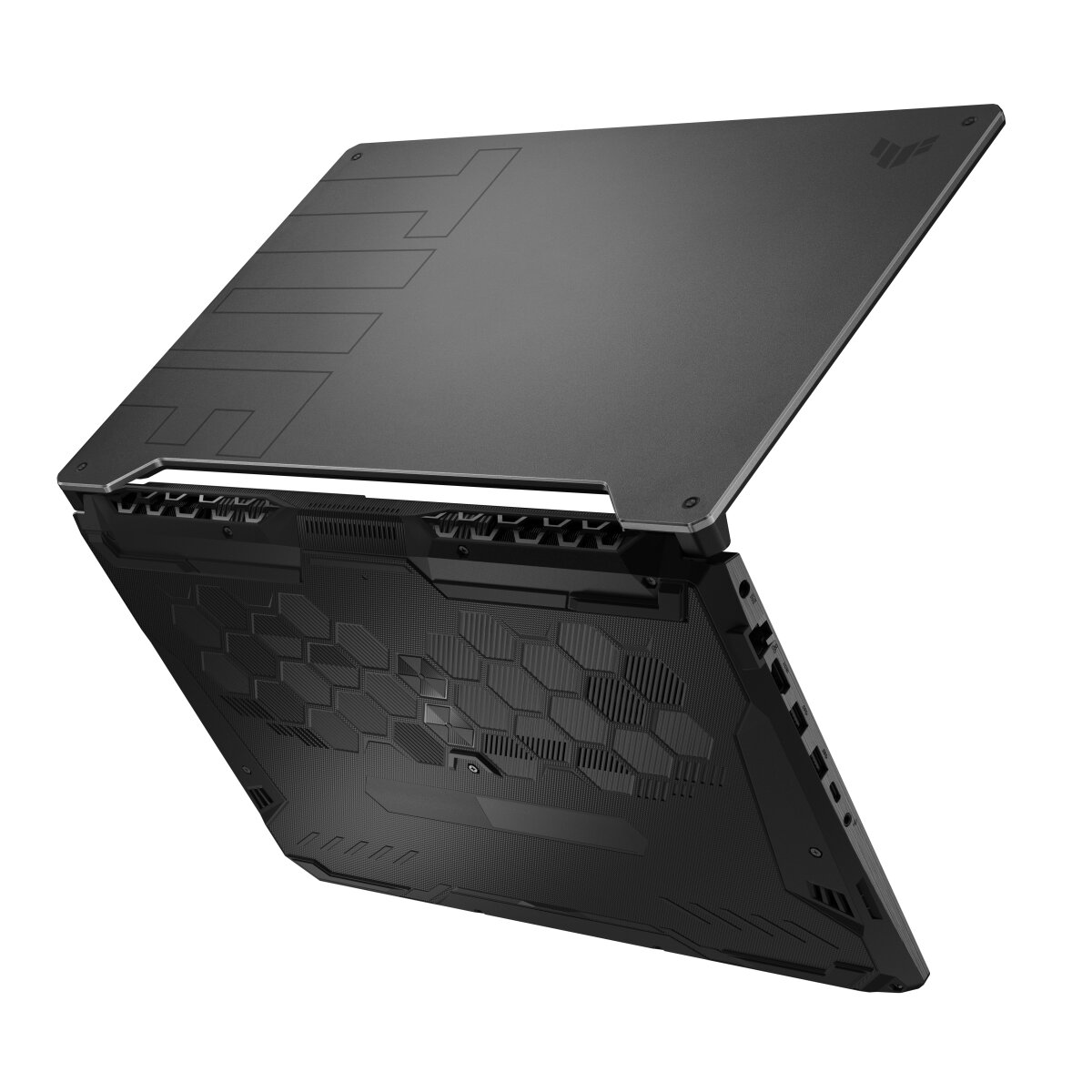

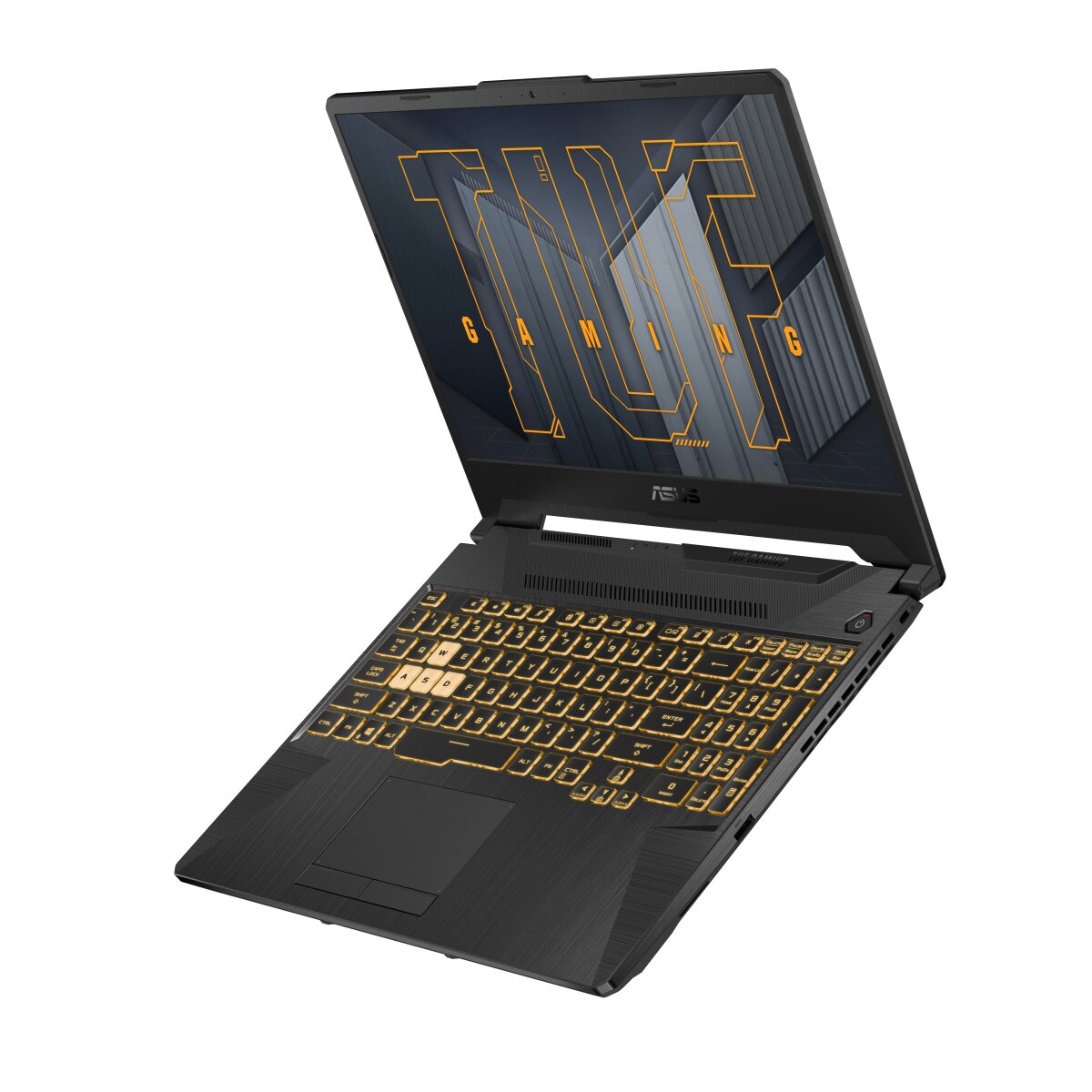

ASUS TUF Gaming FX506HM-HN002T RAM upgrade specifications
ASUS TUF Gaming F15 series FX506HM-HN002T laptop specifications include DDR4-SDRAM memory upgrade capability. Laptop contains 2x SO-DIMM slots for memory expansion. Maximum RAM capacity supported reaches 32 GB total. Compatible memory modules operate at 3200 MHz frequency with SO-DIMM form factor. Upgrade specifications allow for dual-channel memory configuration to enhance system performance on FX506HM-HN002T model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 07 August 2021 |
Additional Notes
- The dual-channel architecture enables increased memory bandwidth when matching modules are installed in both slots of the ASUS TUF Gaming FX506HM-HN002T.
- System stability depends on using non-ECC or unbuffered modules since the chipset lacks parity error correction support.
- The hardware upper limit of 32 GB prevents the use of 32 GB high-density single sticks even if the physical slot fits the module.
- Achieving the stated clock speed requires modules with an embedded JEDEC profile to avoid being limited by lower default boot frequencies.
- Physical access to the SO-DIMM slots requires the removal of the entire base panel which might involve captive screws specifically designed to facilitate chassis prying.
- Installing memory with higher frequencies than the motherboard rating results in an automatic downclocking to the maximum supported hardware cycle.
- Mixing modules of different capacities maintains a symmetrical dual-channel configuration only up to the capacity of the smaller stick while the remainder operates in single-channel mode.
