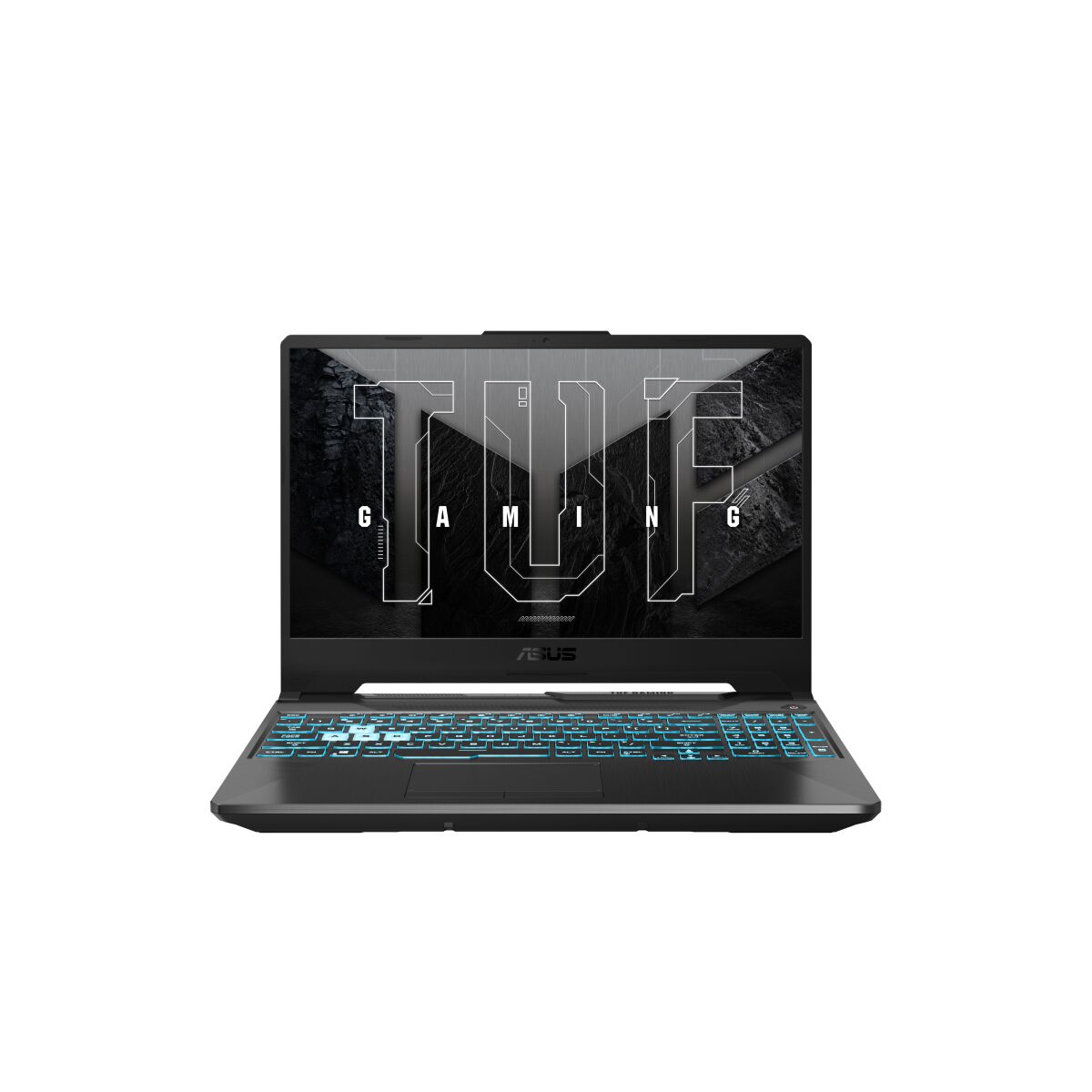

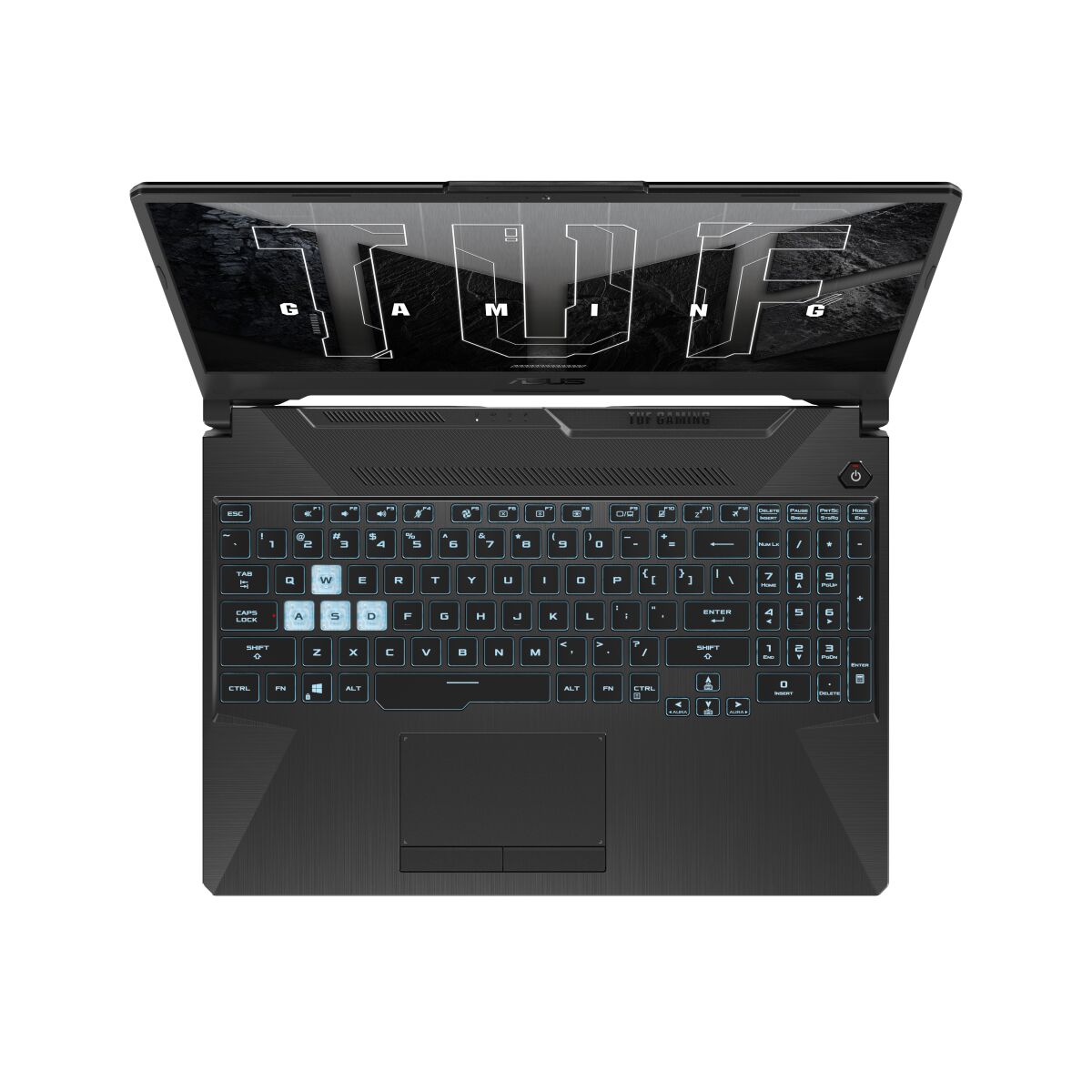

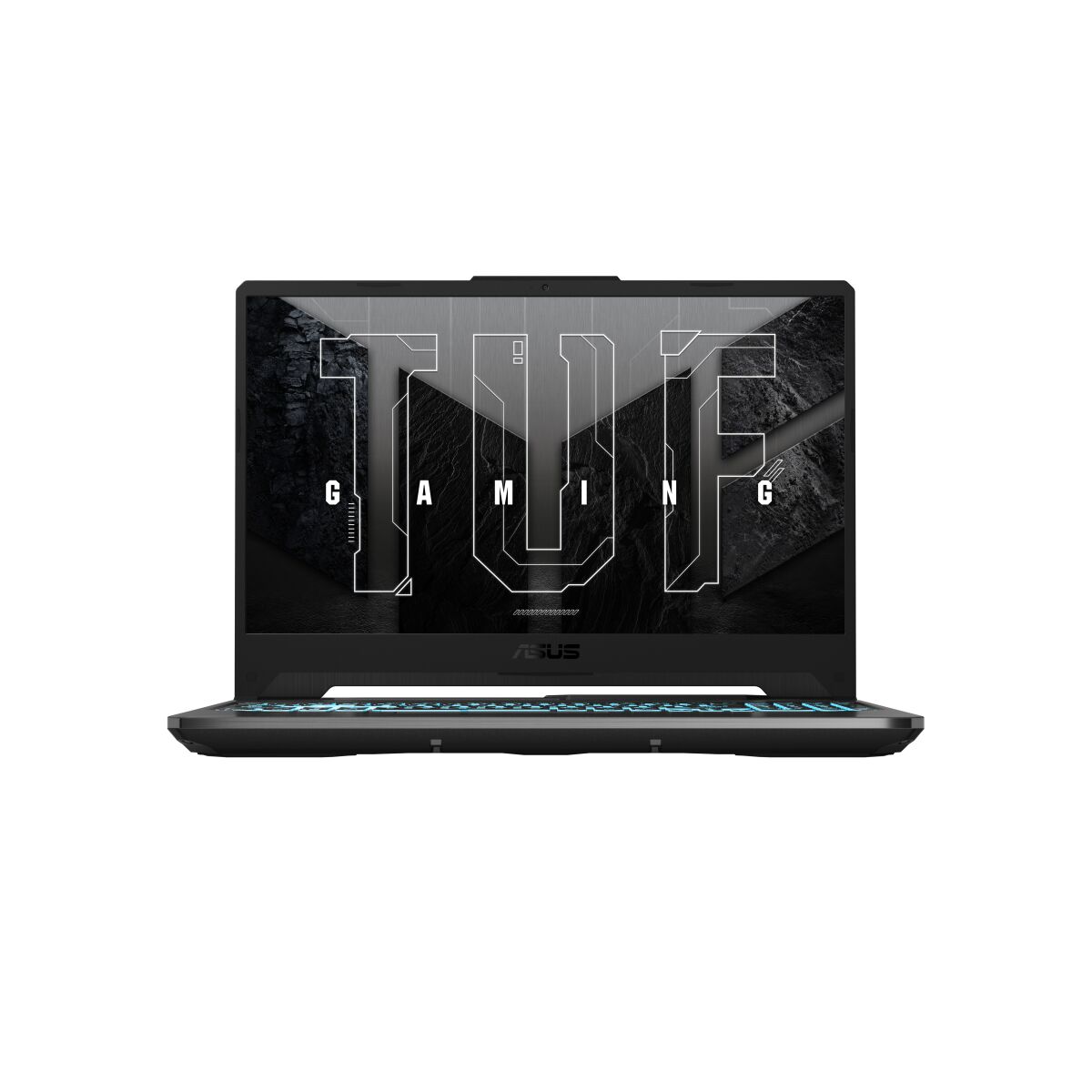

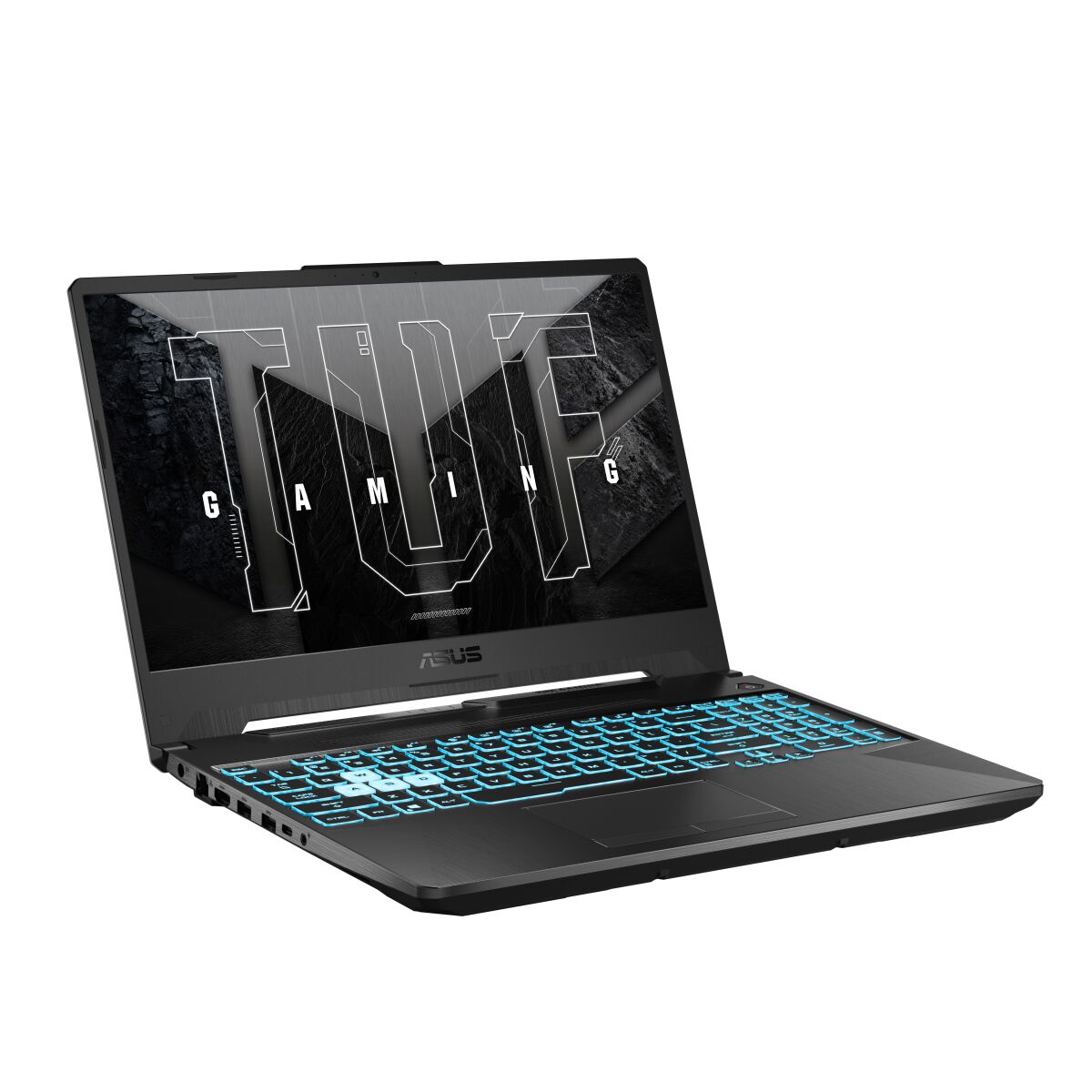

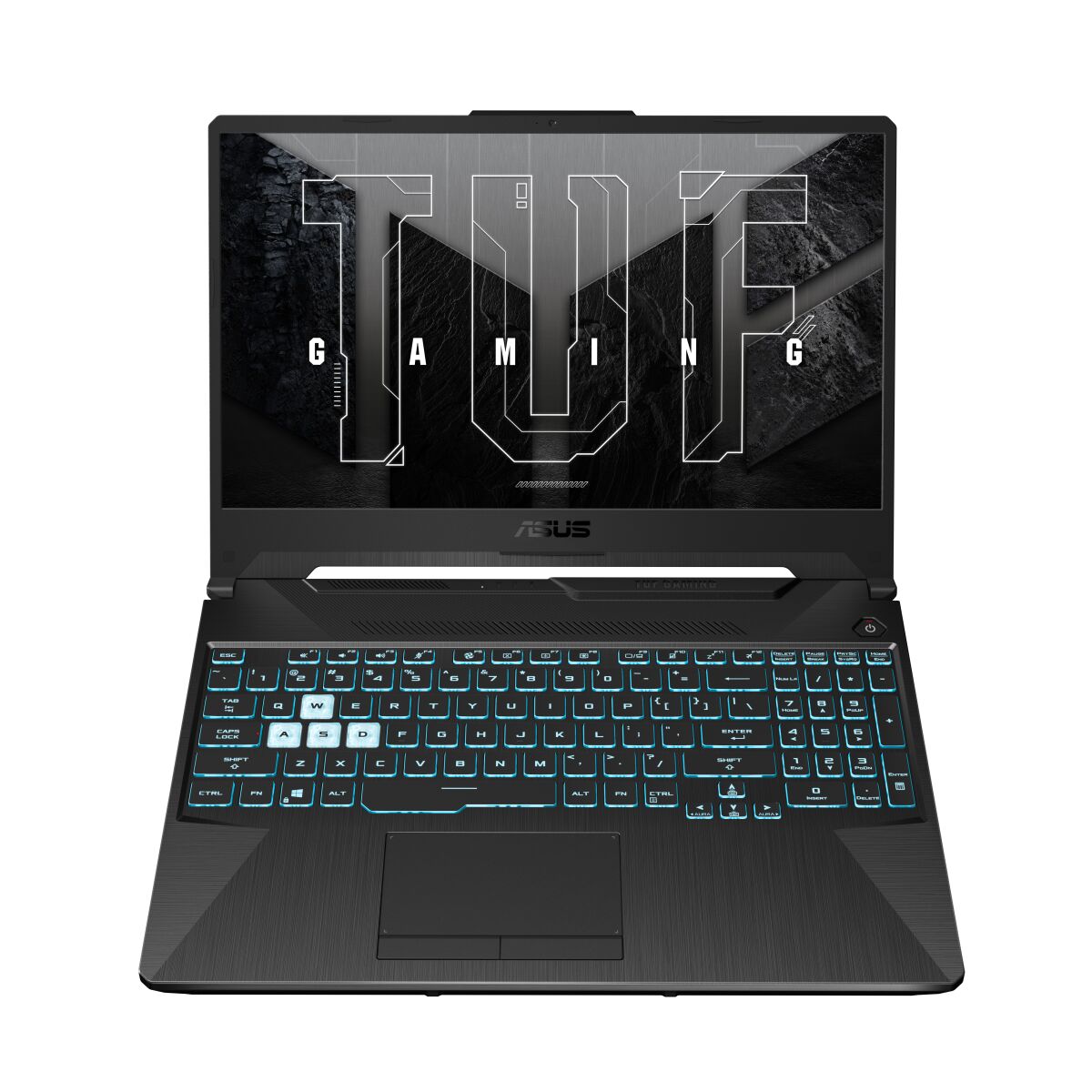

ASUS TUF Gaming FX506HM-HN004W RAM upgrade specifications
ASUS TUF Gaming F15 series FX506HM-HN004W laptop features DDR4-SDRAM memory upgrade specifications. The device contains 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency. RAM upgrade options utilize SO-DIMM form factor, enabling users to expand memory capacity on the FX506HM-HN004W model. Specifications indicate total available slots accommodate the maximum supported memory configuration for enhanced performance on the ASUS TUF Gaming platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 20 January 2022 |
Additional Notes
- Dual channel memory architecture is only achievable when both slots contain matching modules to maximize available bus bandwidth.
- The 32 GB threshold represents a hardware firmware limitation that prevents the recognition of high density 32 GB single sticks.
- Upgrading the **ASUS TUF Gaming FX506HM-HN004W** necessitates the removal of existing modules if both factory slots are occupied.
- Installing memory with frequency ratings above 3200 MHz will result in downclocking to match the system bus controller speed.
- Storage of integrated graphics assets relies on shared system memory which reduces the net RAM available for operating system processes.
- Mismatched latency timings between two different brands will force the motherboard to default to the slowest common denominator.
- The SO-DIMM physical interface requires 260 pin modules and is incompatible with desktop specific DIMM hardware.
- Physical access to the memory slots requires the removal of the bottom chassis panel which exposes internal components to electrostatic discharge risks.
