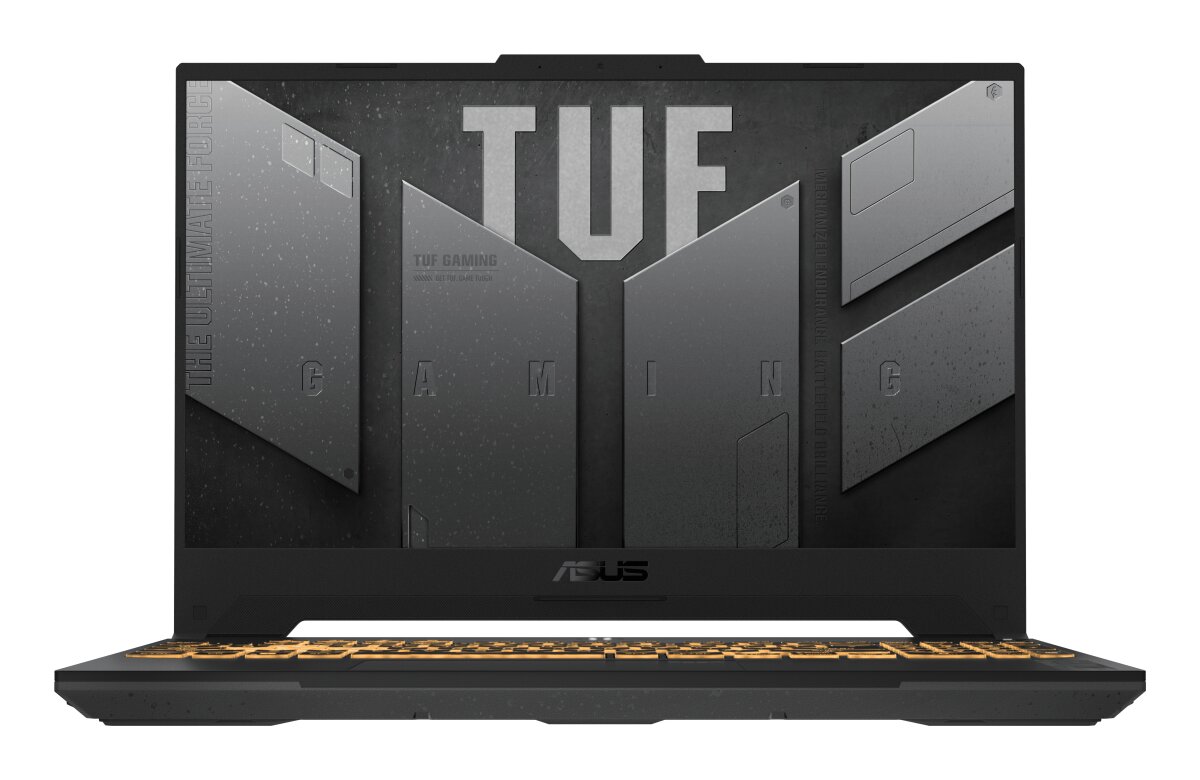

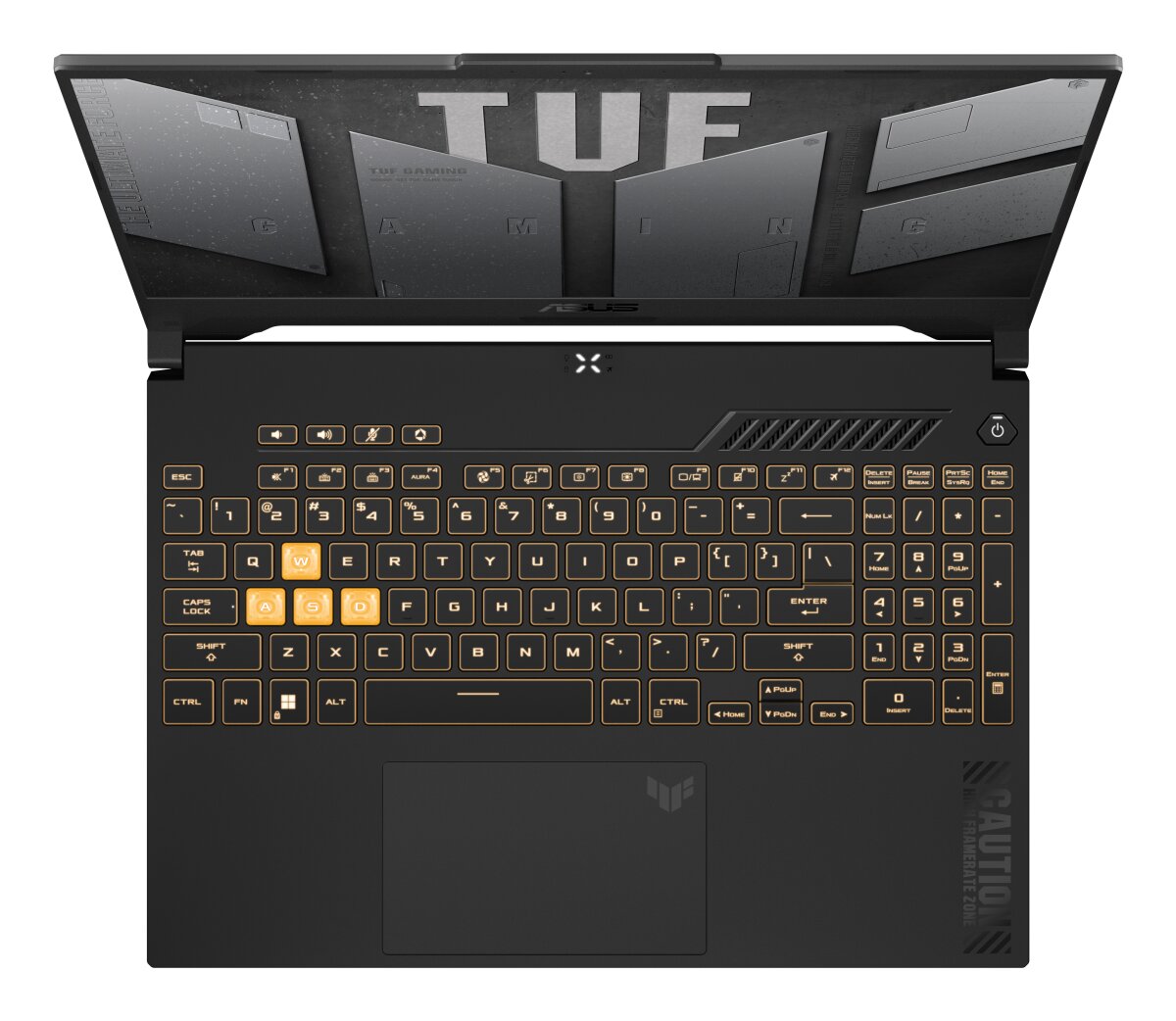

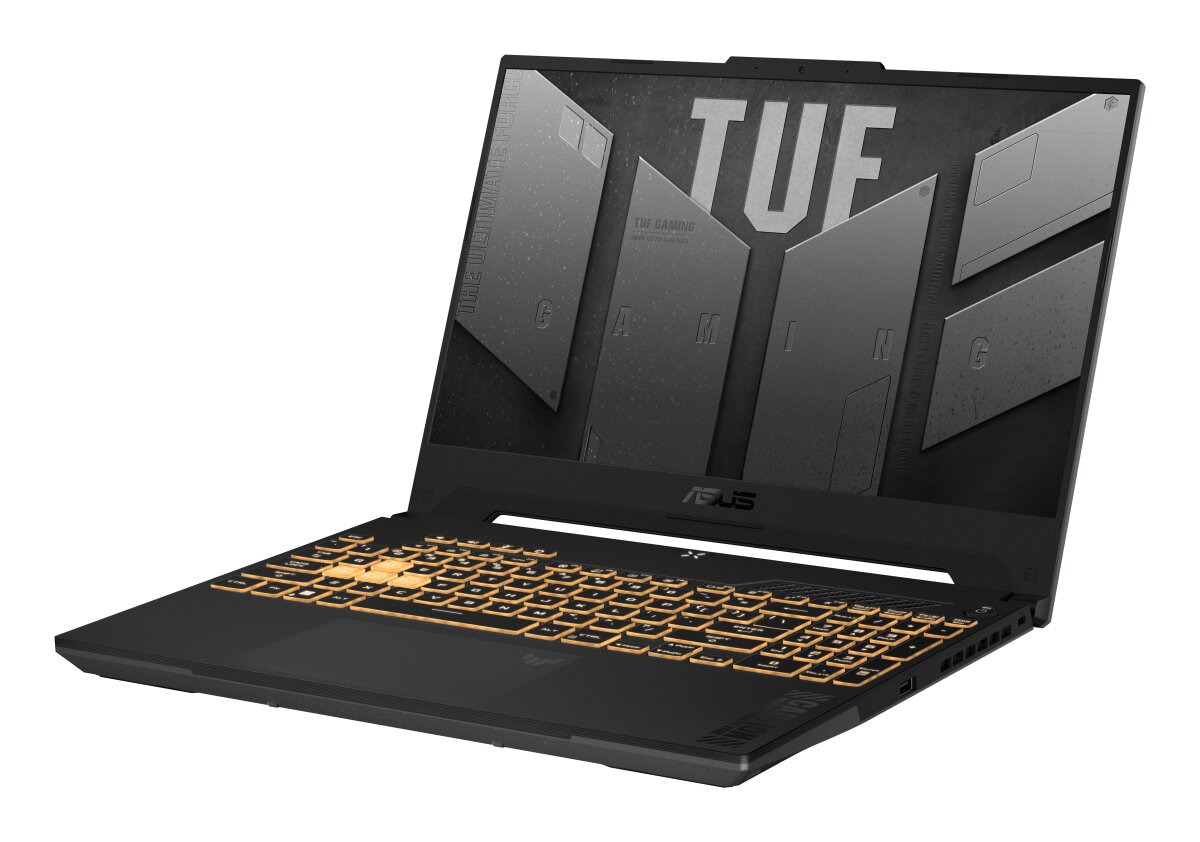

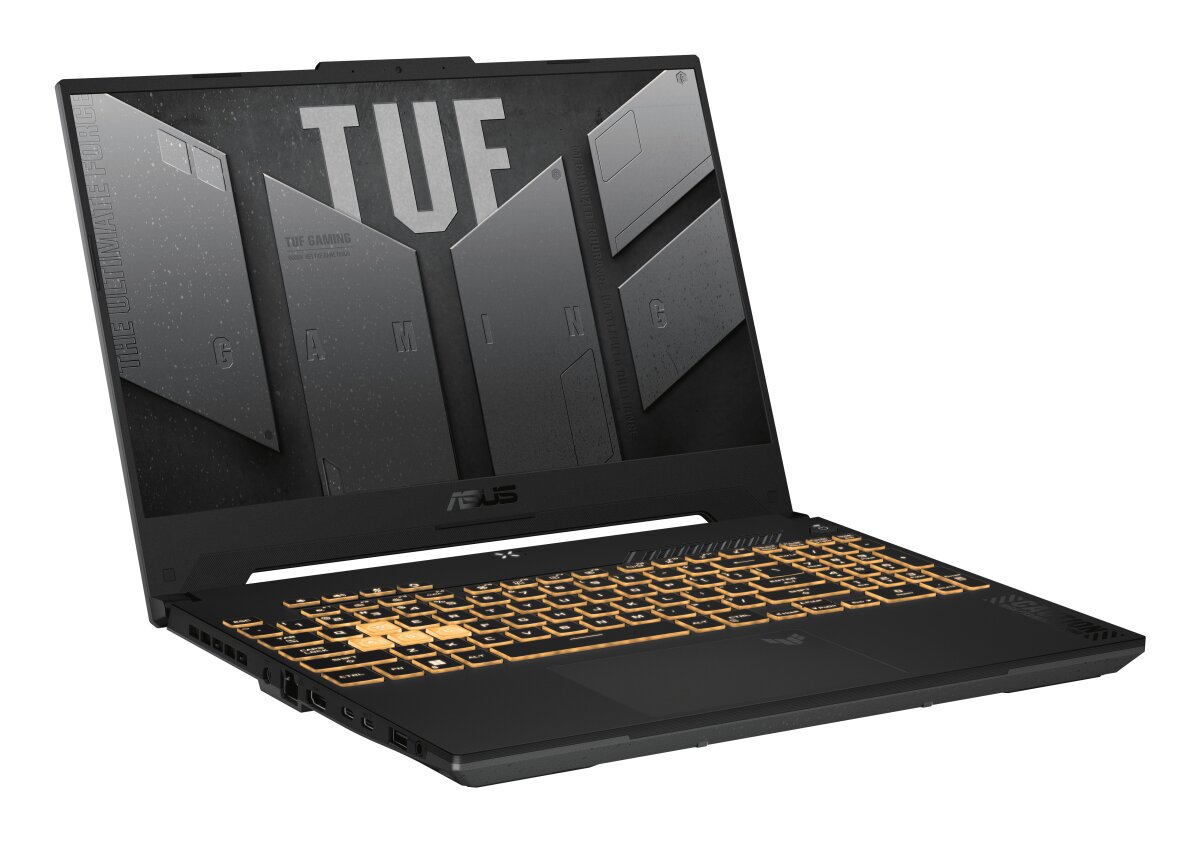

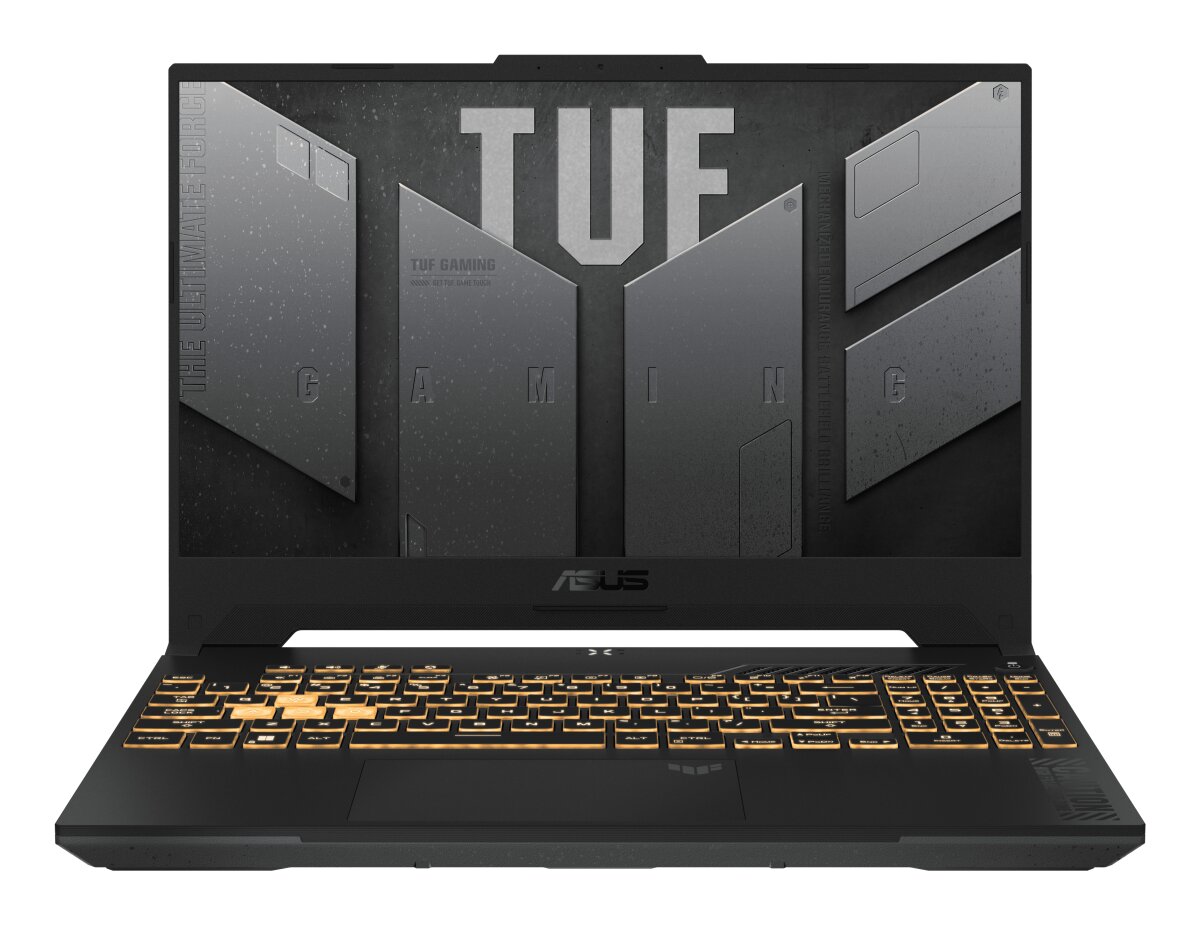

ASUS TUF Gaming FX507ZC4-HN072W RAM upgrade specifications
ASUS TUF Gaming F15 series model FX507ZC4-HN072W supports DDR4-SDRAM memory upgrades. The laptop features 2x SO-DIMM slots for memory expansion. Maximum supported RAM capacity reaches 32 GB total. Compatible memory modules operate at 3200 MHz frequency. SO-DIMM form factor specifications define the physical and electrical requirements for compatible RAM upgrades. Current configuration and upgrade options depend on factory specifications and motherboard compatibility parameters.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
Additional Notes
- The ASUS TUF Gaming FX507ZC4-HN072W operates with DDR4 memory at 3200 MHz, which represents a bandwidth ceiling of 51.2 GB/s per channel. Upgrading to DDR4 modules rated above 3200 MHz will not increase effective throughput due to JEDEC timing constraints on this platform.
- Dual SO-DIMM slot configuration requires matched pairs for optimal dual-channel performance. Installing a single module or mismatched capacities will force the system into single-channel mode, reducing memory bandwidth by approximately 50 percent and degrading frame rates in graphics-intensive workloads.
- The 32 GB maximum capacity ceiling means a full upgrade path consists of 2x16 GB SO-DIMM modules. Purchasing 2x8 GB sticks leaves no capacity headroom for future expansion within warranty-compliant parameters.
- SO-DIMM physical form factor requires removal of the bottom access panel for installation. Laptop warranty seals may be present; opening the chassis could void coverage depending on regional ASUS policies unless performed by authorized service centers.
- DDR4-3200 modules from non-standard manufacturers may exhibit timing incompatibilities with the BIOS, potentially causing system instability or failure to boot. Only SO-DIMM modules with JEDEC DDR4-3200 specifications or manufacturer-validated compatibility lists should be considered.
- Memory upgrades do not address potential latency bottlenecks created by the integrated GPU sharing the same memory bus. Gaming performance gains from RAM upgrades alone typically plateau at 8-12 percent on this class of mobile workstation.
