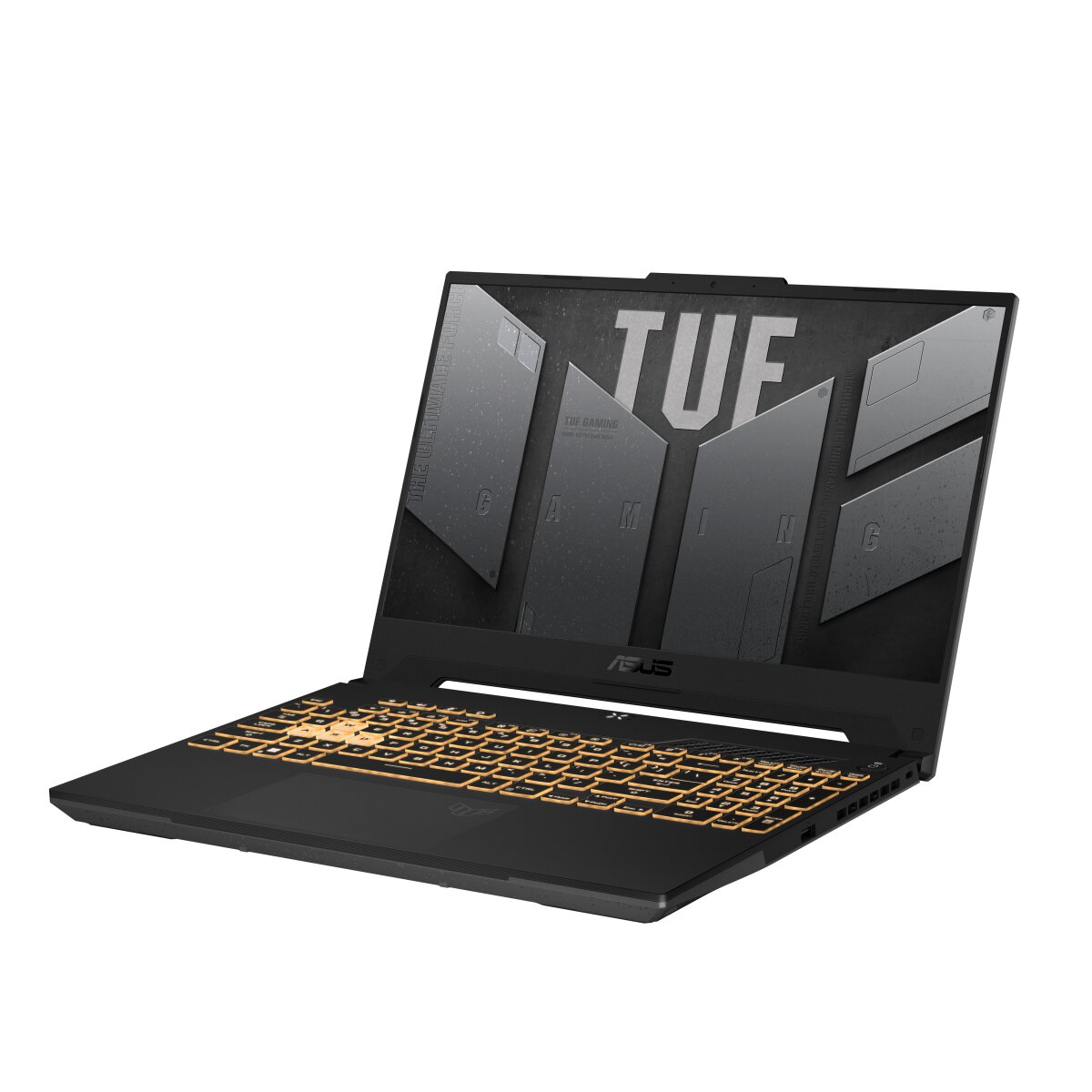

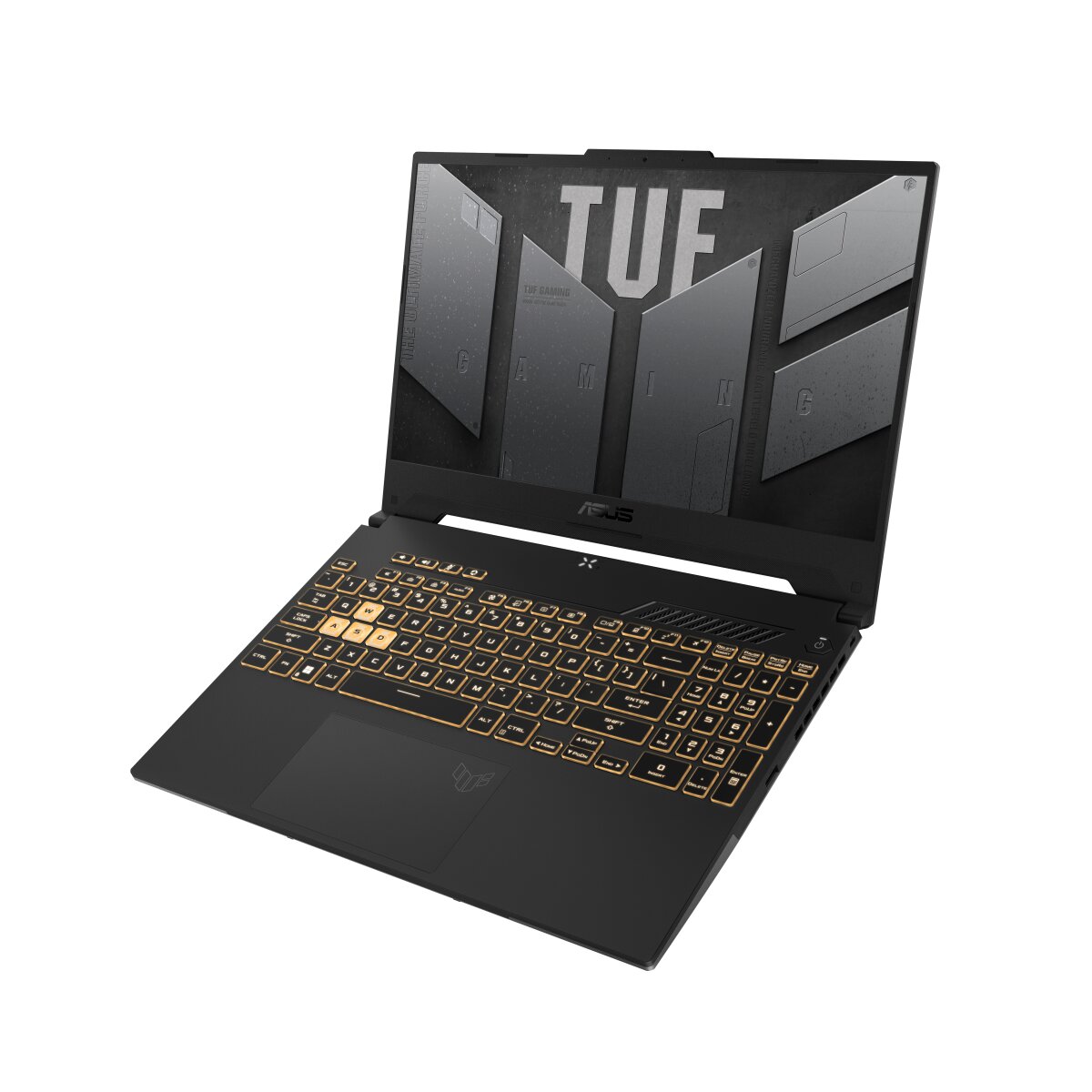

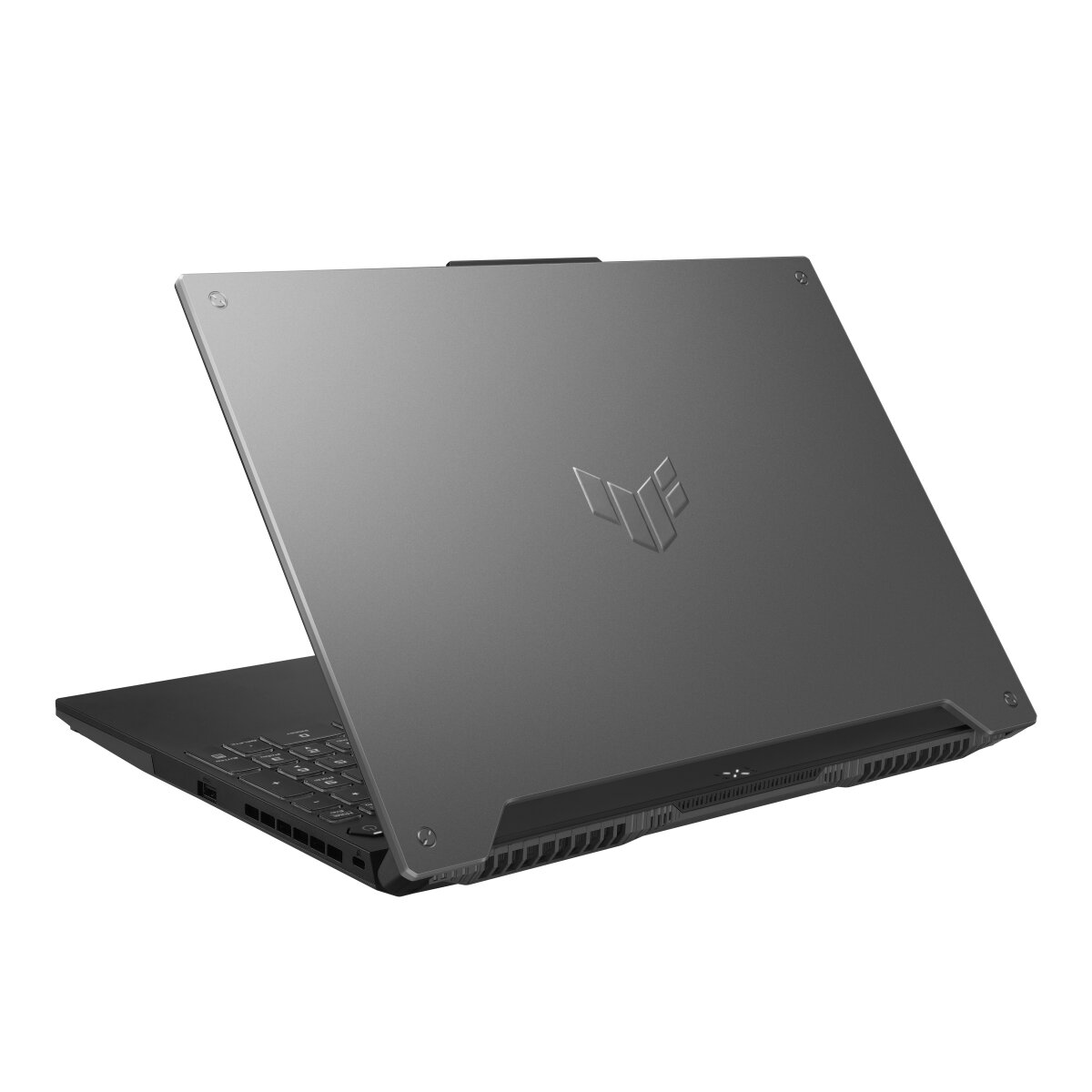

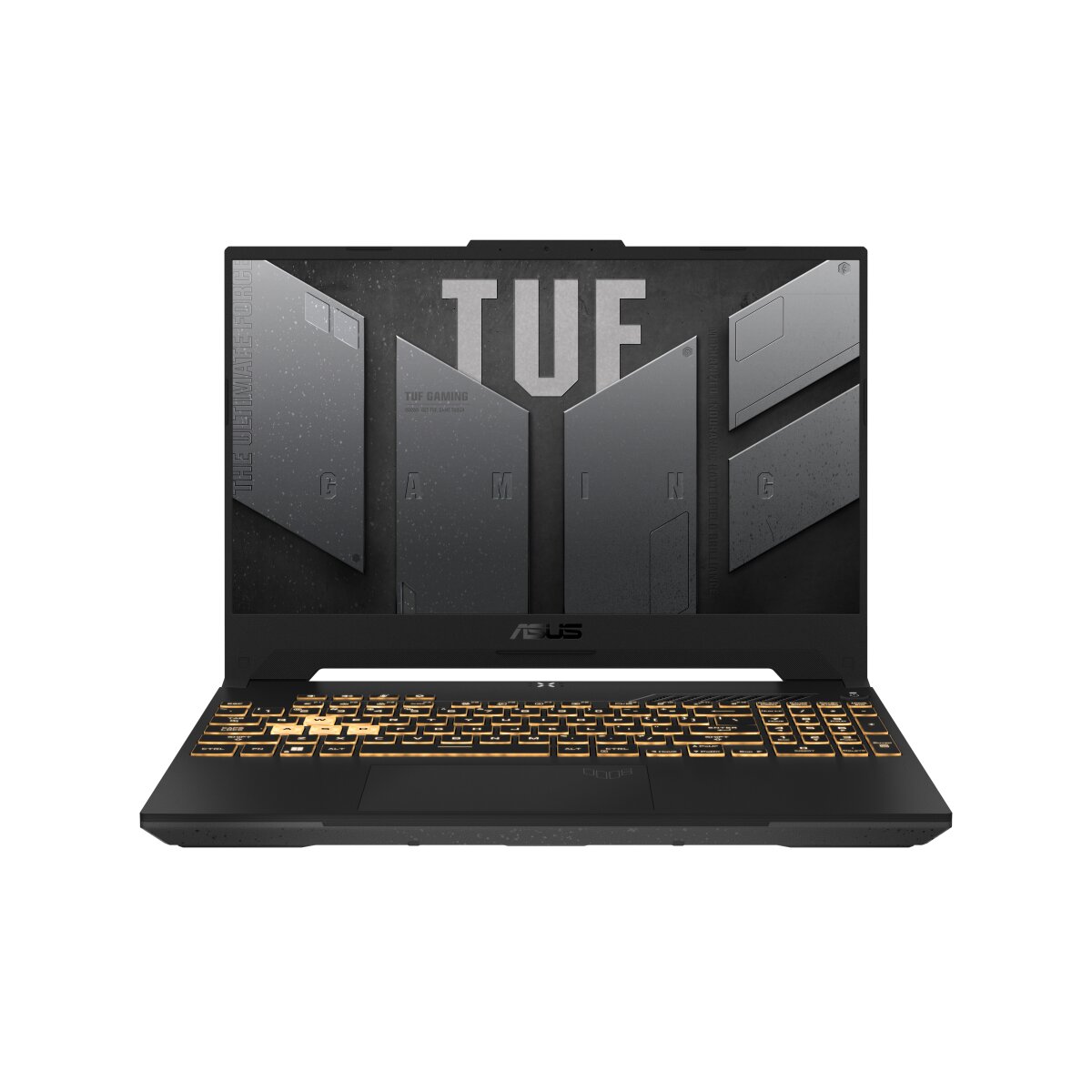

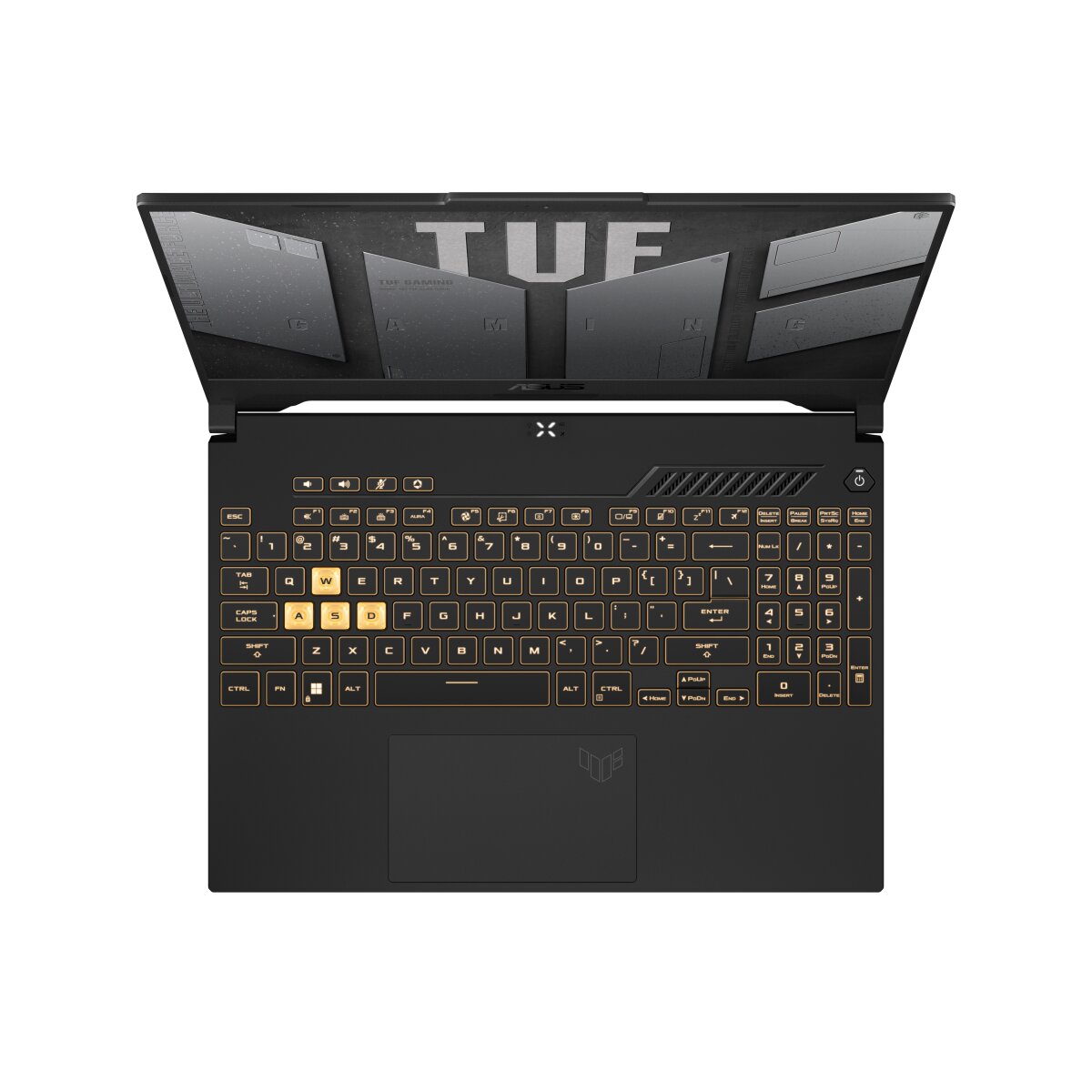

ASUS TUF Gaming FX507ZC4-HN081W-BE RAM upgrade specifications
The ASUS TUF Gaming F15 model FX507ZC4-HN081W-BE features DDR4-SDRAM memory specifications with two SO-DIMM slots available for upgrade. The laptop supports a maximum RAM capacity of 32 GB, with compatible memory operating at 3200 MHz frequency. Current memory configuration specifications and compatible upgrade modules are determined by the dual SO-DIMM slot architecture, enabling users to expand total system memory up to the 32 GB maximum capacity limit through additional DDR4-SDRAM modules meeting the specified frequency and form factor requirements.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
Additional Notes
- The dual channel architecture requires symmetrical pair installation to achieve peak memory bandwidth and prevent latency spikes during high load gaming.
- The 32 GB threshold represents the maximum addressable limit of the motherboard firmware and prevents the utilization of larger 32 GB single sticks.
- The Motherboard configuration on this ASUS TUF Gaming FX507ZC4-HN081W-BE lacks support for DDR5 modules due to physical slot keying and voltage differences.
- Upgrading to higher frequency modules results in automatic downclocking to the 3200 MHz system bus speed limit.
- Total memory replacement is necessary for capacity increases since no portion of the RAM is soldered to the printed circuit board.
- Physical access to the SO-DIMM slots requires the removal of the bottom chassis panel which utilizes standard Phillips screws but may involve internal plastic clips.
- Thermal management remains a factor as adding higher density modules increases the heat profile within the localized memory compartment.
