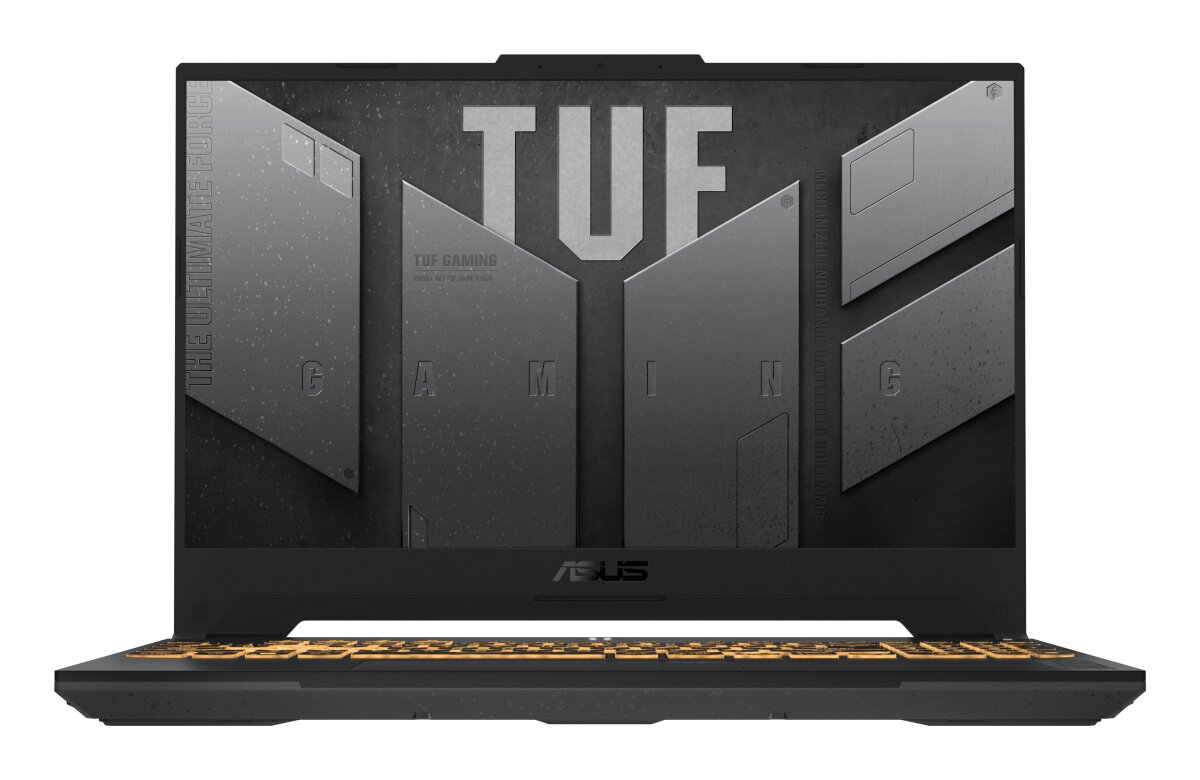

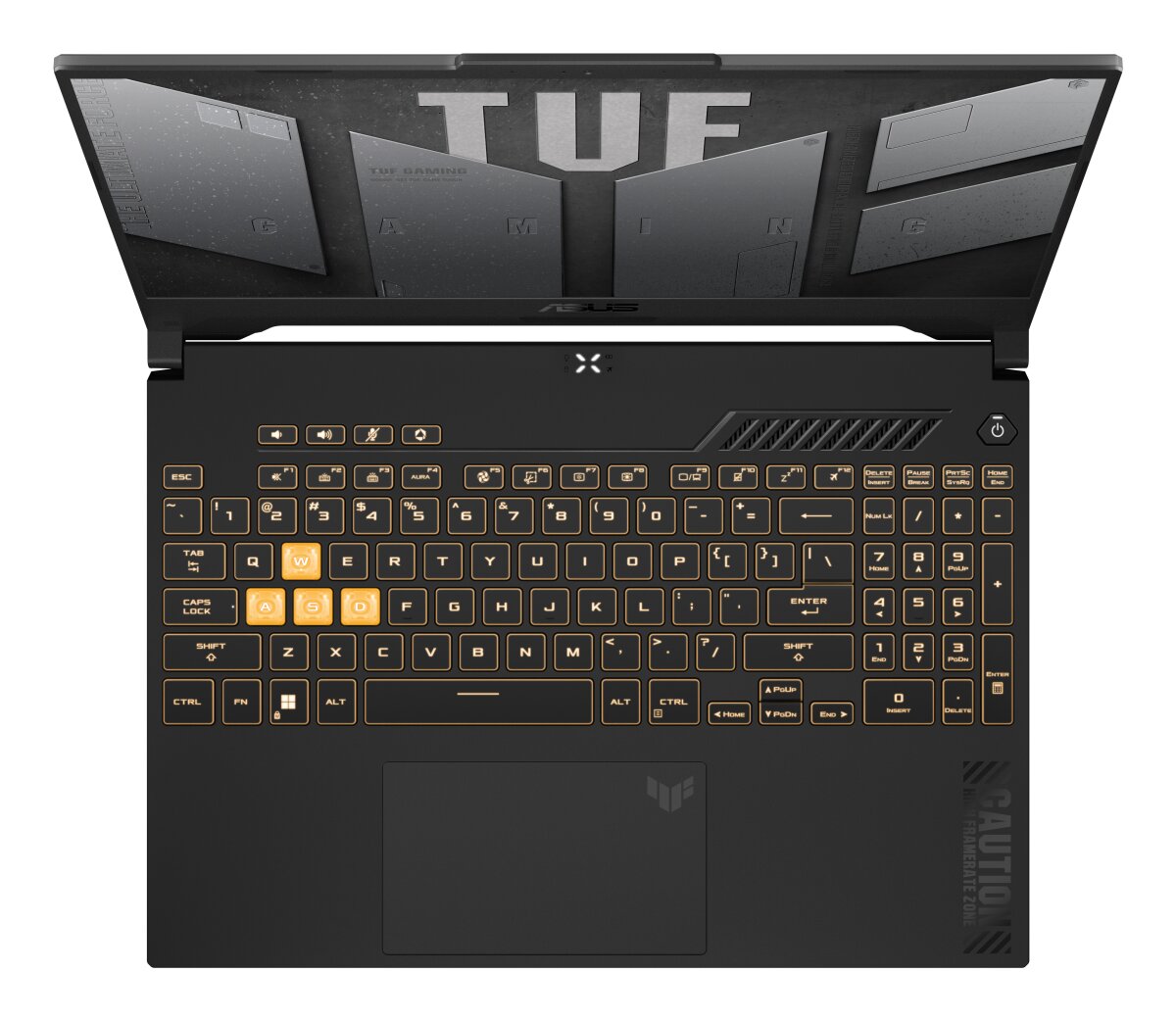

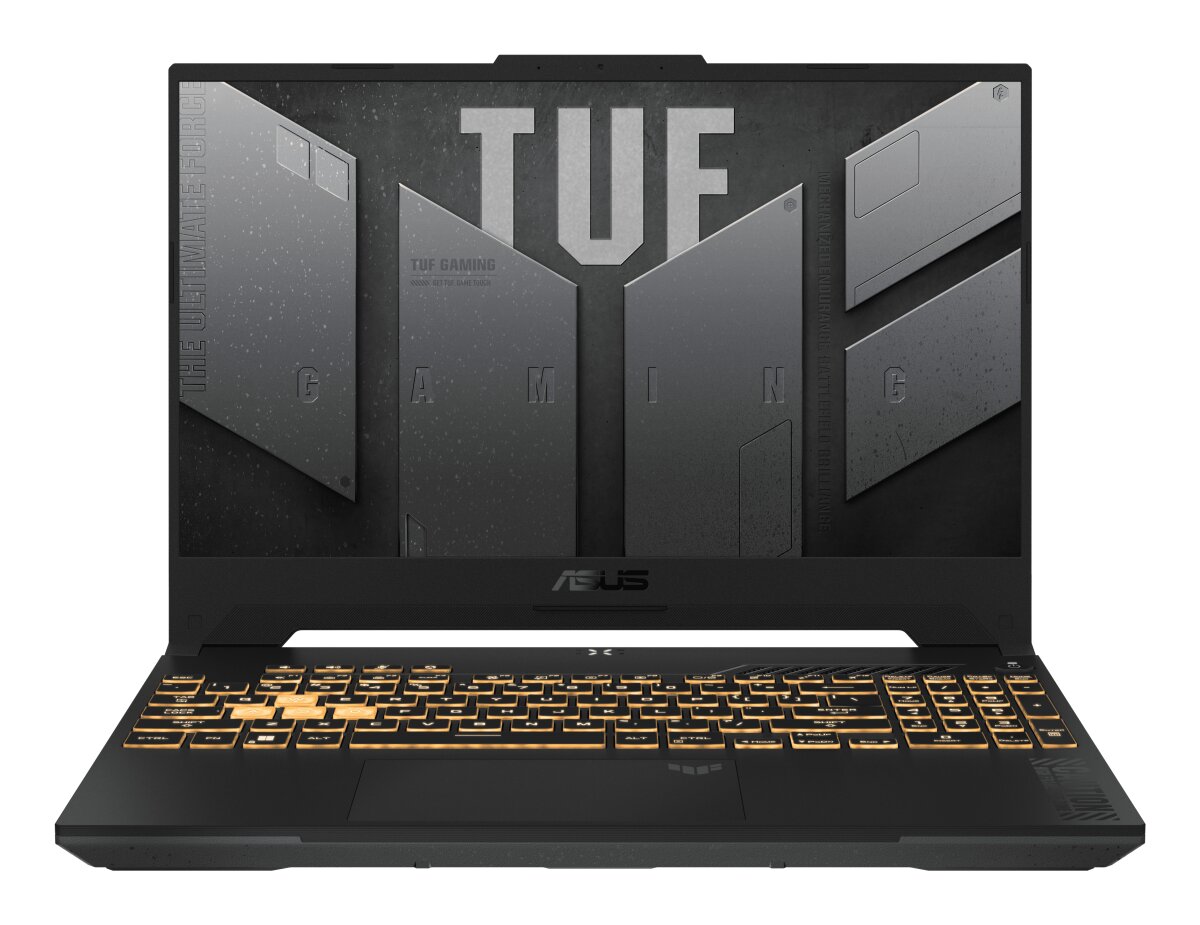

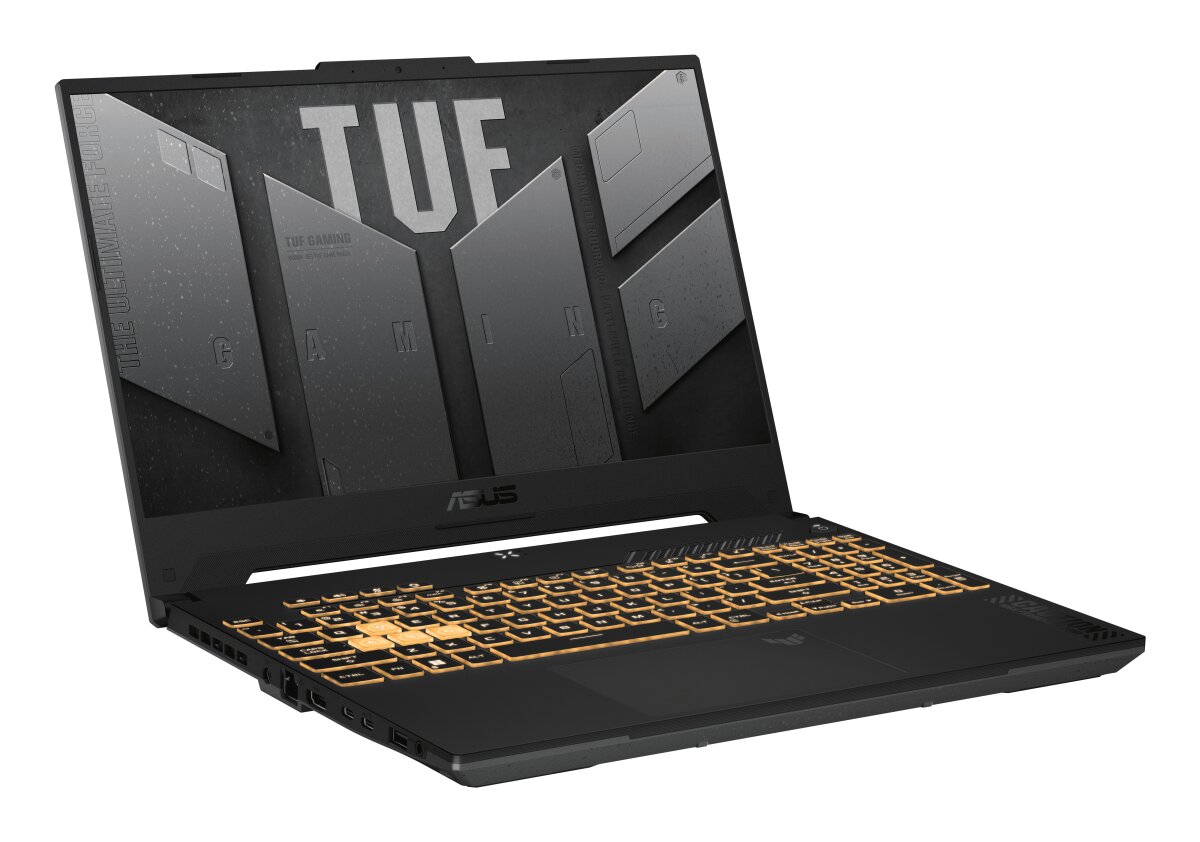

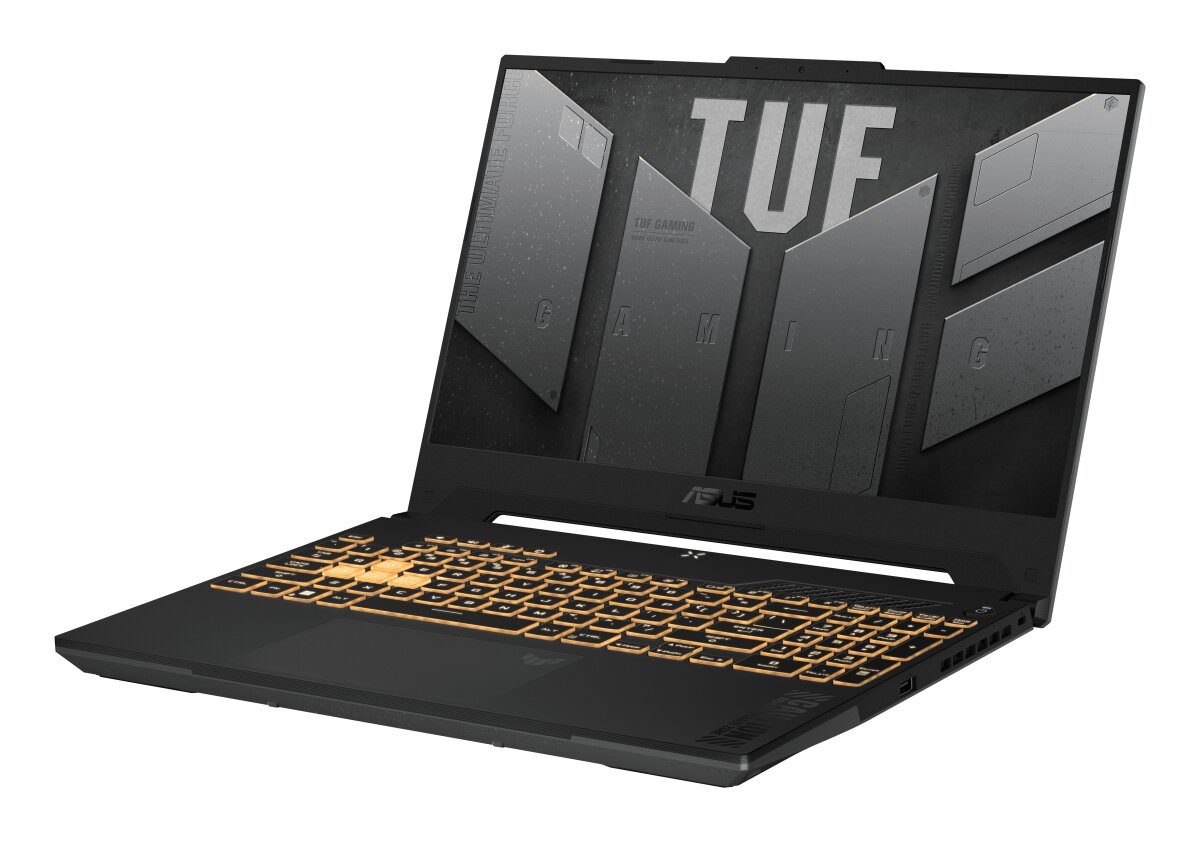

ASUS TUF Gaming FX507ZC4-HN211-GAMING RAM upgrade specifications
ASUS TUF Gaming F15 series model FX507ZC4-HN211-GAMING supports DDR4-SDRAM memory upgrade through 2 SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. Compatible memory specifications include DDR4 modules operating at 3200 MHz frequency. The SO-DIMM form factor applies to memory modules compatible with upgrade slots. RAM upgrade specifications enable expansion of the notebook's memory configuration for enhanced performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
Additional Notes
- The ASUS TUF Gaming FX507ZC4-HN211-GAMING contains 2 SO-DIMM slots operating as a dual-channel configuration, which means memory upgrades must maintain matched pairs for optimal bandwidth utilization. Mismatched capacity or speed between slots reduces effective throughput.
- DDR4-3200 modules represent a mid-range standard for this generation. Third-party replacements rated for DDR4-3600 or higher will downclock to 3200 MHz in this system unless BIOS overclocking profiles are enabled, making speed-premium modules economically inefficient without additional configuration.
- The 32 GB ceiling imposes a hard limit at 16 GB per slot, restricting future scalability. Any single module exceeding 16 GB capacity will not post or be recognized, regardless of DDR4 compliance.
- SO-DIMM form factor requires low-profile memory modules (approximately 30 mm height). Standard UDIMM modules physically cannot fit the laptop's memory compartment, and attempting installation risks mechanical damage to both module and socket.
- Warranty-safe upgrades require factory-specification DDR4 modules without overclocking profiles enabled. XMP/DOCP profiles may void coverage if stability issues arise, as the system lacks native support for speeds exceeding 3200 MHz at standard voltage.
- The dual-slot architecture means replacing 1 module creates a dual-channel asymmetry. If the original installation runs 2x8 GB, adding a single 16 GB stick results in unbalanced capacity (8/16 configuration), causing one channel to operate at reduced efficiency.
